Overview: Precision CNC Drilling for Steel Pipes
Precision CNC drilling of small holes on steel pipes requires strict dynamic stability, high spindle speeds, and specialized peck-drilling motion control to prevent bit deflection and heat accumulation. As industries demand tighter geometric tolerances and clean burr-free entry/exit points, automated CNC pipe drilling systems have become essential in modern manufacturing.
By leveraging high-rigidity CNC machine structures combined with high-pressure internal cooling systems, modern manufacturers achieve rapid, consistent production of micro and small-diameter holes (ranging from Ø0.5 mm to Ø6.0 mm) across carbon steel, alloy steel, and tough stainless steel grades (such as AISI 304, 316, and 410).
Technical Specifications & Drilling Parameters
To ensure repeatable accuracy and minimize tool wear during small hole production on curved steel surfaces, specific operational benchmarks must be maintained:
| Technical Parameter | Standard Specification | Technical Note / Standard |
|---|---|---|
| Hole Diameter Range | Ø0.5 mm – Ø6.0 mm | Solid carbide micro-drills / coated carbide |
| Positional Accuracy | ±0.01 mm | Linear encoder feedback |
| Hole Diameter Tolerance | ±0.008 mm to ±0.02 mm | ISO 286-2 IT7–IT8 tolerance grade |
| Spindle Speed Range | 8,000 – 30,000 RPM | High-speed electric spindle with low runout (<1 µm) |
| Cooling Method | High-Pressure Coolant (70+ bar) / MQL | Internal/external mist oil cooling |
| Wall Thickness Ratio | Up to 10xD depth-to-diameter | High-frequency peck drilling cycle |

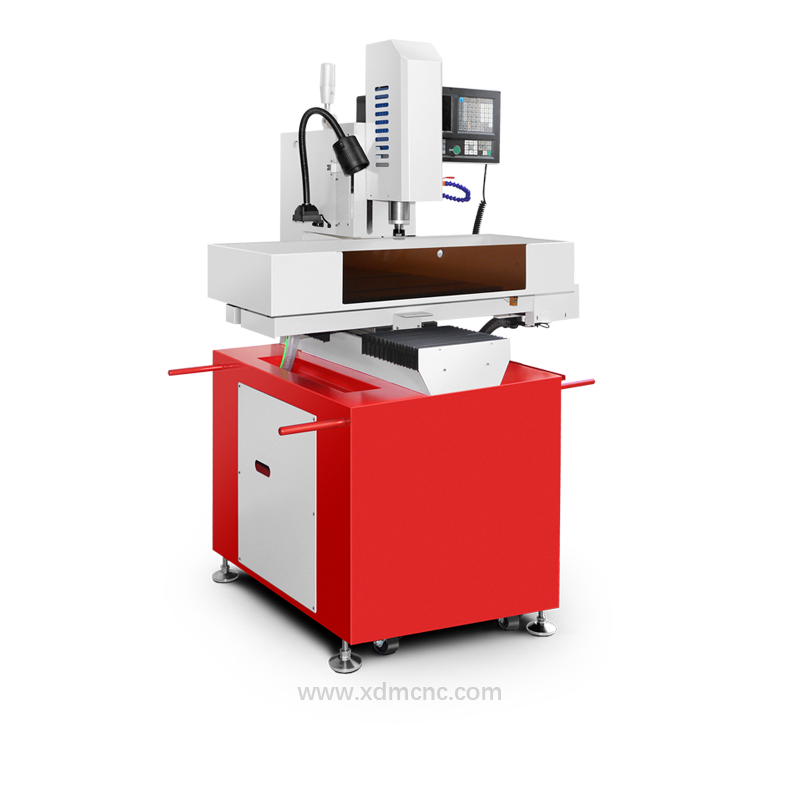

Key Advantages of CNC Small Hole Pipe Drilling
1. High Accuracy on Curved Surfaces
Drilling into rounded pipe contours creates significant lateral side-forces that can cause drill wander. Advanced CNC machines utilize automated surface-probing, flat spot spot-facing, or self-centering 140°–150° point angle drills to lock target coordinates reliably without pilot drift.
2. Superior Burr Control and Surface Finish
Internal deburring on small-diameter pipe interiors can be difficult. Controlled feed-rate deceleration during hole breakthrough, combined with customized drill point geometry, minimizes exit burrs and eliminates secondary hand-finishing processes.
3. High Efficiency and Volume Production

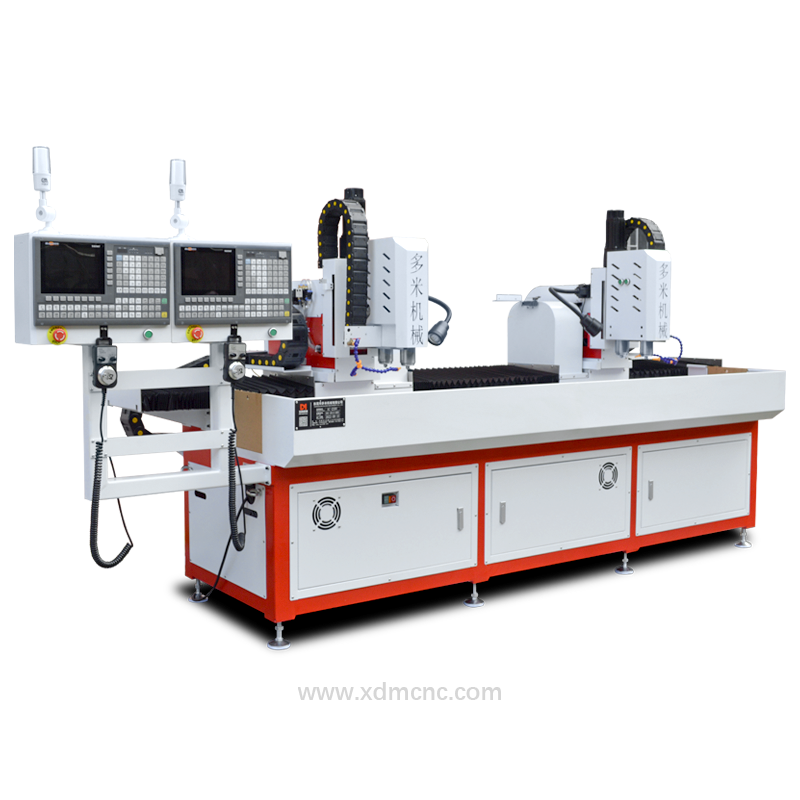

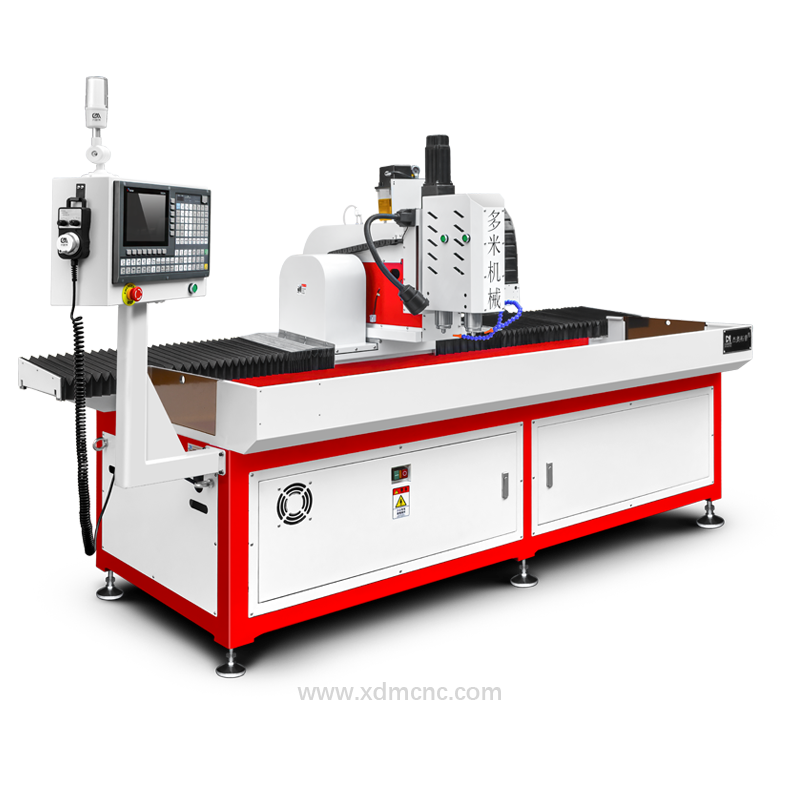

Multi-spindle and dual-system multi-axis configurations enable simultaneous drilling of dozens or hundreds of micro-holes per pipe section. Fully automated rotary indexing axis (A/C axis) hardware ensures continuous 360° circumferential pattern machining in a single setup.
4. Broad Material Compatibility
From thin-walled structural carbon steel tubing to thick-walled duplex stainless steel (e.g., UNS S32205) and heat-resistant alloys, multi-axis CNC drilling controllers adjust feed rates and spindle load in real time to prevent work hardening.
Advanced Tooling and Coolant Strategies
Solid Carbide Micro-Drills
For holes under Ø3.0 mm, micro-grain solid carbide bits with TiAlN or AlCrN PVD coatings provide elevated thermal hardness and abrasion resistance. Curved wall entry requires short flute lengths and reinforced shanks to optimize tool stiffness.
Peck Drilling Cycles and Chip Evacuation
Deep-hole drilling on pipe walls with depth-to-diameter ratios exceeding 5:1 employs specialized CNC peck cycles (G83/G73). Variable peck depth profiles clear stringy steel chips continuously, preventing chip jamming, catastrophic tool breakage, and hole wall scoring.
Primary Industrial Applications
- Automotive & Transportation: Exhaust manifold sensor ports, fuel distribution rails, and lightweight structural tubing.
- Aerospace & Defense: Hydraulic system bleed lines, cooling jackets, and pneumatic manifold tubes.
- Oil, Gas & Petrochemical: Fluid metering tubes, chemical injection quills, and filtration pipe screens.
- Medical & Construction: Stainless steel medical fluid manifolds, heat exchanger tubes, and precision architectural framing.
