As the new energy industry enters a phase of large-scale expansion, the demand for precision drilling in lithium batteries, photovoltaic modules, and hydrogen energy equipment is surging. Conventional drilling techniques struggle with low yield rates, inefficiency, and high costs, particularly in handling brittle materials, composite structures, and micro-hole arrays. Intelligent CNC drilling solutions, driven by high-precision machining technology, are emerging as the key to upgrading new energy manufacturing. This article analyzes the key pain points of new energy material drilling and elaborates on the innovative value of CNC drilling technology.

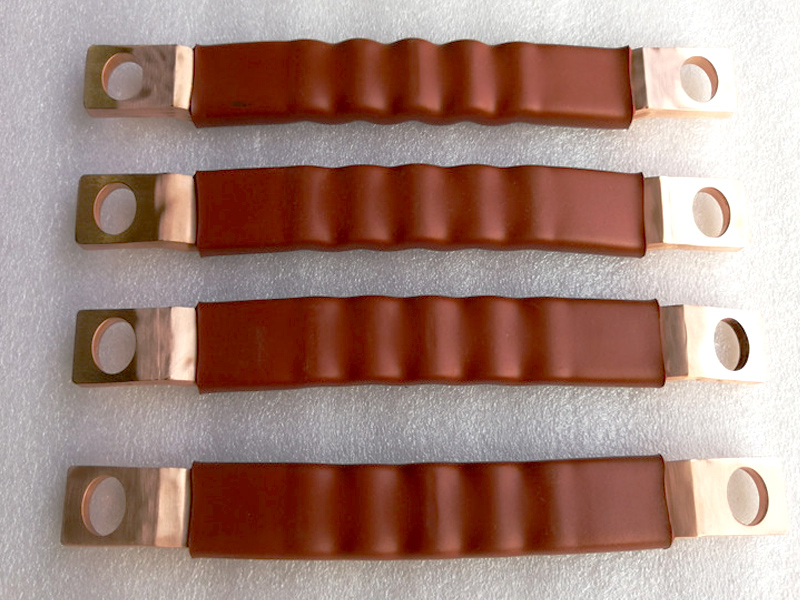

CNC drilling of soft connection copper bar products
I. Four Core Challenges in New Energy Drilling Processing
1. Challenges in Brittle Material Processing

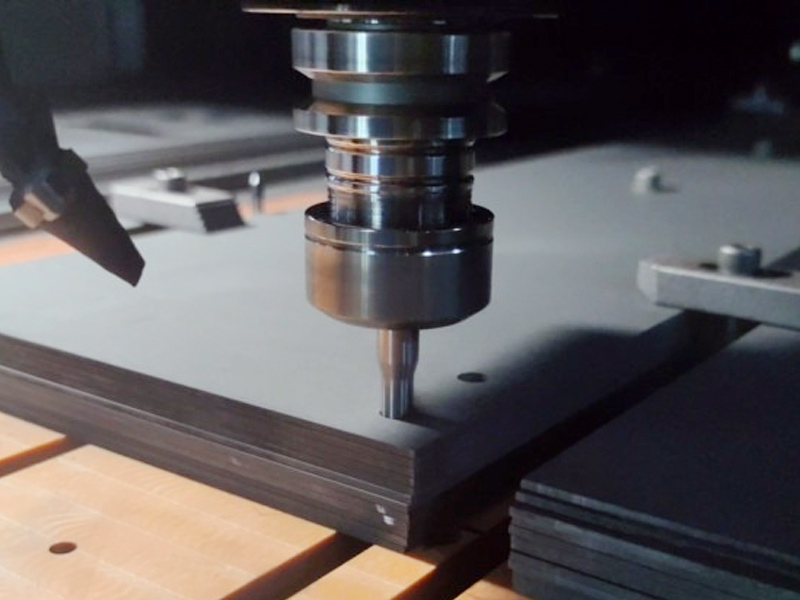

Typical Materials: Photovoltaic silicon wafers (<160μm thickness), solid-state battery ceramic separators (Al₂O₃/ZrO₂-based), hydrogen fuel bipolar graphite plates.
Technical Challenges: Conventional drilling leads to edge chipping (silicon wafer breakage rate >12%), microcrack expansion (ceramic separator airtightness reduction of 40%), and dust contamination (graphite dust accumulation causing short-circuit risks).
2. Difficulties in Multi-Layer Composite Structure Processing
Typical Scenarios: Stacked lithium battery electrodes (copper/aluminum foil + active material coating), PEM fuel cell (PEMFC) seven-layer composite membrane electrode.
Technical Challenges: Layer misalignment (0.1mm deviation reduces battery capacity by 15%), heat-affected zone (HAZ) diffusion (drilling temperatures >200°C cause coating delamination).
3. Precision Requirements for Micro-Hole Arrays
Typical Requirements: Perovskite solar cell electrode grid lines (50μm ±2μm hole diameter), electrolyzed water hydrogen production membrane electrodes (>5000 holes/cm²).
Technical Challenges: Traditional mechanical drilling results in poor hole consistency (CPK<1.0), and="" laser="" drilling="" causes="" excessive="" heat="" damage="">20μm HAZ).
4. Cost Control Pressures in Mass Production
According to BloombergNEF, processing accounts for 18% of power battery production costs, with drilling processes contributing significantly due to tool wear (carbide drill bit lifespan<2000 holes) and low yield rates (<85%).
II. Technological Innovations and Advantages of CNC Drilling Machines
1. High-Precision Dynamic Compensation System
Solution: Linear motor drive (positioning accuracy ±1μm) + laser real-time distance measurement closed-loop control.
Application Case: Tesla's 4680 battery tab drilling utilizes a multi-axis CNC system, achieving 0.05mm hole diameter tolerance and a yield rate of 99.3%.
2. Intelligent Process Parameter Library
Innovation: AI algorithms analyze material properties (e.g., silicon wafer crystal orientation, ceramic porosity) and automatically adjust spindle speed (20,000-80,000 rpm) and feed rate (0.5-50μm/rev).
Efficiency Boost: CATL's fifth-generation CTP battery module drilling achieves 120 holes/sec, a threefold improvement over the previous generation.
3. Hybrid Energy Field Machining Technology
Technological Integration:
Ultrasonic Vibration Assistance: Reduces cutting force by 90% (ideal for hydrogen storage tank CFRP drilling).
Low-Temperature Cooling System: Maintains processing temperatures<80°C (prevents PE/PP lithium battery separator melting).
Equipment Case: Germany's Trumpf TruLaser 5030 CNC drilling and cutting machine achieves zero-chipping drilling for photovoltaic heterojunction TCO glass.
4. Digitalized Production Management
Industrial IoT Integration: Real-time monitoring of drill bit wear via OPC UA protocol (vibration spectrum analysis accuracy of 0.1μm).
Cost Efficiency: BYD's turret CNC drilling machine with an intelligent tool-changing system increases tool utilization by 40%, saving over $3 million annually.
III. Key Application Scenarios and Market Value
1. Power Battery Manufacturing

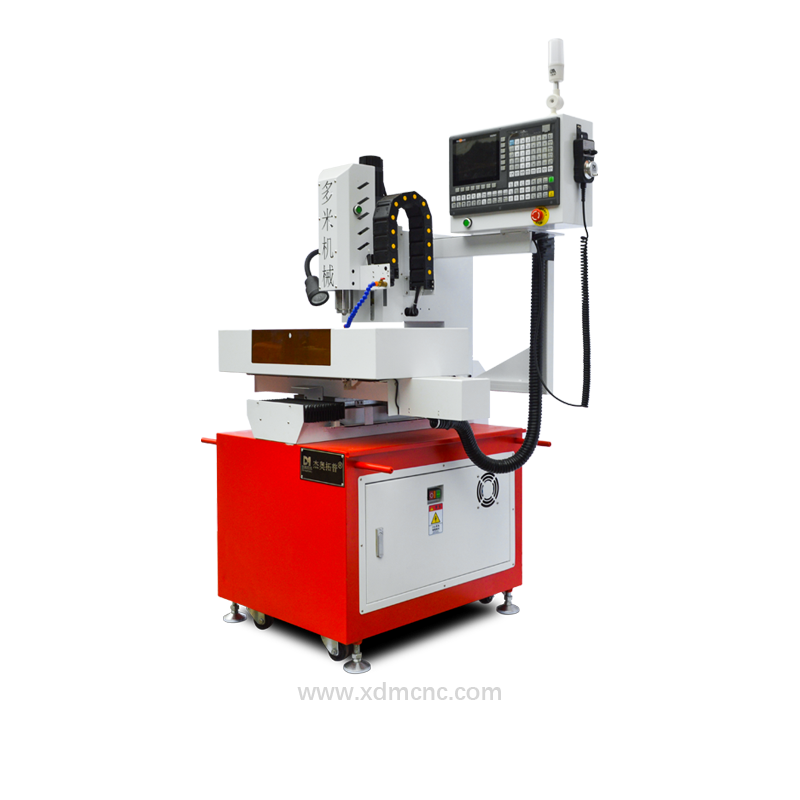

Electrode Flow Hole Processing: High-speed CNC micro-drilling (φ0.3mm) with vacuum chip removal to eliminate metal debris contamination (<0.1mg/cm²).
Market Data: The global power battery drilling equipment market reached $2.7 billion in 2023 and is expected to surpass $5 billion by 2026 (GGII report).
CNC drilling of soft connections for new energy power batteries
2. Photovoltaic Module Production
Heterojunction Cell Metallization Drilling: Five-axis CNC systems achieve 30° inclined hole processing (5:1 depth-to-diameter ratio), improving conductive silver paste filling efficiency by 70%.
Technical Breakthrough: China's Maiwei Technology has developed CNC laser drilling equipment achieving 0.5s/hole processing speed on 182mm silicon wafers.
3. Hydrogen Energy Equipment Manufacturing
Bipolar Plate Flow Field Processing: Six-axis CNC machines with diamond-coated drill bits process 0.8mm micro-holes in 1.5mm-thick stainless steel (positioning accuracy ±5μm).
Industry Standard: The GB/T 38914-2020 national standard mandates that hydrogen fuel cell bipolar plate drilling roughness must be Ra≤0.8μm.
IV. Future Development Trends and Challenges
1. Technological Advancement Directions
Quantum Sensor Feedback: NV color center quantum sensors for nanoscale hole morphology detection.
Ultra-Hard Material Tools: Nitrogen-doped diamond (NCD) coated drill bits extend lifespan to 500,000 holes (current limit: 100,000 holes).
2. Industry Chain Collaboration Needs
Material-Equipment Co-Development: Optimizing CNC drilling parameters for sodium-ion battery layered oxide cathodes (HRC65 hardness).
Standardized Interface Development: Establishing communication protocol standards for new energy drilling equipment (e.g., SEMI PV22-0712).
3. Sustainability Requirements
Zero-Pollution Processing: Vacuum adsorption + electrostatic dust collection systems achieve >99.9% dust recovery.
Energy Optimization: Next-generation CNC systems reduce power consumption to 1.5 kWh/m² (60% lower than traditional systems).
Development Trends of CNC Drilling in New Energy
As the new energy industry transitions from the GWh to the TWh era, CNC drilling technology is reshaping the value chain of high-end manufacturing with its precision, intelligence, and sustainability. With deeper integration of material innovation and digital technologies, intelligent drilling equipment will not only serve as a machining tool but also as a strategic enabler for industry transformation, driving new energy manufacturing towards a "zero-defect" paradigm.
