High-Precision CNC Drilling Machine for Small & Micro Holes

Executive Overview: High-Precision Small Hole CNC Machining

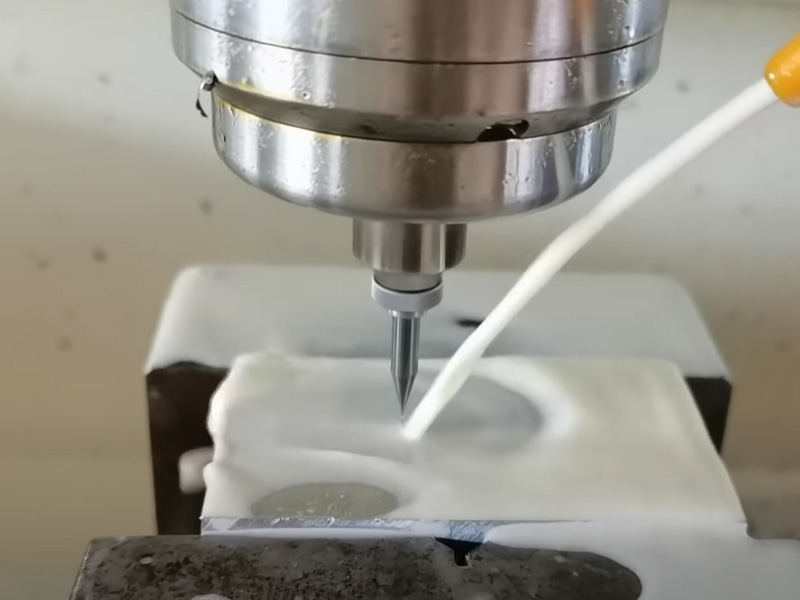

The DUOMI DNC-2030HD Vertical CNC Drilling & Tapping Machine is an advanced industrial solution engineered specifically for high-speed, high-precision micro-hole machining. Capable of drilling hole diameters ranging from 0.07mm to 3.0mm, this small hole CNC drilling machine combines ultra-high spindle speeds (up to 60,000 RPM) with a micron-level spindle runout, ensuring unmatched surface finish and accuracy across demanding B2B manufacturing sectors.

Ideal for industries such as electronics, aerospace, medical devices, automotive components, and semiconductor sub-assemblies, the system replaces fragmented manual operations with multi-process automation (drilling, tapping, chamfering, and milling in a single setup).

Key Operational Benefits & Solutions

1. Multi-Process Integration to Maximize Efficiency

• Industry Pain Point: Traditional micro-drilling relies on manual labor across separate drilling and tapping stations, causing frequent setups, high labor overhead, and extended lead times.
• DUOMI Solution: Multi-process capability enables single-setup operation covering micro-drilling, rigid tapping, chamfering, and light milling. Rapid axis motion (X-axis: up to 60m/min, Y/Z-axis: 25m/min) significantly reduces total cycle times.

2. Multi-Axis Capability for Complex Geometry

• Industry Pain Point: Angled holes, complex surfaces, and multi-hole irregular workpieces are difficult to fixture and process on conventional equipment without risking scrap.
• DUOMI Solution: Supports 3-axis, 4-axis, or 5-axis linkage integrated with advanced CAD/CAM software imports. Compatible with high-precision custom fixtures and ceramic vacuum chucks for secure, high-stability clamping.

3. Scrap Reduction & Defect Control (Down to 0.2% Defect Rate)

• Industry Pain Point: Manual operation leads to dimensional drift, tool breakage, and defect rates reaching 5–8% on tight-tolerance components like engine oil passages or micro-fluidic plates.
• DUOMI Solution: Full servo motor transmission control paired with water-cooled high-speed spindles maintains temperature stability. A leading automotive manufacturer cut oil passage hole defect rates from 8% to just 0.2%, achieving annual material savings of $500,000.

4. Continuous Unmanned Automation & Reduced Labor Overhead

• Industry Pain Point: Shortage of skilled CNC technicians and rising labor costs constrain continuous production capacity.
• DUOMI Solution: Compatible with Automatic Tool Changers (ATC) and robotic loading/unloading systems for continuous 24/7 lights-out operation. A single operator can oversee multiple units via an intuitive graphical programming interface.

Technical Performance & Machine Capabilities

• Spindle Performance: 30,000–60,000 RPM variable continuous spindle with water-cooling jacket to eliminate thermal drift.
• Positioning Accuracy: ±0.02mm repeated positioning accuracy with full-servo drive loop.
• Working Envelope: 2000mm x 280mm table size accommodating long profiles, multi-part fixtures, or step-and-repeat arrays.
• Broad Material Compatibility: Precision drilling across Ferrous metals, Non-ferrous metals, Superalloys (Inconel, Hastelloy, Titanium), Refractory metals (Tungsten, Tantalum), and advanced composites (Graphene, Ceramics).

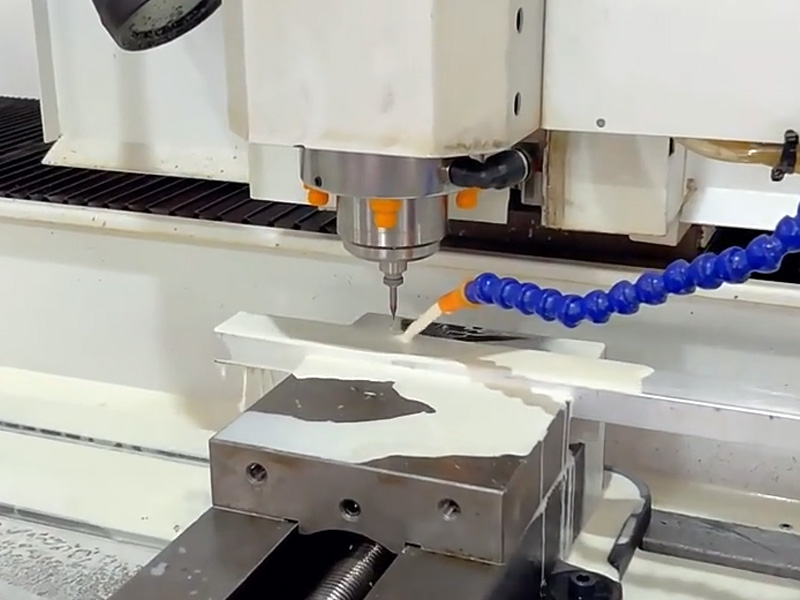

For complementary high-speed profile production, explore our CNC drilling machine for aluminum profiles and Stainless Steel or consult our engineers for tailored multi-spindle options.
