High-Precision CNC Drilling Machine for Aluminum Profiles & Stainless Steel
Achieve high-speed micro-hole drilling (0.15–4.0mm) with ±0.02mm accuracy, 60,000 RPM spindle speeds, and integrated tapping capabilities for industrial profile processing.
💡 Our CNC drilling and tapping machines support custom non-standard designs, machine color customization, and OEM branding. Start now to purchase and customize your own equipment, please contact us.
Request a Free Machining Sample →
Features
Ultra-High-Speed Micro Spindle: 24,000–60,000 RPM spindle provides optimal cutting velocity for micro drill bits down to Ø0.15mm.
Burr-Free Micro Hole Finish: Controlled micro-feed system prevents drill deflection, bit breakage, and hole entrance burrs.

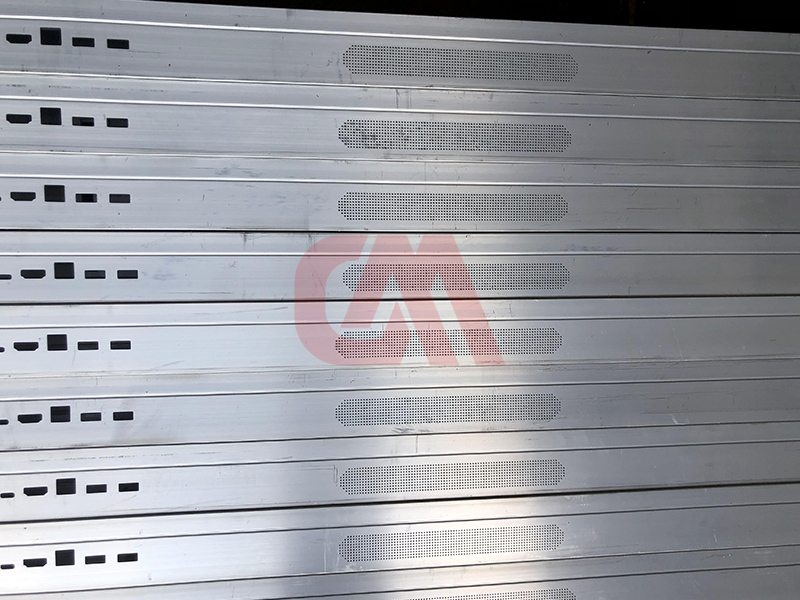

Aluminum Profile Micro Machining: High-speed micro drilling for electronic heat spreaders and extrusion ventilation holes.
High-Precision Positioning Accuracy: High-resolution servo drives deliver ±0.02mm repeatable accuracy for delicate components.
In-Depth Engineering Description & Technical Overview
Click to expand complete machine capabilities, workflow analysis & application guide
Click to Expand
Collapse Details
Industrial Overview & Processing Capability

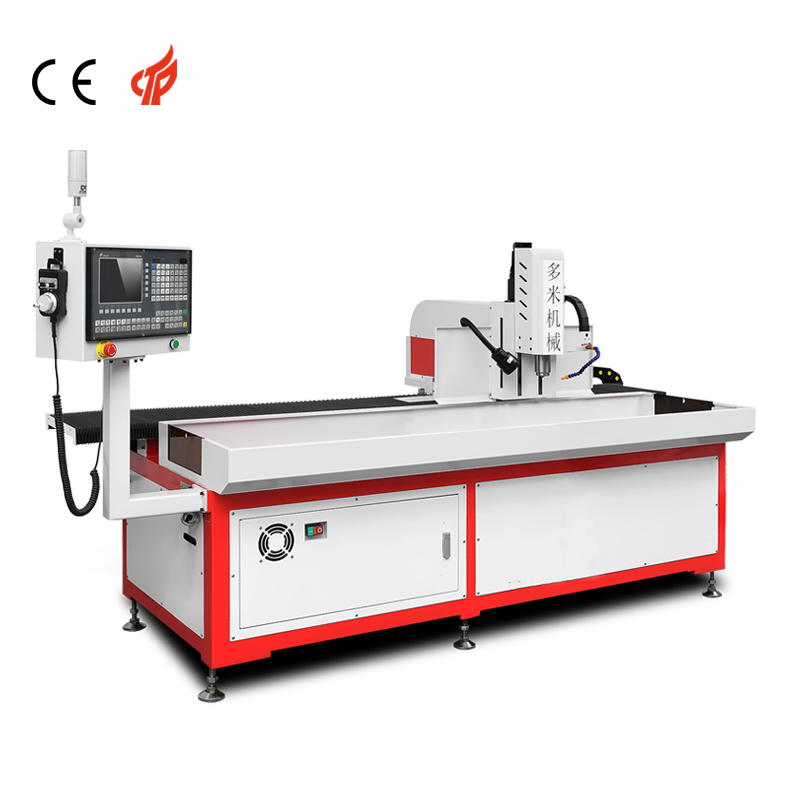

The DUOMI DNC-1030HD CNC drilling machine for aluminum profiles and stainless steel delivers unmatched accuracy, speed, and efficiency for high-volume and custom profile machining. Designed specifically for demanding B2B applications in architectural, automotive, aerospace, and electronics manufacturing, this high-performance CNC drilling solution solves common production bottlenecks associated with manual hole positioning, process switching, and quality inconsistency.
Engineered with a robust 1000kg frame, 1000mm x 280mm working table, and full servo-motor transmission, the system handles micro-drilling and small hole processing down to 0.15mm diameter while maintaining tight repeat positioning accuracy of ±0.02mm.
Key Technical Advantages
- Ultra-High-Speed Water-Cooled Spindle: Reaching spindle speeds from 3,000 up to 60,000 RPM, the integrated liquid-cooling cycle prevents thermal expansion, ensuring micron-level spindle runout and extreme stability during extended continuous runs.
- High-Speed Axis Dynamics: Rapid traverse rates up to 60 m/min on the X-axis and 25 m/min on Y/Z axes significantly reduce non-cutting cycle times and maximize hourly output.
- Multi-Process Integration: Combines drilling, tapping, chamfering, and light milling into a single setup to streamline workflow and minimize workpiece handling errors.
- Flexible Multi-Axis Control: Supports 3-axis, 4-axis, or 5-axis linkage setups for complex angular holes, inclined surfaces, and irregular profile geometries.
- Automated Tool Changing (ATC) & Robotics: Optional pneumatic tool magazine and automated loading/unloading interface facilitate continuous 24/7 unmanned manufacturing.
Solved Industrial Pain Points & Proven ROI
1. Defect Rate Reduction from 8% down to 0.2%
In traditional engine component and aluminum profile machining, manual operations suffer from operator fatigue and drill wandering. A leading automotive supplier implemented DUOMI's high-precision CNC drilling machine for machining oil passage holes in engine cylinder heads, reducing scrap rates from 8% to just 0.2% and generating $500,000 in annual material savings.
2. Elimination of Multi-Machine Bottlenecks
By replacing standalone drilling, tapping, and chamfering stations with an integrated single-setup process, manufacturers eliminate idle transfer times, reduce fixture investments by up to 40%, and achieve 3x throughput improvements.
3. Reduced Labor Reliance & Fast Setup
Integrated CAD program import and graphical CNC controllers lower operator skill thresholds. One technician can monitor multiple DUOMI CNC machines simultaneously, drastically lowering per-part labor costs.
Multi-Material Machining Compatibility
Engineered to drill hard, ductile, and heat-sensitive metals alike: * Light Alloys: Aluminum extrusion profiles, copper sheets, brass, zinc alloys. * Hardened Metals: Stainless steel (304, 316), tool steel, iron, cast steel. * Exotic & Advanced Alloys: Titanium, Inconel, Hastelloy, Tungsten, Tantalum, Carbide, Platinum, and Graphene plates.
Purchase & Delivery Guarantees
Direct Factory Assurance — Built, Tested, and Supported from Dongguan to Your Shop Floor
Runs on Your System
Standard GSK control (100% Fanuc G-code compatible) or optional Mitsubishi/Siemens. Direct CAD file import for code-free toolpath generation.
Factory Video FAT
Live drilling/tapping tests on your actual workpiece recorded before dispatch. Final 50% balance payment is paid only after your video approval.
40-Day Build & Rugged Crate
Guaranteed maximum 40-day manufacturing cycle. Sealed in anti-rust vacuum aluminum foil and bolted in fumigation-free timber crates (EXW/FOB/CIF).
Direct Engineer Care
Direct 1-on-1 WhatsApp group with your machine's build engineers, 12-month full warranty, and critical replacement parts dispatched via DHL within 24–48h.
Every DUOMI machine is built under a transparent 13-step factory production & responsibility chain.
Parameters
Download Technical Brochure| Model | DNC-1030HD CNC drilling machine |
| XYZ three-axis machining stroke | X1000mm, Y300mm, Z200mm |
| Spindle speed | 3000~60000rpm (Can be selected according to demand) |
| Spindle taper hole | Collet reducer sleeve |
| Spindle power | 0.55~3.0KW |
| X axis moving speed | 30m~60m/min |
| Y axis moving speed | 25m/min |
| Z axis moving speed | 25m/min |
| Borehole diameter range | 0.15~4.0mm |
| Tool magazine | Pneumatic press knife change |
| Repeated positioning accuracy | ±0.02mm |
| Table size | 1000mm x 280mm |
| Programming mode | CAD file import / computer programming / manual programming |
| System program storage capacity | About 10,000 |
| System external signal control | Support |
| Operating voltage | AC 220V/50HZ |
| Machine weight | Approx. 1000KG |
| Scope of application | Small holes & micro holes drilling |
| Floor space | 2500mm x 1500mm x 1700mm |

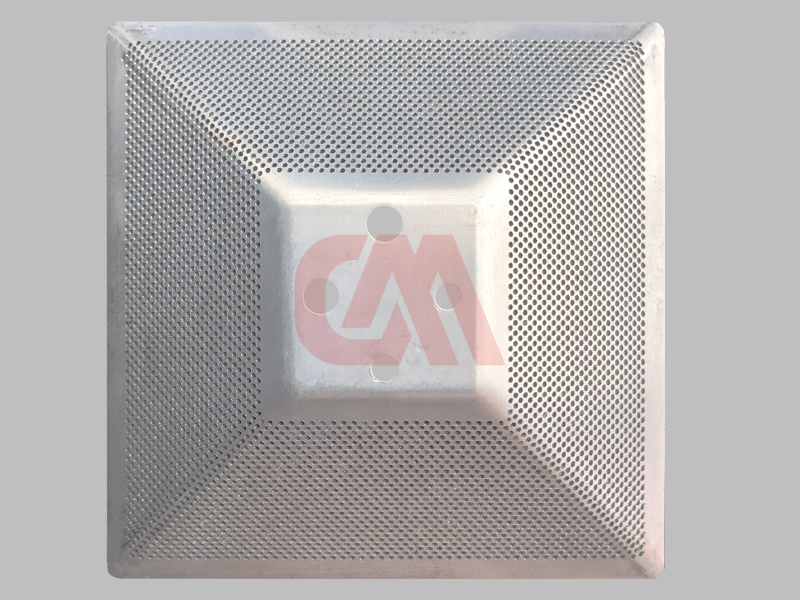

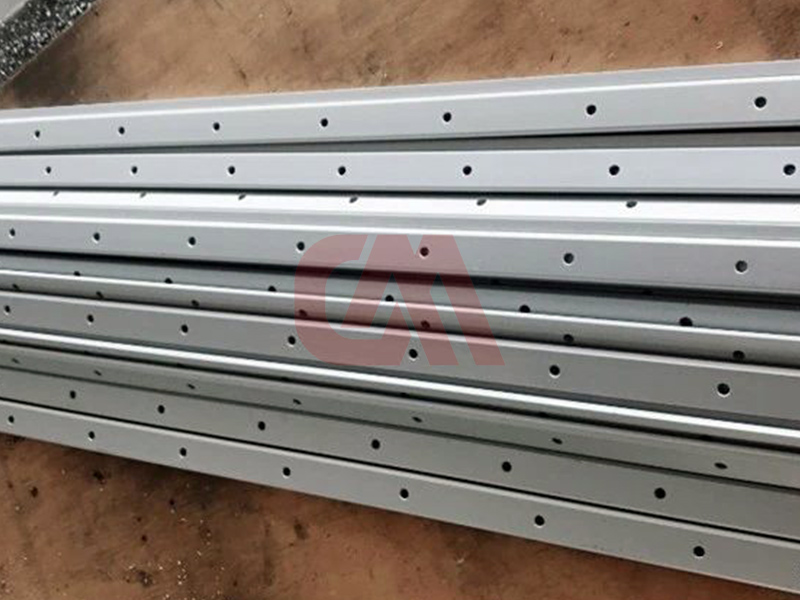

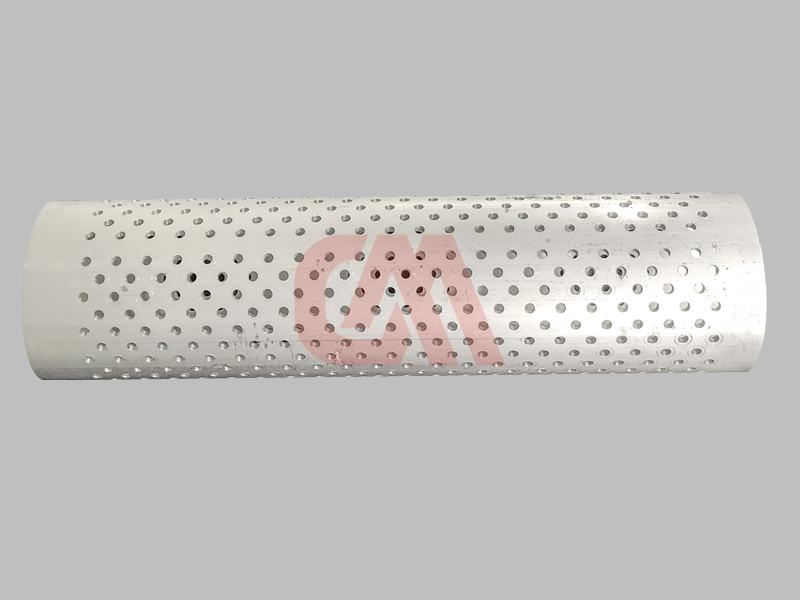

Machining Samples
Real parts processed by our machines
Frequently Asked Questions
We “only” do drilling & tapping. Why do customers still choose Duomi over general-purpose CNC machines?
What does “Your part defines the solution” mean in practice?
What is the achievable hole diameter range on this CNC drilling machine?
How does the spindle speed affect micro-hole drilling quality on aluminum profiles and stainless steel?
What accuracy and repeatability tolerances does this machine guarantee?
Can the DNC-1030HD handle integrated tapping and milling operations?
How are programs loaded into the CNC drilling controller?
Is custom OEM branding or non-standard machine customization available?
What is the standard delivery lead time for export orders?
