CNC Drilling Machine for Long Metal Profiles (DNC-3030HD)
Ultra-Precision, High-Speed Micro-Hole Drilling and Milling System for Extended Beams, Tubes, and Sheets
💡 Our CNC drilling and tapping machines support custom non-standard designs, machine color customization, and OEM branding. Start now to purchase and customize your own equipment, please contact us.
Request a Free Machining Sample →
Features
Ultra-High-Speed Micro Spindle: 24,000–60,000 RPM spindle provides optimal cutting velocity for micro drill bits down to Ø0.15mm.
Burr-Free Micro Hole Finish: Controlled micro-feed system prevents drill deflection, bit breakage, and hole entrance burrs.
High-Density Hole Array Processing: Rapid positioning and micro-peck cycles optimize thousands of holes per shift.
High-Precision Positioning Accuracy: High-resolution servo drives deliver ±0.02mm repeatable accuracy for delicate components.
In-Depth Engineering Description & Technical Overview
Click to expand complete machine capabilities, workflow analysis & application guide
Click to Expand
Collapse Details
Industrial Precision Drilling for Extended Metal Profiles
The DUOMI DNC-3030HD CNC Drilling Machine for Long Metal Profiles is engineered for high-throughput, sub-millimeter micro-hole machining across extended workpieces up to 3,000 mm in length. Engineered to solve traditional manufacturing bottlenecks, this machine integrates multi-process functionality—including micro-drilling, tapping, chamfering, and milling—into a single high-efficiency setup.
Equipped with a high-frequency water-cooled spindle capable of reaching 60,000 RPM and full servo drive control, the DNC-3030HD guarantees micro-level spindle runout and repeatable positioning accuracy within ±0.02mm. Whether processing structural steel, aluminum extrusions, copper plates, or specialty alloys, DUOMI CNC delivers uncompromising dimensional consistency.
Core Technical Advantages
- Extended Machining Envelope: Generous X/Y/Z stroke of 3000mm x 300mm x 200mm paired with a 3000mm x 280mm heavy-duty table for long structural components.
- Micro-Hole Capability: Precision micro-drilling from 0.05 mm to 3.0 mm diameter, ideal for heat exchangers, fluidic channels, and aerospace components.
- Ultra-Fast Axis Dynamics: Rapid movement speed up to 60 m/min on the X-axis and 25 m/min on Y/Z axes to eliminate non-cutting cycle time.
- Thermal Stability: Spindle water-cooling cycle controls thermal expansion, maintaining constant temperature and operational stability during continuous 24/7 manufacturing runs.
- Automation Ready: Optional Automatic Tool Changer (ATC), robot loading/unloading interface, and pneumatic clamping reduce labor requirements and lower defect rates to 0.2%.
Industrial Applications & Material Compatibility
Designed for rigorous industrial demands, the DNC-3030HD is widely implemented across automotive, aerospace, structural engineering, electronics, and medical equipment manufacturing.
- Compatible Materials: Structural Iron, Copper, Aluminum Alloys, Brass, Stainless Steel, Zinc, Platinum, Graphene Plates, and Ceramic Substrates.
- Typical Workpieces: Extended pipes, structural metal beams, heat sink plates, engine oil passage heads, aerospace fasteners, and long architectural profiles.
For specialized multi-spindle requirements, explore our Double Spindle CNC Drilling Machine or consult with our engineering team for custom OEM configurations.
Operational Performance & Production ROI
Transitioning from manual multi-machine workflows to the integrated DUOMI DNC-3030HD drastically reduces part handling and scrap costs. A leading automotive tier-1 supplier reduced defect rates from 8% down to 0.2% on engine cylinder head fluid lines, yielding over $500,000 in annual raw material savings while boosting overall throughput by 300%.
Purchase & Delivery Guarantees
Direct Factory Assurance — Built, Tested, and Supported from Dongguan to Your Shop Floor
Runs on Your System
Standard GSK control (100% Fanuc G-code compatible) or optional Mitsubishi/Siemens. Direct CAD file import for code-free toolpath generation.
Factory Video FAT
Live drilling/tapping tests on your actual workpiece recorded before dispatch. Final 50% balance payment is paid only after your video approval.
40-Day Build & Rugged Crate
Guaranteed maximum 40-day manufacturing cycle. Sealed in anti-rust vacuum aluminum foil and bolted in fumigation-free timber crates (EXW/FOB/CIF).
Direct Engineer Care
Direct 1-on-1 WhatsApp group with your machine's build engineers, 12-month full warranty, and critical replacement parts dispatched via DHL within 24–48h.
Every DUOMI machine is built under a transparent 13-step factory production & responsibility chain.
Parameters
Download Technical Brochure| Model | DNC-3030HD CNC drilling machine for long metal profile |
| XYZ three-axis machining stroke | X3000mm, Y300mm, Z200mm |
| Spindle speed | 3000~60000rpm (Can be selected according to demand) |
| Spindle taper hole | Collet reducer sleeve |
| Spindle power | 0.55~3.0KW |
| X axis moving speed | 30m~60m/min |
| Y axis moving speed | 25m/min |
| Z axis moving speed | 25m/min |
| Drilling diameter range | 0.05~3.0mm |
| Tool magazine | Pneumatic press knife change |
| Repeated positioning accuracy | ±0.02mm |
| Table size | 3000mm x 280mm |
| Programming mode | CAD file import / computer programming / manual programming |
| System program storage capacity | About 10,000 |
| System external signal control | Support |
| Operating voltage | AC 220V/50HZ |
| Application | Drill small holes and micro holes in metal |
| Machine weight | Approx. 1500KG |
| Floor space | 4500mm x 1500mm x 1700mm |

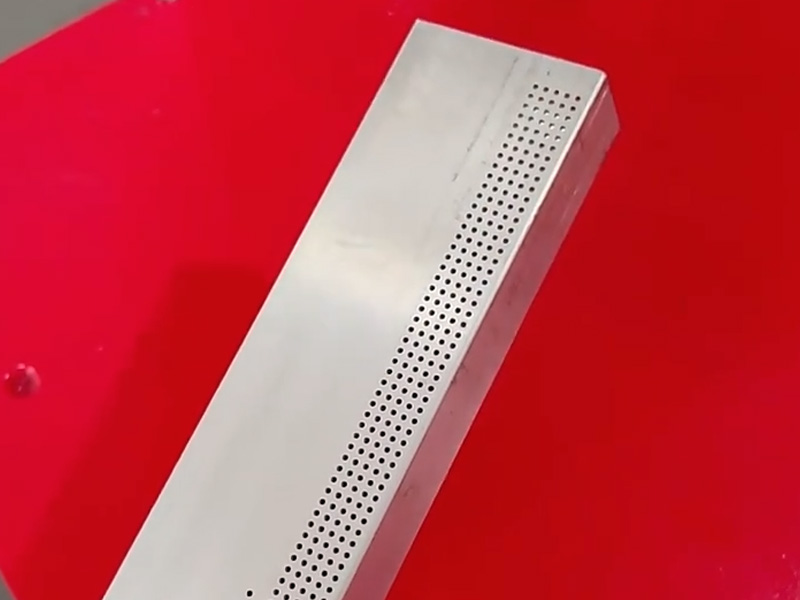

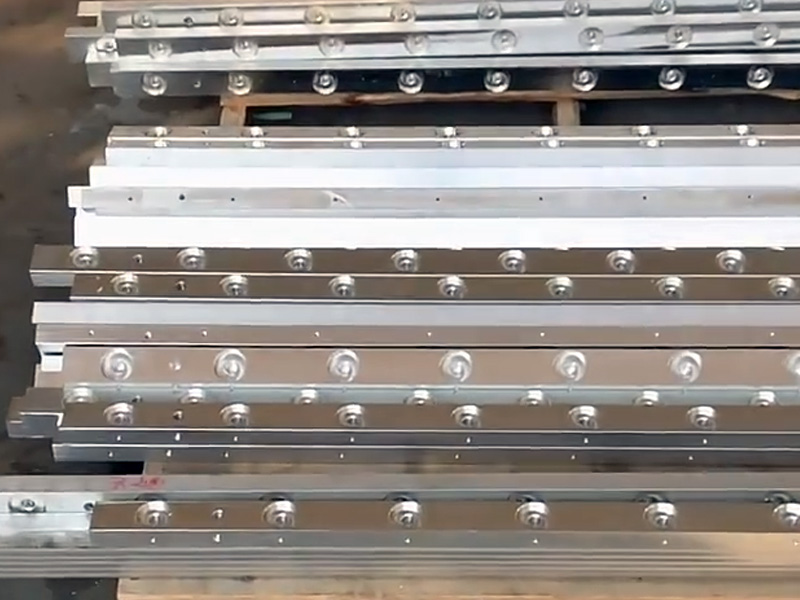

Machining Samples
Real parts processed by our machines
Frequently Asked Questions
We “only” do drilling & tapping. Why do customers still choose Duomi over general-purpose CNC machines?
What does “Your part defines the solution” mean in practice?
What is the maximum workpiece length the DNC-3030HD CNC machine can accommodate?
What is the smallest drilling hole size achievable on this machine?
What level of positioning and repeat accuracy does the DNC-3030HD deliver?
How does the machine prevent thermal deformation during continuous machining?
What programming modes are supported by the control system?
Can DUOMI CNC customize this long metal profile machine for specific production lines?
