In the global heavy construction equipment supply chain, securing a contract with Caterpillar (CAT) is a testament to a manufacturer's capability. However, maintaining that status requires meeting uncompromising standards for quality, absolute process stability, and relentless cost efficiency.
When a premier factory invested by Japan’s Komatsu DENGYO CO., LTD.—specializing in heavy-duty sheet metal structural components, connecting plates, and chassis mounting brackets for construction machinery—needed to scale up production for Caterpillar, they ran into the physical limits of traditional machining. Caterpillar demanded flawless CPK consistency, zero-defect micro-tolerances, and automated error-proofing (Poka-Yoke) on multi-hole, long-format, medium-to-thick steel plates.
By replacing legacy setups with a fleet of three DUOMI DNC-2015N10 Gantry Drilling, Tapping, and Milling Integrated Machines, this Komatsu-invested facility transformed its manufacturing floor, turning a severe labor and quality bottleneck into a highly automated, high-margin profit center.
The Bottleneck: Why Traditional Machining Fails Heavy Equipment Demands
1. Radial Arm Drills (The Manual Trap)
- Tolerance Stack-up: Relying on operators to manually scribe lines and align the drill inevitably causes hole-pitch drift.
- Labor Nightmare:Moving heavy steel plates and manually changing drill bits is exhausting, dangerous work. Finding skilled operators willing to do this—especially for night shifts—is becoming impossible.
2. Standard VMCs (The Wrong Tool for the Job)

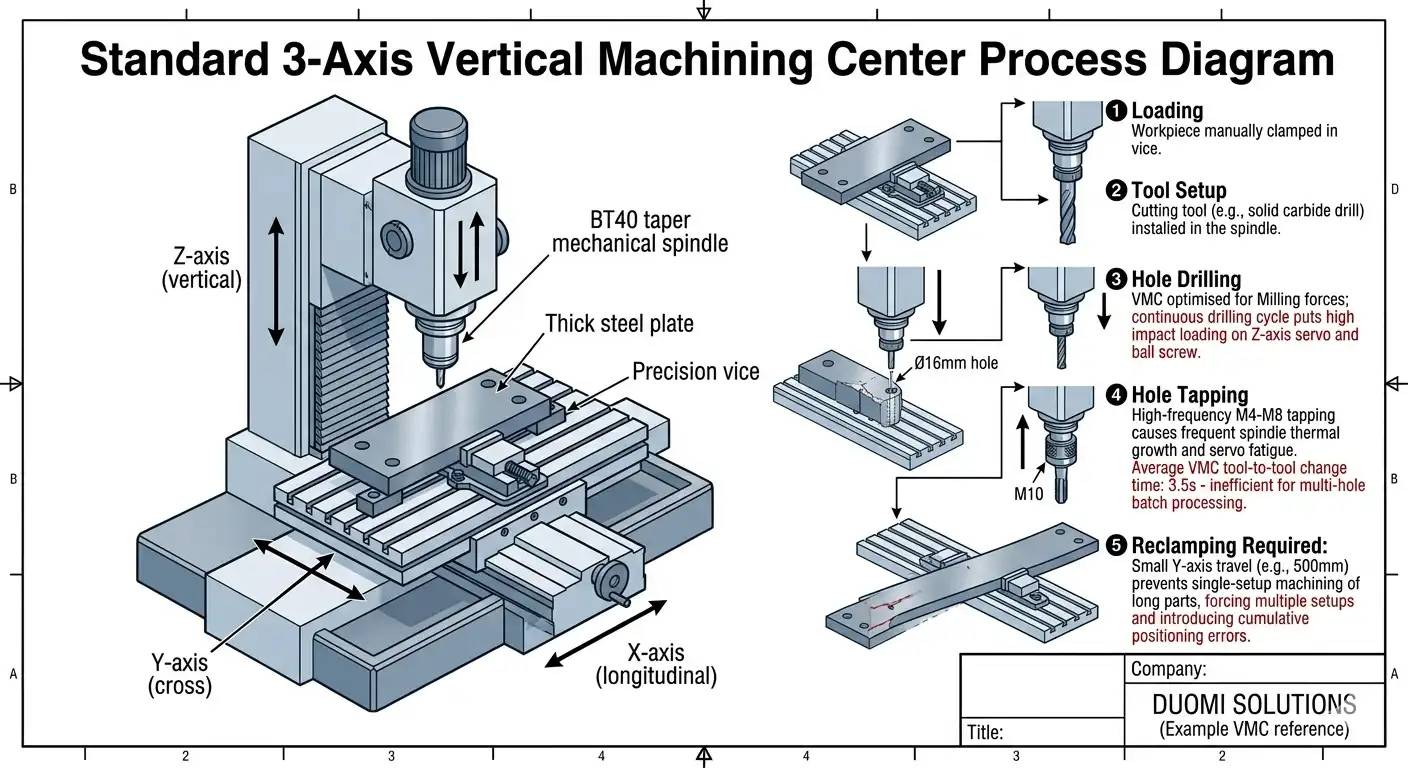

- Z-Axis Burnout: Standard Vertical Machining Centers (VMCs) are built for milling, not the continuous, high-frequency Z-axis pecking required for M4-M8 tapping. Running a VMC on a pure drill-and-tap 2-shift cycle causes rapid spindle wear and tool breakage.
- Size Limitations:Standard VMCs lack the travel size to lay out multiple long plates simultaneously, resulting in poor batch efficiency.
3. Laser Cutting (The Hardening Problem)
- While fast for thin sheets, using lasers to cut deep holes in medium-thick plates causes tapering. Worse, the heat-affected zone (HAZ) leaves a hardened layer on the hole wall. Attempting to tap threads into laser-hardened holes guarantees shattered taps and ruined parts.
The Ultimate Consequence:Caterpillar’s QC audits demand strict process stability (high CPK), automation, and error-proofing. Relying on the mood and stamina of manual laborers guarantees varying quality, risking entire batch rejections and supplier downgrades.
The Solution: DUOMI DNC-2015N10 Gantry Machining Center
To meet Caterpillar's zero-defect standards and scale throughput, The factory deployed a fleet of three DUOMI DNC-2015N10 machines. Purpose-built for large-format sheet metal, this machine solves the structural and efficiency flaws of standard equipment.
Hardcore Engineering for Heavy-Duty Production

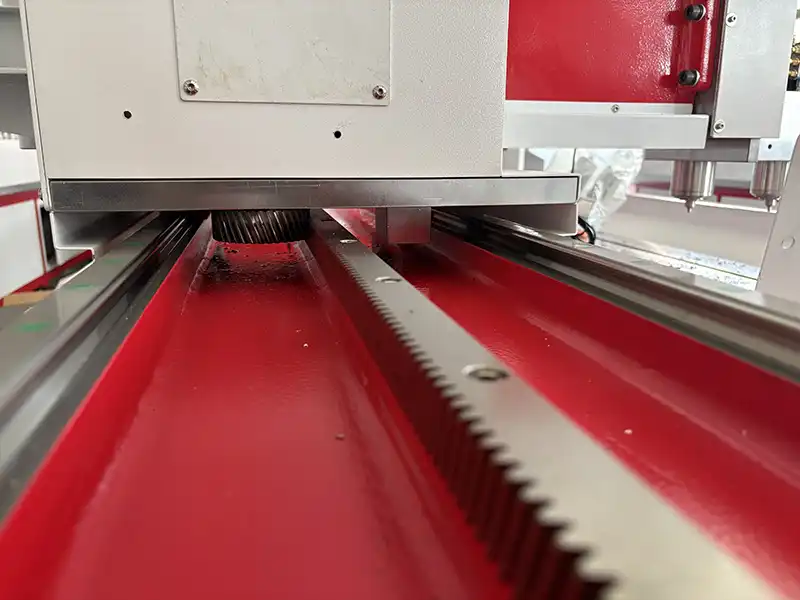

- Vibration-Free Moving Beam Architecture: We utilized a widened, thickened, and heavily reinforced gantry moving beam. This immense structural rigidity means that during rapid spindle acceleration and deceleration, the machine does not vibrate.
- Dual-Drive X-Axis with Mechanical Hard Stops: The X-axis is powered by a synchronized dual-drive system gliding on heavy-duty roller linear guides. To ensure absolute long-term precision, we engineered solid positioning blocks on both sides of the X-axis, guaranteeing the moving beam will never suffer from positional drift over years of operation.

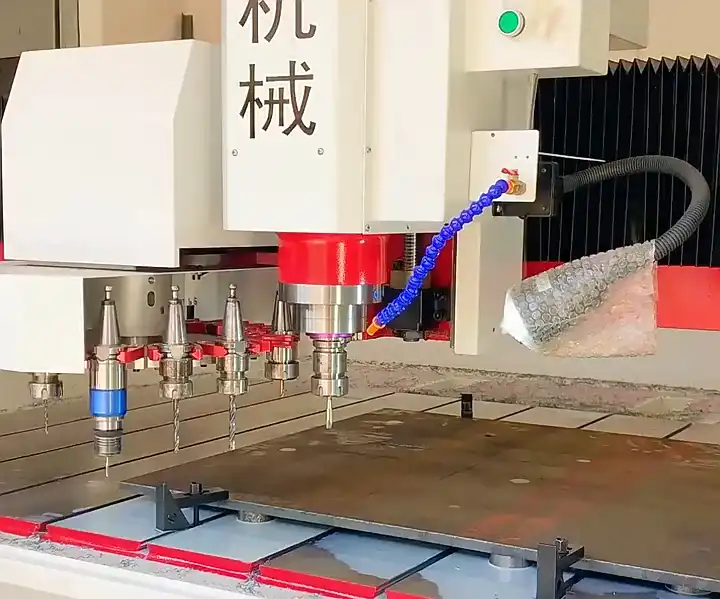

- High-Rigidity BT30 Spindle & 10-Tool ATC: Equipped with a mechanical BT30 spindle, it delivers the raw torque needed for 1-20mm drilling and M2-M20 rigid tapping. The 10-tool Automatic Tool Changer (ATC) handles pilot drilling, deep drilling, chamfering, and tapping in one seamless cycle.
- Massive 2000x1500mm Working Envelope: The expansive 2000mm (X) by 1500mm (Y) travel allows operators to batch-load multiple long connecting plates side-by-side. Customizable clamping setups mean the machine runs continuously while the operator safely preps the next batch.
Quantifiable Transformation – Before vs. After
Performance Comparison Matrix
| Manufacturing Metric | Legacy Methodology (Radial Drill / Standard VMC) | DUOMI DNC-2015N10 Solution | Operational Impact & Value |
|---|---|---|---|
| Process Integration | Multi-step fragmented routing (Layout → Drill → Tap) | One-Stop, Single-SetupFully Automated Execution | Eliminates 100% of part movement and secondary clamping errors. |
| Hole-Pitch & True Position | ± 0.3mm to ± 0.5mm (Highly volatile) | ±0.02mm (Rock-Solid) | Easily exceeds Caterpillar's strictest true-position tolerances. |
| High-Frequency Tapping | High tap breakage rates, spindle overheating, tool wear | Smooth, rapid reversing; tool life extended by 250% | Drastically slashes tooling overhead and unscheduled downtime. |
| Labor Dependency | 3 Highly skilled, expensive operators per shift | 1 General operator managing all 3 DUOMI machines | Mitigates the recruitment crisis; makes night shifts effortlessly repeatable. |
| Quality Yield Rate | 4.5% – 6.0% scrap/rework due to human error | > 99.9% Yield (<0.1% Scrap) | Eliminates CAT quality penalties; solidifies preferred supplier status. |
| Throughput / Output Capacity | 12–15 finished plates per 8-hour shift | 60+ finished plates per 8-hour shift | 400%+ Production Capacity Boom, enabling massive order scaling. |
Proven ROI – A Data-Driven Capital Investment
For factory directors and financial officers, implementing the DUOMI system represents a highly accelerated return on investment (ROI). Here is the real-world financial logic achieved by the factory:
-
1. Direct Labor Cost Reductions: By consolidating operations, the factory reduced their dedicated plate-processing headcount from 6 specialized manual machinists down to just 2 general operators across a two-shift rotation.
- Annual Labor Savings: 4 operators × $15,000/year = $60,000 saved annually in direct labor costs.
- 2. Skill De-escalation: Because the DUOMI CNC system handles the precision, the factory no longer needs to hunt for scarce, high-premium "master machinists." Even an entry-level apprentice can be trained to safely load parts and run the system within hours.
- 3. Scrap and Tooling Optimization:Eliminating structural rework, scrap plate material, and cutting tool breakages saved thousands of dollars in monthly consumables and raw steel overhead.

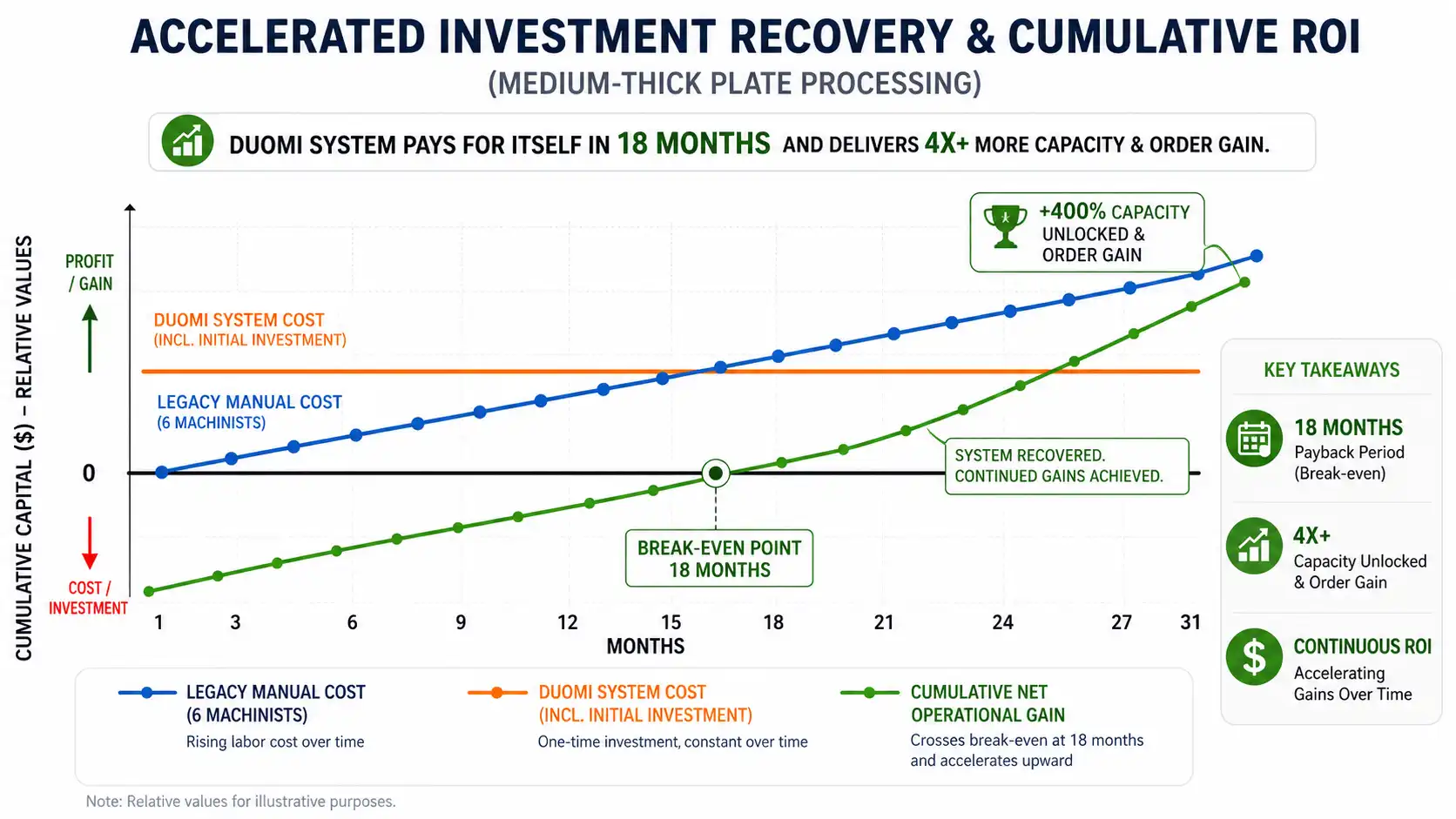

The Bottom Line: Combined with a 400% explosion in delivery capacity that allowed the factory to capture a larger share of Caterpillar's global orders, the entire capital investment for all three DUOMI DNC-2015N10 machines was fully amortized and recovered in approximately14–18 months, depending on monthly production volume and order utilization.
Conclusion: Future-Proof Your Factory Floor with DUOMI
The success of this Komatsu-invested facility proves that winning and retaining Tier-1 contracts from global heavy machinery giants requires a shift from human-dependent labor to rigid, automated process stability.
The DUOMI DNC-2015N10 is not merely a machine tool—it is a purpose-engineered manufacturing system built to maximize output, eliminate human error, and protect your margins in the most competitive manufacturing landscapes on earth.
