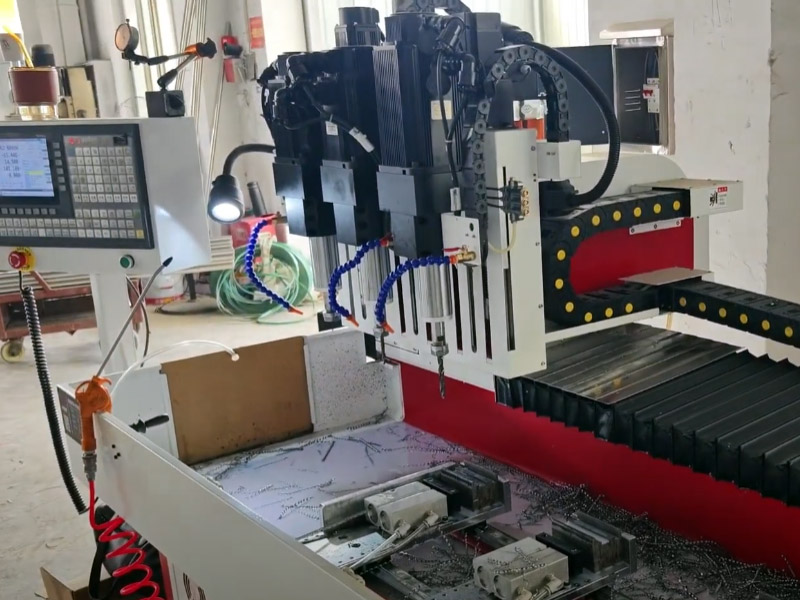

DNC-2015DDT 3-Spindle CNC Gantry Drill Tap Mill Machine
High-Efficiency Multi-Spindle Gantry Processing for Long Metal Profiles, Plates, and Complex Structural Components
💡 Our CNC drilling and tapping machines support custom non-standard designs, machine color customization, and OEM branding. Start now to purchase and customize your own equipment, please contact us.
Request a Free Machining Sample →
Features
Heavy-Duty Dual-Drive Gantry: High-rigidity bridge frame spanning large working envelopes without deflection.
3-Spindle Synchronous Array: 3 independent BT30/BT40 spindles triple output on large sheet metal and profile batches.
High-Thrust Drilling Power: Powerful spindle motor easily drives large-diameter drills and taps up to M24/M30 in steel.
Precision Rack & Pinion / Ball Screw Drives: Heavy-duty linear guideways ensure ultra-smooth motion and ±0.02mm repeatability.
In-Depth Engineering Description & Technical Overview
Click to expand complete machine capabilities, workflow analysis & application guide
Click to Expand
Collapse Details
Industrial Performance Overview: Multi-Spindle CNC Gantry Machining
The DUOMI DNC-2015DDT 3-Spindle CNC Gantry Drill Tap Mill Machine is engineered to eliminate manufacturing bottlenecks in high-volume metal processing. By combining three independent machining spindles on a heavy-duty, dual-drive gantry frame, this advanced CNC system enables simultaneous drilling, tapping, milling, and chamfering in a single setup.
Industrial component manufacturers frequently face high production costs and slow cycle times due to manual machine transfers and repetitive fixturing. The DNC-2015DDT solves these operational pain points through high-speed automation, sub-millimeter precision, and robust machine architecture built to ISO industrial standards.
Core Engineering & Operational Advantages
1. Multi-Process Integration & Efficiency
- Consolidated Processing: Performs drilling, tapping, milling, and chamfering continuously in one clamp setup, slashing overall cycle times by up to 60%.
- High Spindle Velocity: Variable spindle speeds reaching 100–24,000 RPM paired with rapid axis movements (X-axis up to 60 m/min, Y/Z-axis 25 m/min) streamline throughput.
- Automation Compatibility: Integrates seamlessly with optional Automatic Tool Changers (ATC) and robotic workpiece loading/unloading systems for 24/7 continuous production.
2. High-Rigidity Gantry Structure & Accuracy
- Vibration-Free Stability: Features a widened, thickened, and weighted moving-beam gate structure that eliminates chatter during rapid spindle acceleration and deceleration.
- Dual-Drive X-Axis: Utilizes dual-drive heavy-duty ball linear slide rails to deliver ultra-smooth linear motion across long workpieces.
- Precision Alignment: Top guide blocks installed symmetrically along the X-axis prevent long-term beam displacement, maintaining consistent ±0.02mm repeated positioning accuracy.
3. Substantial Defect Reduction & Cost ROI
- Drastic Scrap Reduction: Transitioning from manual drilling to the automated 3-spindle CNC gantry platform reduces machining defect rates from an industry average of 8% down to 0.2%.
- Quantifiable Cost Savings: In automotive engine block and cylinder head production, this precision accuracy delivers material savings exceeding $500,000 annually.
4. Flexible Multi-Axis Control & Customization
- Multi-Axis Linkage: Supports 3-axis, 4-axis, or 5-axis configuration for complex multi-hole layouts, angled surfaces, and irregular workpieces.
- Flexible Programming: Directly imports standard CAD/CAM software output, storing up to 10,000 system programs for rapid order switching and low-batch customization.
- Custom Workholding: Table fixtures and clamping options can be customized for structural steel, extruded aluminum profiles, casting molds, and sheet metal plates.
Primary Industrial Applications
- Automotive Manufacturing: Machining oil passages, engine block holes, and structural chassis frames.
- Aerospace & Rail Transit: High-speed drilling and milling of long aluminum extrusion profiles and structural beams.
- Heavy Machinery & Mold Fabrication: Deep-hole drilling and precision tapping on large metal plates and die sets.
- Applicable Workpiece Materials: Steel, Stainless Steel, Iron, Cast Iron, Aluminum Alloys, Copper, Brass, Zinc, Titanium, and non-ferrous metals.
Purchase & Delivery Guarantees
Direct Factory Assurance — Built, Tested, and Supported from Dongguan to Your Shop Floor
Runs on Your System
Standard GSK control (100% Fanuc G-code compatible) or optional Mitsubishi/Siemens. Direct CAD file import for code-free toolpath generation.
Factory Video FAT
Live drilling/tapping tests on your actual workpiece recorded before dispatch. Final 50% balance payment is paid only after your video approval.
40-Day Build & Rugged Crate
Guaranteed maximum 40-day manufacturing cycle. Sealed in anti-rust vacuum aluminum foil and bolted in fumigation-free timber crates (EXW/FOB/CIF).
Direct Engineer Care
Direct 1-on-1 WhatsApp group with your machine's build engineers, 12-month full warranty, and critical replacement parts dispatched via DHL within 24–48h.
Every DUOMI machine is built under a transparent 13-step factory production & responsibility chain.
Parameters
Download Technical Brochure| Model | DNC-2015DDT 3-Spindle CNC Gantry Drill Tap Mill machine |
| XYZ three-axis machining stroke | X1800mm, Y150mm, Z200mm |
| Spindle speed | 100~24000rpm (Can be selected according to demand) |
| Spindle taper hole | ER20 |
| Spindle power | 0.55~3.0KW |
| X axis moving speed | 30m/min~60m/min |
| Y axis moving speed | 25m/min |
| Z axis moving speed | 25m/min |
| Drilling diameter range | 1~16mm |
| Tapping diameter range | M2~M14mm |
| Chamfer range | 1~20mm |
| Tool magazine | Manual tool change |
| Repeated positioning accuracy | ±0.02mm |
| Table size | 2000mm x 280mm |
| Programming mode | CAD file import / computer programming / manual programming |
| System program storage capacity | About 10,000 |
| System external signal control | Support |
| Operating voltage | AC 220V/50HZ |
| Machine weight | Approx. 3800KG |
| Floor space | 3800mm x 2200mm x 2000mm |

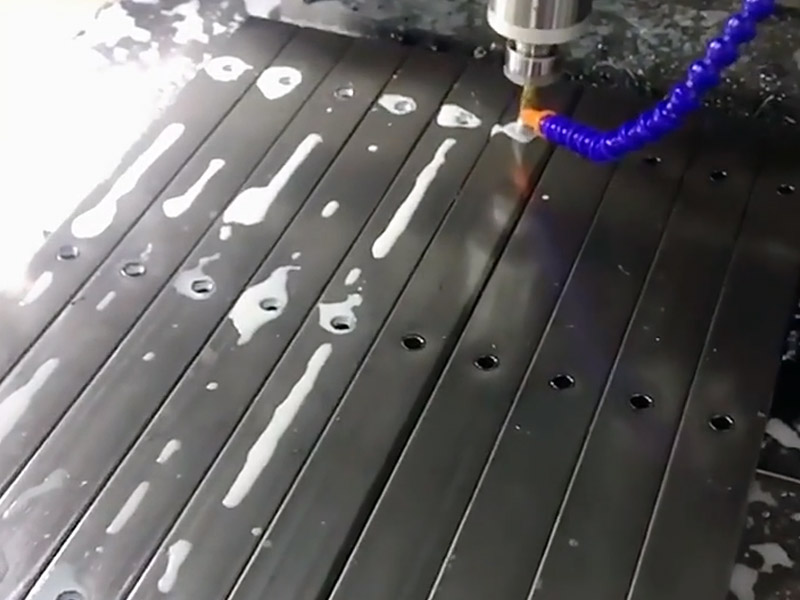

Machining Samples
Real parts processed by our machines
Frequently Asked Questions
We “only” do drilling & tapping. Why do customers still choose Duomi over general-purpose CNC machines?
What does “Your part defines the solution” mean in practice?
What key advantage does a 3-spindle CNC gantry offer compared to single-spindle models?
What hole sizes and tapping ranges can the DNC-2015DDT machine support?
What positioning accuracy does the DNC-2015DDT achieve?
Which materials can be machined on this CNC gantry system?
How are programs created and managed on the DNC-2015DDT controller?
Can DUOMI CNC customize table clamping and machine color for OEM requirements?
