High-Precision CNC Drill Tap Mill for Long Profiles – DNC-6030N10
Streamline 6000mm long profile machining with automated high-speed drilling, tapping, and milling in a single setup.
💡 Our CNC drilling and tapping machines support custom non-standard designs, machine color customization, and OEM branding. Start now to purchase and customize your own equipment, please contact us.
Request a Free Machining Sample →
Features
Heavy-Duty Dual-Drive Gantry: High-rigidity bridge frame spanning large working envelopes without deflection.
Long-Stroke Working Envelope: Extended longitudinal axis handles oversized steel plates, tubes, and architectural profiles.
High-Thrust Drilling Power: Powerful spindle motor easily drives large-diameter drills and taps up to M24/M30 in steel.
Precision Rack & Pinion / Ball Screw Drives: Heavy-duty linear guideways ensure ultra-smooth motion and ±0.02mm repeatability.
In-Depth Engineering Description & Technical Overview
Click to expand complete machine capabilities, workflow analysis & application guide
Click to Expand
Collapse Details
Industrial Performance Overview: DNC-6030N10 CNC Drill Tap Mill Machine
The DNC-6030N10 CNC Drill Tap Mill for Long Profiles from DUOMI CNC is engineered to solve core bottleneck challenges in machining long extrusions, structural metal beams, and complex profiles. Built with a high-rigidity widened and weighted moving gantry beam structure, this industrial CNC Drill Tap Mill machine delivers continuous vibration-free performance even during rapid acceleration and deceleration.
Featuring an expansive 6000mm X-axis stroke, a 24,000 RPM high-speed BT30 mechanical spindle, and a 10-tool bucket-type Automatic Tool Changer (ATC), the DNC-6030N10 automates multi-process machining—combining drilling, tapping, chamfering, and milling operations in a single clamping setup.
Core Production Benefits for Manufacturing & Procurement Engineers
1. Superior Production Efficiency & Reduced Cycle Times
- Multi-Process Integration: Perform drilling (1–20mm), tapping (M2–M16), chamfering, and profile milling on a single machine to reduce fixture changeover downtime.
- High-Speed Machining: Achieve rapid axis movement of up to 60m/min on the X-axis and 25m/min on Y/Z axes, combined with up to 24,000 RPM spindle speeds.
- Automated Tool Changing: Integrated 10-tool ATC magazine minimizes tool-to-tool change time, driving higher hourly throughput.
2. Exceptional Precision & Low Scrap Rate (0.2% Scrap Target)
- Rigid Dual-Drive Gantry: Features heavy-duty ball linear guide rails with a dual-drive X-axis transmission mechanism to eliminate long-beam displacement.
- High Positioning Accuracy: Delivers repeatable positioning accuracy within ±0.02mm.
- Proven Defect Reduction: Industrial automotive parts manufacturing case studies demonstrate a reduction in defect rate from 8% to just 0.2%, yielding up to $500,000 in annual raw material savings.
3. Automated 24/7 Unmanned Operations
- Robotic Integration Ready: Full support for external industrial signals and robotic loader/unloader automation.
- Low Operational Barrier: Intuitive CNC control with CAD file import capabilities enables single operators to manage multiple CNC machines simultaneously.
Key Engineering Advantages & Structural Rigidity
- Heavy-Duty Frame Construction: Reinforced moving beam design guarantees zero spindle oscillation during high-torque tapping and high-speed milling.
- Customizable Clamping Systems: Pneumatic, hydraulic, or custom T-slot table clamps designed specifically for irregular or multi-hole aluminum and steel long profiles.
- High Compatibility Software: Direct CAD/CAM program import for rapid processing of complex hole layouts and multi-axis linkages (3-axis, 4-axis, or 5-axis options).
- Standards & Certification: Engineered in compliance with ISO 9001 quality standards and CE international safety specifications.
Purchase & Delivery Guarantees
Direct Factory Assurance — Built, Tested, and Supported from Dongguan to Your Shop Floor
Runs on Your System
Standard GSK control (100% Fanuc G-code compatible) or optional Mitsubishi/Siemens. Direct CAD file import for code-free toolpath generation.
Factory Video FAT
Live drilling/tapping tests on your actual workpiece recorded before dispatch. Final 50% balance payment is paid only after your video approval.
40-Day Build & Rugged Crate
Guaranteed maximum 40-day manufacturing cycle. Sealed in anti-rust vacuum aluminum foil and bolted in fumigation-free timber crates (EXW/FOB/CIF).
Direct Engineer Care
Direct 1-on-1 WhatsApp group with your machine's build engineers, 12-month full warranty, and critical replacement parts dispatched via DHL within 24–48h.
Every DUOMI machine is built under a transparent 13-step factory production & responsibility chain.
Parameters
Download Technical Brochure| Model | DNC-6030N10 CNC Drill Tap Mill for Long Profiles |
| XYZ three-axis machining stroke | X6000mm, Y300mm, Z200mm (Itinerary can be customized) |
| Spindle speed | 3000~24000rpm (Can be selected according to demand) |
| Spindle taper hole | BT30 |
| Spindle power | 5.5~7.5KW |
| X axis moving speed | 30m/min~60m/min |
| Y axis moving speed | 25m/min |
| Z axis moving speed | 25m/min |
| Drilling hole diameter range | 1~20mm |
| Tapping range | M2~M16 |
| Chamfer range | 1~20mm |
| Tool magazine | Automatic tool change (10 knives) |
| Repeated positioning accuracy | ±0.02mm |
| Table size | 6000mm x 280mm |
| T-slot size / number | Top width 13 x bottom width 20 x 3 pieces |
| Programming mode | CAD file import / computer programming / manual programming |
| System program storage capacity | About 10,000 |
| System external signal control | Support |
| Operating voltage | AC 380V/50HZ |
| Machine weight | Approx. 3500KG |
| Floor space | 7700mm x 1700mm x 2000mm |

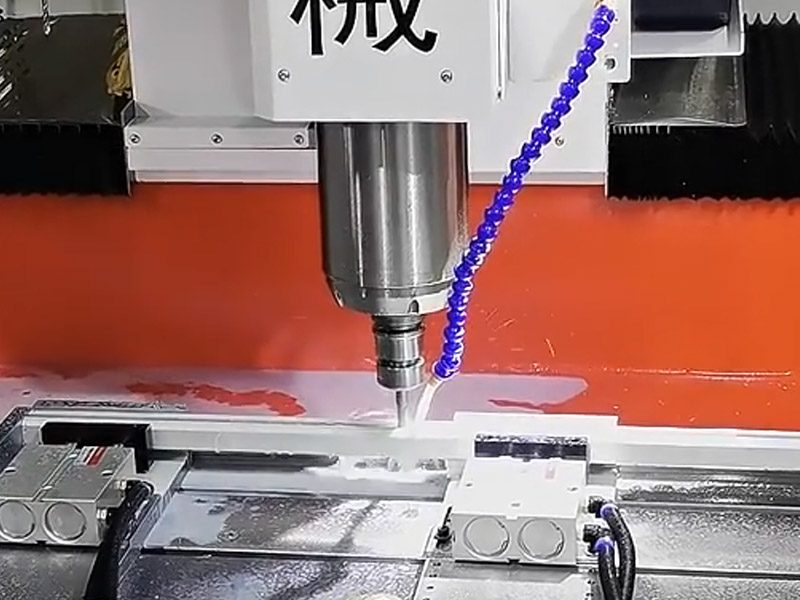

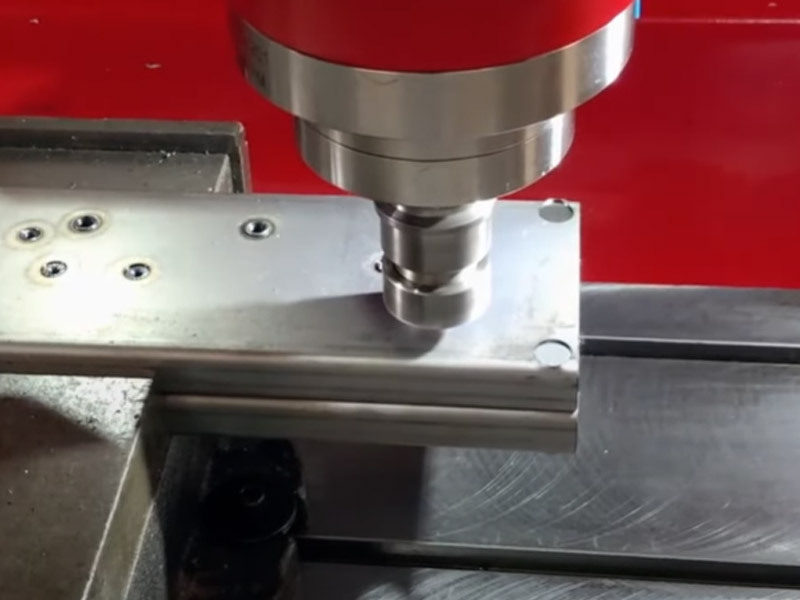

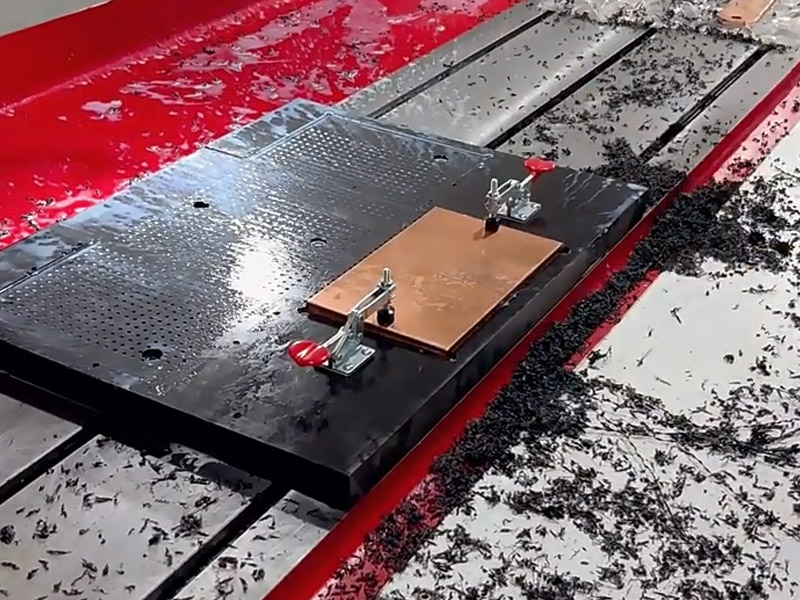

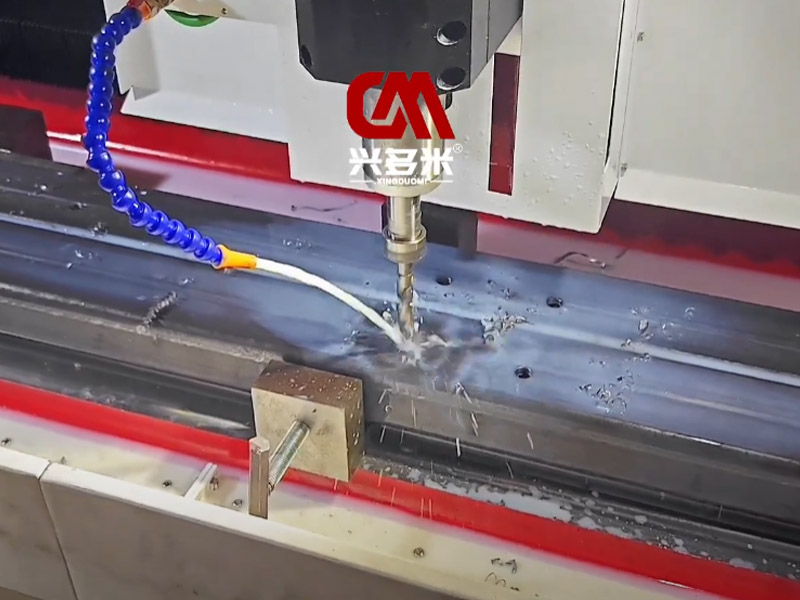

Machining Samples
Real parts processed by our machines
Frequently Asked Questions
We “only” do drilling & tapping. Why do customers still choose Duomi over general-purpose CNC machines?
What does “Your part defines the solution” mean in practice?
What maximum profile dimensions can the DNC-6030N10 CNC Drill Tap Mill machine handle?
What drilling and tapping capacity does this machine offer?
What is the machining accuracy and spindle speed of the DNC-6030N10?
Which metal materials are compatible with this CNC drill tap mill for long profiles?
Can DUOMI customize fixtures, clamping systems, and machine branding?
How does the machine support automated 24/7 manufacturing?
