Manufacturing safety-critical fasteners, such as hex head bolts with wire holes (safety wire bolts), demands extreme precision. When these bolts are made of hard alloys and require micro-holes drilled on angled surfaces, traditional machining methods often hit a bottleneck.
Recently, a client approached us struggling with high scrap rates and inefficient cycle times while processing fine-thread hex head bolts. By upgrading to our Dual-Spindle CNC Drilling and Tapping Machine, they revolutionized their production line. Here is an inside look at how our technology solved their specific machining challenges.
The Challenge: Deep Micro-Holes on Inclined Hard Alloy Surfaces
The client's project involved machining a hard alloy hex head bolt. The specifications required drilling two microscopic wire holes into the angled faces of the bolt head.
The Technical Hurdles:
- 1.Micro-Hole Deep Drilling:The required hole diameter was just 1mm, with a depth of 10mm (a demanding 10xD depth-to-diameter ratio).
- 2.Inclined Surface Deflection:Drilling directly into a sloped surface almost guarantees the micro-drill bit will wander or snap.
- 3.Material Hardness: The hard alloy material causes rapid tool wear and high heat generation.
-
4.Legacy Method Inefficiencies:

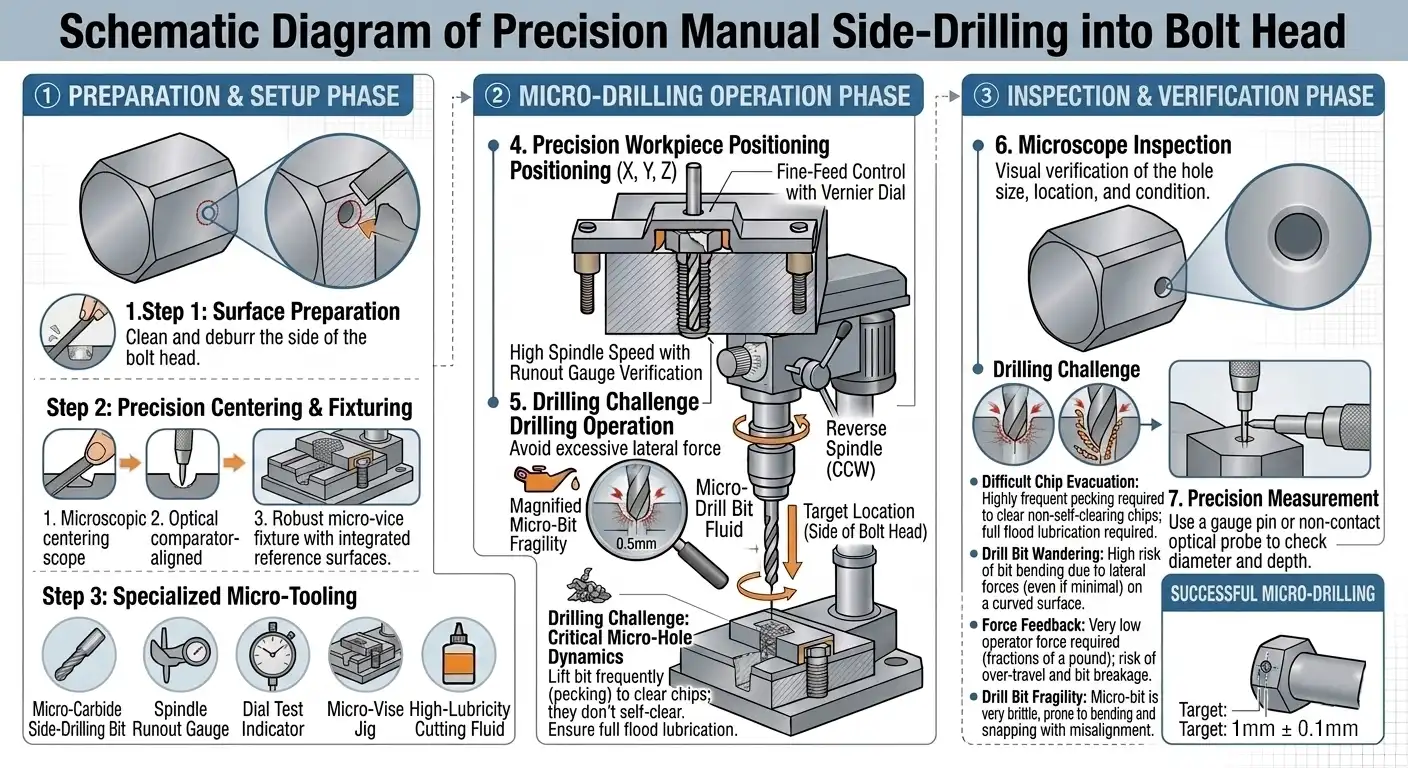

- Manual Bench Drilling: Took an agonizing 8 minutes per workpiece, relying heavily on operator skill, with frequent tool breakages.
- EDM (Electrical Discharge Machining): While it bypassed the deflection issue, the EDM process was painfully slow and left the hole walls rough, recast, and uneven, which is unacceptable for high-fatigue aerospace or automotive fasteners.
The Solution: Dual-Spindle CNC Machining

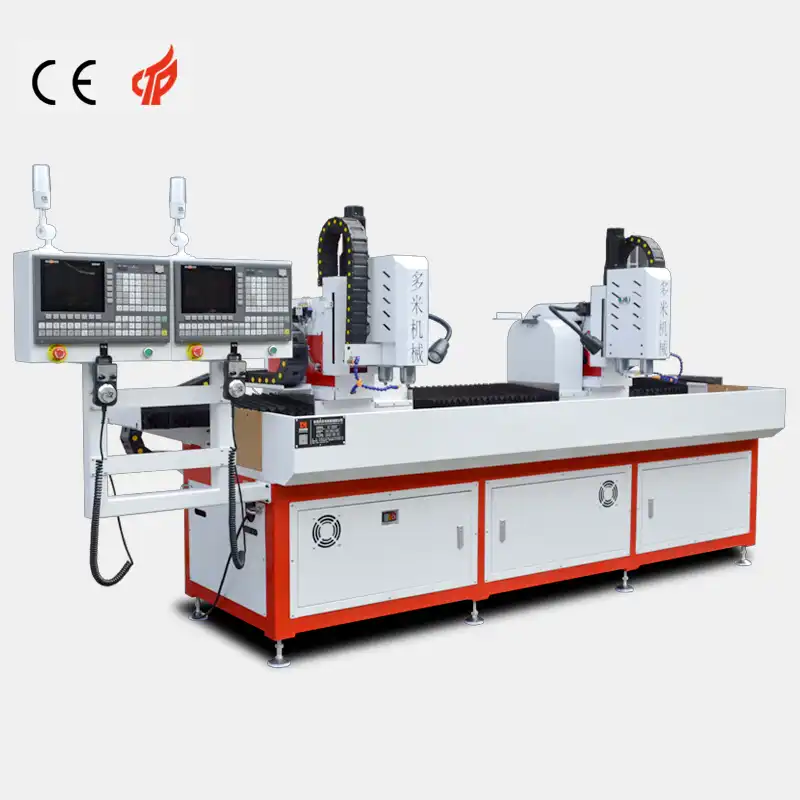

To tackle the physics of inclined surface drilling, we deployed our CNC Drilling and Tapping Center equipped with a high-speed dual-spindle system. This allowed us to split the operation into two distinct, highly efficient steps without requiring a tool change:
-

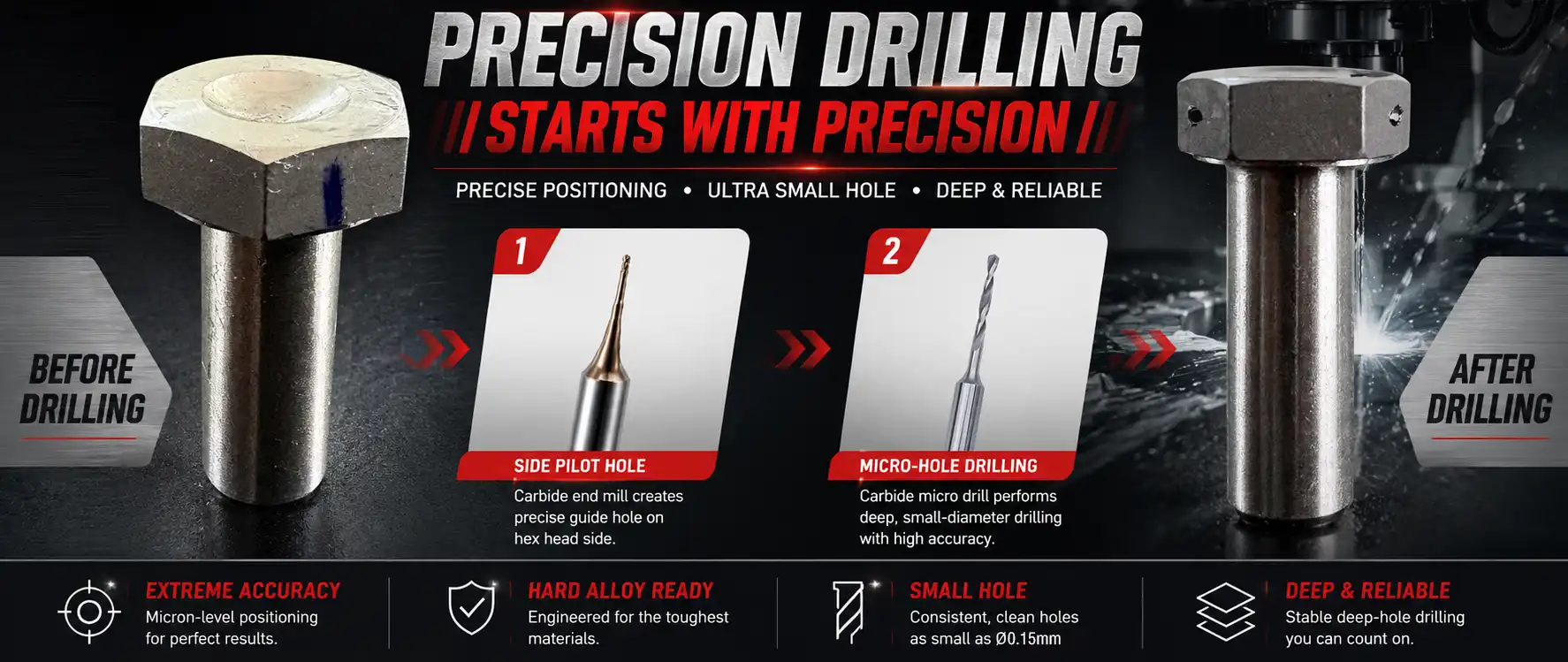

Step 1: The Pilot Mill.
The first spindle, equipped with a micro-milling cutter, precisely targets the exact coordinate on the inclined plane. It mills a tiny, perfectly flat spot (a pilot hole/spot face).
-
Step 2: The Deep Drill.
Immediately after, the second spindle, holding the 1mm drill bit, engages. Because the surface is now flat, the drill enters the hard alloy dead-center without any deflection, pecking down to the full 10mm depth.

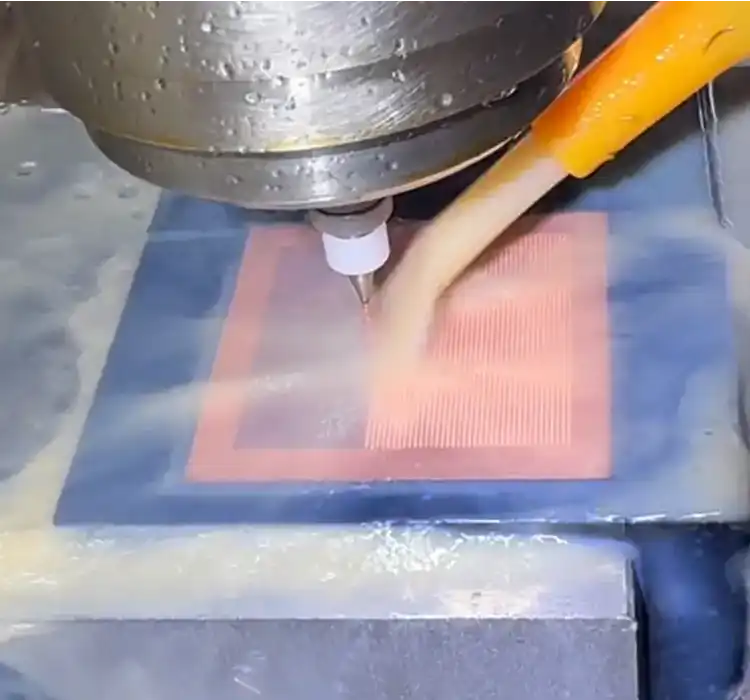

Integrated Cooling and Chip Evacuation
In micro-drilling, chip packing is the enemy. Our machine features a highly responsive cutting fluid system. It aggressively flushes out the micro-chips from the 10mm cavity while simultaneously managing the thermal load on the drill bit, preventing work-hardening of the alloy and extending tool life.
The Results: Night and Day Comparison
The transition to our CNC solution yielded immediate and measurable improvements for the client.
| Metric | Manual Bench Drilling | EDM (Electrical Discharge Machining) | Our Dual-Spindle CNC Machine |
|---|---|---|---|
| Cycle Time (2 Holes) | ~8 Minutes | ~10+ Minutes (Extremely slow material removal) | ~3 Minutes |
| Productivity | Baseline | Lower than baseline | +166% Faster |
| Hole Wall Quality | Poor (Prone to scoring and chatter marks) | Rough (Leaves uneven recast layer & micro-cracks) | Smooth, precise, and burr-free |
| Positioning Accuracy | Inconsistent (High risk of drill wandering on slopes) | Good (But dimensions drift due to electrode wear) | Perfectly repeatable (CNC precision) |
| Tool / Consumable Issue | High drill breakage rate (Due to deflection) | High copper/brass electrode wear | Minimal wear (Flat pilot eliminates deflection) |
| Thermal Impact | High friction heat (Risk of work-hardening) | Creates a Heat Affected Zone (HAZ) | Controlled (coolant prevents HAZ) |
Beyond Hard Alloys: Unmatched Versatility
While this specific case study highlights our machine's capability with unforgiving hard alloys, the system's RPM and feed rates are fully programmable to handle a vast spectrum of materials. Whether your production line runs Aluminum, Carbon Steel, Stainless Steel, or Titanium, our CNC equipment can be calibrated to deliver the perfect chip load and surface finish.
