Introduction

• Widened, thickened and weighted moving beam type gate structure form is adopted, which will not shake when the spindle is accelerating and decelerating, and the speed is fast and stable.

  The X-axis is a dual drive, and the heavy-duty ball linear slide rail is combined with a double-settransmission mechanism to ensure the smooth operation of the moving beam.

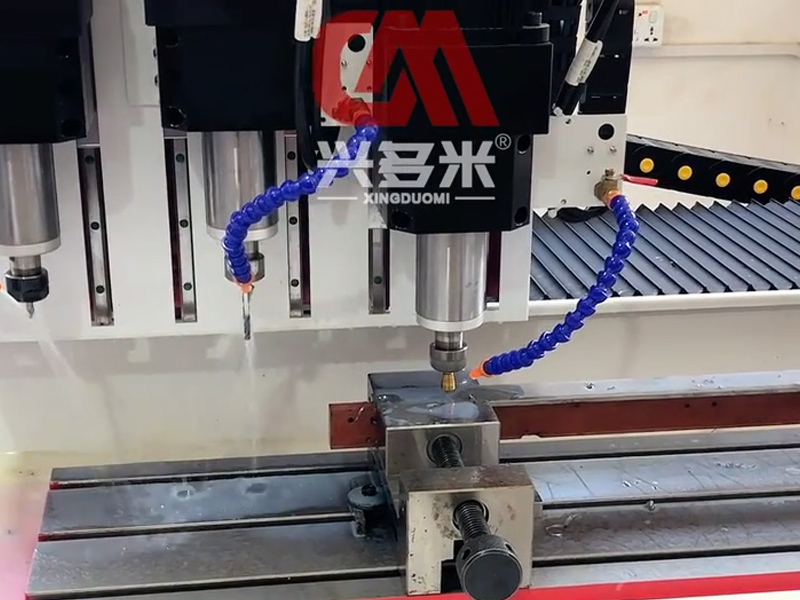

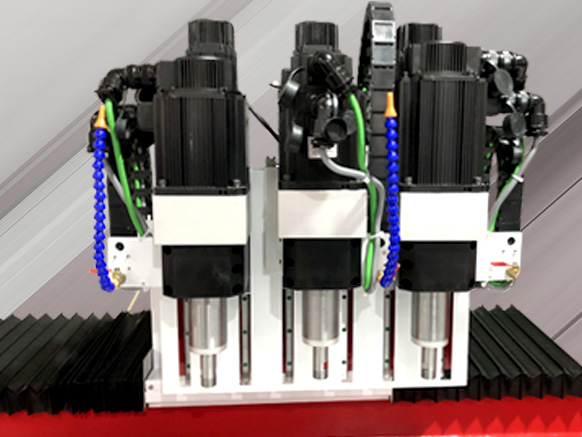

  The machine tool adopts high-precision mechanical spindle, and the three spindles can be equipped with 3 tools to process different processes at the same time.

  The top block is evenly installed on both sides of the X-axis, and the moving beam will not belisplaced for a long time to ensure accuracy.

  Different workbench clamping methods can be customized according to different processing products.




  If you are looking for the world's best high-performance and cost-effective CNC drilling and tapping machine, choose DUOMI. We have the confidence and expertise to help you solve drilling and tapping challenges for both metal and non-metal materials.




Key benefits

•

  Significantly improves production efficiency.

  Industry Pain Point:
  Traditional processing relies on manual operation of multiple machines (such as drilling and tapping machines), leading to frequent process switching, which is time-consuming and labor-intensive.




  Solution:
  Multi-process Integration: A single setup can complete multiple operations, including drilling, tapping, chamfering, and milling, reducing machine changeover time.

  High-speed Processing: High spindle speeds (typically reaching tens of thousands of RPM) combined with fast-moving axes (e.g., over 30m/min) significantly shorten processing cycles.

  Automation Support: Optional features such as an Automatic Tool Changer (ATC) and automated loading/unloading systems enable continuous production.

  Easily drill and tap complex and irregular workpieces.

  Industry Pain Point:
  Drilling and tapping irregularly shaped or multi-hole workpieces require frequent fixture and tool adjustments, making it difficult to achieve with traditional equipment.




  Solution:
  Multi-axis Linkage: Supports 3-axis, 4-axis, or 5-axis linkage for processing complex surfaces and inclined holes.

  Flexible Programming: CAM software generates complex machining programs to accommodate diverse hole layouts and drilling/tapping requirements.

  High-compatibility Fixtures: Compatible with precision fixtures to ensure stable clamping of complex workpieces.





  Ultra-high drilling and tapping precision, reducing the defect rate to 0.2%.

  Industry Pain Point:
  Manual operation of conventional drilling and tapping machines is highly dependent on operator experience, leading to precision fluctuations, which can result in workpiece scrapping or rework.




  Solution:
  A leading automotive parts manufacturer previously had an 8% defect rate when machining oil passage holes in engine cylinder heads. After introducing DUOMI CNC drilling and tapping machines, the defect rate dropped to just 0.2%, resulting in an annual material cost savings of $0.5 million.

  Completely free your hands and reduce labor costs.

  Industry Pain Point:
  reliance on skilled workers, high labor costs, and difficulty in recruiting.




  Solution:
  Automation Production: For example, equipping robots for loading and unloading can achieve 24/7 unmanned operation, reducing reliance on manual labor.

  Easy Operation: By using a graphical interface and preset programs, the operational threshold is lowered, allowing ordinary workers to quickly get up to speed.

  One person can operate multiple CNC drilling and tapping machines, improving processing efficiency.





  Quickly respond to orders of any scale.

  Industry Pain Point:
  Traditional drilling machine equipment has long setup times and often requires manual marking for hole positioning, making it difficult to adapt to customized, small-batch orders.




  Solution:
  Quick Changeover: Production tasks can be quickly adjusted through program switching and modular fixtures.

  Flexible Production: Suitable for a variety of products and small-batch orders, meeting the flexible needs of modern manufacturing for drilling and tapping production.

  CNC drilling and tapping machines suitable for multiple industries.

  3C Electronics:
  Drilling holes and tapping screw holes for mobile phones, computers, and 3C digital metal enclosures.

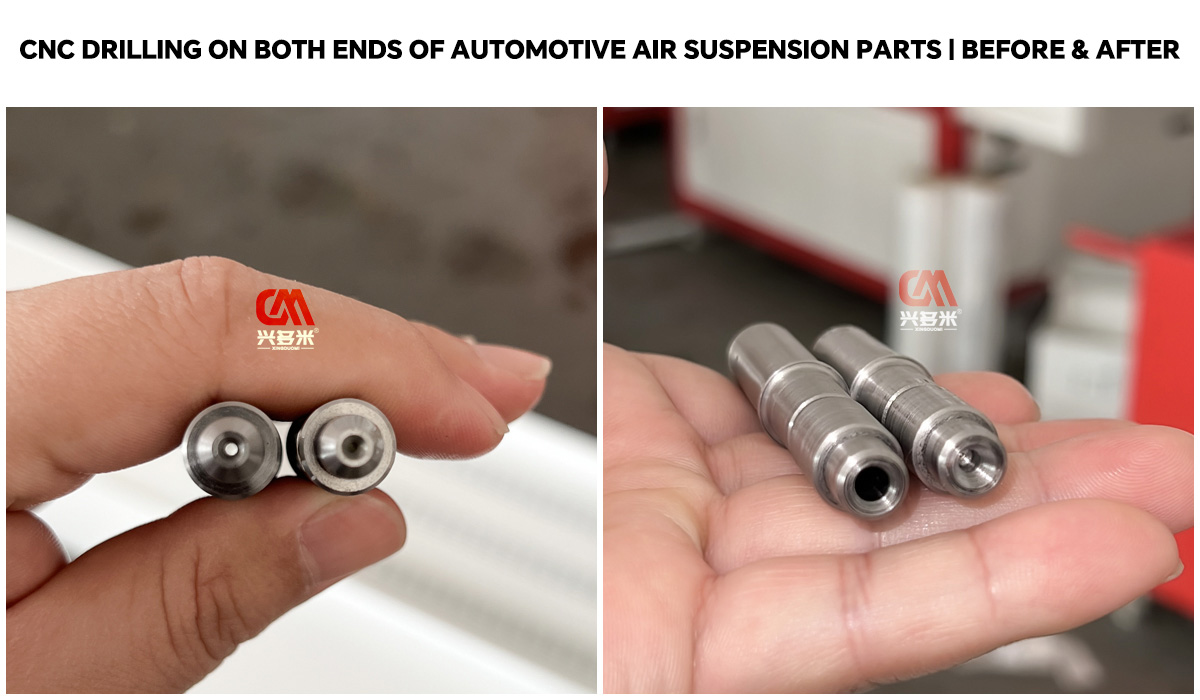

  Automotive Parts:
  Processing of engine blocks and gearbox housings.

  Mold Industry:
  Processing of cooling water holes and ejector pin holes for precision molds.

  Medical Devices:
  High-precision hole processing for stainless steel or titanium alloy implants.

  New Energy Industry:
  Precision machining for batteries and motors.

  Aerospace:
  Drilling and tapping of composite materials and difficult-to-machine materials.

  Precision Optics:
  Microstructure machining of ultra-hard materials.








  Adaptable to drilling and processing a variety of materials.

  Metals:
  Steel (carbon steel, alloy steel, stainless steel)
  Aluminum and its alloys
  Copper and brass
  Titanium and titanium alloys
  Cast iron
  Magnesium alloys
  Tool steels
  Galvanized metals and others




  Non-Metal Materials:


  Carbon fiber, graphite, sapphire, FEP fluoroplastic, Composites, Ceramics, etc.

  The optimal choice for micro-hole, small-hole, and porous material machining.

  Small Hole and Micro Drilling
  We manufacture CNC drilling machines capable of producing micro-holes as small as 0.05 mm. These machines are specifically designed to assist users in precision deep-hole drilling for smaller dimensions, including micro-holes, small holes, deep holes, tapered holes, inclined holes, and multi-hole drilling.




  With a wide range of applications, here are just a few examples:
  Wire Start Holes, Vacuum Relief Holes, Jet Drilling, Flow Control Restriction, Restrictors,Vacuum Leak Test Holes, Stress Test Orifices, Wire Locking Holes, Nozzle Drilling, Test Pieces, Glue Nozzle Drilling, Set Screws, Vent Holes, Shim Holes, Cooling holes, Furniture drilling, kitchenware drilling, graphite drilling, aluminum drilling etc.

  Applications:
  We serve a wide variety of industries including Automotive, Medical, Nuclear, Petrochemical, Aerospace, Motorsport and Energy, as well as the General Engineering Sector.








  Strict Factory Quality Control and Satisfactory Service.

  We have accumulated 15 years of experience in drilling and tapping technology, dedicated to providing users with high-quality products and satisfactory services. We implement high-standard control and inspection for all factory products. Every CNC machine tool undergoes comprehensive testing and compensation correction using the American API laser interferometer, ensuring an error margin of ±0.01mm or less. This guarantees product quality and continuous technological advancement.




  DUOMI CNC has obtained the "EU CE Certification" and the "National High-Tech Enterprise" certification. Through independent research and development, we have acquired over 50 patents. Our products are sold in more than 40 countries and regions worldwide, earning an excellent reputation and customer trust.
