Industrial High-Precision CNC Drilling & Tapping Machine
Dual Servo-Driven Spindles, ±0.02mm Repeatability, and Rigorous API Laser Interferometer Calibration
💡 Our CNC drilling and tapping machines support custom non-standard designs, machine color customization, and OEM branding. Start now to purchase and customize your own equipment, please contact us.
Request a Free Machining Sample →
Features
High-Speed Rigid Tapping: Synchronized servo spindle reversal with precise depth control prevents thread stripping.
Heavy-Duty Ribbed Cast Iron Bed: Stress-relieved Meehanite casting absorbs cutting harmonics and guarantees rigidity.
Fast Rapid Axis Traverse: Axis rapid speeds (30–48 m/min) dramatically reduce non-cutting cycle times.
Precision Servo Drive System: Closed-loop servo motors on all axes maintain ±0.02mm repeatable accuracy.
In-Depth Engineering Description & Technical Overview
Click to expand complete machine capabilities, workflow analysis & application guide
Click to Expand
Collapse Details
Industrial CNC Drilling & Tapping Machine Overview
DUOMI CNC designs and manufactures industrial-grade CNC drilling & tapping machines engineered for high-volume metal processing and precision component production. Designed for high rigidity and stability, the DNC-1030DT combines high-speed spindle technology with advanced motion control to achieve superior throughput in modern manufacturing environments.
Whether processing non-ferrous metals like aluminum and brass or tough alloys like stainless steel, our machines ensure consistent tolerances, reduced cycle times, and minimal tool wear under continuous production conditions.
Key Engineering Features & Technological Advantages

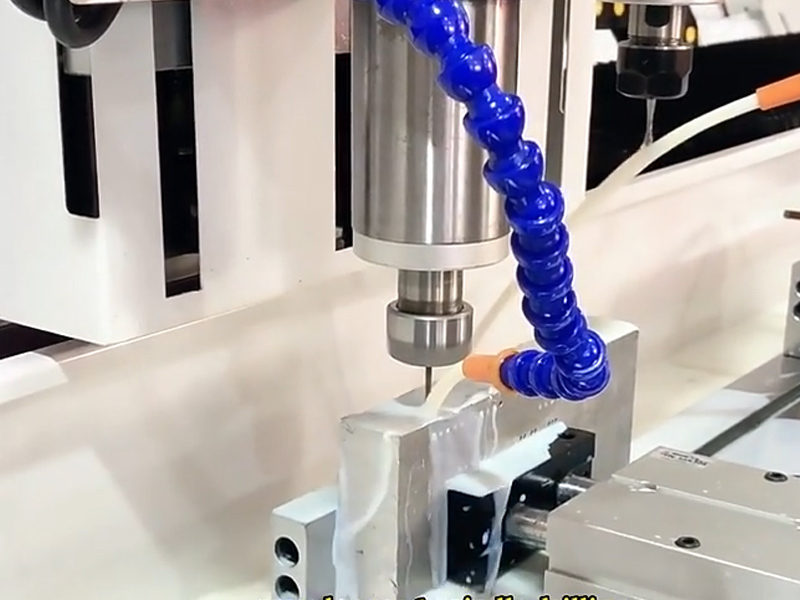

- Dual Servo-Driven Spindle Architecture: Equipped with dual independent or synchronized servo-driven spindles operating up to 24,000 RPM, doubling machining productivity without compromising structural rigidity.
- Stress-Relieved Heavy-Duty Frame: Cast iron machine body undergoes complete thermal stress relief treatment to eliminate internal mechanical stress, guaranteeing long-term dimensional stability and vibration damping.
- HIWIN Linear Guideways & Ball Screws: Utilizes premium HIWIN (Taiwan) precision linear motion components for smooth axis acceleration, zero-backlash motion, and high load capacity across X (1000mm), Y (300mm), and Z (200mm) travel paths.
- Absolute Servo Motor Drive System: High-torque absolute encoder servo motors drive all three axes, providing immediate positioning retention without needing zero-point homing after startup, achieving ±0.02mm repeat positioning accuracy.
- 3-Axis Advanced CNC Controller: Supports direct CAD file imports, G-code computer programming, and manual parameter input via a handheld MPG (Manual Pulse Generator) for rapid job setup.
- Automatic Lubrication & Thermal Management: Integrated cooling and centralized oil distribution continuously lubricate linear guides and cool spindle assemblies to eliminate thermal deformation.
Rigorous Quality Assurance & Calibration
Every DUOMI CNC machine undergoes full inspection prior to factory dispatch utilizing an API Laser Interferometer (USA). Dynamic laser error compensation guarantees that full-travel linear positioning accuracy remains well within 0.02 mm, complying with CE machinery safety directives and ISO 9001 quality management benchmarks.
Industrial Applications & Material Capabilities
Designed for versatile metalworking operations including drilling (1–16mm diameter), rigid tapping (M2–M14), and chamfering (1–20mm). Ideal for:
- Automotive & Aerospace Components: Precision manifold blocks, bracket assemblies, and engine castings.
- Electronics & Heat Sinks: High-speed multi-hole aluminum heat sinks and enclosure plates.
- Hardware & Valve Manufacturing: Brass fittings, steel valve bodies, and structural fasteners.
Explore our full range of solutions, including the 3-Axis CNC Drilling & Tapping Machine and Automatic Tool Changing CNC Drilling Machine.
Purchase & Delivery Guarantees
Direct Factory Assurance — Built, Tested, and Supported from Dongguan to Your Shop Floor
Runs on Your System
Standard GSK control (100% Fanuc G-code compatible) or optional Mitsubishi/Siemens. Direct CAD file import for code-free toolpath generation.
Factory Video FAT
Live drilling/tapping tests on your actual workpiece recorded before dispatch. Final 50% balance payment is paid only after your video approval.
40-Day Build & Rugged Crate
Guaranteed maximum 40-day manufacturing cycle. Sealed in anti-rust vacuum aluminum foil and bolted in fumigation-free timber crates (EXW/FOB/CIF).
Direct Engineer Care
Direct 1-on-1 WhatsApp group with your machine's build engineers, 12-month full warranty, and critical replacement parts dispatched via DHL within 24–48h.
Every DUOMI machine is built under a transparent 13-step factory production & responsibility chain.
Parameters
Download Technical Brochure| Model | DNC-1030DT CNC Drilling & Tapping Machine |
| XYZ three-axis travel | X1000mm, Y300mm, Z200mm |
| Spindle speed | 100~24000rpm (Can be selected according to demand) |
| Spindle taper hole | ER20 |
| Spindle power | 0.55~3.0KW |
| X axis moving speed | 30m/min~60m/min |
| Y axis moving speed | 25m/min |
| Z axis moving speed | 25m/min |
| Drilling diameter range | 1~16mm |
| Tapping diameter range | M2~M14 |
| Chamfer range | 1~20mm |
| Tool magazine | Manual tool change |
| Repeated positioning accuracy | ±0.02mm |
| Table size | 1000mm x 280mm |
| Programming mode | CAD file import / computer programming / manual programming |
| System program storage capacity | About 10,000 |
| System external signal control | Support |
| Operating voltage | AC 220V/50HZ |
| Machine weight | Approx. 1100KG |
| Product dimensions | 2500mm x 1500mm x 1700mm |

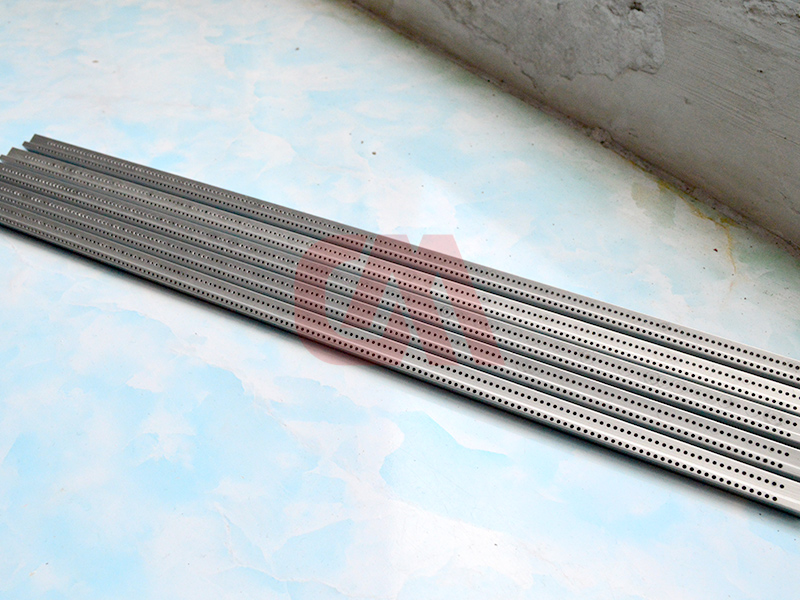

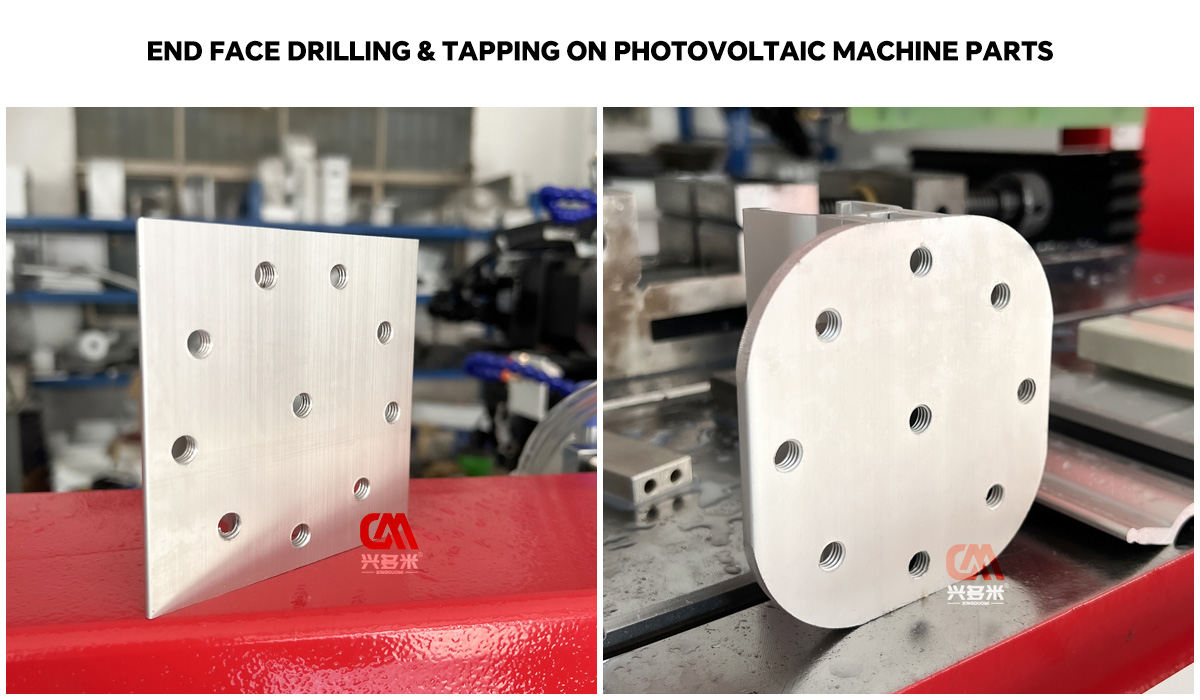

Machining Samples
Real parts processed by our machines
Frequently Asked Questions
We “only” do drilling & tapping. Why do customers still choose Duomi over general-purpose CNC machines?
What does “Your part defines the solution” mean in practice?
What is the positioning and repeat accuracy of the DNC-1030DT machine?
What drilling and tapping range does this CNC machine support?
Which materials can be machined on DUOMI CNC drilling and tapping equipment?
What programming options are supported by the control system?
What spindle speed range and drive system are utilized?
Does DUOMI offer non-standard customization and OEM options?
