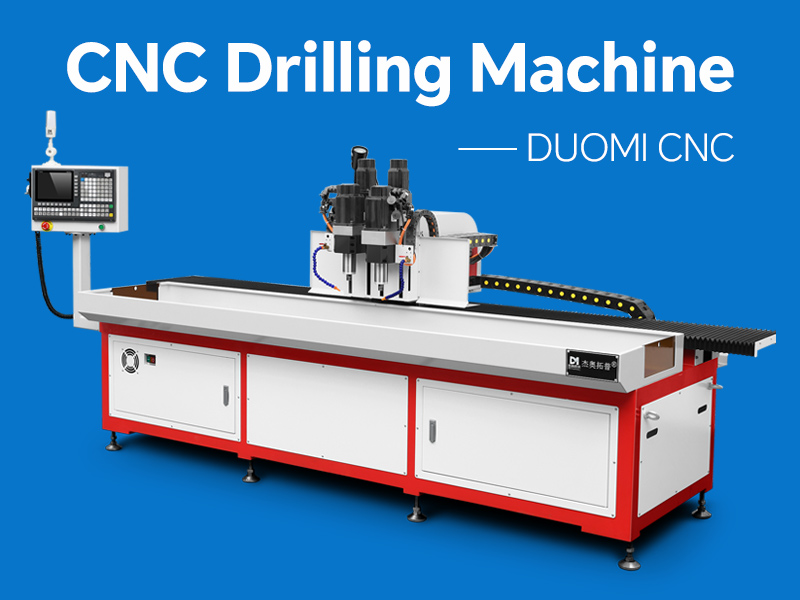

Introduction to CNC Drilling Press in Modern Manufacturing
In high-throughput industrial manufacturing, dimensional accuracy, hole surface finish, and operational velocity dictate overall productivity. A high-performance CNC Drilling Press serves as the backbone for automated multi-axis hole-making, counterboring, countersinking, and deep-hole tapping across diverse metallurgical workpieces.
DUOMI CNC manufactures industrial-grade CNC Drilling Press machinery engineered with heavy-duty meehanite cast-iron beds, high-torque spindle motors, and precision linear motion guides. By combining advanced computer numerical control (CNC) with rigid structural dynamics, these machines eliminate thermal drift and operational deflection, ensuring repeatable accuracy across carbon steels, stainless steel (SUS304/316), aluminum alloys (6061-T6/7075), and exotic aerospace metals.
Technical Performance & Machine Benchmarks
To meet international standards such as ISO 230-2 for axis positioning and repeatability, DUOMI CNC Drilling Presses integrate precise control algorithms with high-grade mechanical assemblies:
| Technical Parameter | Specification / Performance Standard |
|---|---|
| Positional Accuracy (X/Y/Z) | ±0.005 mm (ISO 230-2) |
| Repeatability (X/Y/Z) | ±0.003 mm |
| Spindle Runout | ≤ 0.002 mm at spindle nose |
| Spindle Speed Range | 3,000 – 12,000 RPM (Direct-Drive / Servo Drive) |
| Tool Taper Interface | BT40 / BT50 / SK40 |
| Coolant Pressure (CTS) | 20 bar to 70 bar Through-Spindle Coolant |
| Control System Options | FANUC 0i-MF, Siemens 828D, SYNTEC CNC |
Core Engineering Features of DUOMI CNC Drilling Press Systems
1. High-Rigidity Direct-Drive Spindle Architecture
The heart of every DUOMI CNC Drilling Press is its thermal-stabilized spindle assembly. Utilizing P4-class angular contact ceramic bearings, the spindle operates continuously at high RPMs with minimal thermal dissipation. The balanced dynamic design prevents tool vibration during heavy-duty peck drilling and rigid tapping, resulting in surface roughness down to Ra 0.8 µm.
2. Advanced Multi-Axis CNC Motion Control
Equipped with closed-loop digital AC servo drive systems and absolute optical encoders, the CNC system manages rapid positioning speeds up to 30 m/min. The controller enables flexible macro programming, canned cycles for chip-breaking peck drilling, spiral interpolation, and thread milling with dynamic tool load protection.
3. High-Pressure Through-Spindle Coolant (CTS)
Deep-hole drilling operations (depth-to-diameter ratios exceeding 5:1) require rapid chip evacuation and efficient thermal dissipation. DUOMI integrates high-pressure through-spindle coolant systems (up to 70 bar) directly targeting the cutting zone. This extends cutting tool service life by up to 300% and prevents thermal warping of the workpiece.
4. Automated Tool Management & ATC Integration
To maximize spindle uptime, DUOMI CNC Drilling Press units incorporate automated tool changers (ATC) with arm-type or disc-type magazine configurations capable of 1.5-second tool-to-tool change cycles. Real-time tool break detection and adaptive feed rate controls ensure unattended lights-out operations.
Primary Industrial Applications
Automotive Powertrain & Structural Components
In high-volume automotive production lines, the CNC Drilling Press executes precision hole patterns, mounting flange holes, and oil channel deep drilling in engine blocks, transmission cases, brake calipers, and aluminum suspension arms.
Aerospace & Defense Structural Parts
Manufacturing aircraft wing ribs, spar brackets, and turbine housing assemblies requires zero-defect drilling in high-strength alloys (Inconel, Titanium, 7075-T6 Aluminum). DUOMI CNC systems deliver strict tolerance management required under AS9100 quality frameworks.
Structural Steel & Heavy Metalworking
From tube sheets for heat exchangers to massive structural gusset plates, heavy-duty DUOMI CNC Drilling Press models handle large-diameter hole drilling up to Ø50 mm in solid steel plates with high feed rates.
Electronics Enclosures & Heat Sinks
Precision hole positioning for threaded standoffs, connector ports, and thermal management channels in PCB enclosures and aluminum heat sinks requires fast axis travel and high-speed tapping capability.
Key Advantages of Integrating DUOMI CNC Drilling Press Systems
- Reduced Cycle Times: Multi-spindle configurations and high-speed rapid traverses cut cycle times by up to 45% compared to conventional drilling machinery.
- Micron-Level Repeatability: Zero backlash pre-loaded ball screws paired with linear roller guides maintain tight dimensional tolerances across long production runs.
- Extended Tool Life: Integrated micro-dosing lubrication and through-spindle coolant dramatically lower tool wear rates.
- Operational Versatility: Seamlessly transition between high-speed aluminum drilling, rigid steel tapping, and surface face milling on standard machine setups.
Maintenance Protocol and Longevity Standards
Maintaining long-term operational precision requires adhering to standardized preventive maintenance practices:
- Daily Centralized Lubrication Check: Ensure automatic lube pumps deliver ISO VG 68 slide-way oil to all linear guides and ball screw nuts.
- Weekly Spindle Runout Inspection: Perform dial indicator checks to detect tool holder wear or bearing axial play early.
- Coolant Filtration Maintenance: Clean magnetic separators and paper belt filters daily to maintain CTS pressure integrity and prevent coolant nozzle clogs.
- Annual Geometric Alignment Verification: Utilize laser interferometers to calibrate pitch error compensation and back-lash values across all linear axes.
Summary
Deploying an industrial CNC Drilling Press from DUOMI CNC equips manufacturing operations with superior precision, operational speed, and heavy-duty reliability. Through continuous research in structural kinematics and intelligent CNC algorithms, DUOMI remains a market leader in automated metalworking machinery.
