Global Manufacturing Challenges & Precision Drilling Requirements
Modern precision manufacturing industries—spanning automotive, aerospace, energy, and defense—face demanding operational pressures. Tightening geometric tolerances, higher throughput targets, and the increasing adoption of hard-to-machine superalloys render manual and semi-automatic drilling techniques obsolete.

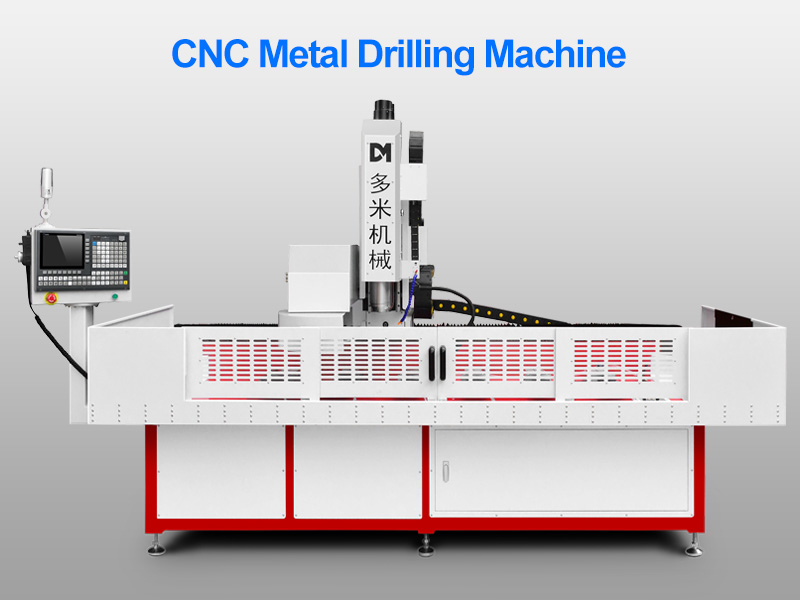

A high-performance CNC metal drilling machine solves these bottlenecks by combining heavy-duty machine tool construction, precision motion control, and adaptive automation. DUOMI CNC engineers state-of-the-art drilling solutions tailored for materials ranging from lightweight 6061-T6 aluminum to high-strength Inconel and aerospace-grade titanium alloys.
Industry Shift Toward Automated Metal Drilling
According to recent manufacturing automation benchmark studies, over 72% of global industrial discrete manufacturers are actively investing in CNC multi-axis automation to reduce direct labor costs, lower scrap rates below 0.5%, and maximize spindle uptime. DUOMI CNC metal drilling machines lead this transition by executing fully automated multi-hole, tapping, and counterboring operations with minimal human intervention.
Core Engineering Principles of DUOMI CNC Metal Drilling Machines
Heavy-Duty Frame Rigidity & Thermal Stability
Maintaining structural rigidity under variable cutting forces is fundamental to prevent chatter and micro-vibration during hole generation. DUOMI CNC metal drilling machines utilize high-density Meehanite cast-iron beds optimized via Finite Element Analysis (FEA).
- Vibration Damping: High internal damping capacity prevents resonance during high-feed peck drilling.
- Thermal Compensation: Integrated thermal sensors continuously monitor spindle and column expansion, real-time adjusting Z-axis offsets to sustain positioning accuracy within ±0.005 mm (ISO 230-2).
Multi-Axis Adaptive Feedback Control
Advanced DUOMI CNC systems feature multi-axis closed-loop feedback powered by high-resolution optical linear scales. Real-time adaptive control algorithms continuously evaluate spindle load and vibration frequency:
- Dynamic Feed Rate Adjustment: Automatic feed reduction when encountering hard spots or scale on hot-rolled steel.
- Tool Breakage Prevention: Instant retract triggers upon sensing abnormal spindle torque spikes.
- Optimized Chip Formation: Variable dwell and peck cycles customized to material work-hardening tendencies.
Intelligent Tool Management & ATC Integration
To minimize non-cutting time, DUOMI CNC metal drilling machines incorporate high-speed Automatic Tool Changers (ATC) supporting BT40, BT50, or HSK-A63 spindle tapers. Coupled with non-contact laser tool setters and acoustic emission sensors, the machine monitors tool wear in real time and automatically swaps worn drills before dimensional degradation occurs.
DUOMI CNC Metal Drilling Performance Specifications
| Technical Parameter | Metric Specification | Benchmark Standard / Feature |
|---|---|---|
| Positioning Accuracy | ±0.005 mm | ISO 230-2 Standard |
| Repeatability | ±0.003 mm | ISO 230-2 Standard |
| Spindle Speed Range | 50 – 12,000 RPM | Direct-Drive / Gearbox Options |
| Deep Hole Aspect Ratio | Up to 30:1 (L/D) | Internal High-Pressure Coolant (70 Bar) |
| Control System Options | Siemens 840D / Fanuc 0i-MF | Closed-loop Servo Drive |
| Compatible Materials | Aluminum, Carbon Steel, Stainless, Titanium, Inconel | Adaptive Torque Control |
Industry Applications & Real-World Performance
Automotive Powertrain & Chassis Component Machining
Automotive mass production demands extreme repeatability across thousands of component features. DUOMI CNC metal drilling machines streamline high-speed drilling and tapping on engine blocks, transmission housings, and suspension control arms, maintaining Cpk > 1.67 process capability indices.
Aerospace Structural Components & Turbines

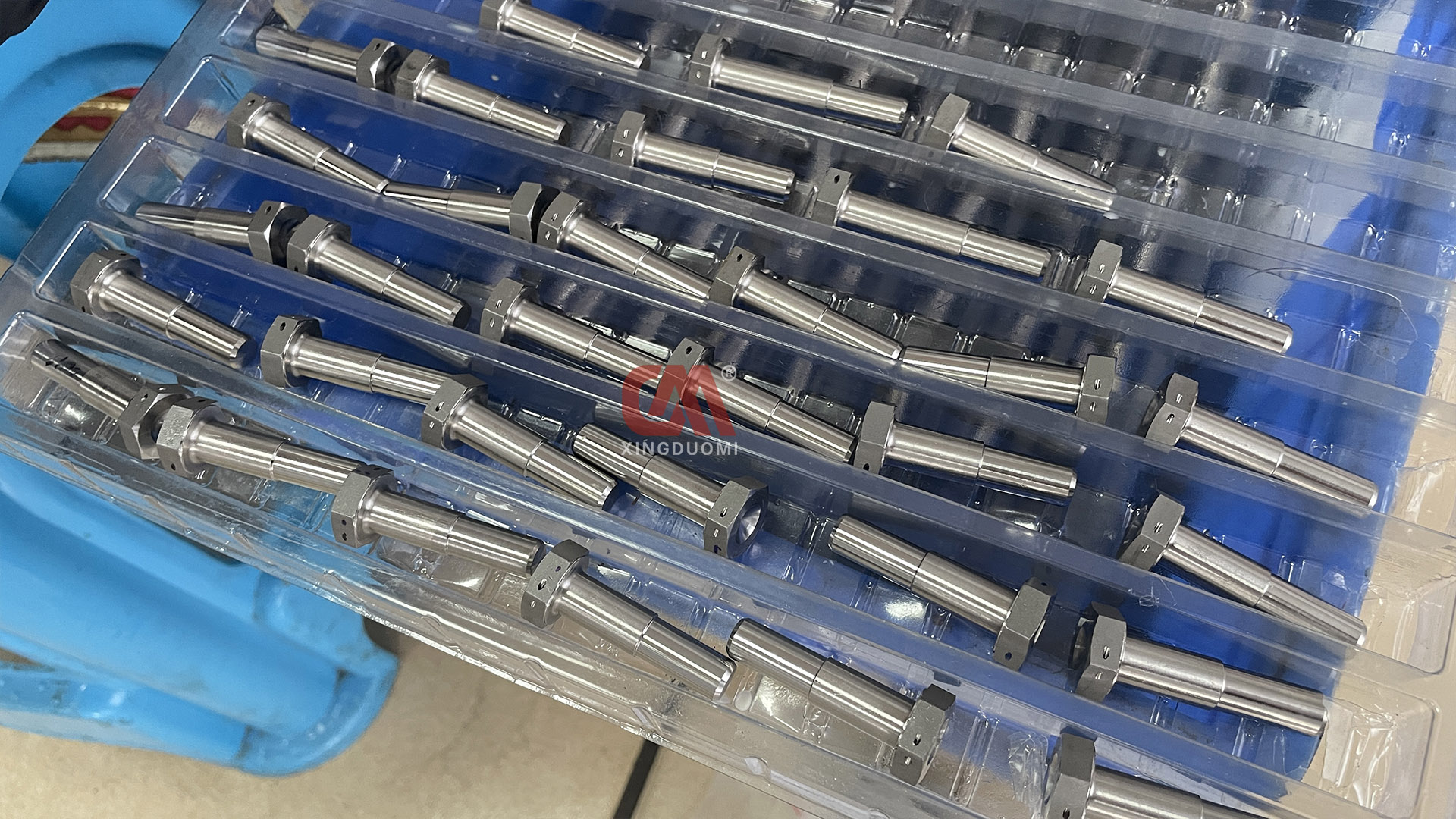

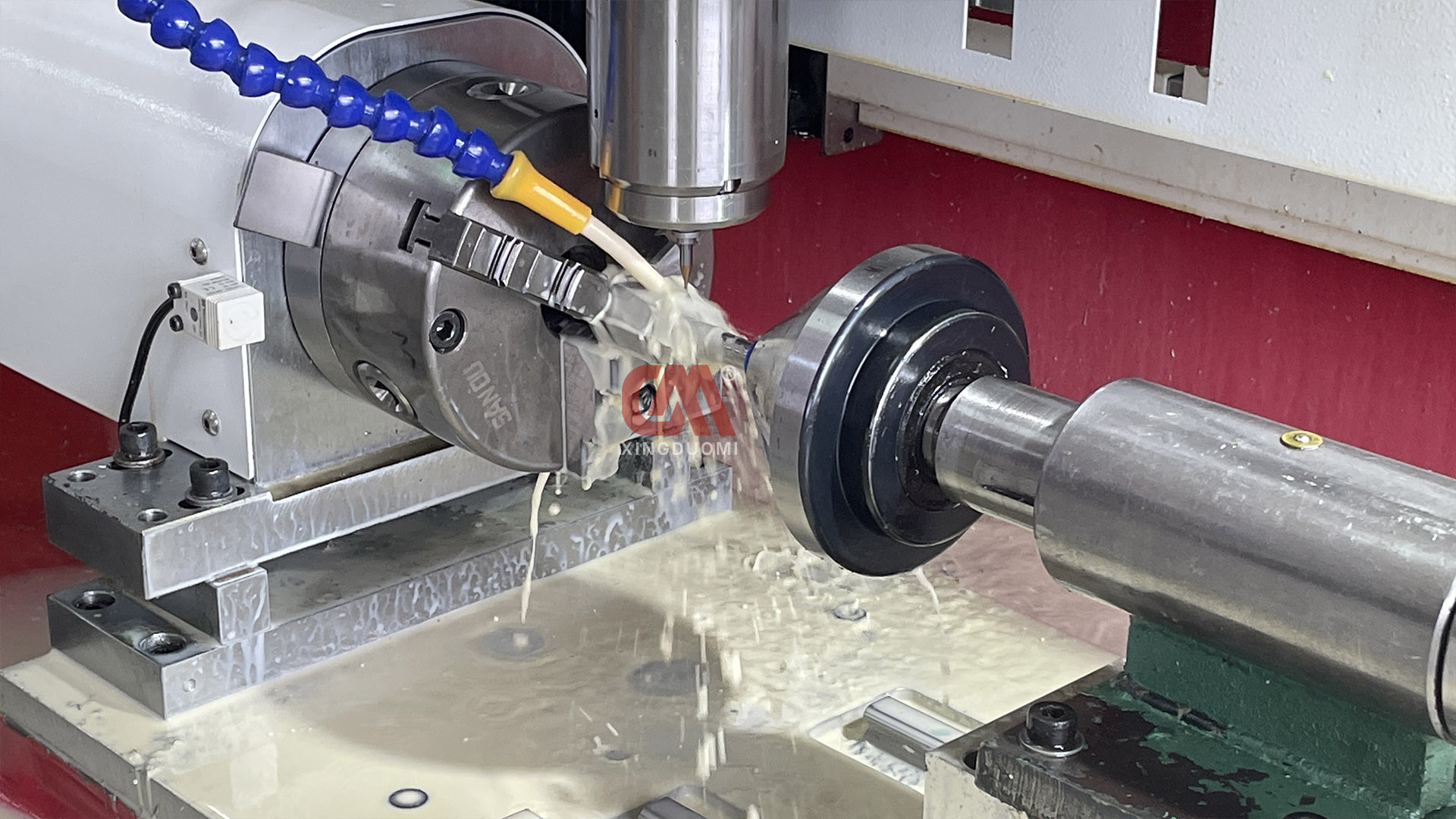

Aircraft bulkheads, fuselage ribs, and turbine disk rings require micron-accurate hole patterns in tough titanium (Ti-6Al-4V) and stainless steels. Precision depth control prevents stress concentration points and micro-fracturing around hole margins, meeting stringent AS9100 quality guidelines.
Heavy Industrial Equipment & Structural Steel
Thick plate flanges, heat exchanger tube sheets, and crane frames require high-torque low-RPM drilling capabilities. Heavy-duty DUOMI CNC drilling systems deliver massive low-end torque to push large-diameter carbide drills through structural steel up to 100 mm thickness efficiently.
Economic Advantages of Adopting DUOMI CNC Solutions
- Increased Throughput: Multi-spindle configurations and optimized motion cycles increase hourly hole output by up to 350% compared to standard vertical machining centers (VMCs).
- Reduced Tooling Costs: Adaptive feed rates and high-pressure through-spindle coolant (70 Bar) extend drill carbide insert life by up to 40%.
- Lower Scrap Rates: Closed-loop monitoring guarantees uniform hole diameter, roundness, and perpendicularity batch after batch.
Future Trends: Smart Industry 4.0 Metal Drilling
- IoT Condition Monitoring: Remote diagnostics and predictive spindle bearing health monitoring.
- Digital Twin Calibration: Virtual simulation of complex hole patterns to eliminate collision risks and optimize cycle times before physical cutting.
- Sustainable Machining (MQL): Integration of Minimum Quantity Lubrication systems reduces cutting fluid consumption by up to 90%.
Conclusion
Investing in a DUOMI CNC metal drilling machine delivers a decisive operational advantage. By harmonizing rigid mechanical construction, multi-axis computer control, and real-time adaptive intelligence, DUOMI CNC empowers manufacturers to exceed rigorous quality standards while maximizing operational profitability.
Need High-Efficiency CNC Drilling & Tapping Machinery?
Consult with our senior application engineers to get a custom cycle time simulation and tailored machine proposal within 24 hours.
