High-Precision CNC Flow Drilling Machine Supplier – Direct Factory Pricing
Integrate thermal friction drilling and tapping into a single setup with ±0.02mm repeatability and up to 60m/min traverse speeds.
💡 Our CNC drilling and tapping machines support custom non-standard designs, machine color customization, and OEM branding. Start now to purchase and customize your own equipment, please contact us.
Request a Free Machining Sample →
Features
Integrated Flowdrill & Tapping: Forms thick extruded threaded bosses and rigid-taps thin-wall tubing in seconds.
Zero Rivet Nuts & Weld Fasteners: Eliminates loose hardware risk, weld spatter, and secondary manual assembly costs.
Heavy Structural Profile Machining: Easily drills and taps structural steel, aluminum extrusions, and cooling manifolds.
High-Speed 24,000 RPM Spindle: High-RPM BT30/BT40 spindle generates instantaneous friction heat with smooth feed control.
Strict Quality & Precision Control: Calibrated with API laser interferometer ensuring sub±0.02mm positioning repeatability.
In-Depth Engineering Description & Technical Overview
Click to expand complete machine capabilities, workflow analysis & application guide
Click to Expand
Collapse Details
Overview of the DHM-1030DT CNC Flow Drilling Machine
As a premier flow drilling machine supplier, DUOMI CNC provides industrial-grade thermal friction drilling and tapping solutions designed for high-efficiency metal fabrication. The DHM-1030DT High-Precision Flow Drill Machine integrates thermal drilling, thread forming (M2 to M12), chamfering, and milling in a single clamping operation.
By leveraging high-speed friction heat generated during the thermal drilling process, this machine forms strong bushings in thin-walled sheet metal and tubing without requiring riveted nuts or weld fasteners, dramatically reducing labor costs and cycle times.
Key Advantages & Performance Metrics
- Drastic Scrap Rate Reduction: Reduces overall defect rates from industry averages of 8% down to 0.2%, saving leading manufacturers up to $500,000 annually in scrapped material costs.
- Multi-Process Integration: Consolidates flow drilling, tapping, chamfering, and light milling into one seamless CNC workflow, minimizing tool changeover delays.
- High-Speed Axis Dynamics: Rapid traverse speeds reaching 30m/min to 60m/min on the X-axis and 25m/min on Y/Z axes significantly compress cycle times.
- Laser-Calibrated Precision: Every unit undergoes full 3D calibration via American (API) laser interferometers, guaranteeing a repeated positioning accuracy of ±0.02mm.
- Automation Readiness: Easily integrates with robotic loading/unloading arms, automated tool changers (ATC), and external PLC signals for 24/7 continuous unmanned operation.
Industrial Applications & Materials
As a flexible flow drilling machine supplier, DUOMI CNC designs equipment suitable for a wide range of structural and decorative metals:
- Automotive & EV Manufacturing: Engine blocks, gearbox housings, mobility vehicle steel frame profiles, and structural chassis components.

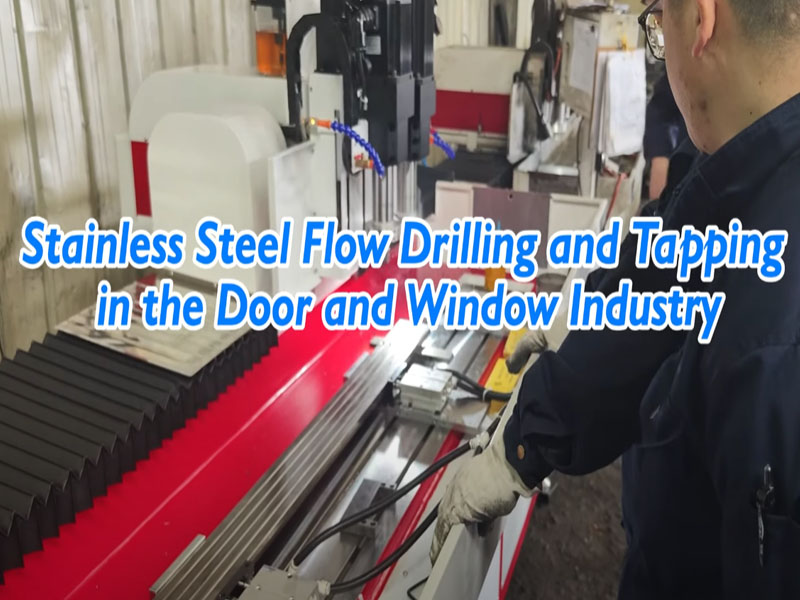

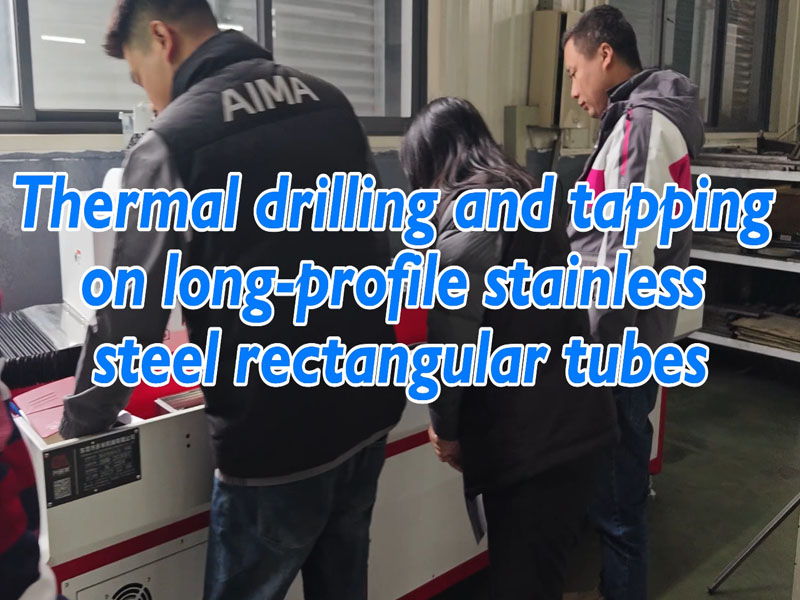

- HVAC & Long Profiles: Thermal friction drilling and tapping on stainless steel, aluminum, and brass heat exchangers or frame channels.
- Precision Engineering & Hardware: Multi-hole brackets, enclosures, and custom thin-walled tubular structures.
Compatible Materials:
- Carbon Steel & Stainless Steel
- Aluminum Alloys & Cast Aluminum
- Copper, Brass & Zinc Alloys
- Titanium & Specialty Alloys
Technical Calibration & Quality Assurance
To meet international B2B quality standards, each DUOMI CNC flow drilling machine undergoes rigorous accuracy verification:
- Laser Calibration: Axis straightness, perpendicularity, parallelism, and pitch error compensation are calibrated using API laser systems.
- Thermal Stability Testing: High spindle speed runs (up to 6,000 RPM) ensure stable thermal expansion properties under heavy continuous load.
- Heavy-Duty Rigidity: The 1,000 kg machine frame absorbs vibration, ensuring clean hole wall deformation during friction drilling.
Purchase & Delivery Guarantees
Direct Factory Assurance — Built, Tested, and Supported from Dongguan to Your Shop Floor
Runs on Your System
Standard GSK control (100% Fanuc G-code compatible) or optional Mitsubishi/Siemens. Direct CAD file import for code-free toolpath generation.
Factory Video FAT
Live drilling/tapping tests on your actual workpiece recorded before dispatch. Final 50% balance payment is paid only after your video approval.
40-Day Build & Rugged Crate
Guaranteed maximum 40-day manufacturing cycle. Sealed in anti-rust vacuum aluminum foil and bolted in fumigation-free timber crates (EXW/FOB/CIF).
Direct Engineer Care
Direct 1-on-1 WhatsApp group with your machine's build engineers, 12-month full warranty, and critical replacement parts dispatched via DHL within 24–48h.
Every DUOMI machine is built under a transparent 13-step factory production & responsibility chain.
Parameters
Download Technical Brochure| Model | DHM-1030DT Flow Drilling Machine Supplier |
| XYZ three-axis machining stroke | X 1000mm, Y 300mm, Z 200mm |
| Spindle speed | 100~6000rpm (Can be selected according to demand) |
| Spindle taper hole | ER20 |
| Spindle power | 0.55~3.0KW |
| X axis moving speed | 30m/min ~ 60m/min |
| Y axis moving speed | 25m/min |
| Z axis moving speed | 25m/min |
| Drilling diameter range | 1~12mm |
| Tapping diameter range | M2~M12 |
| Chamfer range | 1~20mm |
| Tool magazine | Manual tool change |
| Repeated positioning accuracy | ±0.02mm |
| Table size | 1000mm x 280mm |
| Programming mode | CAD file import / computer programming / manual programming |
| System program storage capacity | About 10,000 |
| System external signal control | Support |
| Operating voltage | AC 220V / 50HZ |
| Machine weight | Approx. 1000KG |
| Floor space | 2500mm x 1500mm x 1700mm |
Machining Samples
Real parts processed by our machines
Frequently Asked Questions
We “only” do drilling & tapping. Why do customers still choose Duomi over general-purpose CNC machines?
What does “Your part defines the solution” mean in practice?
What is flow drilling and how does it benefit B2B manufacturing?
What accuracy standards does the DUOMI DHM-1030DT maintain?
What tapping capacity and drilling diameters are supported?
Can DUOMI CNC customize this flow drilling machine for automated production lines?
What materials can be processed with this flow drilling machine?
What is the standard lead time for the DHM-1030DT CNC machine?
