High-Speed CNC Micro Hole Drilling Machine for Auto Parts
Ultra-precise drilling down to 0.07mm with 60,000 RPM spindle speed and ±0.02mm positioning accuracy for automotive and precision components.
💡 Our CNC drilling and tapping machines support custom non-standard designs, machine color customization, and OEM branding. Start now to purchase and customize your own equipment, please contact us.
Request a Free Machining Sample →
Features
Ultra-High-Speed Micro Spindle: 24,000–60,000 RPM spindle provides optimal cutting velocity for micro drill bits down to Ø0.15mm.
Burr-Free Micro Hole Finish: Controlled micro-feed system prevents drill deflection, bit breakage, and hole entrance burrs.
Automotive Precision Parts: Tailored for high-precision fuel injector nozzles, sensors, and micro lubrication channels.
High-Precision Positioning Accuracy: High-resolution servo drives deliver ±0.02mm repeatable accuracy for delicate components.
In-Depth Engineering Description & Technical Overview
Click to expand complete machine capabilities, workflow analysis & application guide
Click to Expand
Collapse Details
High-Precision CNC Micro Hole Drilling for Automotive Components
The DNC-430HD High-Speed CNC Micro Hole Drilling Machine by DUOMI CNC is specifically engineered for high-volume, ultra-precise drilling of small and micro holes in automotive components, including fuel injectors, pressure reducing valve seats, engine oil passages, and electronic sensors. Equipped with a 60,000 RPM high-speed spindle and delivering ±0.02mm repeat positioning accuracy, this machine processes micro hole diameters from 0.07mm to 3.0mm across hard metals and exotic alloys.
Core Performance Advantages & Cost Savings
- Drastic Reduction in Scrap Rates (Down to 0.2%): Conventional micro-drilling often experiences defect rates up to 8%. Implementing DUOMI CNC automated micro-drilling slashes scrap rates to 0.2%, saving leading automotive manufacturers up to $500,000 annually in raw material costs.
- High-Speed Spindle Efficiency (60,000 RPM): Ultra-high RPM spindle option combined with rapid traverse speeds (X: 30–60m/min, Y/Z: 25m/min) dramatically accelerates cycle times for micro hole arrays.
- Multi-Process Integration: Performs drilling, tapping, chamfering, and micro-milling in a single clamping setup, replacing multiple labor-intensive manual machines and minimizing setup delays.

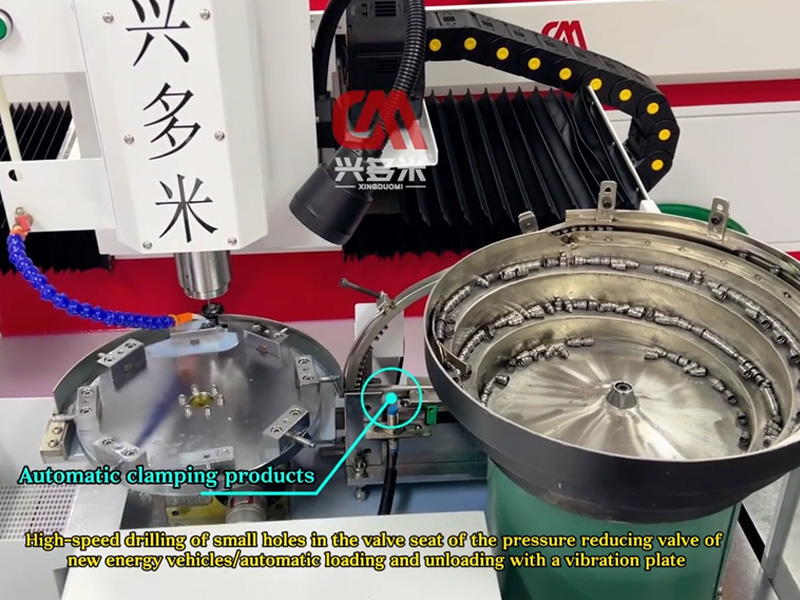

- Automated Unmanned Operation: Seamlessly integrates with robotic arm loading/unloading and automatic vibration plate feeders to enable 24/7 continuous production, reducing labor costs by over 60%.
- Multi-Axis Linkage Capability: Optional multi-axis configuration (3, 4, or 5-axis linkage) enables precision angled drilling on complex surfaces, aerospace locknuts, and irregular auto parts.
Key Technical Capabilities
- Micro Hole Diameter Range: Ø0.07mm to Ø3.0mm
- Spindle Speed Range: 1,500 – 60,000 RPM (ER20 Taper)
- Repeat Positioning Accuracy: ±0.02mm
- Traverse Speeds: X-axis up to 60m/min; Y/Z-axis 25m/min
- Machining Envelope: X400mm × Y300mm × Z120mm (Table size: 400mm × 280mm)
- Standards Compliance: Manufactured under ISO 9001 certified quality controls and CE safety specifications for tier-1 automotive manufacturing compliance.
Industrial Automotive Applications
- Fuel Injection Systems: Precision micro-hole drilling in diesel and gasoline fuel injector nozzles and valve seats.
- Engine Valve Assemblies: Drilling precise oil passage holes in pressure-reducing valve seats and engine cylinder heads.
- Automotive Electronics & Sensors: Micro drilling on copper sheets, ceramic vacuum chucks, and sensor housings.
- Aerospace & Defense: Angled micro drilling in high-strength alloys including Inconel, Titanium, and Stainless Steel.
Purchase & Delivery Guarantees
Direct Factory Assurance — Built, Tested, and Supported from Dongguan to Your Shop Floor
Runs on Your System
Standard GSK control (100% Fanuc G-code compatible) or optional Mitsubishi/Siemens. Direct CAD file import for code-free toolpath generation.
Factory Video FAT
Live drilling/tapping tests on your actual workpiece recorded before dispatch. Final 50% balance payment is paid only after your video approval.
40-Day Build & Rugged Crate
Guaranteed maximum 40-day manufacturing cycle. Sealed in anti-rust vacuum aluminum foil and bolted in fumigation-free timber crates (EXW/FOB/CIF).
Direct Engineer Care
Direct 1-on-1 WhatsApp group with your machine's build engineers, 12-month full warranty, and critical replacement parts dispatched via DHL within 24–48h.
Every DUOMI machine is built under a transparent 13-step factory production & responsibility chain.
Parameters
Download Technical Brochure| Model | DNC-430HD High speed CNC drilling machine |
| Scope of application | All kinds of hard materials and metal materials |
| Non-standard customization | Support |
| XYZ three-axis machining stroke | X400mm, Y300mm, Z120mm |
| Spindle speed | 1500~60000rpm (Can be selected according to demand) |
| Spindle taper hole | ER20 |
| Spindle power | 0.55~3.0KW |
| X axis moving speed | 30m~60m/min |
| Y axis moving speed | 25m/min |
| Z axis moving speed | 25m/min |
| Borehole diameter range | 0.07~3.0mm |
| Tool magazine | Manual tool change |
| Repeated positioning accuracy | ±0.02mm |
| Table size | 400mm x 280mm |
| Programming mode | CAD file import / computer programming / manual programming |
| System program storage capacity | About 10,000 |
| System external signal control | Support |
| Application | Drill small holes and micro holes in metal |
| Operating voltage | AC 220V/50HZ |
| Machine weight | Approx. 700KG |
| Floor space | 900mm x 900mm x 1700mm |
Machining Samples
Real parts processed by our machines
Frequently Asked Questions
We “only” do drilling & tapping. Why do customers still choose Duomi over general-purpose CNC machines?
What does “Your part defines the solution” mean in practice?
What is the minimum hole diameter that the DNC-430HD micro hole drilling machine can process?
Why is a 60,000 RPM high-speed spindle necessary for auto parts micro drilling?
What materials can be machined on this CNC micro drilling system?
How does this machine lower defect rates in automotive part production?
Can the DNC-430HD be integrated into automated production lines?
What programming formats does the CNC system support?
Does DUOMI CNC offer custom fixtures or non-standard machine designs?
Recommended
View More ›

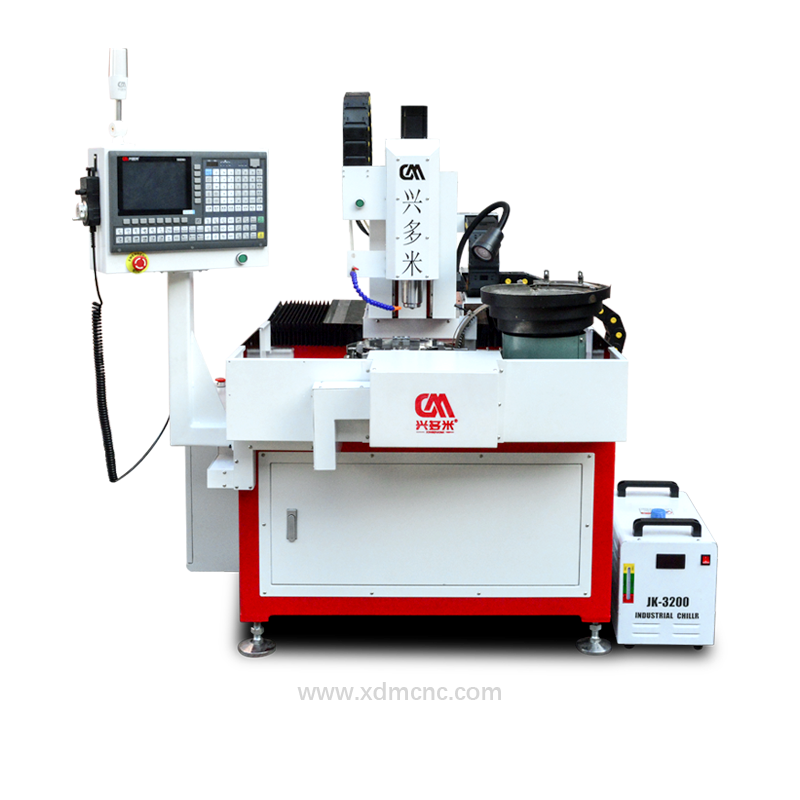

CNC Drilling Machine for Drilling Small Micro Holes in Auto Parts

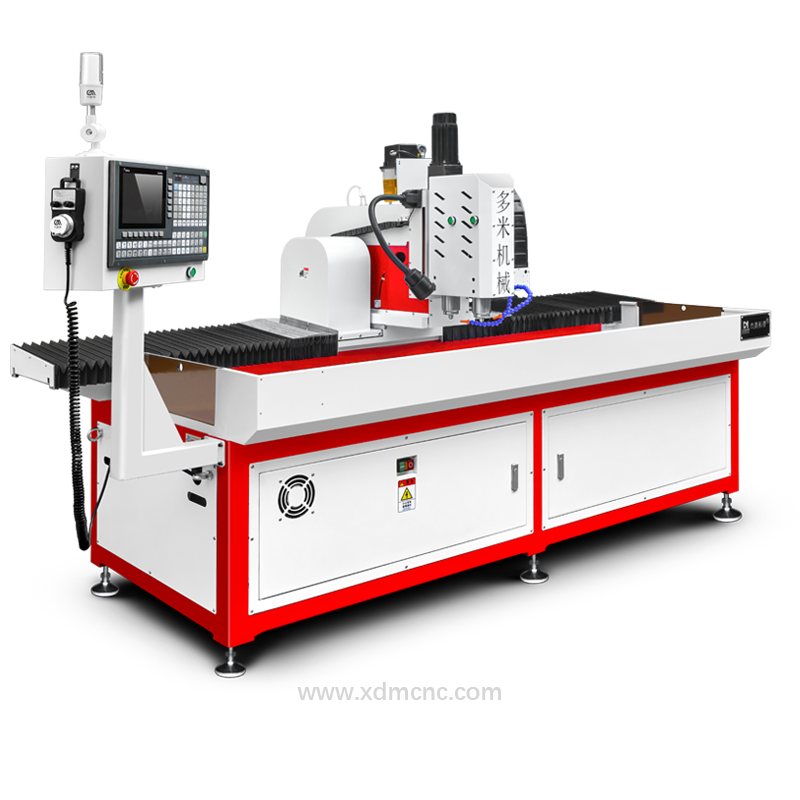

Multi-hole CNC drilling machine
