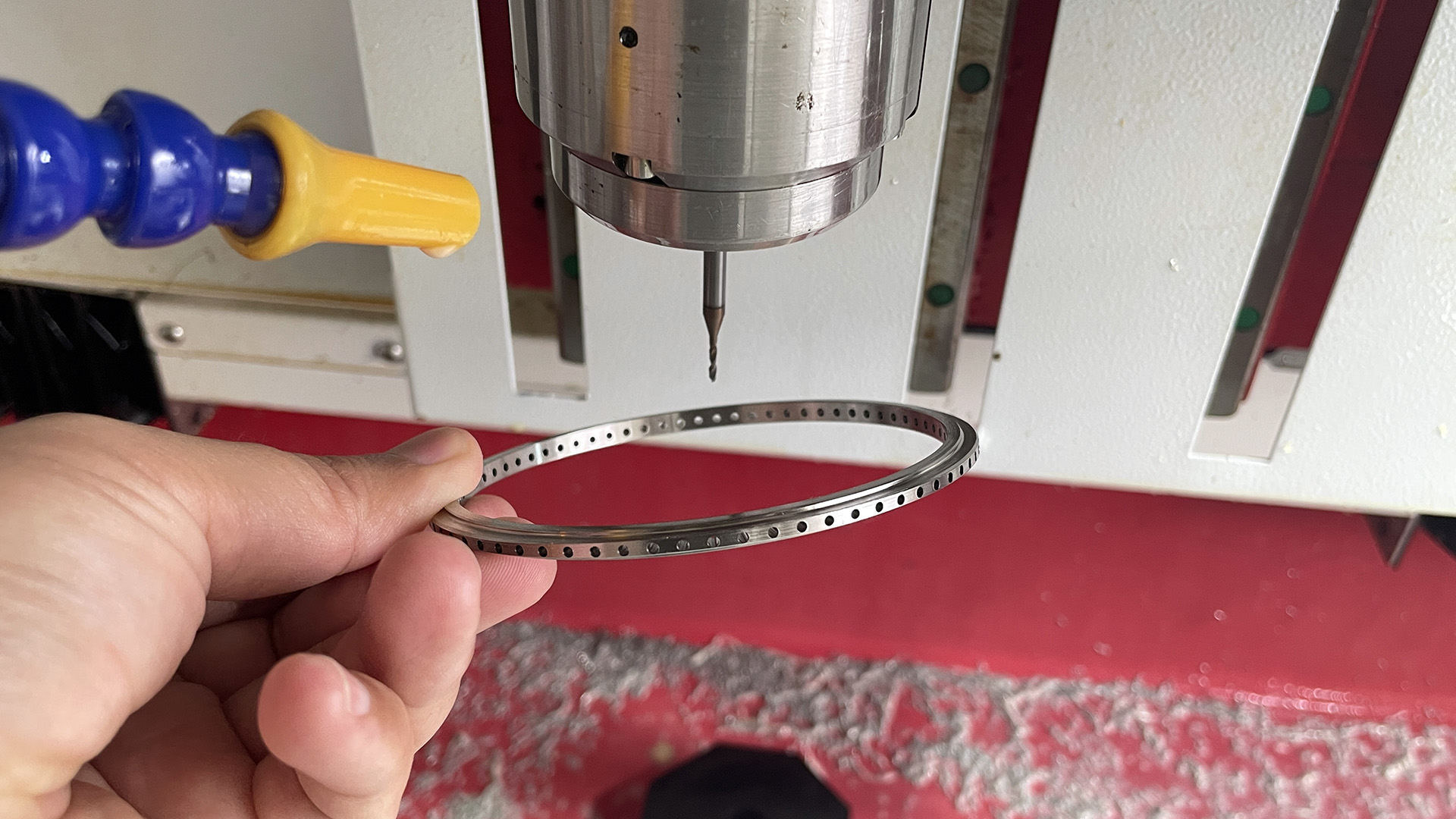

Introduction to CNC Drilling of Textile Machinery Parts
In modern textile machinery manufacturing, precision engineering is a fundamental necessity. As automated looms, spinning frames, and knitting machines operate at speeds exceeding 2,000 RPM, structural components face extreme mechanical stress and continuous vibration. High-precision CNC drilling of textile machinery parts ensures that shafts, brackets, guide rails, and structural housings meet exacting dimensional tolerances.
From AISI 304 and 316 stainless steel components to lightweight aluminum profiles, textile machinery relies heavily on precisely located drilled holes, counterbores, and tapped threads. A minor positional error of even ±0.03 mm can induce frame twisting, premature bearing wear, and thread stripping during high-speed yarn processing.
By leveraging automated multi-axis G-code positioning, high-pressure through-coolant spindles, and optimized cutting strategies, modern CNC drilling solutions enable high throughput while maintaining strict quality standards across high-volume production cycles.
Key Machining Challenges in Textile Component Manufacturing
Machining components for textile machinery presents distinct engineering hurdles due to material characteristics and continuous operating conditions.
1. Thin-Wall Deformation & Dimensional Stability
Many structural brackets, yarn guides, and side plates are fabricated from thin-wall stainless steel or extruded aluminum. High thrust forces during standard twist drilling can easily distort thin walls, causing out-of-round holes and dimensional inaccuracy beyond ISO 2768-m tolerances.
2. Weak Thread Engagement in Thin Materials
Standard tapping in thin metal sheets (1.5 mm to 3.0 mm) often leaves only 1 to 2 complete thread pitches. Under high-vibration conditions common in weaving and spinning equipment, these weak threads strip quickly, leading to mechanical failure.
3. Cumulative Hole Centerline Deviations
Textile machinery frames feature linear arrays of up to 100+ mounting holes across several meters. Manual or semi-automated positioning allows pitch errors to accumulate, causing binding during assembly of long drive shafts or linear guides.
4. Work-Hardening of Stainless Steel Alloys

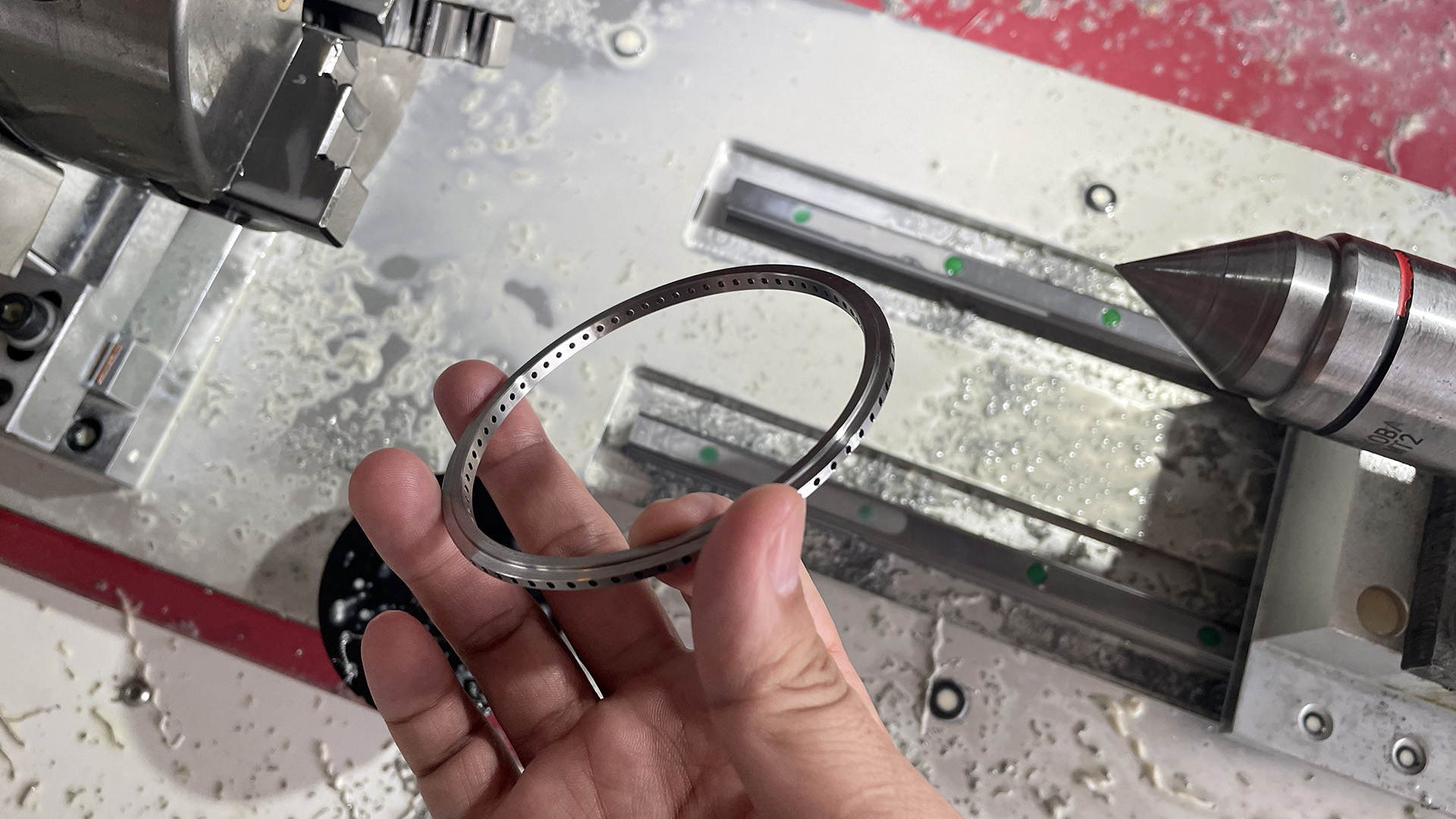

Austenitic stainless steels (e.g., 304, 316L) exhibit high work-hardening rates. Incorrect feed rates or dwelling during CNC drilling causes heat concentration, rapid tool wear, and drill bit breakage.
Advanced CNC Drilling Techniques for Textile Machinery Parts
To overcome these technical constraints, modern CNC machining centers utilize advanced drilling cycles and specialized tooling systems:
High-Speed Peck Drilling Cycles (G83 / G73)
Deep-hole and micro-drilling applications utilize programmed peck cycles to break chips cleanly and prevent thermal buildup. High-speed chip breaking cycles (G73) maintain spindle engagement while chip clearing cycles (G83) fully retract the drill to evacuate fine stainless steel swarf.
Thermal Friction Drilling (Formdrilling)
For thin-walled tubing and sheet profiles, thermal friction drilling replaces conventional material removal with thermo-mechanical displacement: - Process: A tungsten carbide tool rotates at high RPM (2,000–4,000 RPM) under controlled axial pressure. - Friction Heat: Thermal energy softens the metal (approx. 600°C–700°C for mild steel/stainless). - Bushing Formation: The tool plunges through, forming a reinforced collar (bushing) that extends wall thickness by 3x to 4x. - Outcome: Enables full ISO metric thread tapping with 4–5 full thread engagements without weld nuts or inserts.
Through-Spindle Coolant (TSC) Systems
High-pressure coolant delivery (30 to 70 bar) directly through the drill body flushes chips out of blind holes, cools the cutting zone instantly, and increases tool life by up to 300% compared to flood cooling.
Technical Specifications & Machining Parameters
The table below outlines standard machining parameters optimized for CNC drilling of textile machinery parts across common alloy types:
| Material Grade | Hardness (HB) | Drilling Speed (m/min) | Feed Rate (mm/rev) | Coolant Delivery | Hole Tolerance | Recommended Tooling |
|---|---|---|---|---|---|---|
| AISI 304 Stainless | 180–210 | 35 – 55 | 0.05 – 0.12 | Through-Spindle (≥30 bar) | ±0.010 mm | Solid Carbide TiAlN Coated |
| AISI 316L Stainless | 190–220 | 30 – 45 | 0.04 – 0.10 | Through-Spindle (≥50 bar) | ±0.010 mm | Carbide Internal Coolant Drill |
| Al6061-T6 Aluminum | 95 | 120 – 250 | 0.10 – 0.25 | Flood / MQL (Air-Oil) | ±0.005 mm | DLC Coated 2-Flute Carbide |
| C45 Carbon Steel | 170–200 | 60 – 90 | 0.08 – 0.18 | Synthetic Flood Coolant | ±0.012 mm | HSS-Co / Carbide Tipped |
Quality Assurance and ISO Standards
Quality verification for CNC-drilled textile components includes: - Positional Accuracy: Verified via Coordinate Measuring Machines (CMM) against ASME Y14.5 Geometric Dimensioning and Tolerancing (GD&T). - Thread Quality: Tested using 6H / 6g Go/No-Go thread plug gauges. - Surface Finish: Achieved surface roughness values range from Ra 0.8 µm to Ra 1.6 µm in reamed or micro-finished drilled holes.
Implementing high-precision CNC drilling of textile machinery parts provides machinery manufacturers with reduced assembly lead times, zero vibration misalignments, and extended machine operating life under demanding factory conditions.
