MINIMAL FOOTPRINT. MAXIMAL FIREPOWER.
70 N·m BT40 Box-Way muscle packed into a 1.63 × 1.8m elevator-ready frame. Tear through 304 SS with a Ø60mm U-Drill.
Monolithic Box-Way Architecture: Built for Severe Metal Removal
Explore the 14 structural engineering innovations beneath the covers. Every casting rib, hardened slideway, and high-torque mechanism is engineered to eliminate vibration and deliver lasting ±0.005mm accuracy.

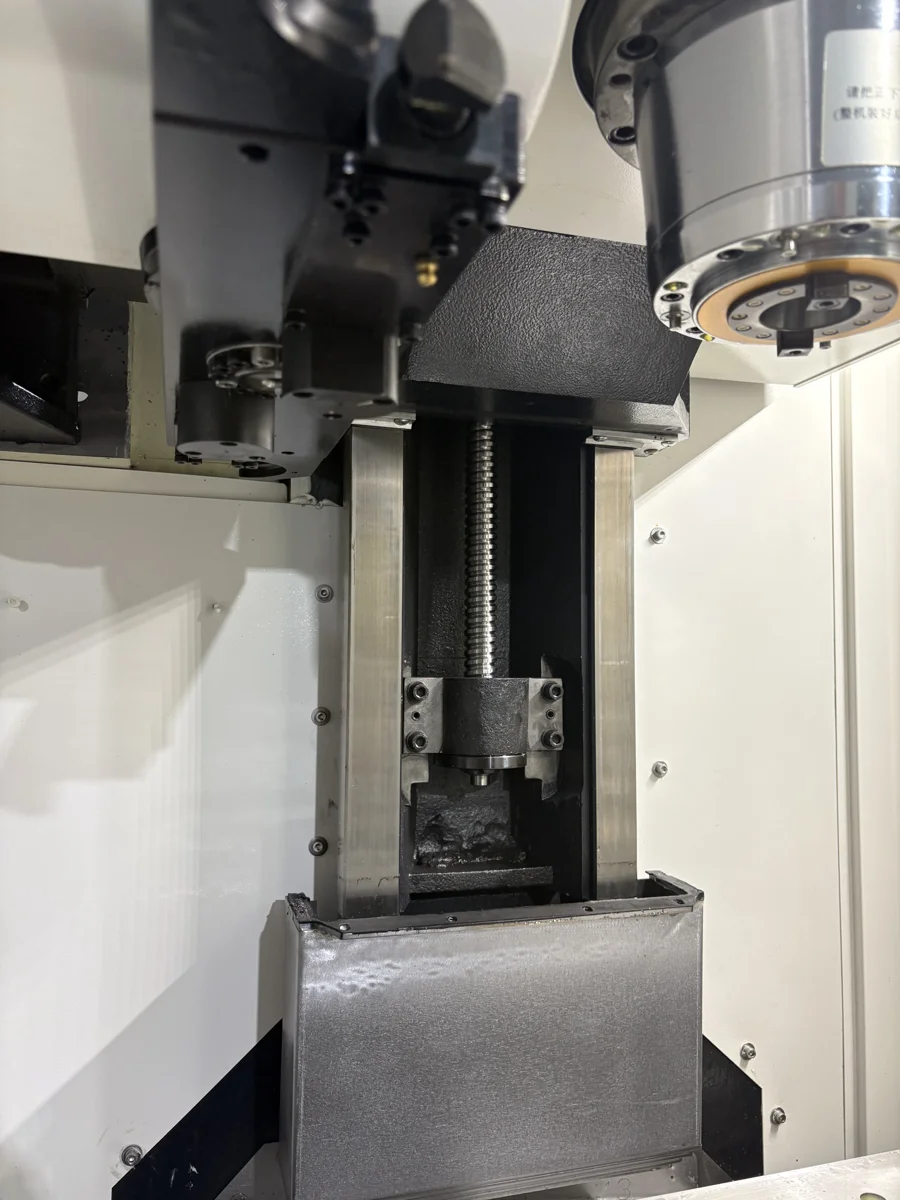

Hardened Z-Axis Box Ways with Hand-Scraped Turcite-B
Z-axis features high-frequency induction hardened rectangular box ways mated with imported Turcite-B anti-friction lining. Hand-scraped by master craftsmen to 18–22 contact points/in² with dedicated micro oil-retaining pockets, absorbing 300% more vibration than ball linear guides during heavy plunge cuts.
Heavy Enclosure & Double-Sealed Doors
Monolithic 2.5mm reinforced sheet metal enclosure with dual interlocking sliding doors and labyrinth seals completely contains 30-bar CTS coolant spray.
16-Tool High-Speed Disc Magazine
Fast 2.2-second tool-to-tool mechanical index keeps non-cutting cycle times minimal, with positive mechanical lock against vibration.
Ergonomic Swivel Pendant & MPG Handwheel
Rotatable CNC operator station with high-resolution LCD and magnetic remote handwheel allows precise, safe tool touch-offs right at the workpiece.
Seamless Base & Rolling Chip Bin
Integral coolant channels guide swarf straight down into heavy front-rollout chip containers, keeping the surrounding shop floor bone dry.
High-Pressure Coolant-Through-Spindle (30-Bar CTS)
Deep-hole drilling in stainless steel or valve bodies typically causes catastrophic tool thermal shock and chip packing. With our standard 30-Bar CTS system, forced cutting fluid penetrates straight through the tool tip.
- Peck-Free U-Drilling: Drill 3D to 5D depth in single continuous passes without peck retractions.
- No Work-Hardening: Instant localized tip cooling prevents austenitic stainless steel work-hardening.
- Replaces Gun Drilling: Complete deep fluid channels 3×–5× faster than gun drilling machines.
Tiered Vertical Chip Drop vs. External Conveyors
Conventional machining centers stick their chip conveyors and coolant tanks outward, eating up valuable shop floor space. V540 drops chips vertically into a compact rolling bin integrated directly underneath.
Stainless Steel 304/316 Valve Bodies
High-torque BT40 cavity milling, deep-hole U-drilling of fluid passages, and rigid tapping of M16 pipe threads with zero tool chatter.
Sanitary Fittings & Heavy Manifolds
Multi-sided boring and deep drilling on brass, bronze, and duplex stainless manifolds where tight bore concentricity is required.
Hydraulic Blocks & Tool Holders
Heavy face milling and deep internal oil circuit drilling in 42CrMo and S45C carbon steels with high chip load without spindle drop.
Market Traps & Total Cost of Ownership (TCO) Audit
Consolidated analysis of hidden workshop costs, machine depreciation, and asymmetric hardware value in small-part heavy milling.
The 3 Cost Traps in Small-Part Heavy Machining
Standard low-cost VMCs and fragile BT30 drill-tap centers incur severe secondary expenses over long multi-year production runs:
XDM-V540 Asymmetric Hardware Value
Engineered with heavy-duty structural standards to eliminate recurring maintenance, chattering scrap, and expensive downtime:
Certified Quality Inspection Reports & Engineering Downloads
Download genuine factory metallurgical quality certifications, electric oven secondary tempering records, and engineering catalog sheets.
Casting Secondary Tempering & Thermal Stress-Relief Report
Official 14-page electric oven heat-treatment tempering records verifying secondary stress-relief curves, eliminating residual internal stresses for permanent geometric precision.
Download Report (PDF)HT300 Gray Iron Structural & Metallurgical Inspection Report
Certified factory metallurgical and physical testing report confirming high-density pearlite HT300 gray iron castings, dense honeycomb ribbing, and zero internal casting porosity.
Download Report (PDF)German IF Precision Ballscrew Inspection & Quality Certificate
Official precision quality certificate for the German imported brand (IF) C3-ground ballscrew assembly, confirming micro-pitch accuracy and zero backlash motion.
Download Certificate (PDF)XDM-V540 Official Technical Specifications & Dimensional Drawings
Official machine dimensional footprint drawing, worktable T-slot schema, spindle torque curves, and electrical hookup specifications extracted from the factory manual.
Download Specs (PDF)Complete Technical Parameters (XDM-V540)
Fully tested and certified against Japanese Industrial Standard JIS B6338.
Travel & Working Envelope
| X/Y/Z-Axis Travel | 500 / 400 / 400 mm |
| Spindle Nose to Table | 100 - 500 mm |
| Spindle Center to Column | 430 mm (Short Throat) |
| Worktable Size (L × W) | 750 × 400 mm |
| Max Table Load Capacity | 300 kg |
| T-Slot Specifications | 3 - 18 × 126 mm |
Spindle & Drive Motor
| Spindle Taper & Spec | BT40 / Φ150 mm |
| Spindle Speed | 50 - 8,000 RPM (Belt Drive) |
| Spindle Motor (Max/Cont.) | 11 / 7.5 kW |
| Spindle Torque (Max/Cont.) | 70 / 48 N·m |
| Rapid Traverse (X/Y/Z) | 30 / 30 / 15 m/min |
| Feed Motor Torque (X/Y/Z) | 10 / 10 / 15 N·m |
Guideway, Ballscrews & ATC
| Guideway Architecture | XY 35# Roller / Z Hardened Box Way |
| Ballscrew Diameter & Pitch | 3210 / 3210 / 3210 mm (C3 Ground) |
| Tool Magazine Capacity | 16T (Arm-Type Mechanical) |
| Max Tool Diameter (Adj. Empty) | Φ80 mm (Φ125 mm) |
| Max Tool Length & Weight | 200 mm / 8 kg |
| Tool Change Time (T-to-T) | 2.2 Seconds |
Accuracy & Machine Dimensions
| Positioning Accuracy (JIS B6338) | ±0.005 / 300 mm |
| Repeatability (JIS B6338) | ±0.003 mm |
| Overall Footprint (L × W × H) | 1630 × 1800 × 2340 mm |
| Machine Net Weight | 3,000 kg |
| Power Capacity (380V 50Hz) | 15 kVA |
| Max Cutting S45C (Drill / Tap) | Ø60mm U-Drill / M20 Tap |
