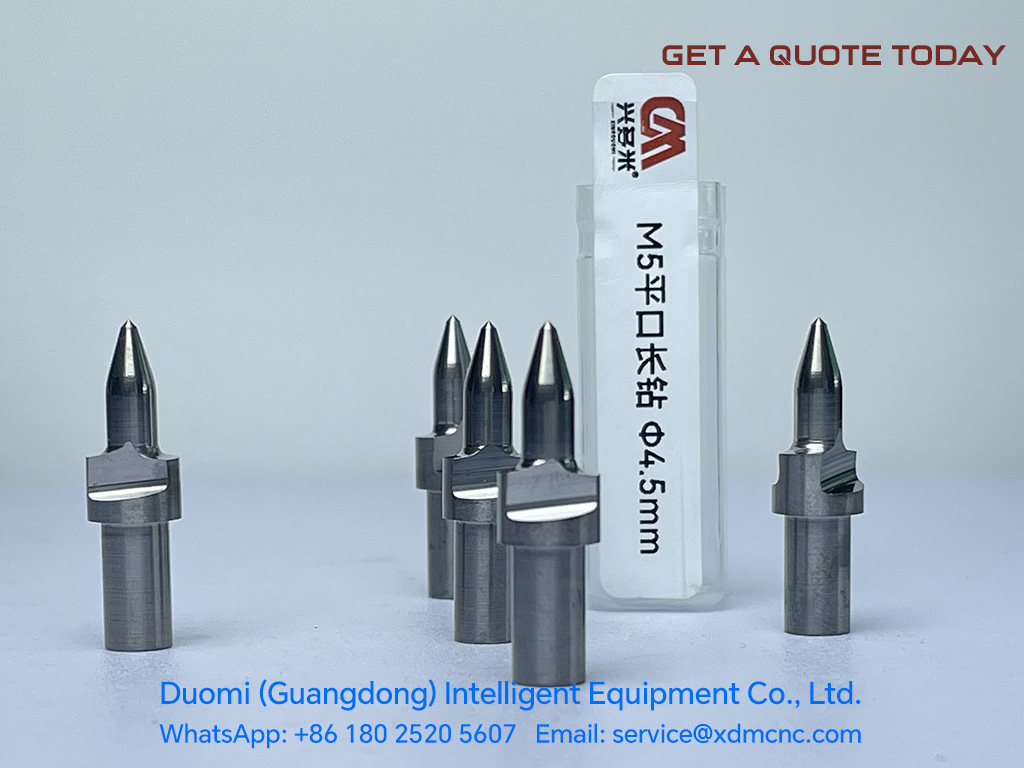

DM M5 Ø4.5mm Thermal Friction Drill Bit (Long Flat Design)
Chipless, High-Speed Friction Drilling for High-Strength M5 Threaded Connections in Sheet Metal & Tubing
💡 Our CNC drilling and tapping machines support custom non-standard designs, machine color customization, and OEM branding. Start now to purchase and customize your own equipment, please contact us.
Request a Free Machining Sample →
Features
Thermal Friction Flow Forming: Operates at 600°C+ to plasticize metal and extrude a strong threaded bushing in seconds.
Replaces Rivet & Weld Nuts: Creates a monolithic extruded boss with 3x the original sheet metal wall thickness.
Ultra-Hard Tungsten Carbide: Micro-grain solid carbide substrate provides extreme heat resistance and 10,000+ hole tool life.
Flat-Mouth Flush Seating: Produces a clean, flat counterbored rim ideal for flush fastener seating without raised collars.
In-Depth Engineering Description & Technical Overview
Click to expand complete machine capabilities, workflow analysis & application guide
Click to Expand
Collapse Details
Technical Overview
The DM M5 Ø4.5mm Thermal Friction Drill Bit (Long Flat Design) by DUOMI is a high-precision, solid tungsten carbide tool designed for chipless hole forming in thin-walled metals. Utilizing rotational speed and axial pressure, the bit generates frictional heat (600°C–800°C), plasticizing the workpiece material to form a solid bushing 3 to 4 times thicker than the original sheet profile. This extended collar allows for high-load M5 thread tapping without riveted nuts or weld inserts.
Long Flat Design vs. Standard Round Profile
- Flat-Mouth (Planed) Profile: Equipped with a integrated tungsten carbide cutter collar that flush-mills the top surface collar during the final downstroke, creating a perfectly smooth, burr-free, flat mating surface.
- Standard Round-Mouth Profile: Leaves an elevated rim collar around the hole surface suitable for non-flush assemblies.
Key Technical Advantages
- 3x–4x Thread Length Extension: Converts thin sheet metal (1.0mm–3.0mm) into strong structural bosses capable of enduring high tensile and torsional load forces.
- Zero Chip Waste (Chipless Forming): Eliminates post-drilling metal chip cleanup, preventing internal contamination in closed hydraulic, cooling, or electrical channels.
- ISO & Industrial Standard Compliance: Manufactured from premium tungsten carbide under ISO 9001 certified quality control, ensuring long tool life (>3,000–5,000 holes depending on material).
- High-Speed Operational Efficiency: Complete hole-forming cycle achieved in under 2.5 seconds per hole on standard high-rpm CNC drilling or tapping centers.
Primary Application Areas
- Automotive & Aerospace: Thin-walled chassis frames, seat rails, and bracket fastenings.

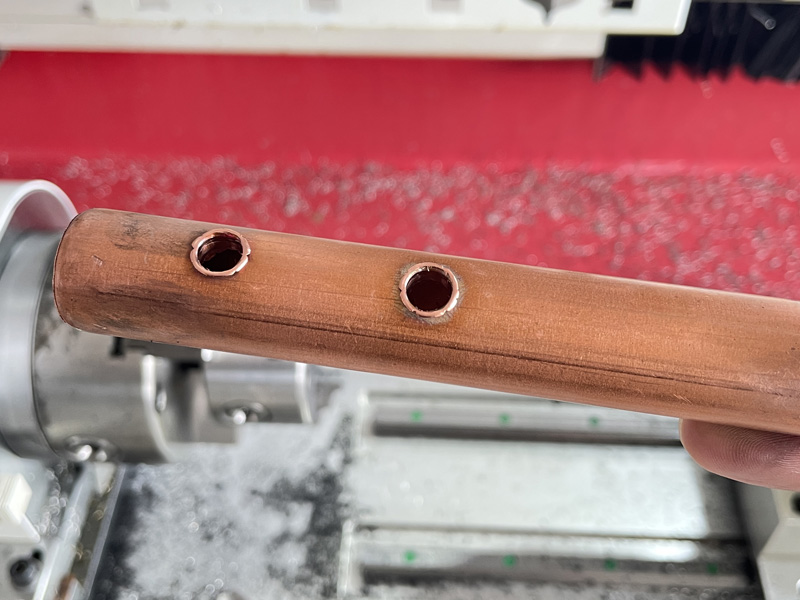

- HVAC & Liquid-Cooling Systems: Manifolds, heat exchangers, and liquid-cooling tubing.
- Metal Furniture & Architecture: Stainless steel handrails, door frames, and modular structural tubing.
- Industrial Machinery: Threaded mounting points on sheet metal enclosures and electrical panels.
Purchase & Delivery Guarantees
Direct Factory Assurance — Built, Tested, and Supported from Dongguan to Your Shop Floor
Runs on Your System
Standard GSK control (100% Fanuc G-code compatible) or optional Mitsubishi/Siemens. Direct CAD file import for code-free toolpath generation.
Factory Video FAT
Live drilling/tapping tests on your actual workpiece recorded before dispatch. Final 50% balance payment is paid only after your video approval.
40-Day Build & Rugged Crate
Guaranteed maximum 40-day manufacturing cycle. Sealed in anti-rust vacuum aluminum foil and bolted in fumigation-free timber crates (EXW/FOB/CIF).
Direct Engineer Care
Direct 1-on-1 WhatsApp group with your machine's build engineers, 12-month full warranty, and critical replacement parts dispatched via DHL within 24–48h.
Every DUOMI machine is built under a transparent 13-step factory production & responsibility chain.
Parameters
Download Technical Brochure| Thread Size | M5 |
| Diameter | Ø4.5 mm |
| Finishing | Plane Surface |
| Materials | Tungsten Carbide |
| Brand | DUOMI ( DM ) |

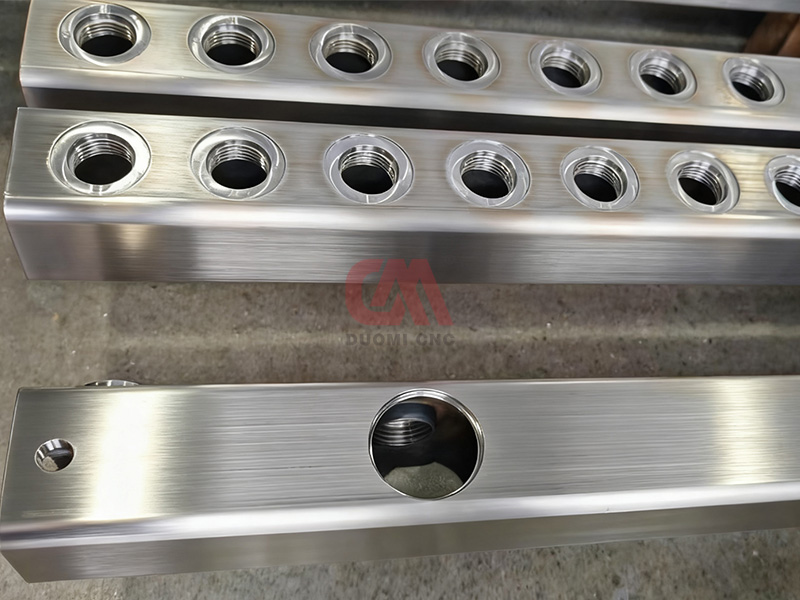

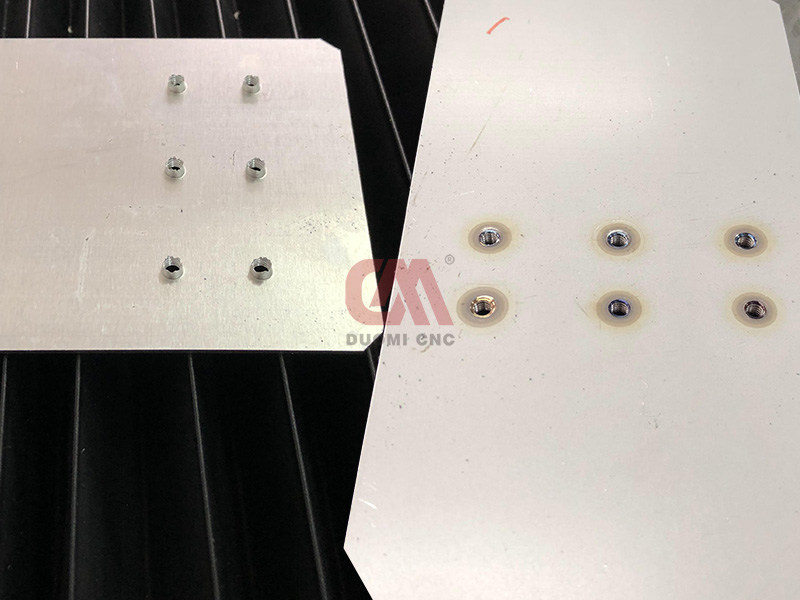

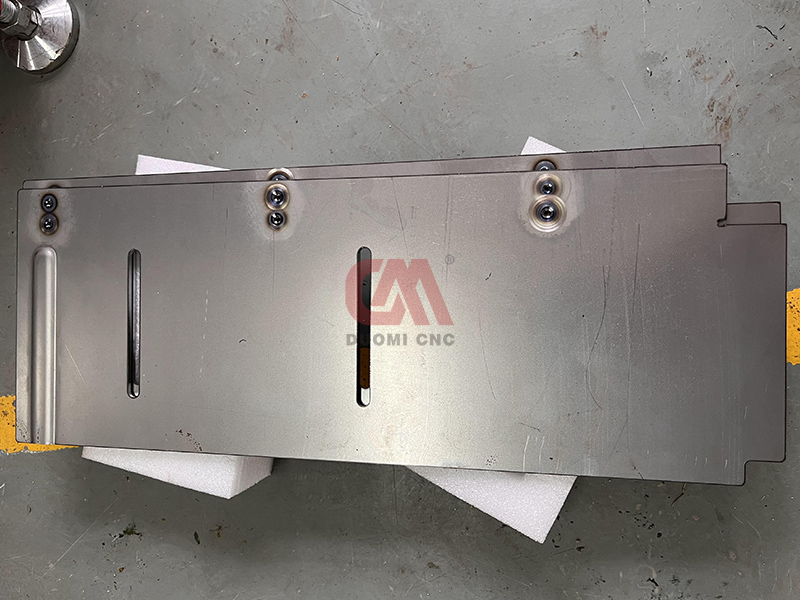

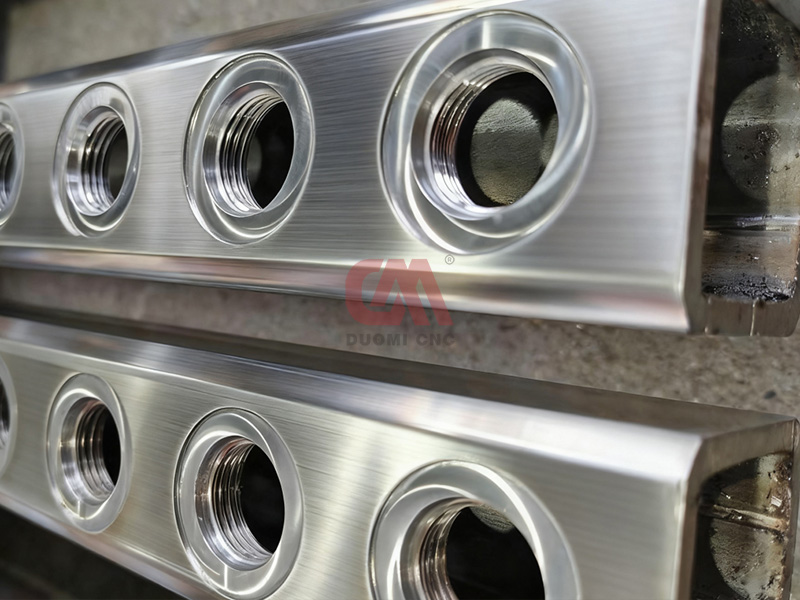

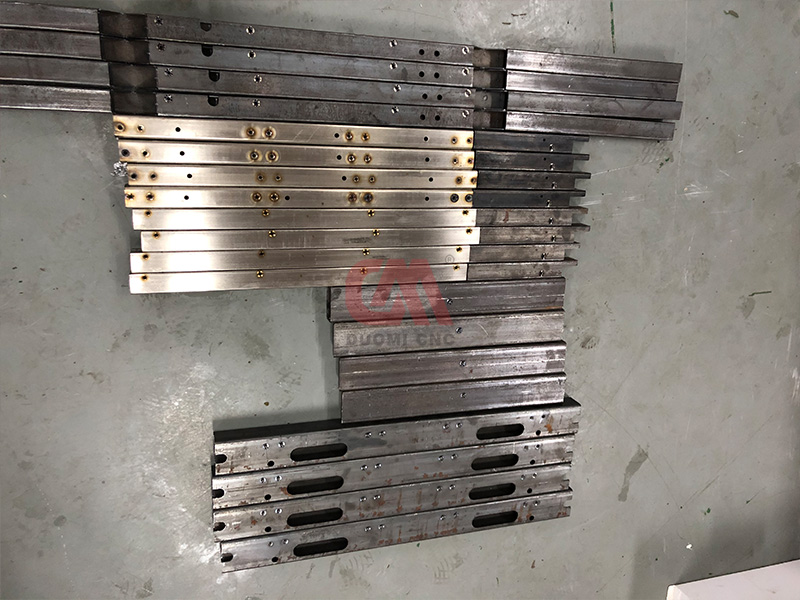

Machining Samples
Real parts processed by our machines
Frequently Asked Questions
We “only” do drilling & tapping. Why do customers still choose Duomi over general-purpose CNC machines?
What does “Your part defines the solution” mean in practice?
What spindle speed and power are required for the DM M5 thermal friction drill bit?
What is the difference between the standard round and long flat friction drill bit design?
Which metals can be processed with this friction drill bit?
Does friction drilling require cutting fluid or lubrication?
How many holes can one DM M5 thermal drill bit produce?
Can standard tapping equipment be used after thermal friction drilling?
