High-Precision Small CNC Drilling Machine for Stainless Steel
Engineered for tight-tolerance hole production, rapid cycles, and automated multi-process machining on stainless steel and alloy workpieces.
💡 Our CNC drilling and tapping machines support custom non-standard designs, machine color customization, and OEM branding. Start now to purchase and customize your own equipment, please contact us.
Request a Free Machining Sample →
Features
High-Speed Rigid Tapping: Synchronized servo spindle reversal with precise depth control prevents thread stripping.
Stainless Steel Heavy Cutting: High-torque spindle and high-pressure coolant tackle tough 304/316 stainless workpieces.
Fast Rapid Axis Traverse: Axis rapid speeds (30–48 m/min) dramatically reduce non-cutting cycle times.
Precision Servo Drive System: Closed-loop servo motors on all axes maintain ±0.02mm repeatable accuracy.
In-Depth Engineering Description & Technical Overview
Click to expand complete machine capabilities, workflow analysis & application guide
Click to Expand
Collapse Details
Overview: Industrial High-Speed Small CNC Drilling Machine
The DUOMI DNC-630D Small CNC Drilling Machine is specifically designed to overcome the challenges of machining tough materials like stainless steel, titanium, and copper. Featuring high spindle speeds up to 24,000 RPM, rapid traverse speeds of up to 60m/min, and a compact footprint of 1000mm x 1000mm, this small CNC drilling machine delivers ultra-high precision (±0.02mm repeat positioning accuracy) for demanding industrial production lines.
By integrating multi-process capabilities—including drilling, tapping, chamfering, and milling—into a single setup, manufacturers eliminate frequent machine changes, lower labor overhead, and slash workpiece scrap rates.
Key Operational Advantages
1. Superior Production Efficiency
- Multi-Process Integration: Perform drilling, tapping, chamfering, and light milling in one workpiece setup to drastically reduce non-cutting handling times.
- High-Speed Machining: Spindle speeds reaching 24,000 RPM coupled with X-axis movement up to 60m/min minimize cycle times for micro-hole and multi-hole matrix drilling.
- Continuous Automation: Seamless integration with external automation, automatic tool changers (ATC), and robotic loading/unloading cells for 24/7 unmanned operation.
2. Extreme Precision & Quality Control
- Proven Defect Reduction: In automotive cylinder head manufacturing, switching to DUOMI CNC drilling machinery reduced hole-machining defect rates from 8% down to 0.2%, generating over $500,000 in annual raw material savings.
- Uncompromised Repeatability: High-grade linear guides and precision ball screws maintain a repeat positioning accuracy of ±0.02mm.
3. Flexible Programming & Multi-Axis Machining
- Complex Workpieces: Supports 3-axis, 4-axis, or 5-axis setups to handle angled drilling on aerospace nuts, ceramic vacuum chucks, and irregular castings.
- Direct CAD/CAM Import: Load CAD models directly or utilize onboard computer programming to switch jobs in minutes—ideal for high-mix, low-volume job shops.
Target Applications & Industry Uses
This small CNC drilling machine for stainless steel is deployed across key high-tech manufacturing sectors: * Automotive: Engine cylinder head oil channels, fuel rail blocks, and bracket mounts. * Aerospace & Defense: Angled lock-wire holes on stainless fasteners and aerospace nuts. * Electronics & Energy: Micro-hole arrays on ceramic vacuum chucks, graphene plates, and copper heat sinks. * General Engineering: Precision stainless steel valves, manifolds, and custom hardware fittings.
To expand your facility's production capabilities, explore our full range of 3-Axis CNC Drilling & Tapping Machines or consult our engineers for custom non-standard CNC machinery solutions.
Purchase & Delivery Guarantees
Direct Factory Assurance — Built, Tested, and Supported from Dongguan to Your Shop Floor
Runs on Your System
Standard GSK control (100% Fanuc G-code compatible) or optional Mitsubishi/Siemens. Direct CAD file import for code-free toolpath generation.
Factory Video FAT
Live drilling/tapping tests on your actual workpiece recorded before dispatch. Final 50% balance payment is paid only after your video approval.
40-Day Build & Rugged Crate
Guaranteed maximum 40-day manufacturing cycle. Sealed in anti-rust vacuum aluminum foil and bolted in fumigation-free timber crates (EXW/FOB/CIF).
Direct Engineer Care
Direct 1-on-1 WhatsApp group with your machine's build engineers, 12-month full warranty, and critical replacement parts dispatched via DHL within 24–48h.
Every DUOMI machine is built under a transparent 13-step factory production & responsibility chain.
Parameters
Brochure| Model | DNC-630D Small CNC drilling machine |
| XYZ three-axis machining stroke | X600mm, Y300mm, Z120mm |
| Spindle speed | 1500~24000rpm (Can be selected according to demand) |
| Spindle taper hole | ER20 |
| Spindle power | 0.55~3.0KW |
| X axis moving speed | 30m~60m/min |
| Y axis moving speed | 25m/min |
| Z axis moving speed | 25m/min |
| Borehole diameter range | 1~14mm |
| Chamfer diameter range | 1~14mm |
| Tool magazine | Manual tool change |
| Repeated positioning accuracy | ±0.02mm |
| Table size | 600mm x 280mm |
| Programming mode | CAD file import / computer programming / manual programming |
| System program storage capacity | About 10,000 |
| System external signal control | Support |
| Operating voltage | AC 220V/50HZ |
| Machine weight | Approx. 550KG |
| Floor space | 1000mm x 1000mm x 1700mm |

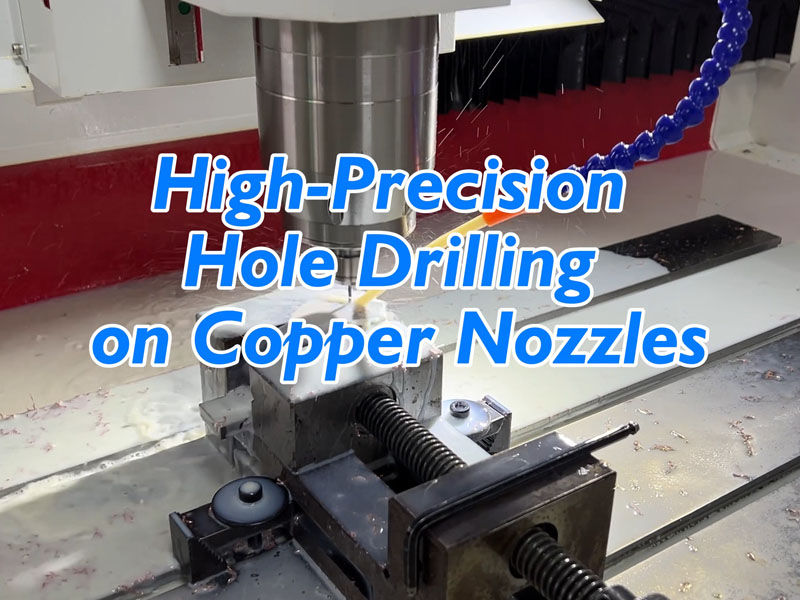

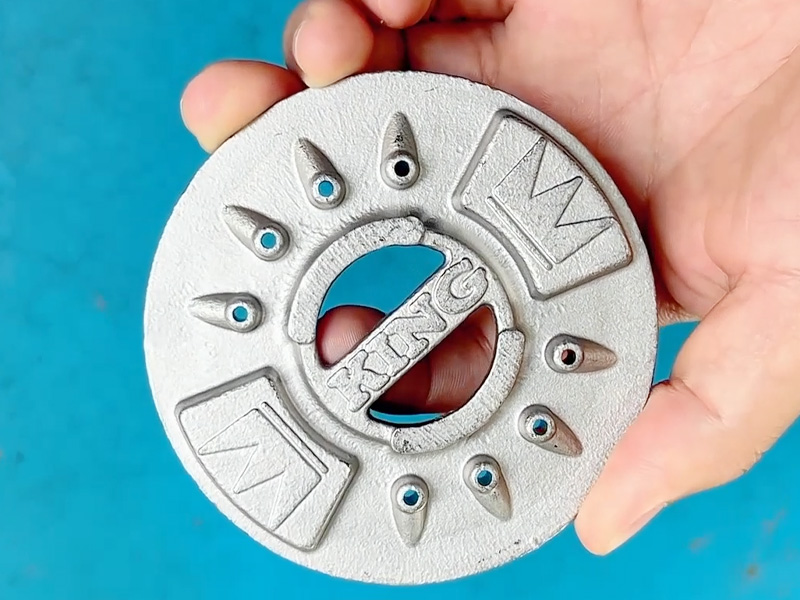

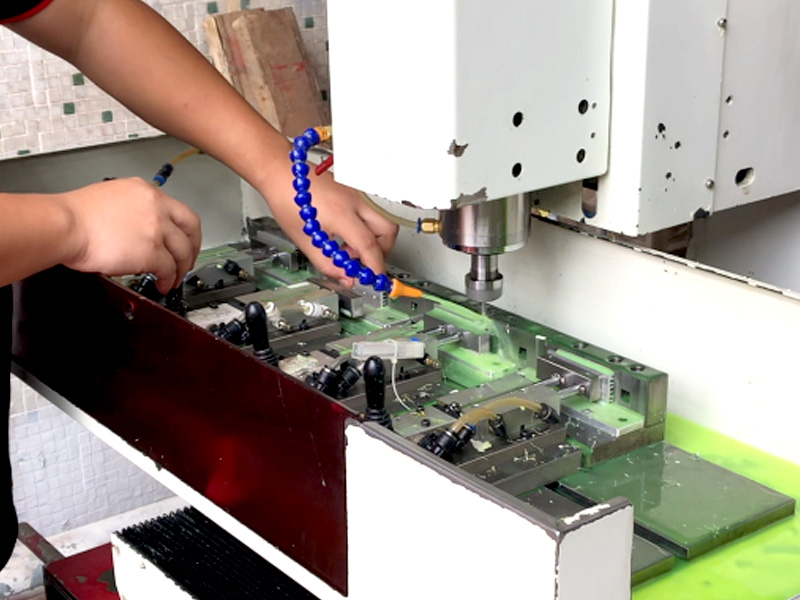

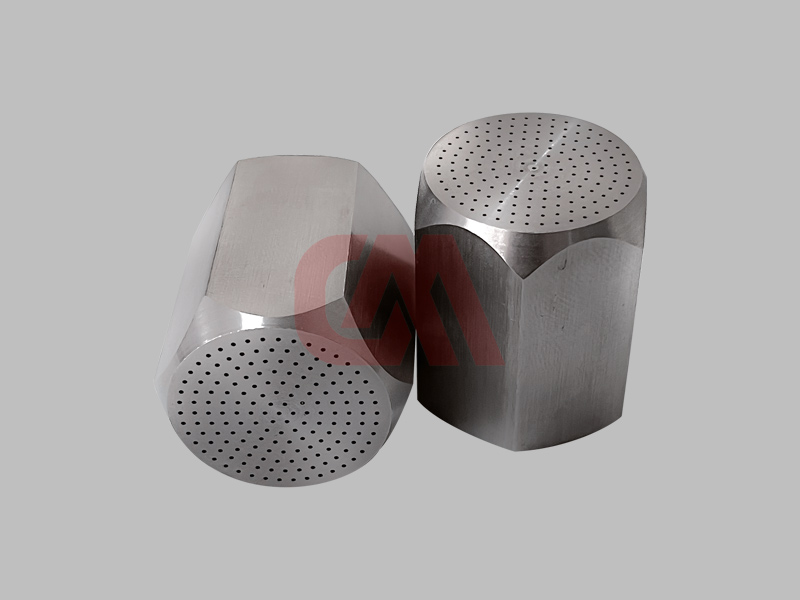

Machining Samples
Real parts processed by our machines
Frequently Asked Questions
We “only” do drilling & tapping. Why do customers still choose Duomi over general-purpose CNC machines?
What does “Your part defines the solution” mean in practice?
What is the primary benefit of using this small CNC drilling machine for stainless steel?
What range of hole diameters can the DNC-630D drill?
How does CAD/CAM programming work on this machine?
Can this machine be integrated into automated robotic production lines?
Does DUOMI offer OEM customization and non-standard machine designs?
What quality certifications and standards do DUOMI CNC machines satisfy?
Recommended
View More ›
3-Axis CNC Drilling & Tapping Machine

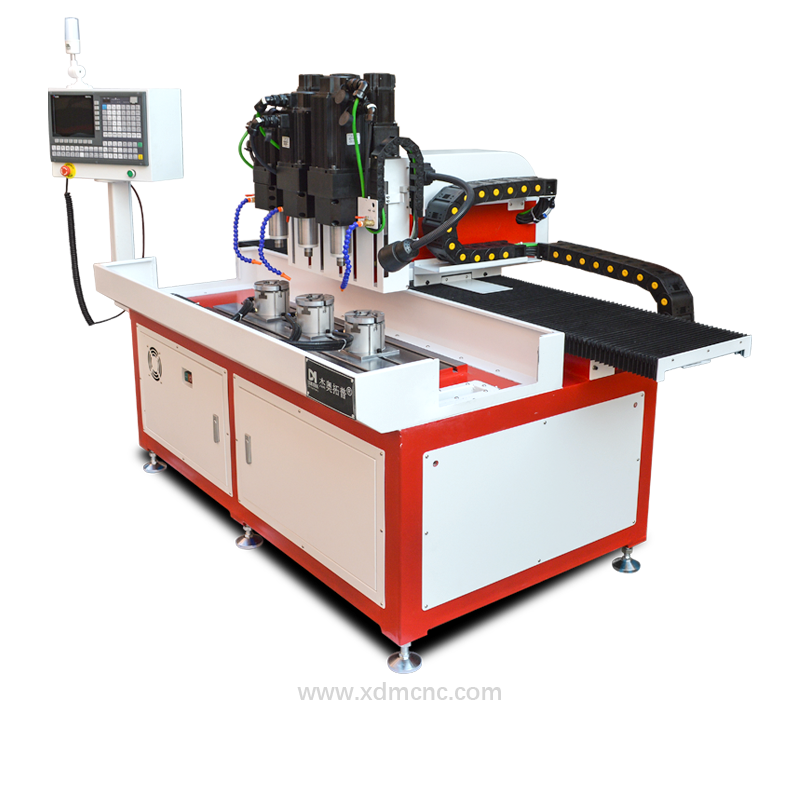

Affordable CNC Drilling and Tapping Machine for Sale
