Watch a 3-Spindle CNC Machine Drill & Tap Aluminum Parts
In modern manufacturing, precision and efficiency are paramount. CNC (Computer Numerical Control) machines have revolutionized the way aluminum parts are drilled and tapped. Among these, a 3-spindle CNC drilling and tapping machine stands out for its ability to simultaneously process multiple points, ensuring accuracy and significantly reducing production time. This article explores the technical features, workflow, and advantages of using a 3-spindle CNC machine in aluminum part processing.
Understanding the 3-Spindle CNC Machine
What is a 3-Spindle CNC Machine?
A 3-spindle CNC machine is designed to perform drilling and tapping operations on aluminum parts using three independent spindles simultaneously. Unlike traditional single-spindle machines, it allows multiple holes to be drilled or tapped in one cycle, improving throughput and consistency.
Core Components
Spindles: High-speed rotating tools capable of precise drilling and tapping.
CNC Controller: Manages the movement of spindles along X, Y, and Z axes, ensuring accurate placement.
Fixture Table: Holds aluminum parts securely to prevent vibrations or misalignment during operations.
Tool Magazine: Automated storage for various drill and tap tools, allowing quick changeovers.

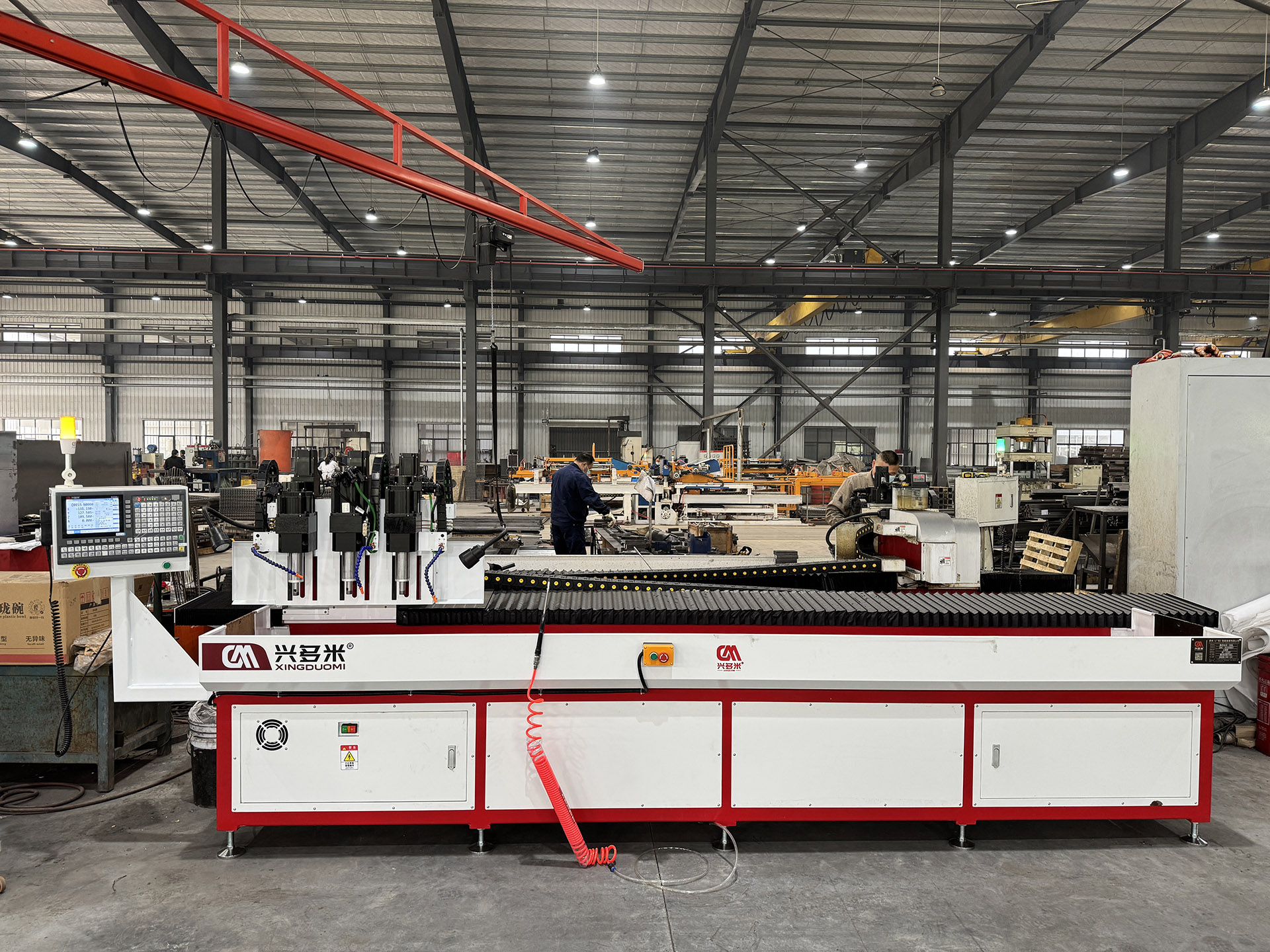

3-Spindle CNC Machine for Aluminum Parts
How 3-Spindle CNC Machines Work on Aluminum Parts
Step 1 – Loading the Aluminum Part
The aluminum component is mounted on the fixture table. Proper alignment ensures that all spindles reach the target points accurately.
Step 2 – Programming the CNC Controller
Operators input precise coordinates and hole specifications into the CNC software. Modern systems often include simulation modules to prevent errors before actual machining begins.
Step 3 – Drilling and Tapping Operations
All three spindles operate simultaneously, drilling holes to the required depth and diameter. Tapping tools then create internal threads with high precision, achieving uniformity across multiple parts.
Step 4 – Quality Inspection
After machining, parts undergo dimensional checks using coordinate measuring machines (CMM) or optical measurement tools. The 3-spindle setup minimizes deviations, ensuring consistency batch after batch.

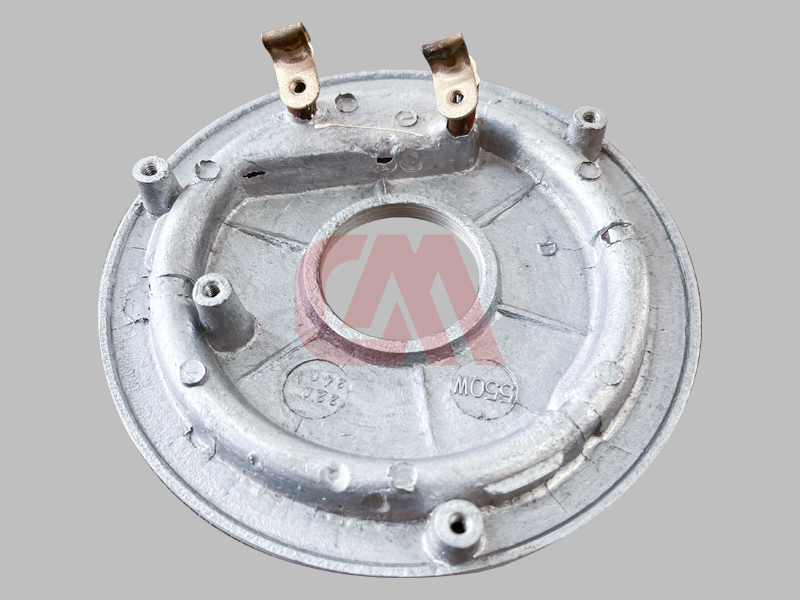

CNC drill and tap machine for Drilling and Tapping Aluminum Components
Advantages of Using a 3-Spindle CNC Machine
Increased Production Efficiency
By processing three holes simultaneously, production time is reduced by up to 60% compared to single-spindle operations. This allows manufacturers to meet high-volume demands efficiently.
High Precision and Consistency
Multiple spindles reduce misalignment issues that often occur when repositioning parts for single-spindle drilling. Each part maintains uniform quality, essential for aerospace, automotive, and electronics industries.
Reduced Labor Costs
Automated multi-spindle operations require less manual intervention. Operators mainly handle setup and programming, freeing labor for other tasks and reducing the risk of human error.
Applications in the Aluminum Industry
Automotive Components
Aluminum engine blocks, transmission housings, and brackets benefit from precise multi-hole drilling and tapping. 3-spindle CNC machines ensure all holes align perfectly for assembly.
Aerospace Parts
Lightweight aluminum panels and structural components in aircraft require strict tolerance levels. Multi-spindle CNC machining meets these high standards efficiently.
Electronics and Enclosures
Aluminum housings for electronic devices often require multiple threaded holes for assembly. 3-spindle CNC machines handle these with precision, supporting high-volume production.

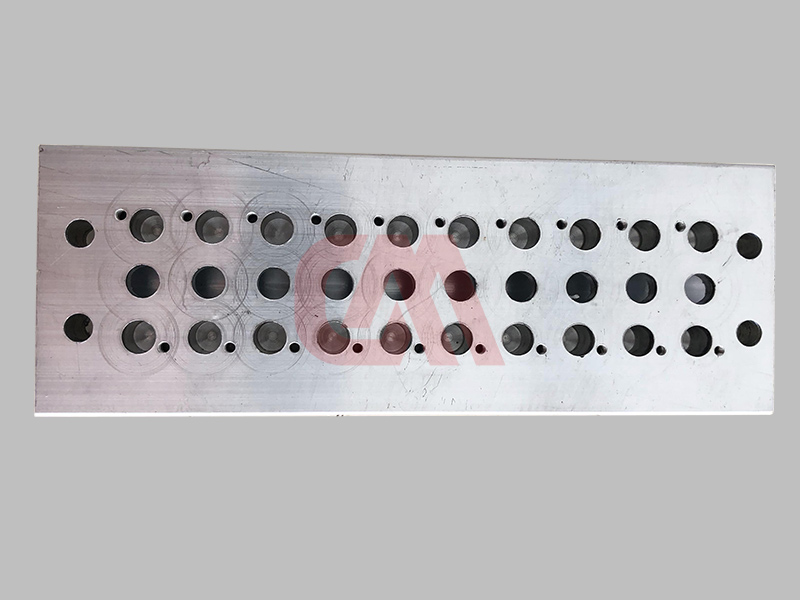

CNC Drilling Machine Manufacturer for Drilling Sheet Metal on Pellet Extrusion Machines
Tips for Optimizing CNC Drilling & Tapping
Tool Selection
Choosing high-quality drill and tap bits designed for aluminum prevents material deformation and ensures longevity of tools.
Proper Lubrication
Use cutting fluids to reduce friction, prevent overheating, and improve the surface finish of drilled holes.
Regular Maintenance
Routine inspection of spindles, bearings, and CNC software updates ensures consistent performance and reduces downtime.

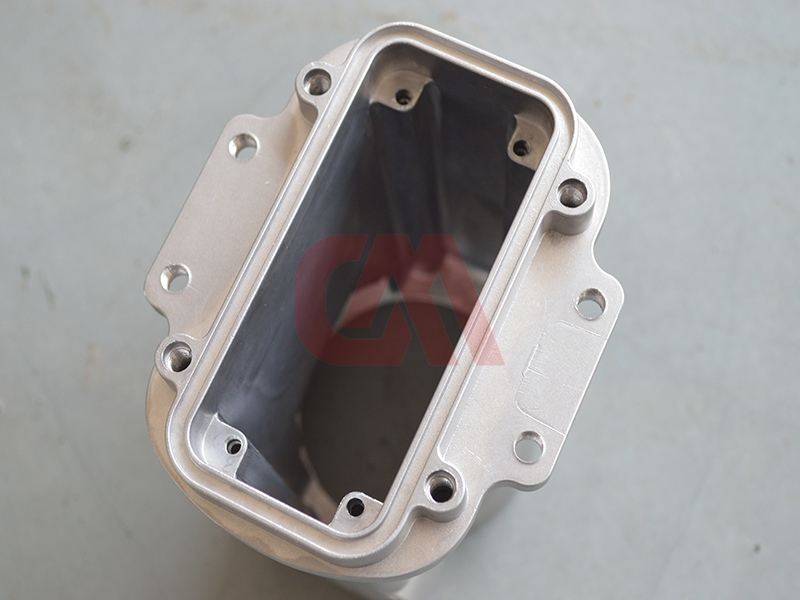

CNC drilling and tapping machine for Aluminum Housings of Automotive Parts
Conclusion
The 3-spindle CNC machine is a cornerstone in modern aluminum part manufacturing. By combining speed, precision, and automation, it addresses the demands of high-volume production without compromising quality. Manufacturers seeking efficiency and consistency in drilling and tapping aluminum parts will find this equipment indispensable.
