CNC Thermal Friction Drilling and Tapping Machine for Fitness Equipment Square Tubes
In the competitive landscape of fitness equipment manufacturing, efficiency, precision, and reliability are paramount. Modern gym frames, exercise machines, and support structures often rely on square steel tubes that must be drilled and tapped with the utmost accuracy. Traditional drilling methods can be time-consuming, produce burrs, and compromise material integrity. Enter the CNC Thermal Friction Drilling and Tapping Machine for Fitness Equipment Square Tubes, a game-changer that streamlines production, ensures consistent quality, and reduces overall manufacturing costs.
1. What Is a CNC Thermal Friction Drilling and Tapping Machine?
CNC (Computer Numerical Control) Thermal Friction Drilling and Tapping Machines utilize friction-generated heat to form holes and internal threads (“taps”) in metal substrates—particularly low-carbon steels, stainless steels, and aluminum alloys—without creating chips. This process, known as thermal friction drilling (also called “friction stir drilling” or “hot drilling”), leverages the heat created by a rapidly rotating conical tool to soften the material locally. As the tool advances, it penetrates the workpiece, pushing softened metal outward to create a bushing around the hole.
Drilling Phase: The conical tool rotates at high speed (typically 3,000–9,000 RPM). Heat generation softens the material; the tool penetrates, displacing metal rather than cutting it.
Bushing Formation: Friction forms a “bushing” or collar around the drilled hole’s backside, improving thickness for thread engagement.
Automatic Tapping: Integrated tapping heads either replace the friction tool or attach after drilling, cutting internal threads into the newly formed bushing.
Key advantages for fitness equipment fabrication include:
No Burrs: Since material is displaced, not cut, holes are smooth, eliminating secondary deburring steps.
High Strength Joints: Bushings reinforce thin-walled square tubes, providing greater thread engagement—crucial for bolt fastenings in gym frames.
Faster Cycle Times: Compared to conventional drilling and tapping, thermal friction drilling and tapping can reduce cycle time by up to 50%.
Enhanced Fatigue Resistance: The process refines grain structure around the hole, improving mechanical properties and prolonging equipment lifespan.
2. Why Fitness Equipment Manufacturers Need Thermal Friction Drilling and Tapping
2.1. Increasing Demand for Lightweight, Durable Gym Frames
Fitness equipment brands constantly innovate to produce lighter, stronger, and more ergonomic machines. Whether it’s a commercial-grade treadmill frame, a multi-station weight tower, or home-gym racks, manufacturers often use high-strength square tubes. Traditional drilling methods risk:
Material Distortion: Conventional drills can create stress risers or burn marks, compromising tube integrity.
Burrs and Secondary Operations: Burr removal increases labor costs and prolongs lead time.
Inconsistent Thread Quality: Manual tapping or even CNC tapping on thin walls can strip threads or require oversized inserts.
By adopting a CNC Thermal Friction Drilling and Tapping Machine, fitness equipment fabricators can:
Maintain Tube Integrity: Friction drilling causes minimal distortion, ensuring welded joints remain clean.
Reduce Labor Costs: Automated one-step drilling-and-tapping eliminates the need for separate deburring and tapping operations.
Achieve Thread Strength: Built-in bushings enhance load-bearing capacity—ideal for weight-bearing components like seat frames, handlebar supports, and pulley towers.
2.2. Enhancing Production Efficiency and Throughput
In large-scale fitness equipment plants, uptime and throughput are critical. Thermal friction machines can be integrated into production lines, offering:
Automated Pallet Systems: Multiple fixturing options allow continuous loading/unloading, minimizing downtime between cycles.
CNC Precision: Programmable operation ensures repeatable hole location, depth, and thread pitch. Excellent for producing hundreds or thousands of identical square tube assemblies.
Quick Tool Change: Modular tooling for different tube cross-sections (25 × 25 mm, 30 × 30 mm, up to 100 × 100 mm) enables rapid changeovers, supporting mixed-product runs without lengthy retooling.
A well-implemented friction drilling cell can produce more than 1,000 tapped holes per shift, dramatically accelerating assembly line schedules.
CNC Drilling and Tapping on Spinning Bike Metal Frame
3. Key Features of a High-Performance CNC Thermal Friction Drilling and Tapping Machine
When selecting a machine tailor-made for fitness equipment square tubes, manufacturers should look for:
Rigid Machine Bed and Frame
Heavy-duty cast iron or welded steel construction reduces vibration.
Supports high torque at low RPM, essential for friction drilling through thick, high-strength steel.
High-Torque Spindle Motor
Motors offering 15 kW–30 kW peak torque deliver consistent performance, even under heavy loads.
Variable-speed control (1,500–24,000 RPM) adapts to material thicknesses from 1 mm to 12 mm.
Advanced CNC Control System
User-friendly HMI (human-machine interface) with customizable drilling and tapping programs.
Capability to store hundreds of part programs, each with specific hole patterns, thread sizes (e.g., M8 to M14), and bushing lengths.
Real-time monitoring of torque, axial force, and temperature to optimize parameters automatically.
Automatic Tool Changer (ATC)
Enables swift exchange between friction drilling tools and tapping heads.
Minimizes manual intervention, improving cycle time.
Multi-Axis Flexibility
3-axis (X-Y-Z) standard, with optional 4th axis rotary table for angular drilling.
Ability to locate holes on multiple faces of square tubes without repositioning.
Integrated Chip and Smoke Extraction
Although friction drilling generates minimal chips, smoke and lubricant mist require extraction hoods and filtration systems to maintain a safe, clean work environment.
Coolant and Lubrication System
High-pressure through-spindle coolant ensures consistent heat management, extends tool life, and achieves superior hole quality.
4. Typical Applications in Fitness Equipment Manufacturing

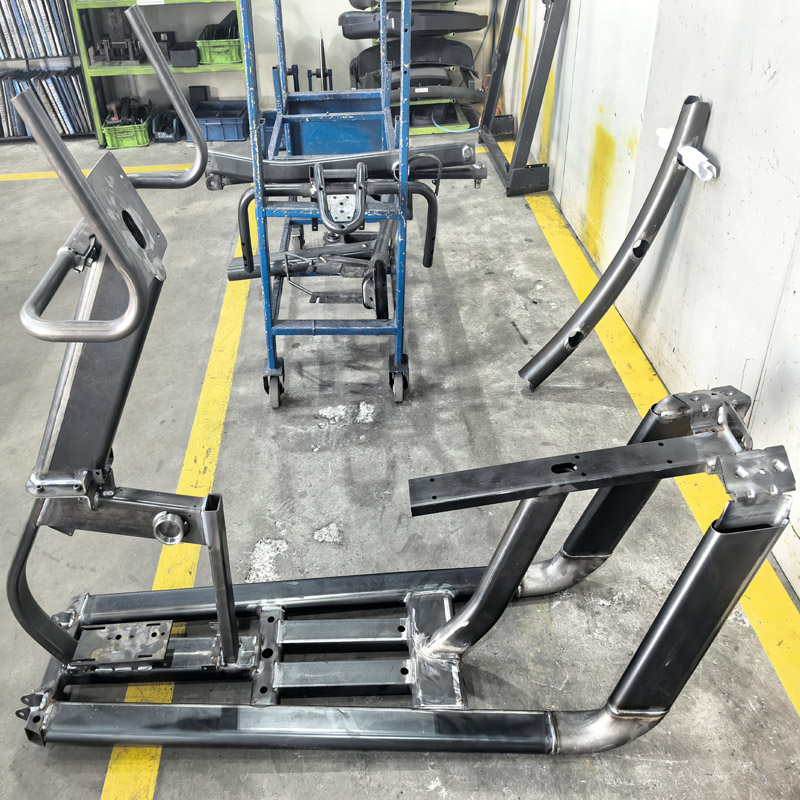

4.1. Tubular Frame Assemblies for Weight Machines
Commercial weight machines—like cable crossovers, selectorized leg presses, and multi-station rigs—often use 2 × 2 inch or 2 × 3 inch square tubes with wall thicknesses of 3 mm–5 mm. The CNC Thermal Friction Drilling and Tapping Machine allows:
Threaded Inserts: Create strong threaded connections for tension rods, pivot joints, and mounting brackets without welding or adding nuts.
Cable Sheave Mounts: Precision-drilled, tapped holes for bolting pulley brackets onto the main frame.
Accessory Attachment Points: Consistent hole-to-hole spacing simplifies assembly of dip handles, chin-up bars, or attachment brackets.
Keyword Focus: “fitness equipment frame drilling,” “square tube tapped holes.”
4.2. Racks and Rigs for Free-Weight Areas
Power racks, squat stands, and bench supports require holes every 25 mm–50 mm to adjust safety pins or barbell catches. Traditional punching or stamping methods weaken the tube and cause rough edges. Instead, friction drilling and tapping:
Precision Hole Patterns: CNC-controlled indexing creates uniform hole grids across multiple tubes.
No Secondary Deburring: Smooth, bushing-style holes eliminate snag points for clothing or skin—enhancing user safety.
Enhanced Thread Strength: Bushings provide at least 1.5 mm–2 mm of material behind the threads, ensuring safety pins can withstand dynamic loads.
Keyword Focus: “power rack hole drilling,” “CNC tapped square tubes.”
4.3. Cable Machines and Pulley Towers
Cable crossover machines and functional trainers rely on sturdy, precisely located mounting points for pulleys and guide rods. Friction drilling and tapping enables:
Angled Holes: Optional 4th-axis rotary tables allow drilling at 30°–60° angles for pulley alignment.
Continuous Slot Drilling: Some machines feature elongated slots rather than round holes, achievable by overlapping friction-drilled holes in rapid succession.
Keyword Focus: “angled tube drilling,” “pulley tower threaded holes.”
5. Material Compatibility and Tooling Considerations
5.1. Supported Materials
Low-Carbon Steel (ASTM A500): Commonly used in commercial gym frames; thicknesses of 2 mm–8 mm.
Stainless Steel (304, 316): Ideal for high-end fitness equipment requiring corrosion resistance—thickness up to 6 mm.
Aluminum Alloys (6061-T6, 5052-H32): Lightweight tournament or home-gym products; thickness 3 mm–10 mm.
Note: Material density, thermal conductivity, and hardness affect optimal drilling parameters. CNC controls often include presets for each metal type.
5.2. Tool Material and Coatings
Cobalt-Based HSS (High Speed Steel): Standard for thermal friction drilling—balance of toughness and heat resistance.
Solid Carbide Tools: Higher cost but longer lifespan when drilling tougher alloys or large-diameter holes.
Tool Coatings (TiN, TiAlN): Enhance wear resistance and reduce friction—extend tool life, reduce cycle times.
Regular inspection of tool geometry (via optical comparators or preset gauges) ensures hole quality remains within spec.
6. Real-World Success Stories
ProGym Manufacturing, USA
Replaced two standalone drilling/tapping cells with a single CNC thermal friction drilling machine.
Reduced cycle time by 60% on square tube punching for their commercial treadmill frames.
Achieved perfect thread engagement without insert nuts, saving $0.50 per part on average.
FitTech Solutions, Europe
Integrated a four‐axis thermal friction drilling cell into their functional trainer line.
Eliminated burr-related customer complaints, improving warranty rates by 25%.
Increased monthly output by 35% while reducing floor space by 15 m².
AlphaFitness Manufacturing, Asia
Switched to friction tapping on 304 stainless steel tubes for their premium rack series.
Minimized tap breakage incidents—down from 12 per month to zero.
Realized annual savings of over $120,000 in tooling and labor.
These real-world examples underscore how CNC Thermal Friction Drilling and Tapping Machines empower fitness equipment brands to stay competitive, deliver higher-quality products, and maximize profitability.
7. Conclusion: Transform Your Fitness Equipment Production
As fitness equipment demand continues to surge worldwide, manufacturers must embrace advanced machining technologies to maintain a competitive edge. The CNC Thermal Friction Drilling and Tapping Machine for Fitness Equipment Square Tubes delivers an all-in-one solution—offering unparalleled precision, speed, and thread quality for square tube assemblies. By leveraging friction drilling and tapping technology, you can:
Eliminate secondary operations and deburring costs.
Strengthen tube joints with robust bushings for safer, longer-lasting gym frames.
Scale production rapidly without sacrificing quality or consistency.
Achieve a rapid return on investment through labor reduction and tooling savings.
Whether you manufacture power racks, cable machines, or custom free-weight rigs, incorporating a dedicated CNC thermal friction drilling and tapping unit into your production line will revolutionize your workflow. Stay ahead of the competition: invest in next-generation friction drilling today and watch your bottom line—and product reputation—soar.
Ready to elevate your fitness equipment production?
Contact our experts to schedule a demo, learn about customization options, and discover how a CNC Thermal Friction Drilling and Tapping Machine can transform your square tube machining process.
Keywords optimized: CNC thermal friction drilling machine, tapping machine for square tubes, fitness equipment drilling and tapping, square tube threaded holes, thermal friction tapping machine.
