High-Efficiency Precision CNC Form Drilling Machine
Streamline metal tube and profile fabrication with thermal friction drilling, high-precision tapping, and integrated multi-process CNC automation.
💡 Our CNC drilling and tapping machines support custom non-standard designs, machine color customization, and OEM branding. Start now to purchase and customize your own equipment, please contact us.
Request a Free Machining Sample →
Features
Integrated Flowdrill & Tapping: Forms thick extruded threaded bosses and rigid-taps thin-wall tubing in seconds.
Zero Rivet Nuts & Weld Fasteners: Eliminates loose hardware risk, weld spatter, and secondary manual assembly costs.
Heavy Structural Profile Machining: Easily drills and taps structural steel, aluminum extrusions, and cooling manifolds.
High-Speed 24,000 RPM Spindle: High-RPM BT30/BT40 spindle generates instantaneous friction heat with smooth feed control.
Strict Quality & Precision Control: Calibrated with API laser interferometer ensuring sub±0.02mm positioning repeatability.
In-Depth Engineering Description & Technical Overview
Click to expand complete machine capabilities, workflow analysis & application guide
Click to Expand
Collapse Details
Executive Overview
The DUOMI CNC Form Drilling Machine (DHM-430DT) is an advanced thermal friction drilling and tapping workstation engineered to solve throughput bottlenecks in metal tube, pipe, and profile fabrication. Combining high-speed spindle operations (up to 6,000 RPM) with rapid 3-axis feed speeds (25 m/min), this form drilling machine integrates drilling, thermal Bushing creation, tapping, chamfering, and milling into a single setup.
Manufactured under strict ISO 9001 quality management and CE safety standards, the DUOMI CNC form drilling machine eliminates labor-intensive secondary operations while improving structural thread strength in thin-walled metals by forming friction-generated collars.
Key Operational Benefits & ROI
1. Multi-Process Integration & Rapid Cycle Times
- Eliminate Machine Switching: Accomplishing thermal drilling, tapping (M2–M14), chamfering, and milling in a single clamping cycle drastically reduces tool changeover non-productive time.
- High-Speed Axis Dynamics: Rapid traverse rates of 25 m/min across X, Y, and Z axes minimize non-cutting movement and yield up to 40% faster production cycles.
- Automated continuous loading: Compatible with automated loading/unloading robotic systems and pneumatically driven quick-clamp fixtures for uninterrupted operation.
2. High-Precision Machining with 0.2% Defect Rate
- Sub-Millimeter Tolerances: Delivers repeated positioning accuracy within ±0.02mm, ensuring strict conformity across continuous production batches.
- Defect Reduction: In automotive cylinder head and oil channel manufacturing, switching to DUOMI form drilling machine technology has demonstrated a defect rate reduction from 8% down to 0.2%, yielding up to $500,000 in annual raw material savings.
3. Multi-Axis Versatility for Complex Workpieces
- Flexible multi-axis linkage capability enables processing of inclined holes, complex curved surfaces, and non-standard profile geometries.
- Seamless integration with CAD/CAM offline programming software facilitates fast setup for customized or small-batch manufacturing orders.
Industrial Applications
- Automotive Parts: Engine blocks, gearbox housings, exhaust manifolds, and electric vehicle (EV) aluminum frame assemblies.
- Structural Steel & Furniture: Frame connections, profile threading, and thin-wall structural steel joints.
- HVAC & Piping Systems: Heat exchanger manifolds, brass/copper distribution pipes, and fluid control valves.
- General Hardware & Molds: Cooling channel drilling, precision plate tapping, and multi-station hardware manufacturing.
For complementary thermal drilling options, explore our Flow Drilling Machine Supplier catalog or examine our heavy-duty CNC Thermal Drilling and Tapping Machine lineup.
Engineering Specifications
- Positioning Accuracy: ±0.02mm
- Drilling Capacity: 1 mm – 14 mm
- Tapping Capacity: M2 – M14
- Spindle Power: 0.55 kW – 3.0 kW
- Travel Range (XYZ): 400 mm x 300 mm x 120 mm
- Control System: CAD file import, CNC computer programming, and manual teaching support (up to 10,000 program memory capacity)
Purchase & Delivery Guarantees
Direct Factory Assurance — Built, Tested, and Supported from Dongguan to Your Shop Floor
Runs on Your System
Standard GSK control (100% Fanuc G-code compatible) or optional Mitsubishi/Siemens. Direct CAD file import for code-free toolpath generation.
Factory Video FAT
Live drilling/tapping tests on your actual workpiece recorded before dispatch. Final 50% balance payment is paid only after your video approval.
40-Day Build & Rugged Crate
Guaranteed maximum 40-day manufacturing cycle. Sealed in anti-rust vacuum aluminum foil and bolted in fumigation-free timber crates (EXW/FOB/CIF).
Direct Engineer Care
Direct 1-on-1 WhatsApp group with your machine's build engineers, 12-month full warranty, and critical replacement parts dispatched via DHL within 24–48h.
Every DUOMI machine is built under a transparent 13-step factory production & responsibility chain.
Parameters
Download Technical Brochure| Model | DHM-430DT Form drilling machine |
| XYZ three-axis machining stroke | X 400mm, Y 300mm, Z 120mm |
| Spindle speed | 500~6000rpm (Can be selected according to demand) |
| Spindle taper hole | ER20 |
| Spindle power | 0.55~3.0KW |
| X axis moving speed | 25m/min |
| Y axis moving speed | 25m/min |
| Z axis moving speed | 25m/min |
| Drilling diameter range | 1~14mm |
| Tapping diameter range | M2~M14 |
| Chamfer diameter range | 1~14mm |
| Tool magazine | Manual tool change |
| Repeated positioning accuracy | ±0.02mm |
| Table size | 400mm x 280mm |
| Programming mode | CAD file import / computer programming / manual programming |
| System program storage capacity | About 10,000 |
| System external signal control | Support |
| Operating voltage | AC 220V / 50HZ |
| Machine weight | Approx. 550KG |
| Footprint of the Equipment | 850mm x 900mm x 1700mm |
Machining Samples

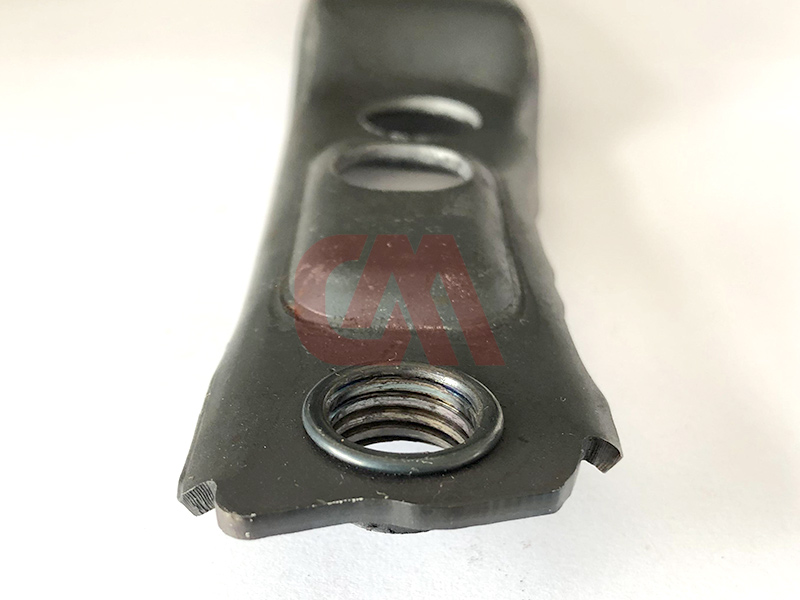

Real parts processed by our machines
Frequently Asked Questions
We “only” do drilling & tapping. Why do customers still choose Duomi over general-purpose CNC machines?
What does “Your part defines the solution” mean in practice?
What is a form drilling machine and how does thermal friction drilling work?
What positioning accuracy can the DHM-430DT form drilling machine achieve?
Which materials can be processed with this form drilling machine?
Can the machine be converted for conventional drilling and tapping?
What is the typical lead time for standard and custom configurations?
Does DUOMI CNC support CAD program imports and external signals?
