Industrial High-Precision Flow Drill CNC Machine
Integrated Thermal Friction Drilling, Tapping, and Milling for Structural Steel & Tubes
💡 Our CNC drilling and tapping machines support custom non-standard designs, machine color customization, and OEM branding. Start now to purchase and customize your own equipment, please contact us.
Request a Free Machining Sample →
Features
4-in-1 Process Integration: Combines thermal friction drilling, roll form tapping, chamfering, and milling in a single automated setup—eliminating manual transfer bottlenecks and reducing total cycle time by up to 65%.
Chipless Bush-Forming (Zero Rivet Nuts): Displaces parent metal at 600°C to create an extruded integral bushing, tripling thread engagement depth without loose rivet nuts, welded studs, or chip debris inside sealed hollow profiles.
High-Speed 24,000 RPM Spindle & 60 m/min Rapids: High-torque BT30 direct-drive spindle (5.5–7.5 kW) delivers powerful downward thrust and rapid thermal build-up, supported by 60 m/min rapid traverse for maximum throughput.
10-Tool Spindle-Following Servo ATC: Direct-connect servo tool magazine travels synchronously with the spindle carriage, executing ultra-fast tool changes in under 3 seconds to keep production running continuously.
3000mm Extra-Long Machining Stroke: Massive 3000 × 280 mm worktable with quick-clamping pneumatic rail fixtures accommodates long structural steel beams, tubes, and frames, or supports dual-station pendulum batch loading.
Heavy-Duty Anti-Vibration Frame (±0.02mm Precision): Reinforced 2,100 kg stress-relieved machine bed absorbs severe friction-drilling thrust loads, maintaining ±0.02 mm repeat positioning accuracy and cutting defect rates to 0.2%.
In-Depth Engineering Description & Technical Overview
Click to expand complete machine capabilities, workflow analysis & application guide
Click to Expand
Collapse Details
Overview: High-Efficiency Thermal Friction Drilling Solution

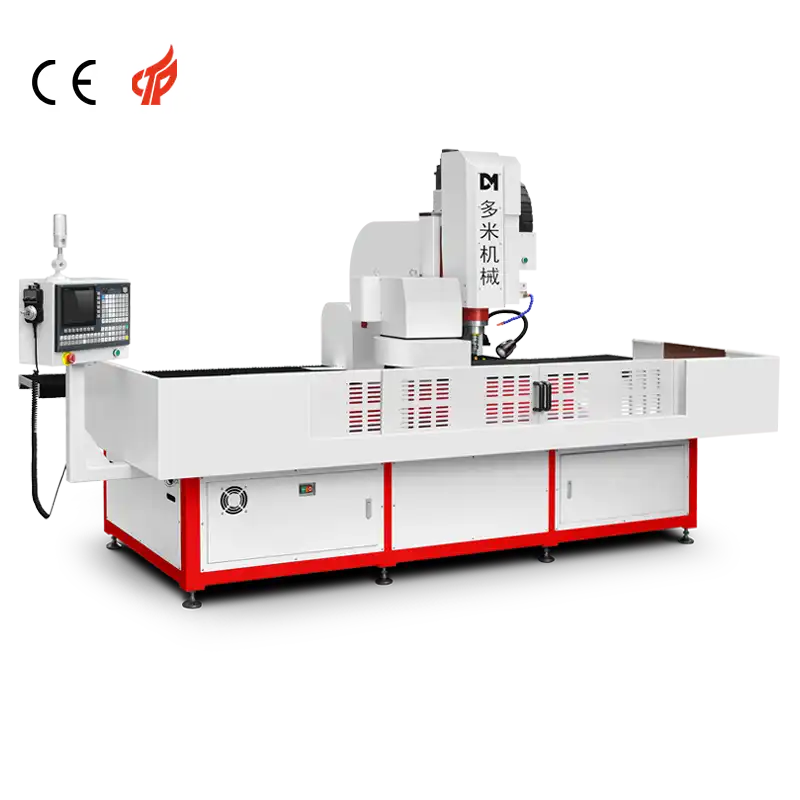

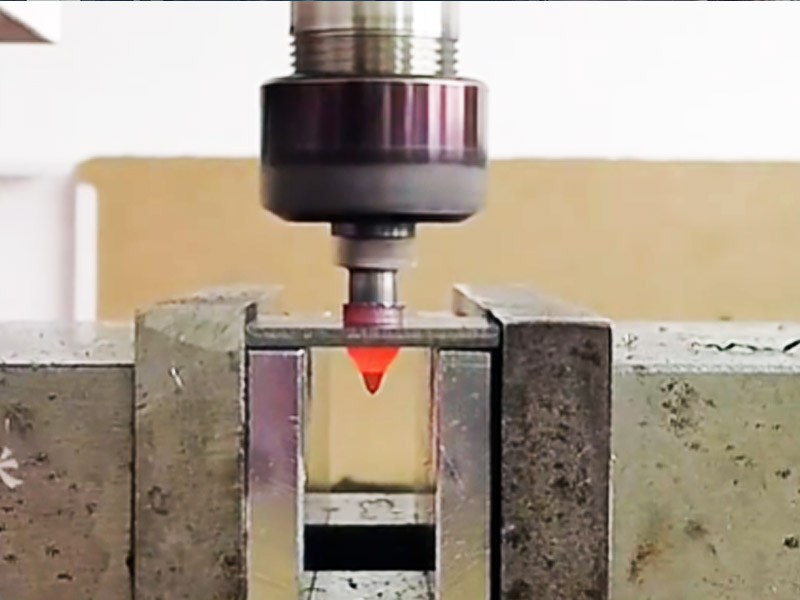

The DUOMI CNC Flow Drill CNC Machine (Model DHM-3030N10) revolutionizes metal hole processing by combining thermal friction drilling (flow drilling), thread tapping, chamfering, and milling into a single automated station. Designed specifically for structural steel, hollow profiles, and metal tubing, this machine generates frictional heat up to 600°C to displace metal and form an integral bushed sleeve—increasing thread engagement depth by up to 3x without requiring rivet nuts or welded inserts.
Built for high-volume B2B manufacturing, the DUOMI Flow Drill CNC Machine delivers exceptional accuracy with a repeated positioning tolerance of ±0.02 mm and rapid traverse speeds up to 60 m/min.
Key Benefits & Technical Advantages
1. Multi-Process Integration & Rapid Productivity
- Eliminate Bottlenecks: Replaces multiple discrete manual operations (drilling, tapping, deburring) with a single-setup CNC cycle.
- High-Speed Machining: Equipped with a 24,000 RPM spindle and up to 60 m/min X-axis rapid feed, cutting total cycle times by up to 65%.
- 10-Tool Automatic Tool Changer (ATC): Servo-driven direct-connect tool magazine ensures seamless tool transitions in under 3 seconds.
2. Complex & Irregular Workpiece Machining
- Multi-Axis Linkage: Supports up to multi-axis coordinate control to machine complex surface angles, inclined holes, and structural frames.
- Flexible Fixturing: Features pneumatic rail-type clamping fixtures tailored for structural steel beams, liquid-cooling plates, and mobility vehicle chassis.
3. Substantial Defect & Scrap Reduction
- 0.2% Scrap Rate: Automated CNC path control eliminates human operational variance. Case studies show a defect rate reduction from 8.0% down to 0.2% in automotive component production.
- Annual Savings: Substantial waste reduction saves large-scale facilities over $500,000 annually in raw material scrap and rework labor.
4. 24/7 Continuous Automation
- Unmanned Operation: Fully compatible with robotic arm loading/unloading systems for round-the-clock light-out production.
- Lower Operator Threshold: Intuitive CAD/CAM import software allows operators to run multiple CNC flow drilling centers simultaneously.
Industrial Applications
- Structural Steel & Construction: Heavy-duty hollow profile joining and threaded fastenings.

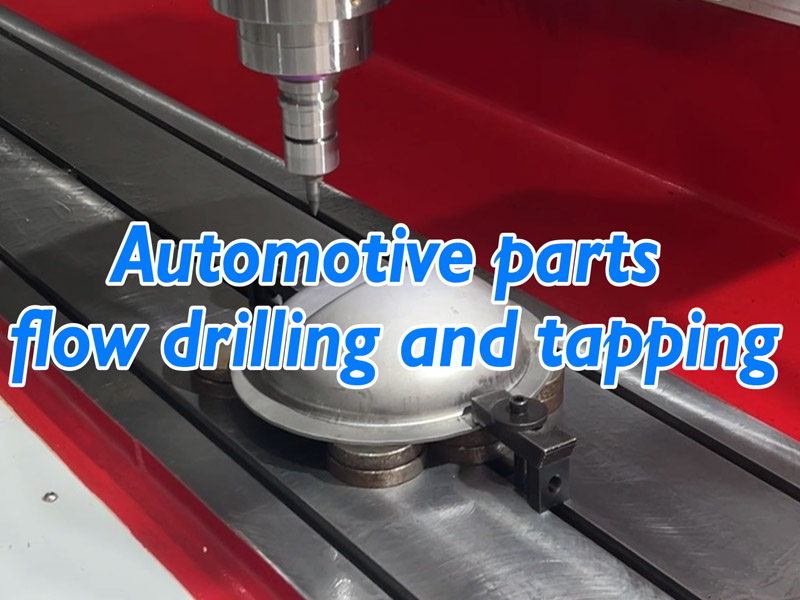

- Automotive & EV Chassis: Engine block oil passages, battery tray frames, and mobility vehicle structures.
- HVAC & Liquid Cooling: Liquid-cooling pipes, manifolds, and thin-walled heat exchangers.
- General Hardware: Steel pipe framing, industrial racking, and agricultural machinery components.
Quality Assurance & Industry Standards
- Manufactured in compliance with CE safety standards.
- Dynamic balance tested spindle ensuring low vibration and long tool life during extended 600°C thermal friction operations.
Purchase & Delivery Guarantees
Direct Factory Assurance — Built, Tested, and Supported from Dongguan to Your Shop Floor
Runs on Your System
Standard GSK control (100% Fanuc G-code compatible) or optional Mitsubishi/Siemens. Direct CAD file import for code-free toolpath generation.
Factory Video FAT
Live drilling/tapping tests on your actual workpiece recorded before dispatch. Final 50% balance payment is paid only after your video approval.
40-Day Build & Rugged Crate
Guaranteed maximum 40-day manufacturing cycle. Sealed in anti-rust vacuum aluminum foil and bolted in fumigation-free timber crates (EXW/FOB/CIF).
Direct Engineer Care
Direct 1-on-1 WhatsApp group with your machine's build engineers, 12-month full warranty, and critical replacement parts dispatched via DHL within 24–48h.
Every DUOMI machine is built under a transparent 13-step factory production & responsibility chain.
Parameters
Download Technical Brochure| Model | DHM-3030N10 Flow drill CNC machine |
| XYZ three-axis machining stroke | X3000mm, Y300mm, Z200mm (Itinerary can be customized) |
| Spindle speed | 3000~24000rpm (Can be selected according to demand) |
| Spindle taper hole | BT30 |
| Spindle power | 5.5~7.5KW |
| X axis moving speed | 30m~60m/min |
| Y axis moving speed | 25m/min |
| Z axis moving speed | 25m/min |
| Borehole diameter range | 1~20mm |
| Tapping range | M2~M16 |
| Chamfer range | 1~20mm |
| Tool magazine | Automatic tool change (10 knives) |
| Repeated positioning accuracy | ±0.02mm |
| Table size | 3000mm x 280mm |
| T-slot size/number | Top width 13 x bottom width 20 x 3 pieces |
| Programming mode | CAD file import / computer programming / manual programming |
| System program storage capacity | About 10,000 |
| System external signal control | Support |
| Operating voltage | AC 380V / 50HZ |
| Machine weight | Approx. 2100KG |
| Floor space | 3500mm x 3000mm x 2000mm |
Machining Samples

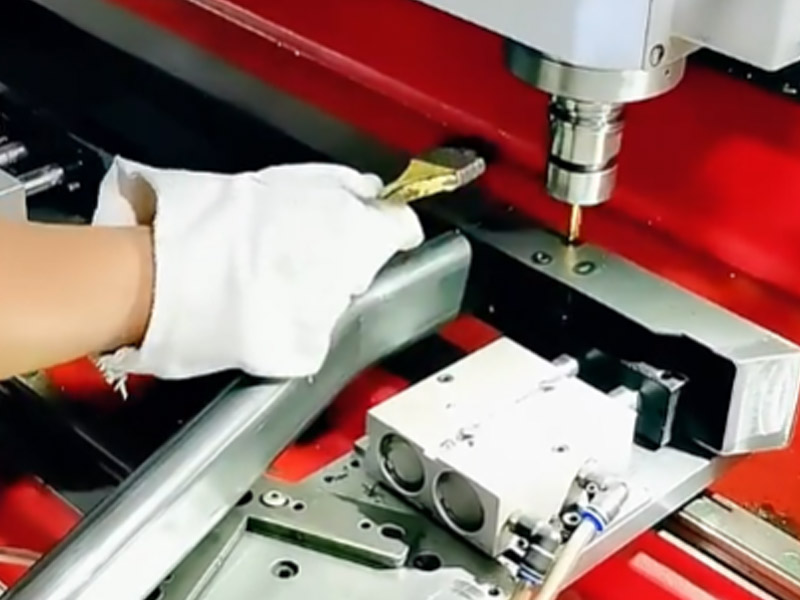

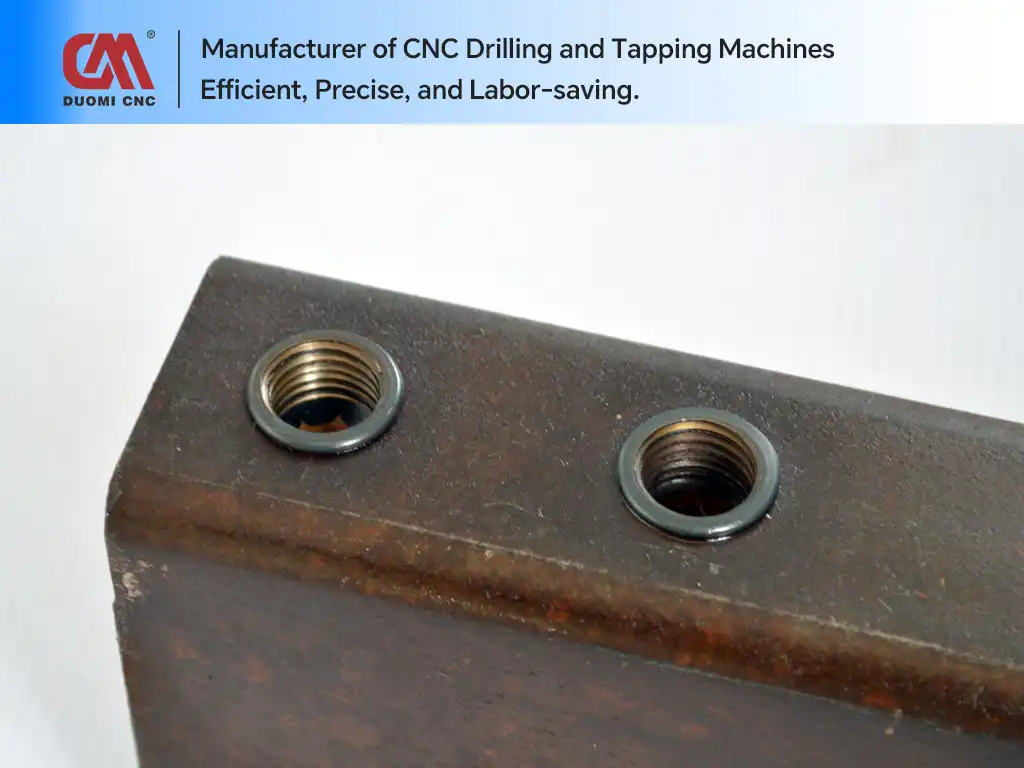

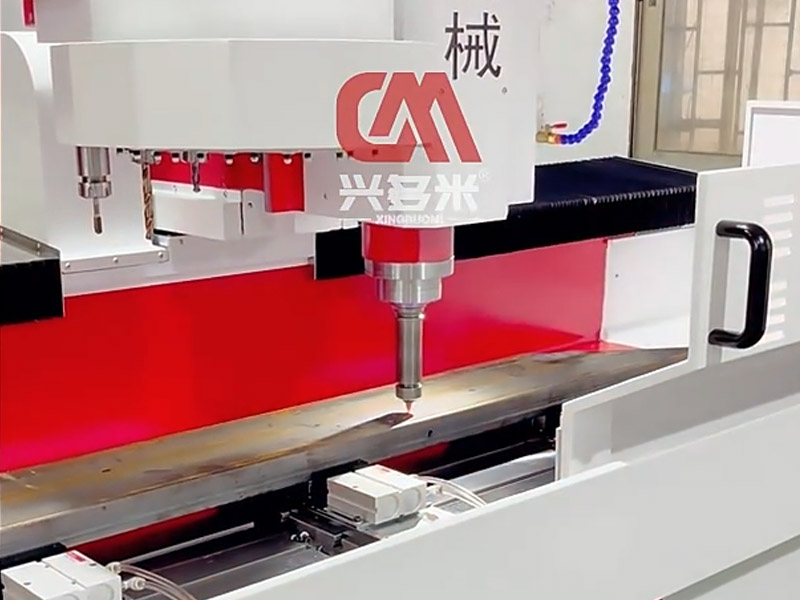

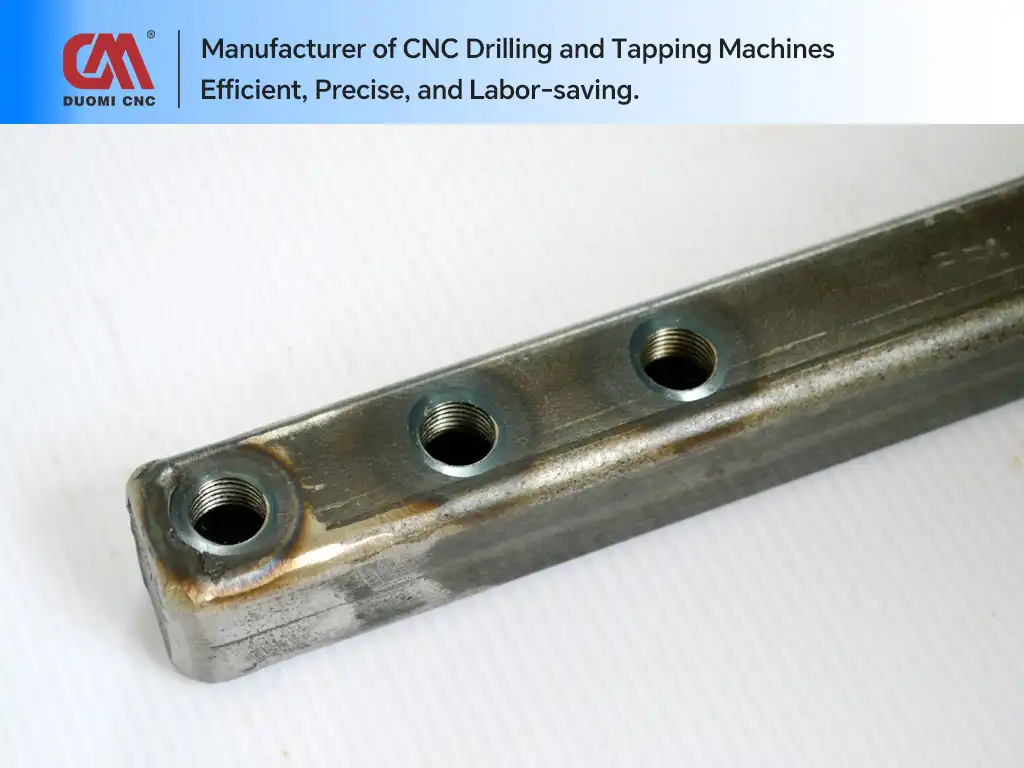

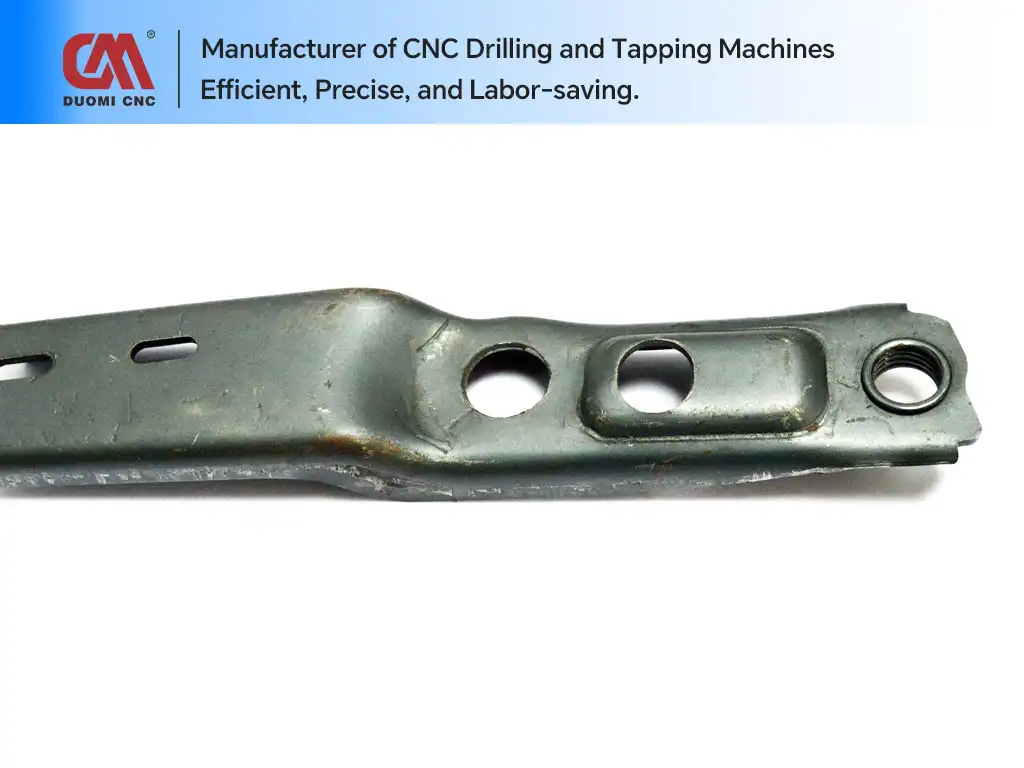

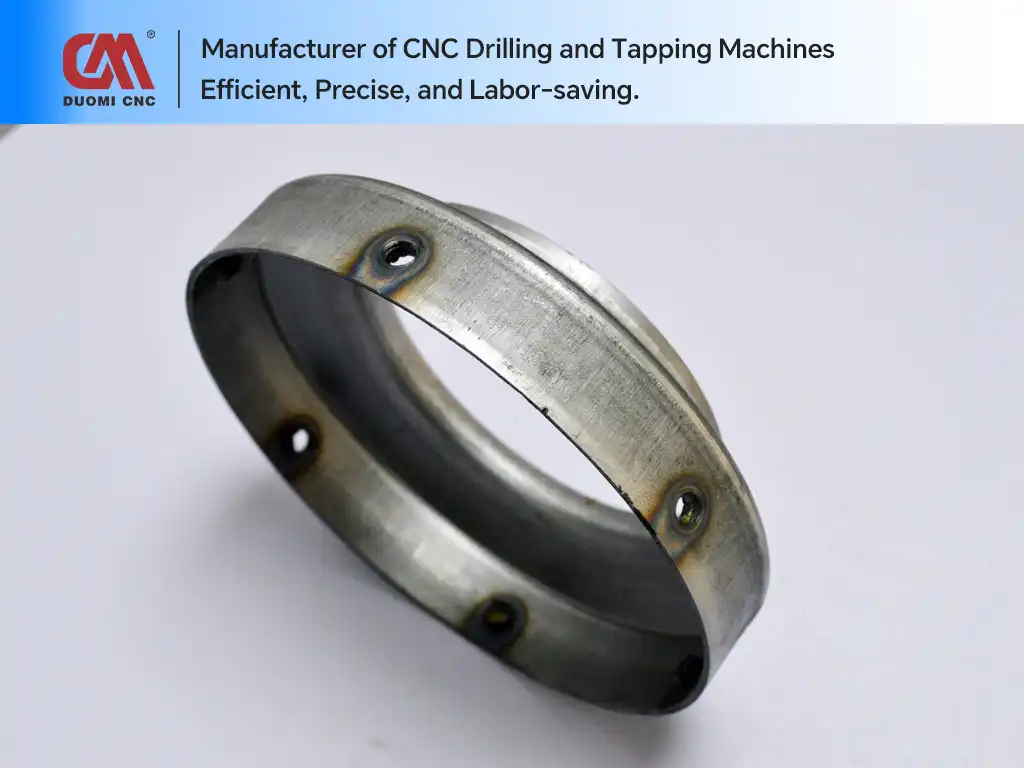

Real parts processed by our machines
Frequently Asked Questions
We “only” do drilling & tapping. Why do customers still choose Duomi over general-purpose CNC machines?
What does “Your part defines the solution” mean in practice?
What is the working principle of a Flow Drill CNC Machine?
What positioning and repeatability accuracy does this machine deliver?
Which materials can be processed using flow drilling?
What are the standard drilling and tapping capacities?
Can the stroke length and machine bed dimensions be customized?
How does automated flow drilling compare to traditional weld nuts or rivet inserts?
Recommended
View More ›
Form drilling machine for Sale – High Efficiency & Accuracy

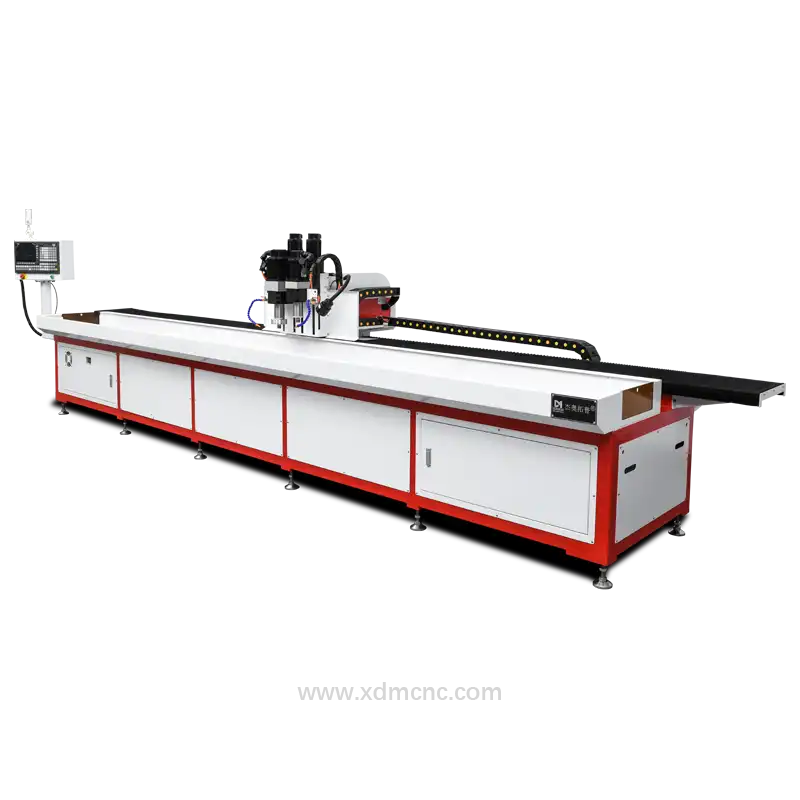

Custom Flow Drilling Machine Solutions – Tailored for Your Needs

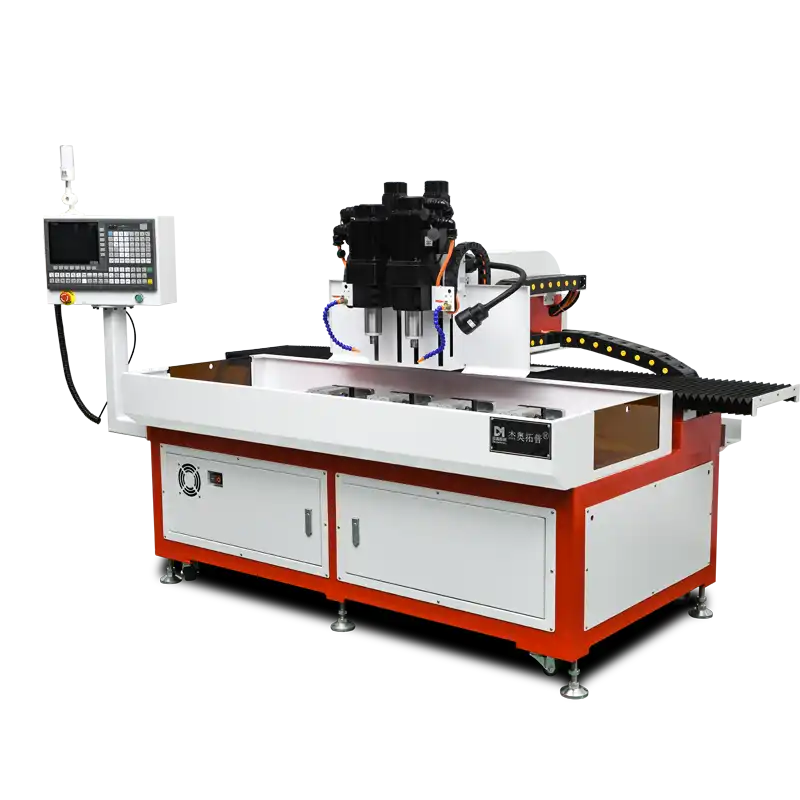

Flow Drilling Machine Supplier – Direct Factory Prices
