Custom Flow Drilling Machine Solutions for Industrial Manufacturing
High-Efficiency Thermal Friction Drilling & Tapping Machinery Tailored for Complex B2B Production Lines
💡 Our CNC drilling and tapping machines support custom non-standard designs, machine color customization, and OEM branding. Start now to purchase and customize your own equipment, please contact us.
Request a Free Machining Sample →
Features
4-Meter Extended Open Bed: 4000mm X-axis stroke easily accommodates extra-long tubes, multi-product clamping, and continuous multi-station cycles.

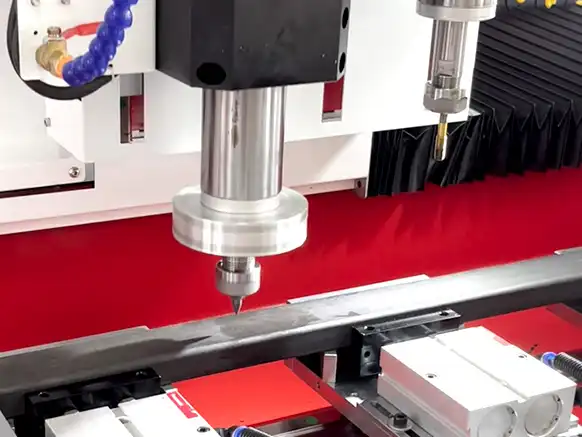

Integrated Thermal Friction Flowdrill: Rapidly forms extruded threaded bushings in thin-wall metal, eliminating rivet nuts and weld inserts.
High-Speed 24,000 RPM Spindles: High-RPM servo spindles deliver instant thermal plasticization and precision rigid tapping (M2–M12).
Rapid High-Yield Axis Traverse: Fast 30–60 m/min traverse speeds minimize non-cutting cycle times during repetitive hole patterns.
Custom Tailored Tooling & Fixtures: Easily integrates pneumatic guide-rail clamps, CAD file import, and automated multi-part loading.
In-Depth Engineering Description & Technical Overview
Click to expand complete machine capabilities, workflow analysis & application guide
Click to Expand
Collapse Details
Executive Overview: Industrial Flow Drilling & Tapping Automation

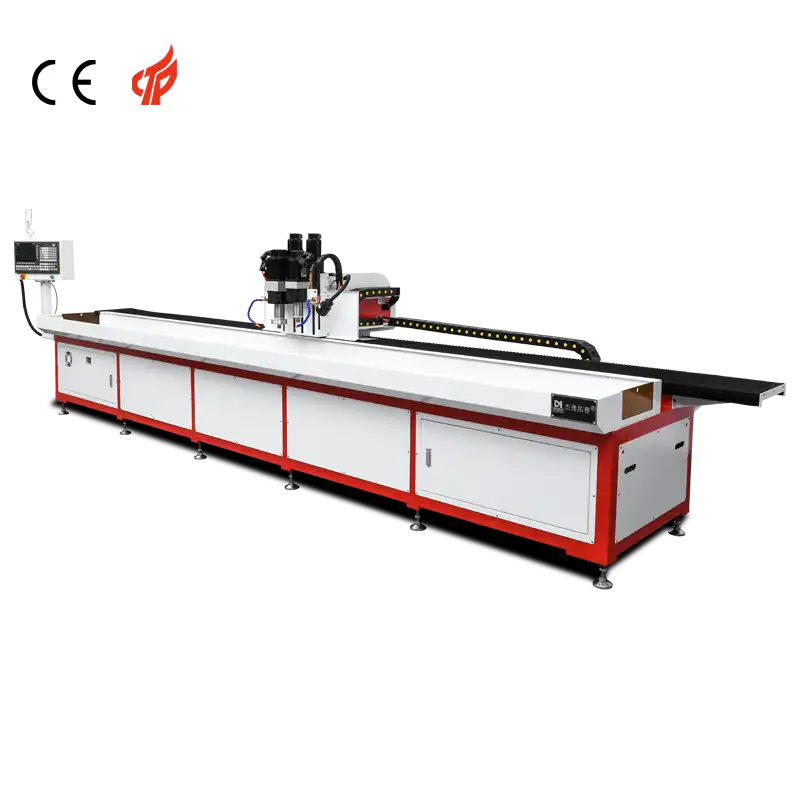

Modern metal fabrication and automotive component manufacturing demand extreme efficiency, repeatable accuracy, and minimal material waste. The DUOMI CNC Flow Drilling Machine (Model DHM-4030DT) combines advanced high-speed thermal friction drilling, precision tapping, chamfering, and milling in a single automated setup. By eliminating manual tool switching and multi-machine transfer times, this solution delivers substantial throughput gains while slashing labor overhead.
Designed to handle flat steel sheets, aluminum profiles, copper tubes, and complex structural frames, our customized flow drilling machine solutions feature a moving beam architecture and independent dual-spindle servo control—enabling continuous, multi-station machining for high-volume B2B orders.
Key Technical Advantages & Business ROI
- Drastic Scrap Rate Reduction (Down to 0.2%): A leading global automotive supplier reduced part defect rates from 8% to 0.2% upon integrating DUOMI flow drilling machines, saving over $500,000 annually in scrap costs.
- Ultra-High Precision & Repeatability: Engineered with a rigid moving beam structure achieving ±0.02mm repeat positioning accuracy across a massive 4000mm x 280mm working area.
- High-Speed Spindle Performance: Variable spindle speeds from 100 to 24,000 RPM match specific thermal friction requirements across diverse metal alloys.
- Rapid Axis Traversal: X-axis movement speeds up to 60 m/min and Y/Z axis speeds of 25 m/min significantly reduce non-cutting cycle times.
- Multi-Process Efficiency: Complete flow drilling (friction drilling), tapping (M2 to M12), and chamfering (1-20mm) in a single clamping operation.
Solved Industry Pain Points
1. Eliminating Multi-Machine Bottlenecks
- Challenge: Traditional operations rely on separate drilling, tapping, and deburring stations, causing labor bottlenecks, setup errors, and long cycle times.
- Solution: Our multi-process flow drilling and tapping machine integrates all steps into one program, boosting throughput by up to 300% and supporting automated loading/unloading robot cells.
2. Machining Complex & Irregular Workpieces
- Challenge: Inconsistent wall thickness and complex 3D profiles require constant fixture adjustments on conventional equipment.

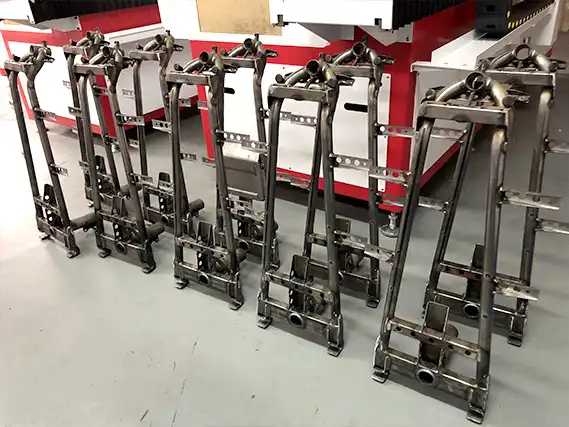

- Solution: Multi-axis CNC linkage combined with CAD/CAM import functionality allows instant re-programming for complex hole patterns, inclined surfaces, and mobility frame assemblies.
3. High Dependence on Skilled Operator Labor
- Challenge: Shortages in skilled machinist labor lead to inconsistent hole quality and higher operating costs.
- Solution: Intuitive CNC system with storage for over 10,000 program files enables single-operator management across multiple machines with minimal training.
Industrial Applications & Workpiece Compatibility
DUOMI custom flow drilling machine systems are deployed across heavy-duty industrial sectors operating under rigorous quality management systems (CE):
- Automotive & EV Manufacturing: Structural battery boxes, chassis frames, steel/aluminum subframes, and motor housings.
- HVAC & Fluid Transport: Brass, copper, and stainless steel manifold tubes requiring thermal friction extruded bushings.
- Construction & Solar Framing: Structural steel beam drilling and tapping for high-load fasteners.
- General Metal Fabrication: Sheet metal enclosures, furniture frames, and aerospace structural elements.
Purchase & Delivery Guarantees
Direct Factory Assurance — Built, Tested, and Supported from Dongguan to Your Shop Floor
Runs on Your System
Standard GSK control (100% Fanuc G-code compatible) or optional Mitsubishi/Siemens. Direct CAD file import for code-free toolpath generation.
Factory Video FAT
Live drilling/tapping tests on your actual workpiece recorded before dispatch. Final 50% balance payment is paid only after your video approval.
40-Day Build & Rugged Crate
Guaranteed maximum 40-day manufacturing cycle. Sealed in anti-rust vacuum aluminum foil and bolted in fumigation-free timber crates (EXW/FOB/CIF).
Direct Engineer Care
Direct 1-on-1 WhatsApp group with your machine's build engineers, 12-month full warranty, and critical replacement parts dispatched via DHL within 24–48h.
Every DUOMI machine is built under a transparent 13-step factory production & responsibility chain.
Parameters
Download Technical Brochure| Model | DHM-4030DT Flow Drilling Machine |
| XYZ three-axis machining stroke | X 4000mm, Y 300mm, Z 200mm |
| Spindle speed | 100~24000rpm (Can be selected according to demand) |
| Spindle taper hole | ER20 |
| Spindle power | 0.55~3.0KW |
| X axis moving speed | 30m/min~60m/min |
| Y axis moving speed | 25m/min |
| Z axis moving speed | 25m/min |
| Drilling diameter range | 1~12mm |
| Tapping diameter range | M2~M12 |
| Chamfer range | 1~20mm |
| Tool magazine | Manual tool change |
| Repeated positioning accuracy | ± 0.02mm |
| Table size | 4000mm x 280mm |
| Programming mode | CAD file import / computer programming / manual programming |
| System program storage capacity | About 10,000 |
| System external signal control | Support |
| Operating voltage | AC 220V / 50HZ |
| Machine weight | Approx. 2600KG |
| Floor space | 5500mm x 1500mm x 1700mm |

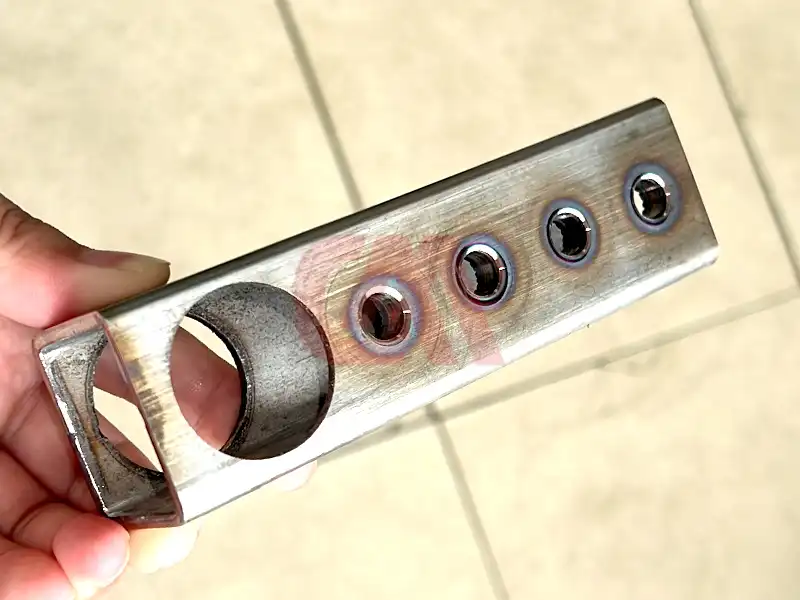

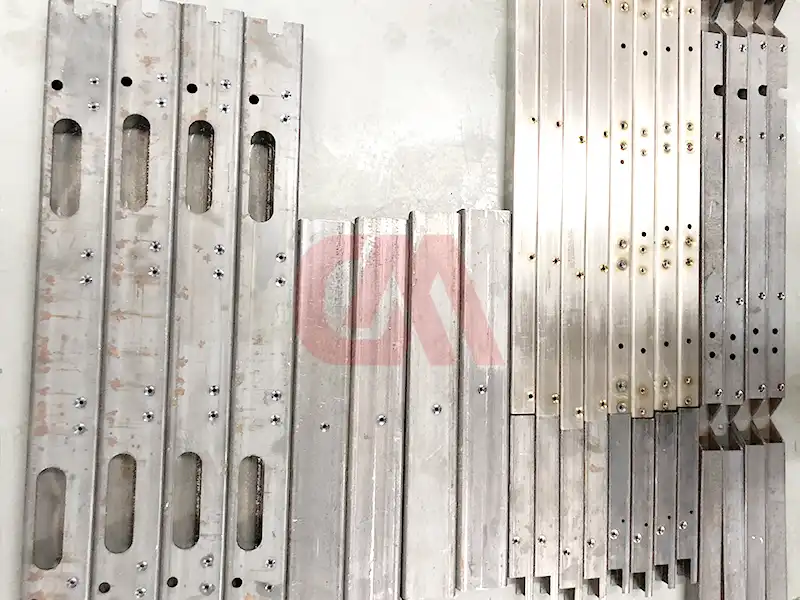

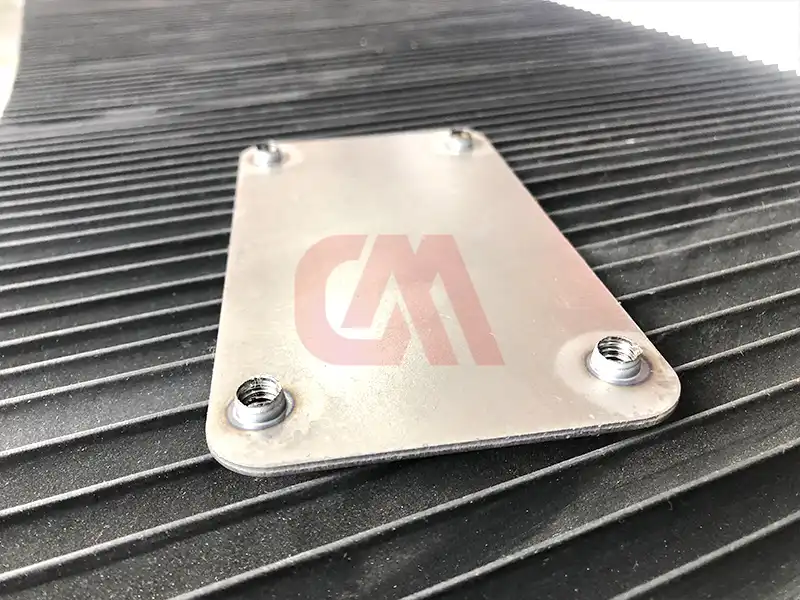

Machining Samples
Real parts processed by our machines
Frequently Asked Questions
We “only” do drilling & tapping. Why do customers still choose Duomi over general-purpose CNC machines?
What does “Your part defines the solution” mean in practice?
What is flow drilling (thermal friction drilling) and how does it benefit thin metals?
What is the repeated positioning accuracy of the DHM-4030DT flow drilling machine?
Which metals can be processed using DUOMI flow drilling machines?
Can DUOMI supply customized non-standard designs and robotic automation integration?
What hole and thread dimensions can this machine produce?
What is the typical lead time for standard and custom configurations?
Recommended
View More ›
Multi-faceted CNC drilling and tapping machine

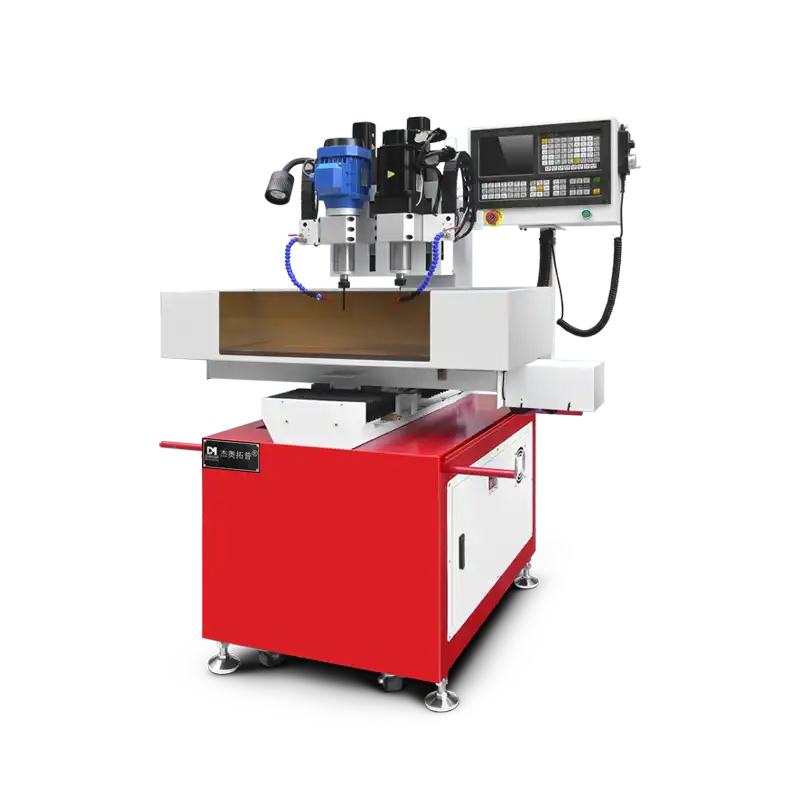

Form drilling machine for Sale – High Efficiency & Accuracy
