Multi-Faceted CNC Drilling and Tapping Machine

Industrial Overview: Advanced Multi-Faceted CNC Drilling & Tapping

The DUOMI Multi-Faceted CNC Drilling and Tapping Machine provides B2B manufacturers with a high-speed, integrated solution for complex hole-making, thermal friction drilling (flow drilling), chamfering, and precision tapping. Engineered to replace manual multi-machine workflows, this heavy-duty CNC system optimizes cycle times, lowers unit costs, and eliminates process bottlenecks in high-volume and high-mix production environments.

Key Benefits & ROI for Production Engineers

1. Integrated Multi-Process Efficiency

• Industry Challenge: Conventional production requires transferring workpieces across dedicated drilling and tapping stations, consuming high labor hours and introducing alignment errors.
• DUOMI Solution: Consolidates multi-operation workflows—drilling, thermal flow drilling, tapping, chamfering, and light milling—into a single setup. Rapid axis traverse speeds (X-axis up to 60m/min, Y/Z axes up to 25m/min) drastically cut overall machine setup and cycle times.

2. Precision Thermal Friction Drilling on Complex Geometry

• Industry Challenge: Forming reliable threaded joints in thin-walled profiles or irregular castings often causes thread stripping or requires expensive rivet nuts.
• DUOMI Solution: Supports multi-axis linkage (3-axis, 4-axis, or 5-axis options) for machining angled holes, long profiles, and complex surfaces. Friction drilling generates local heat to create a reinforced bushing, enabling deep, high-strength threads directly in metal walls.

3. Defect Reduction & Superior Precision (0.2% Defect Target)

• Industry Challenge: Manual drilling relies heavily on operator skill, causing dimensional variation and higher scrap rates.
• DUOMI Solution: Delivers repeatable positioning accuracy of ±0.02mm. In automotive parts manufacturing, implementing DUOMI CNC systems reduced cylinder head oil-passage defect rates from 8% down to 0.2%, saving up to $500,000 in material costs annually.

4. 24/7 Automated Unmanned Manufacturing

• Industry Challenge: Rising labor costs and a shortage of skilled CNC machinists hinder throughput scaling.
• DUOMI Solution: Seamlessly interfaces with Automatic Tool Changers (ATC) and robotic loading/unloading systems for continuous, lights-out operation. One technician can oversee multiple DUOMI CNC units via an intuitive graphic interface.

5. Flexible Production for Small Batches & Custom Orders

• Industry Challenge: High setup times delay execution for short-run or highly customized orders.
• DUOMI Solution: Rapid changeover features, modular fixtures, and automatic CAD program import enable immediate response to low-volume or varied production schedules.

Industrial Applications

• Automotive & Mobility: Engine cylinder heads, oil channels, battery frames, and customized steel mobility frames.

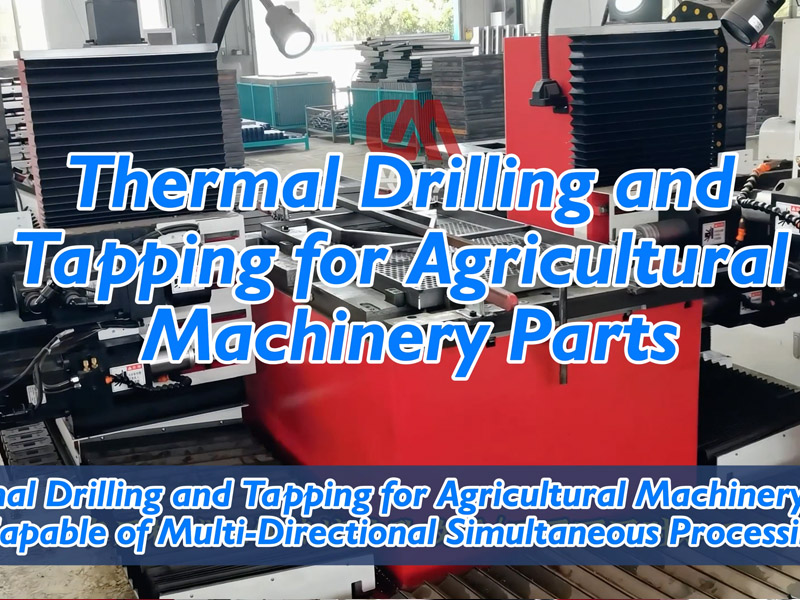

• Agricultural Machinery: Heavy-duty structural frame components and wear plates.
• Architectural & Extrusions: Long aluminum/steel profiles requiring inline flow drilling and rigid tapping.
• General Engineering: Hydraulic blocks, pump housings, heat exchangers, and electrical enclosures.

Technical Performance Highlights

• Spindle Power & Speed: 0.55 kW to 3.0 kW adjustable spindle power running from 500 to 2,500 RPM (customizable for high-speed thermal applications).
• Rigid Tooling Interface: ER20 spindle taper supporting drilling diameters from 1mm to 16mm and tapping capacity from M3 to M8.
• Structure & Controls: Heavy cast frame weighing approximately 3,500 KG minimizes vibration. Built-in storage handles up to 10,000 programs with external automation signal support.
• Quality & Safety Standards: Designed in alignment with international manufacturing standards (ISO9001 and CE compliance).
