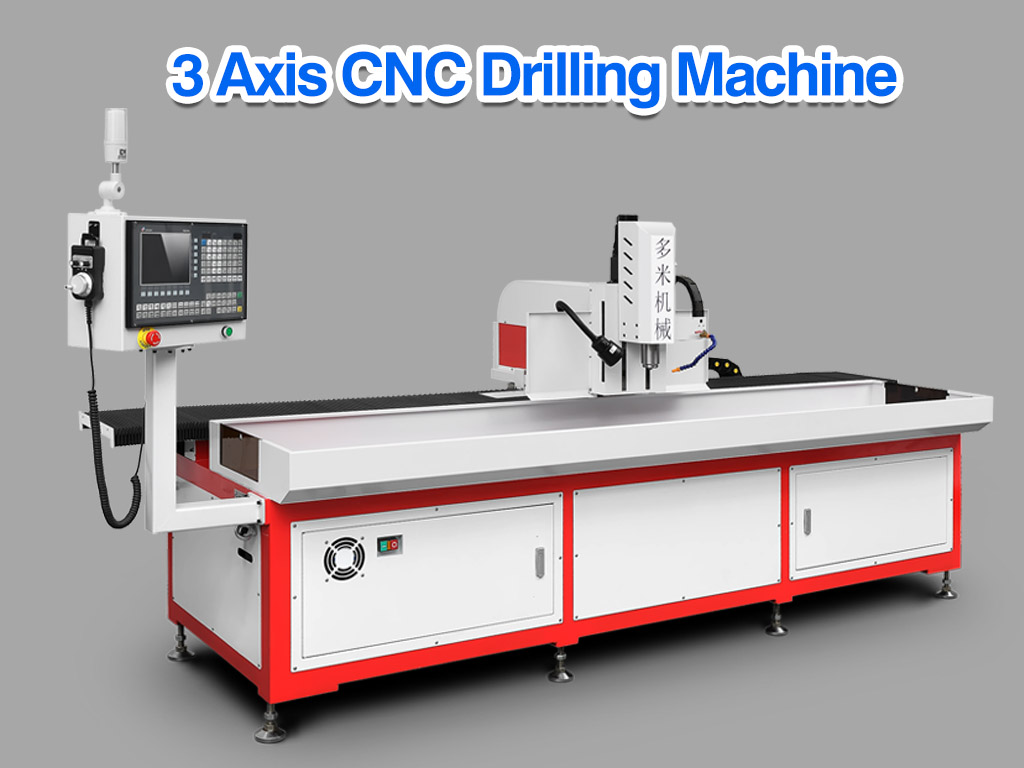

The Engineering Evolution of the 3 Axis CNC Drilling Machine
Across global manufacturing industries, precision machining has become the foundation of competitive production. Whether producing automotive components, structural steel assemblies, electrical enclosures, or heat exchangers, the ability to create accurate drilled holes repeatedly and efficiently defines product quality and structural integrity.
This is where the 3 Axis CNC Drilling Machine has become indispensable.
Unlike traditional manual or semi-automatic drilling equipment, a 3 Axis CNC Drilling Machine delivers programmable precision through synchronized movement across three independent linear axes: X, Y, and Z. This enables manufacturers to achieve highly controlled drilling, reaming, and tapping operations with minimal operator deviation and zero manual layout errors.
As modern manufacturing tolerances tighten and batch sizes scale, enterprise producers rely on specialized solutions from DUOMI CNC. Engineered for continuous industrial operation, DUOMI CNC 3 Axis CNC Drilling Machine systems combine high structural rigidity, intelligent automation, and micron-level motion control.
Kinematic Working Principles: Coordinated 3-Axis Control
A modern 3 Axis CNC Drilling Machine operates through real-time interpolated movement across three fundamental Cartesian axes. Each axis fulfills a specific spatial and operational role during the machining cycle:
1. X-Axis Motion (Horizontal Lateral Positioning)
- Function: Controls horizontal transverse movement (left-to-right).
- Application: Positions the drill spindle precisely across wide workpieces such as structural steel plates, tube sheets, or aluminum extrusions.
- Precision Engineering: DUOMI CNC integrates high-resolution AC servo drives with precision C3-grade ball screws or direct-drive linear guide systems to guarantee repeatable positioning accuracy up to ±0.005 mm across long travel strokes.
2. Y-Axis Motion (Horizontal Longitudinal Positioning)
- Function: Controls forward and backward table or gantry movement.
- Application: Establishes precise coordinate alignment across the horizontal plane, enabling complex hole pattern arrays without manual indexing.
- Structural Integrity: In heavy-duty steel fabrication where hundreds of pitch holes are machined per plate, Y-axis stability maintains uniform pitch distance conforming to international ISO 2768-m standards.

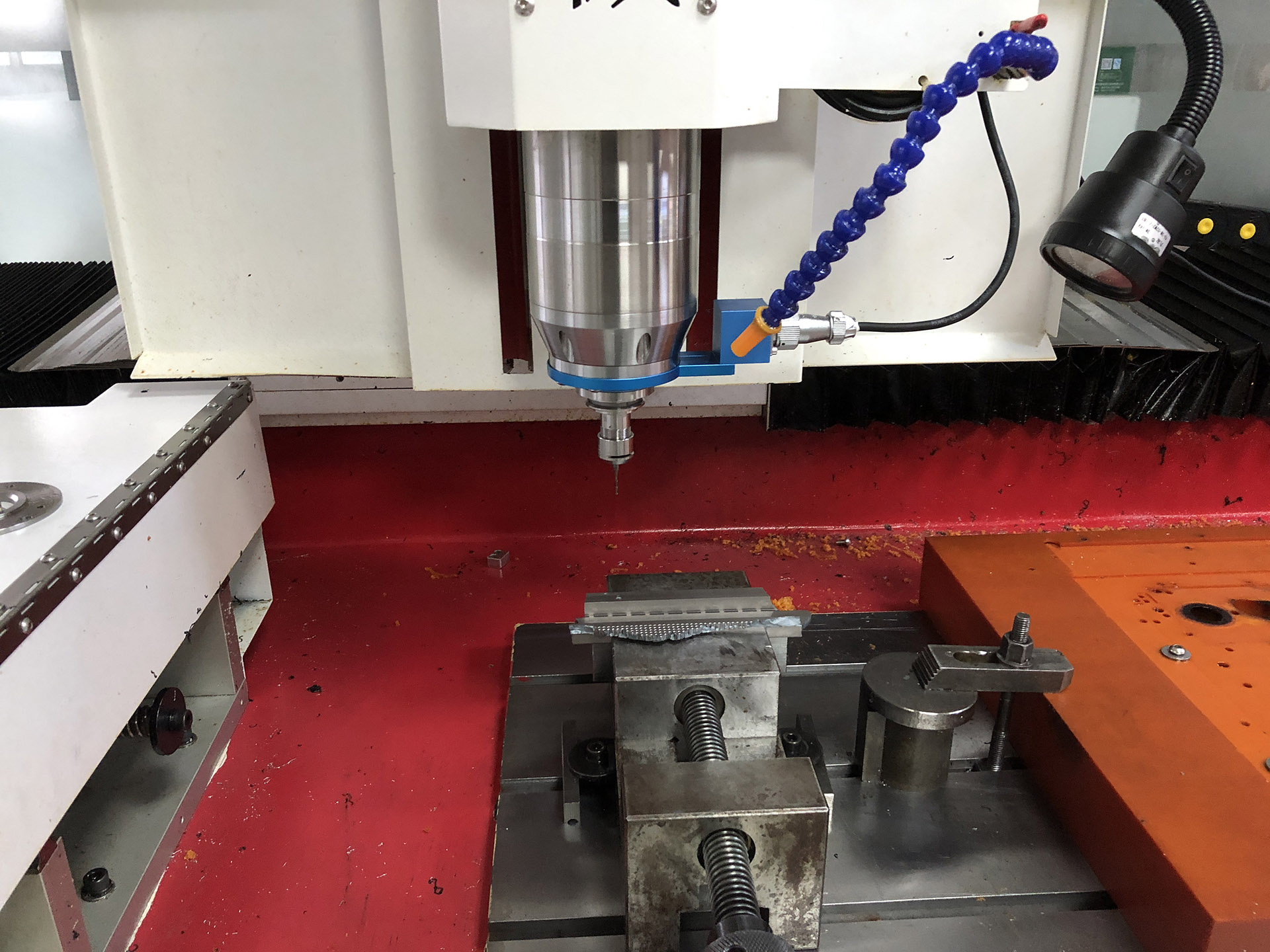

3. Z-Axis Motion (Vertical Spindle Feed & Depth Control)
- Function: Governs vertical spindle plunge, feed rate, and retract speed.
- Critical Variables Managed:
- Hole penetration depth control
- Programmed chip-breaking cycles (peck drilling)
- Surface entry feed optimization
- Synchronized rigid tapping thread depth
- Spindle Dynamics: DUOMI CNC designs advanced motorized spindles with variable speed vector control (up to 12,000 RPM) to maintain constant cutting torque and steady thrust pressure throughout deep-hole cycles.
Technical Advantages of DUOMI CNC 3 Axis Drilling Systems
High-precision hole making is not achieved through controller software alone—it requires balanced electro-mechanical engineering.
Key Performance Specifications
| Specification Parameter | DUOMI CNC Standard Benchmark | Manufacturing Benefit |
|---|---|---|
| Positioning Accuracy (ISO 230-2) | ±0.008 mm / 300 mm | Eliminates cumulative hole alignment errors |
| Repeatability | ±0.005 mm | Ensures 100% interchangeable batch parts |
| Spindle Speed Range | 3,000 – 12,000 RPM | Handles aluminum, carbon steel, and stainless steel |
| Control System | High-speed 3-axis CNC controller | Supports G-code, CAD/CAM import, and macro cycles |
| Machine Structure | High-density Meehanite cast iron bed | Superior vibration damping during high-speed feed |
Mechanical Rigidity & Anti-Vibration Structure
Cutting tool vibration directly causes hole ovality, poor surface finish, and premature tool wear. DUOMI CNC addresses structural resonance by employing: * Heavy-duty cast iron frames treated with thermal stress relief (annealing). * Wide-stance roller linear motion guideways for maximum dynamic load capacity. * Optimized machine center-of-gravity design to suppress harmonic vibration during fast rapid-traverse speeds (up to 24 m/min).
High-Speed Servo Drives & Closed-Loop Feedback
DUOMI CNC equips every 3 Axis CNC Drilling Machine with high-torque optical encoder servo motors. This closed-loop setup actively monitors and corrects positioning errors in real time, compensating for thermal expansion during extended production shifts.
Industrial Automation & ROI Driving Adoption
Modern automated factories adopt 3 Axis CNC Drilling Machines to solve critical manufacturing bottlenecks:
- Labor Reduction & Safety: Manual radial drilling requires dedicated, skilled labor and poses operator safety risks. A single technician can operate multiple DUOMI CNC units simultaneously.
- Drastic Cycle Time Reduction: Automated tool changers (ATC) and high rapid-traverse rates reduce non-cutting idle time by up to 60% compared to conventional machinery.
- Process Versatility: Supports conventional twist drilling, high-speed peck drilling, indexable carbide drilling, thermal friction drilling, counterboring, and rigid tapping in a single clamping setup.
- Scalable Batch Quality: Digital G-code programming guarantees that hole 1 and hole 10,000 exhibit identical dimensional tolerances, meeting automotive ISO/TS 16949 quality criteria.
