DNC-1650D Small CNC Gantry Drilling Machine
High-Efficiency CNC Drilling, Tapping, Milling, and Chamfering Solution with ±0.02mm Repeatability
💡 Our CNC drilling and tapping machines support custom non-standard designs, machine color customization, and OEM branding. Start now to purchase and customize your own equipment, please contact us.
Request a Free Machining Sample →
Features
Heavy-Duty Dual-Drive Gantry: High-rigidity bridge frame spanning large working envelopes without deflection.
Long-Stroke Working Envelope: Extended longitudinal axis handles oversized steel plates, tubes, and architectural profiles.
High-Thrust Drilling Power: Powerful spindle motor easily drives large-diameter drills and taps up to M24/M30 in steel.
Precision Rack & Pinion / Ball Screw Drives: Heavy-duty linear guideways ensure ultra-smooth motion and ±0.02mm repeatability.
In-Depth Engineering Description & Technical Overview
Click to expand complete machine capabilities, workflow analysis & application guide
Click to Expand
Collapse Details
Industrial Overview
The DNC-1650D Small CNC Gantry Drilling Machine by DUOMI CNC is engineered to solve core B2B metalworking bottlenecks: labor dependency, long setup times, and high defect rates. Designed with a robust gantry structure, it integrates multi-process operations—drilling, tapping, chamfering, and milling—into a single setup. Built under stringent ISO 9001 and CE standards, the DNC-1650D provides exceptional structural rigidity and positioning accuracy for precision components across automotive, mold, hardware, and electronics manufacturing.
Key Advantages & Performance Metrics
- Multi-Process Integration: Eliminates separate drilling and tapping station transfers, significantly reducing cycle times and handling errors.
- Superior Precision: Features imported linear guides and high-precision ball screws delivering repeated positioning accuracy of ±0.02mm.
- High-Speed Axis Dynamics: Fast X-axis moving speeds of 30m/min to 60m/min combined with Y/Z axis speeds of 25m/min substantially cut non-cutting transition times.
- Defect Reduction & ROI: Case studies in automotive engine cylinder head manufacturing demonstrate a defect rate reduction from 8% down to 0.2%, yielding annual material cost savings exceeding $500,000.
- Flexible CAD/CAM Automation: Features direct CAD drawing file auto-import, computer programming, and support for automated loading/unloading robotic integrations for 24/7 lights-out operation.
Industrial Applications & Material Capability
The DNC-1650D small CNC gantry drilling machine processes a wide spectrum of industrial materials including ferrous and non-ferrous metals: - Supported Materials: Iron, Steel, Aluminum, Copper, Brass, Zinc, Platinum, and alloy plates/castings. - Machining Range: Drilling hole diameters from 1mm to 16mm, rigid tapping from M2 to M16, and chamfering up to 20mm. - Target Industries: Automotive parts, mold plates, heat exchangers, structural sheet metal, aerospace brackets, and general precision engineering.
Explore our full range of Gantry Type CNC Drilling Machines to find the exact worktable size and spindle power needed for your facility.
Purchase & Delivery Guarantees
Direct Factory Assurance — Built, Tested, and Supported from Dongguan to Your Shop Floor
Runs on Your System
Standard GSK control (100% Fanuc G-code compatible) or optional Mitsubishi/Siemens. Direct CAD file import for code-free toolpath generation.
Factory Video FAT
Live drilling/tapping tests on your actual workpiece recorded before dispatch. Final 50% balance payment is paid only after your video approval.
40-Day Build & Rugged Crate
Guaranteed maximum 40-day manufacturing cycle. Sealed in anti-rust vacuum aluminum foil and bolted in fumigation-free timber crates (EXW/FOB/CIF).
Direct Engineer Care
Direct 1-on-1 WhatsApp group with your machine's build engineers, 12-month full warranty, and critical replacement parts dispatched via DHL within 24–48h.
Every DUOMI machine is built under a transparent 13-step factory production & responsibility chain.
Parameters
Download Technical Brochure| Model | DNC-1650D Small CNC gantry drilling machine |
| XYZ three-axis machining stroke | X1600mm, Y650mm, Z200mm |
| Table size | 1600mm x 630mm |
| Spindle taper hole | ER20 |
| Spindle power | 0.55~3.0KW |
| X axis moving speed | 30m/min~60m/min |
| Y axis moving speed | 25m/min |
| Z axis moving speed | 25m/min |
| Drilling hole diameter range | 1~16mm |
| Tapping diameter range | M2~M16 |
| Chamfer range | 1~20mm |
| Tool magazine | Manual tool change |
| Repeated positioning accuracy | ±0.02mm |
| Programming mode | CAD file import / computer programming / manual programming |
| System program storage capacity | About 10,000 |
| System external signal control | Support |
| Operating voltage | AC 220V/50HZ |
| Machine weight | Approx. 1600KG |
| Floor space | 3000mm x 1750mm x 1800mm |

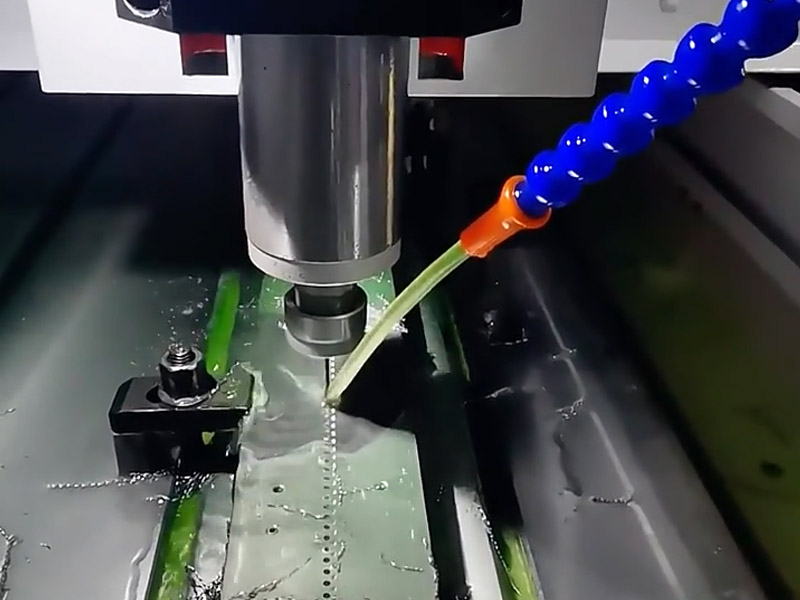

Machining Samples
Real parts processed by our machines
Frequently Asked Questions
We “only” do drilling & tapping. Why do customers still choose Duomi over general-purpose CNC machines?
What does “Your part defines the solution” mean in practice?
What is the repeated positioning accuracy of the DNC-1650D small CNC gantry drilling machine?
What are the maximum drilling and tapping capacities of the DNC-1650D?
What working area and envelope dimensions does the DNC-1650D offer?
Can the DNC-1650D import CAD drawings directly for programming?
What materials can be machined on this CNC gantry drilling equipment?
What options are available for customization and OEM branding?
Recommended
View More ›

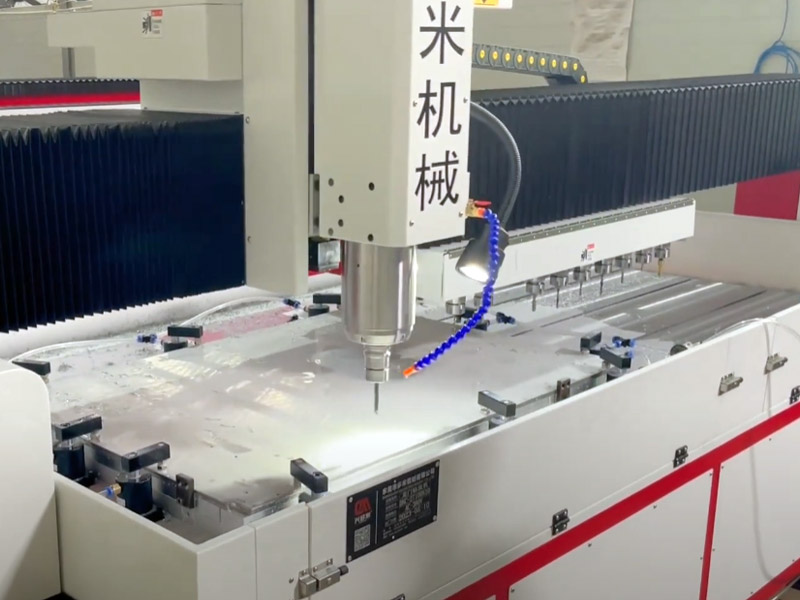

Double Spindle Gantry-Type CNC Drilling and Tapping Machine with automatic tool change
