DNC-3050N8 Metal CNC Side Hole Drilling Machine
3-Axis Automatic Horizontal Drilling, Tapping & Chamfering Center with 8-Tool ATC
💡 Our CNC drilling and tapping machines support custom non-standard designs, machine color customization, and OEM branding. Start now to purchase and customize your own equipment, please contact us.
Request a Free Machining Sample →
Features
Horizontal End-Face & Side Machining: Horizontal spindle layout eliminates awkward vertical fixturing for long shafts and bars.
Natural Gravity Chip Evacuation: Metal swarf and coolant drop freely away from the hole, preventing tool recutting and tap breakage.
Multi-Angle Side-Hole Drilling: Efficiently machines radial oil holes, locking pin bores, and side threads on cylindrical workpieces.
Ultra-Rigid Low Center of Gravity: Robust horizontal casting bed resists axial drilling thrust and maintains long-term alignment.
High-Efficiency Automatic Clamping: Hydraulic/pneumatic self-centering vices speed up repetitive parts changeover.
In-Depth Engineering Description & Technical Overview
Click to expand complete machine capabilities, workflow analysis & application guide
Click to Expand
Collapse Details
Executive Overview
The DUOMI DNC-3050N8 Metal CNC Side Hole Drilling Machine is an industrial-grade horizontal machining solution engineered for high-speed drilling, tapping, and chamfering on complex workpiece sides. Powered by a high-rigidity BT30 spindle capable of speeds up to 24,000 RPM and supported by an 8-station automatic tool changer (ATC), the DNC-3050N8 substantially reduces cycle times for medium to high-volume production.
Featuring an extended X 3000 mm × Y 100 mm × Z 100 mm machining envelope and absolute servo motor drives on all axes, this machine delivers consistent high-precision processing across ferrous and non-ferrous metals.
Core Engineering & Key Features
- BT30 High-Speed Spindle System: Delivers 5.5–7.5 kW power with speed ranges from 1,500 to 24,000 RPM, accommodating drilling diameters from 1 mm to 20 mm and tapping ranges from M2 to M20.
- Automatic 8-Tool Carousel: Features dynamic tool change routines that eliminate manual tool setups during multi-hole, multi-diameter machining operations.
- Precision Linear Motion: Utilizes premium HIWIN ball screws and linear guideways across all motion axes, driven by absolute servo systems reaching X-axis rapid traverse speeds of 30–60 m/min.
- API Laser Interferometer Verified: Every unit undergoes strict quality verification using US-imported API laser interferometers, guaranteeing overall machine accuracy within 0.02 mm and repeatability of ±0.02mm.
- Dual-Piston Pneumatic Clamping: Supports 2 to 10 automated workstations, enabling multi-station cycle machining to maximize throughput and minimize loading downtime.
- CAD/CAM Integrated CNC Controller: Supports direct CAD file imports for automatic program generation, eliminating complex G-code programming while offering storage for over 10,000 programs.
Industrial Applications & Materials
Designed for heavy-duty industrial environments, the DNC-3050N8 excel at processing structural profiles, side-hole plates, heat sinks, linear housings, and custom extrusions.
- Compatible Materials: Steel, Cast Iron, Aluminum Alloys, Copper, Brass, Zinc, and Platinum.
- Target Industries: Industrial Machinery, Automotive Components, Structural Engineering, Electronics Enclosures, and Aerospace Assemblies.
For complementary machining setups, explore our Horizontal Metal Side Hole CNC Drilling and Tapping Machine DNC-1540DT.
Purchase & Delivery Guarantees
Direct Factory Assurance — Built, Tested, and Supported from Dongguan to Your Shop Floor
Runs on Your System
Standard GSK control (100% Fanuc G-code compatible) or optional Mitsubishi/Siemens. Direct CAD file import for code-free toolpath generation.
Factory Video FAT
Live drilling/tapping tests on your actual workpiece recorded before dispatch. Final 50% balance payment is paid only after your video approval.
40-Day Build & Rugged Crate
Guaranteed maximum 40-day manufacturing cycle. Sealed in anti-rust vacuum aluminum foil and bolted in fumigation-free timber crates (EXW/FOB/CIF).
Direct Engineer Care
Direct 1-on-1 WhatsApp group with your machine's build engineers, 12-month full warranty, and critical replacement parts dispatched via DHL within 24–48h.
Every DUOMI machine is built under a transparent 13-step factory production & responsibility chain.
Parameters
Download Technical Brochure| Model | DNC-3050N8 Horizontal Metal Drilling and Tapping Machine |
| XYZ three-axis machining stroke | X3000mm, Y100mm, Z100mm |
| Spindle speed | 1500~24000rpm (Can be selected according to demand) |
| Spindle taper hole | BT30 (Can be selected according to demand) |
| Spindle power | 5.5-7.5KW |
| X axis moving speed | 30m/min~60m/min |
| Y axis moving speed | 25m/min |
| Z axis moving speed | 25m/min |
| Drilling diameter range | 1~20mm |
| Tapping diameter range | M2~M20 |
| Chamfer diameter range | 1~20mm |
| Tool magazine | Automatic tool change (8 knives) |
| Repeated positioning accuracy | ±0.02mm |
| Table size | 3000mm x 500mm |
| Programming mode | CAD file import / computer programming / manual programming |
| System program storage capacity | About 10,000 |
| System external signal control | Support |
| Operating voltage | AC 380V/50HZ |
| Machine weight | Approx. 2000KG |
| Floor space | 4800mm x 2500mm x 2000mm |

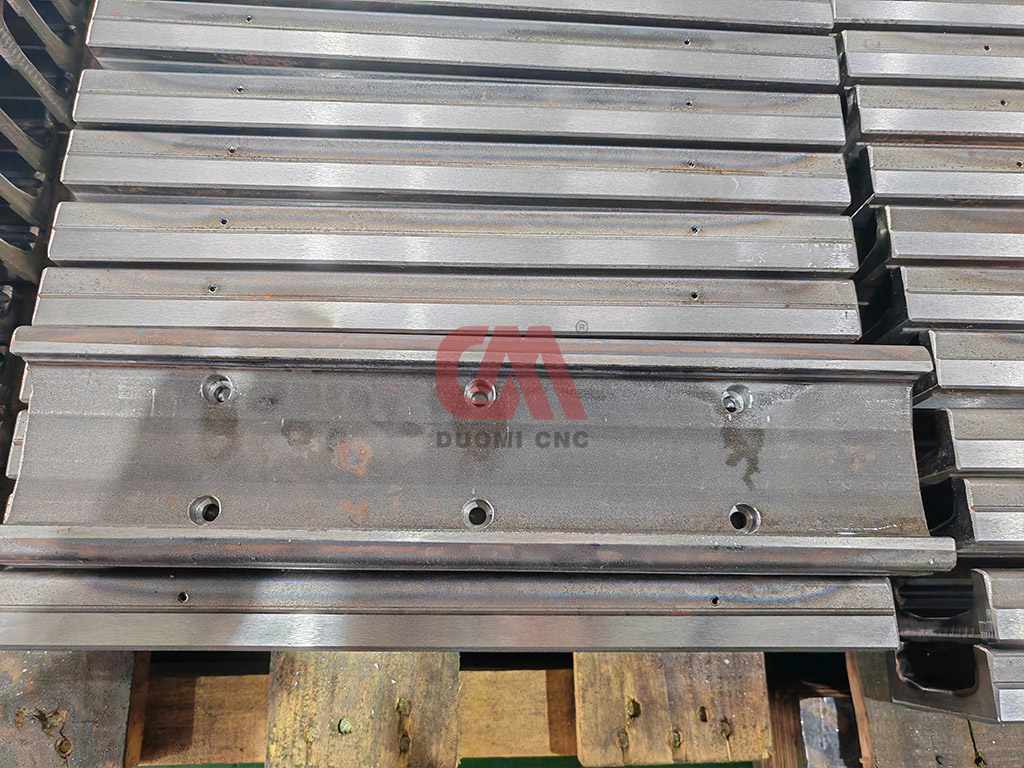

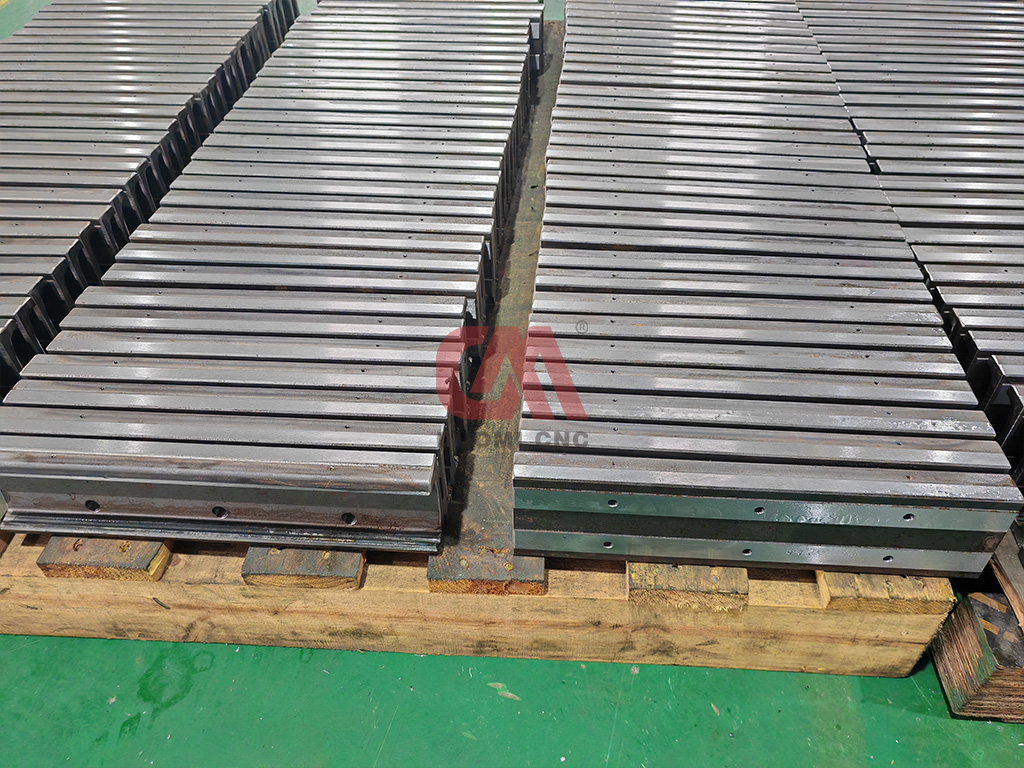

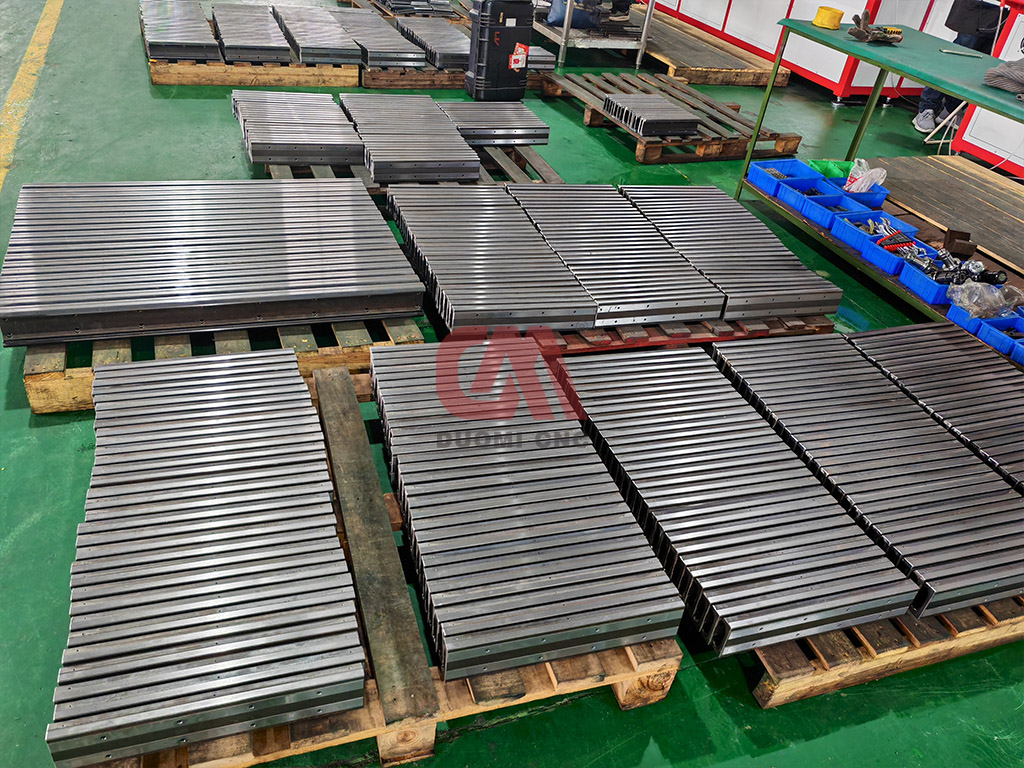

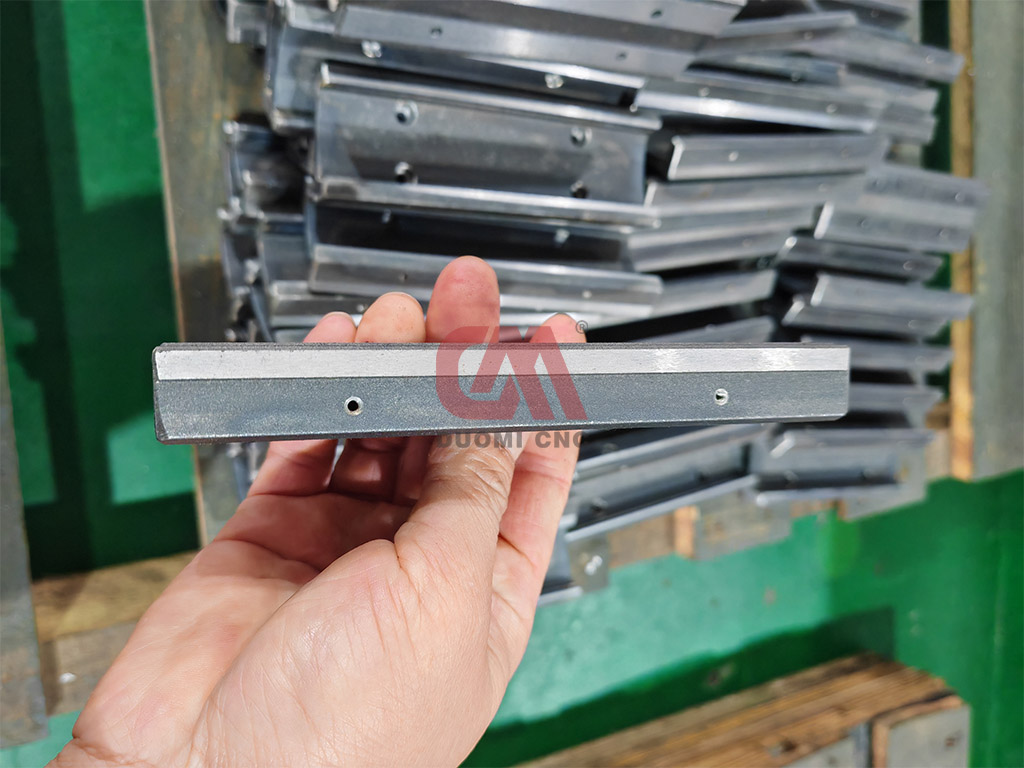

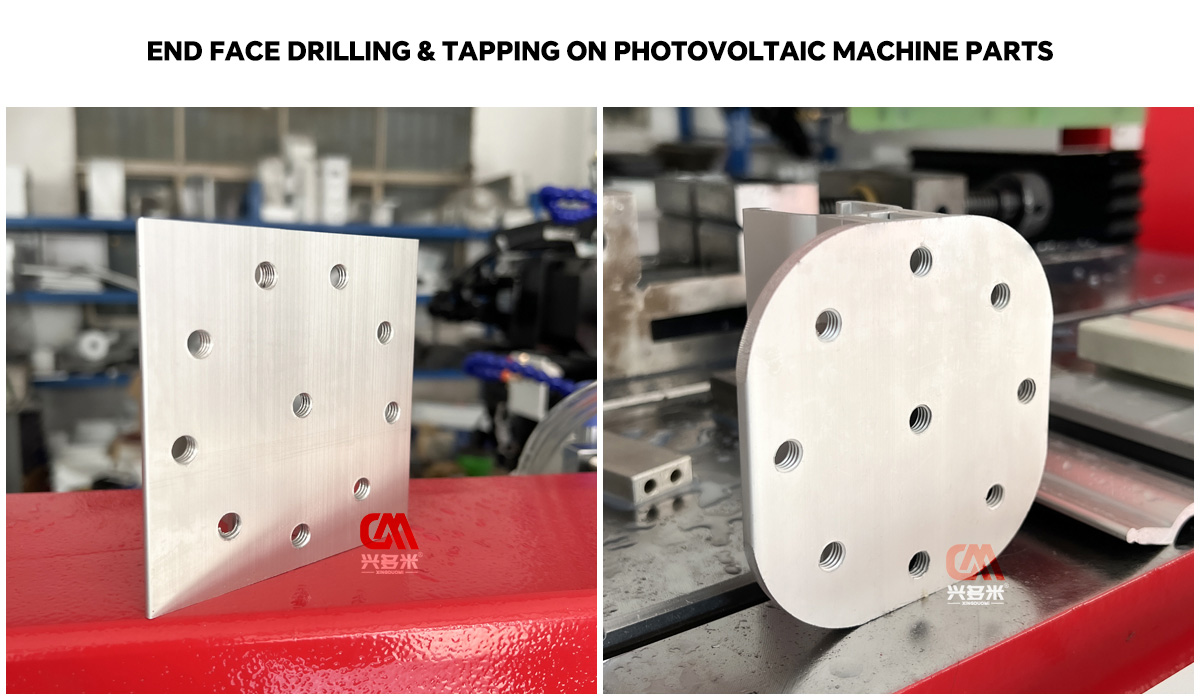

Machining Samples
Real parts processed by our machines
Frequently Asked Questions
We “only” do drilling & tapping. Why do customers still choose Duomi over general-purpose CNC machines?
What does “Your part defines the solution” mean in practice?
What is the maximum hole drilling and tapping capability of the DNC-3050N8?
What positioning accuracy and tolerances does this Metal CNC Side Hole Drilling Machine guarantee?
Does operating the CNC controller require advanced G-code programming knowledge?
How does the automatic tool changer (ATC) improve cycle times?
What options are available for custom or OEM requirements?
What is the standard lead time for factory delivery?
