Horizontal CNC Drilling and Tapping Machine Manufacturer
Industrial-Grade Multi-Axis Horizontal CNC Drilling, Tapping, and Chamfering Solution with ±0.02mm Repeatable Accuracy
💡 Our CNC drilling and tapping machines support custom non-standard designs, machine color customization, and OEM branding. Start now to purchase and customize your own equipment, please contact us.
Request a Free Machining Sample →
Features
Horizontal End-Face & Side Machining: Horizontal spindle layout eliminates awkward vertical fixturing for long shafts and bars.
Natural Gravity Chip Evacuation: Metal swarf and coolant drop freely away from the hole, preventing tool recutting and tap breakage.
Multi-Angle Side-Hole Drilling: Efficiently machines radial oil holes, locking pin bores, and side threads on cylindrical workpieces.
Ultra-Rigid Low Center of Gravity: Robust horizontal casting bed resists axial drilling thrust and maintains long-term alignment.
High-Efficiency Automatic Clamping: Hydraulic/pneumatic self-centering vices speed up repetitive parts changeover.
In-Depth Engineering Description & Technical Overview
Click to expand complete machine capabilities, workflow analysis & application guide
Click to Expand
Collapse Details
Overview

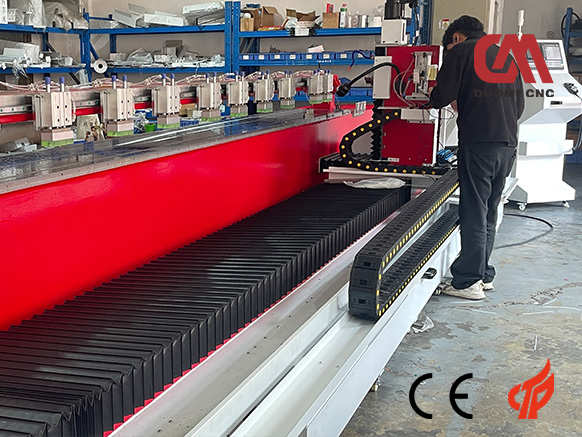

As a premier Horizontal CNC Drilling Manufacturer, DUOMI CNC delivers advanced industrial machining solutions engineered for high-speed, heavy-duty metal fabrication. The DNC-3050N8 Horizontal CNC Drilling and Tapping Machine integrates high-precision drilling, rigid tapping, and edge chamfering into a unified automated platform. Featuring a 3000mm X-axis stroke, high-speed BT30 spindle, and automatic 8-tool changer, this system delivers optimal throughput and accuracy for profile machining, tube processing, and multi-station production.
Technical Superiority & Performance Engineering
Our horizontal CNC drilling machinery is built for high-rigidity and vibration-free operation under multi-shift production conditions:
- BT30 High-Speed Spindle Unit: Variable speed control ranging from 1,500 to 24,000 RPM, delivering 5.5kW to 7.5kW of driving power to effortlessly handle drilling diameters from 1mm to 20mm and tapping sizes from M2 to M20.
- Linear Motion & Servo Drivetrain: Driven by high-torque absolute servo motors and equipped with precision HIWIN linear guideways and ground ball screws. Achieves rapid traverse rates of up to 60 m/min along the X-axis and 25 m/min along Y/Z axes.
- Precision Laser Alignment: Every machine is verified using imported US API laser interferometers, ensuring absolute positioning accuracy with compensated machine tolerances held within 0.02 mm and repeatable accuracy of ±0.02mm.
Key Operational Features

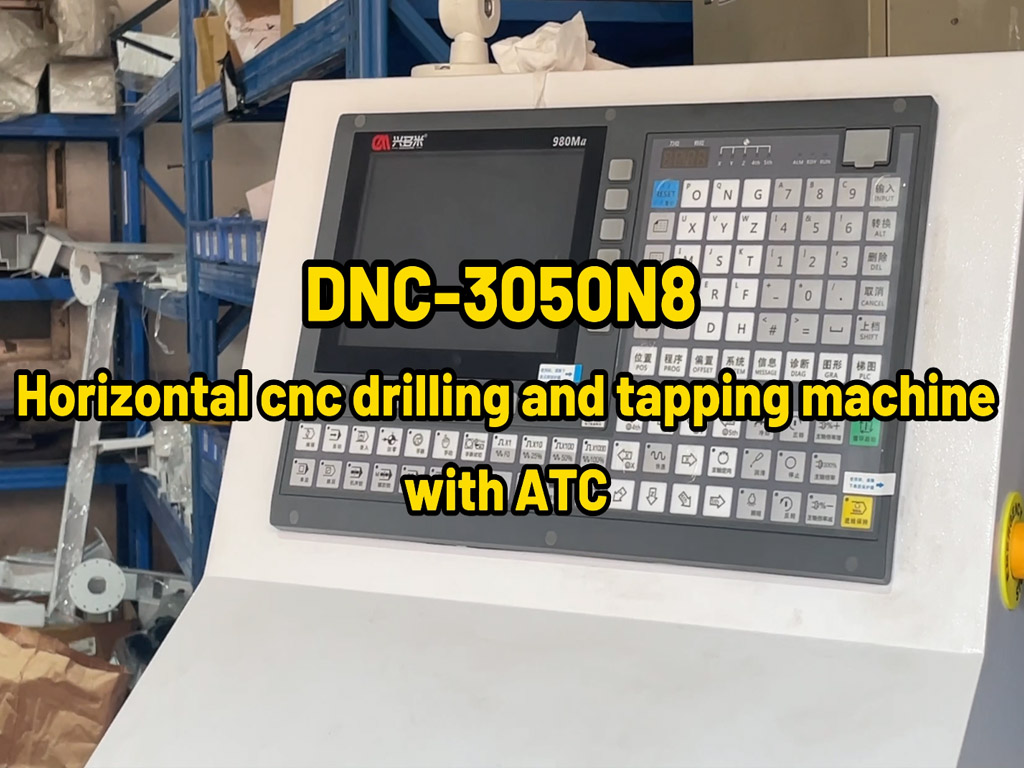

Intelligent CAD/CAM CNC Controller
The integrated DUOMI CNC control unit features an intuitive color LCD display supporting English and Chinese interfaces. Key software highlights include direct CAD drawing import with automatic G-code generation—eliminating the necessity for expert programmer intervention—alongside visual dynamic zoom path previewing and storage capability for over 10,000 machining programs.
8-Station Automatic Tool Changer (ATC)
An integrated 8-tool holder magazine arranged on the left and right positions enables seamless tool changes during complex multi-specification aperture processing. This reduces non-cutting idle time and boosts productivity by up to 40% over manual tool change systems.
Dual-Piston Pneumatic Workholding System
Equipped with dual output sliding cylinder clamps designed to secure workpiece surfaces firmly, eliminating chatter during dynamic side drilling operations. Supports 2 to 10 automated workstations for continuous shuttle machining, dramatically reducing operator loading and unloading cycles.
Automated Lubrication & Chip Filtration
Equipped with a metered, timed automatic drivetrain lubrication system for all linear motion components. The secondary chip filtration and coolant recirculating system continuously evacuates metal debris, protecting tooling investment and maintaining clean shopfloor operations.
Industrial Applications

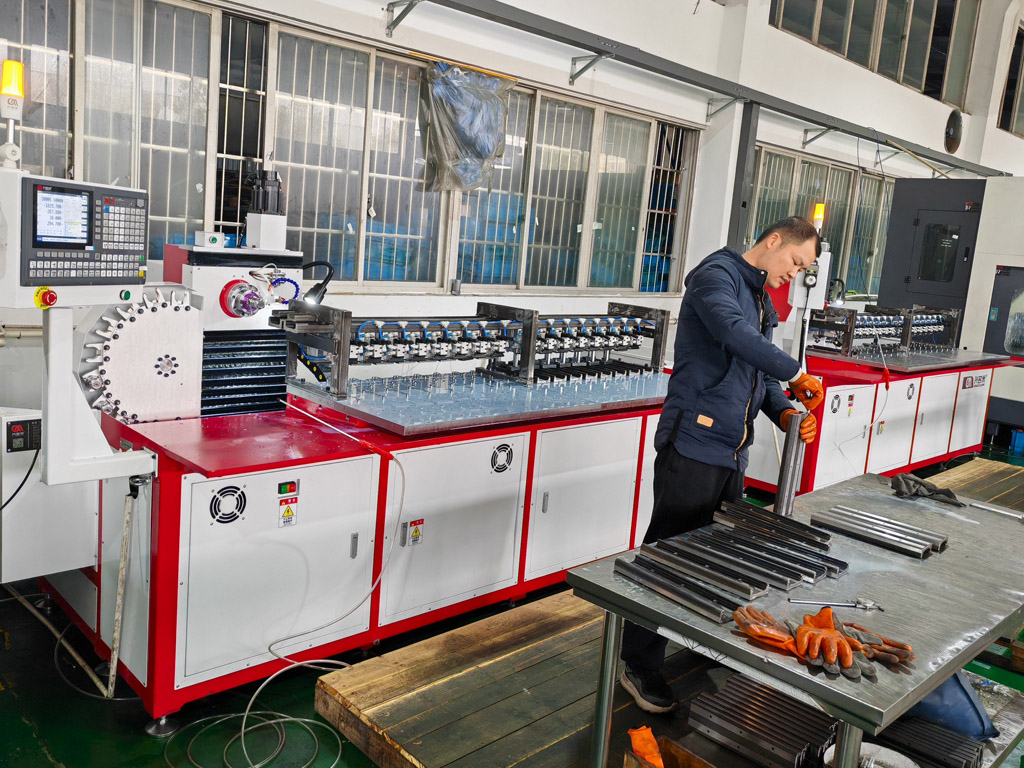

Designed to handle various non-ferrous and ferrous metal substrates, including carbon steel, stainless steel, aluminum alloy extrusion, copper, brass, iron, zinc, and platinum components. Common production line integrations include: * Structural aluminum frame profile side-hole drilling * Flange, heat exchanger, and manifold pipe tapping * High-volume automotive, aerospace, and electrical housing component machining
Purchase & Delivery Guarantees
Direct Factory Assurance — Built, Tested, and Supported from Dongguan to Your Shop Floor
Runs on Your System
Standard GSK control (100% Fanuc G-code compatible) or optional Mitsubishi/Siemens. Direct CAD file import for code-free toolpath generation.
Factory Video FAT
Live drilling/tapping tests on your actual workpiece recorded before dispatch. Final 50% balance payment is paid only after your video approval.
40-Day Build & Rugged Crate
Guaranteed maximum 40-day manufacturing cycle. Sealed in anti-rust vacuum aluminum foil and bolted in fumigation-free timber crates (EXW/FOB/CIF).
Direct Engineer Care
Direct 1-on-1 WhatsApp group with your machine's build engineers, 12-month full warranty, and critical replacement parts dispatched via DHL within 24–48h.

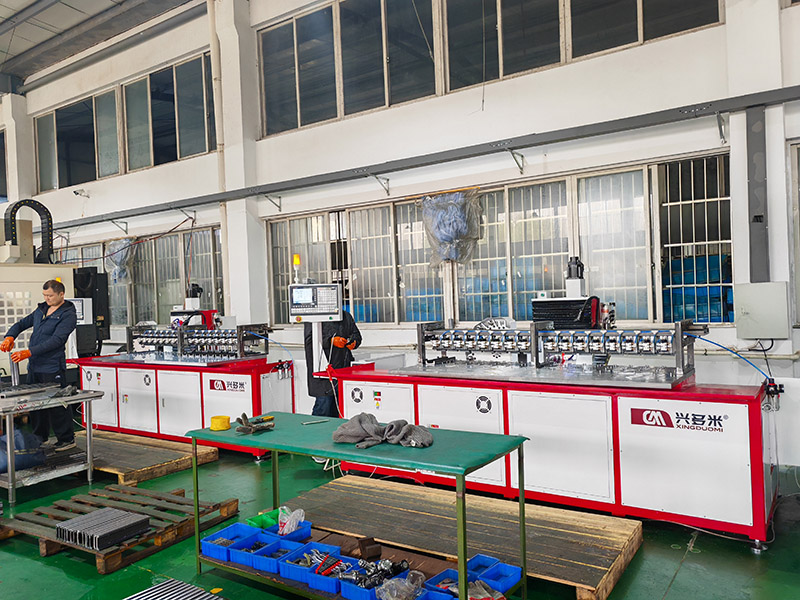

Every DUOMI machine is built under a transparent 13-step factory production & responsibility chain.
Parameters
Download Technical Brochure| Model | DNC-3050N8 |
| XYZ three-axis machining stroke | X3000mm, Y100mm, Z100mm |
| Spindle speed | 1500~24000rpm (Can be selected according to demand) |
| Spindle taper hole | BT30 |
| Spindle power | 5.5-7.5KW |
| X axis moving speed | 30m/min~60m/min |
| Y axis moving speed | 25m/min |
| Z axis moving speed | 25m/min |
| Drilling diameter range | 1~20mm |
| Tapping diameter range | M2~M20 |
| Chamfer diameter range | 1~20mm |
| Tool magazine | Automatic tool change (8 knives) |
| Repeated positioning accuracy | ±0.02mm |
| Table size | 3000mm x 500mm |
| Programming mode | CAD file import / computer programming / manual programming |
| System program storage capacity | About 10,000 |
| System external signal control | Support |
| Operating voltage | AC 380V/50HZ |
| Machine weight | Approx. 2000KG |
| Floor space | 4800mm x 2500mm x 2000mm |

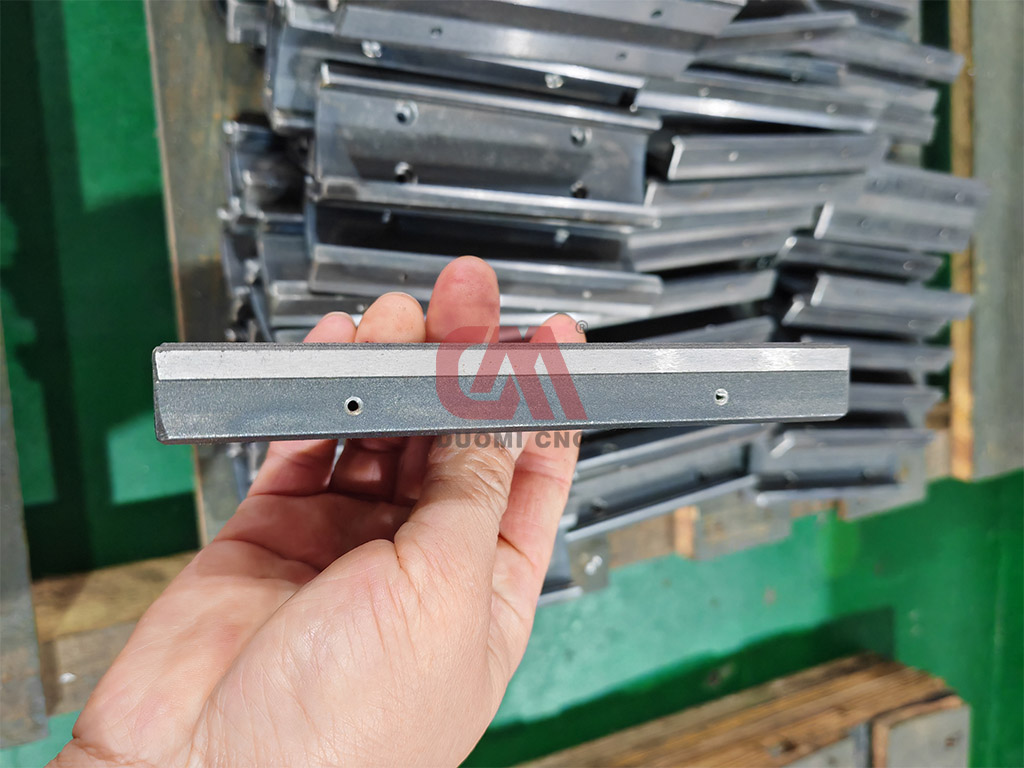

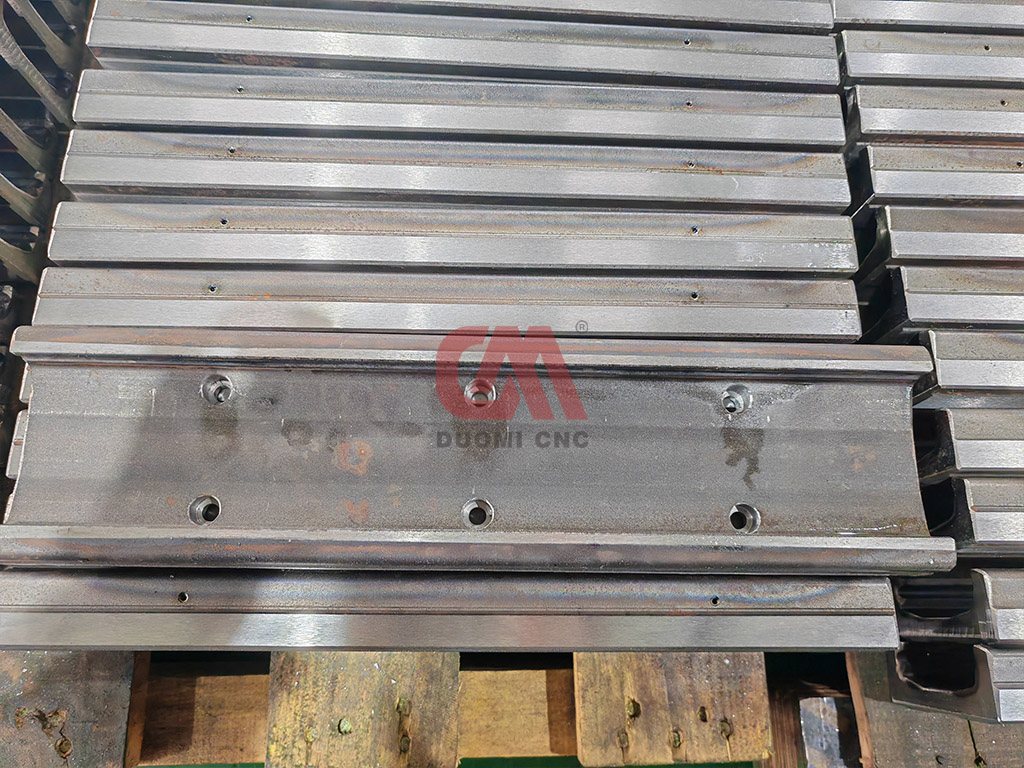

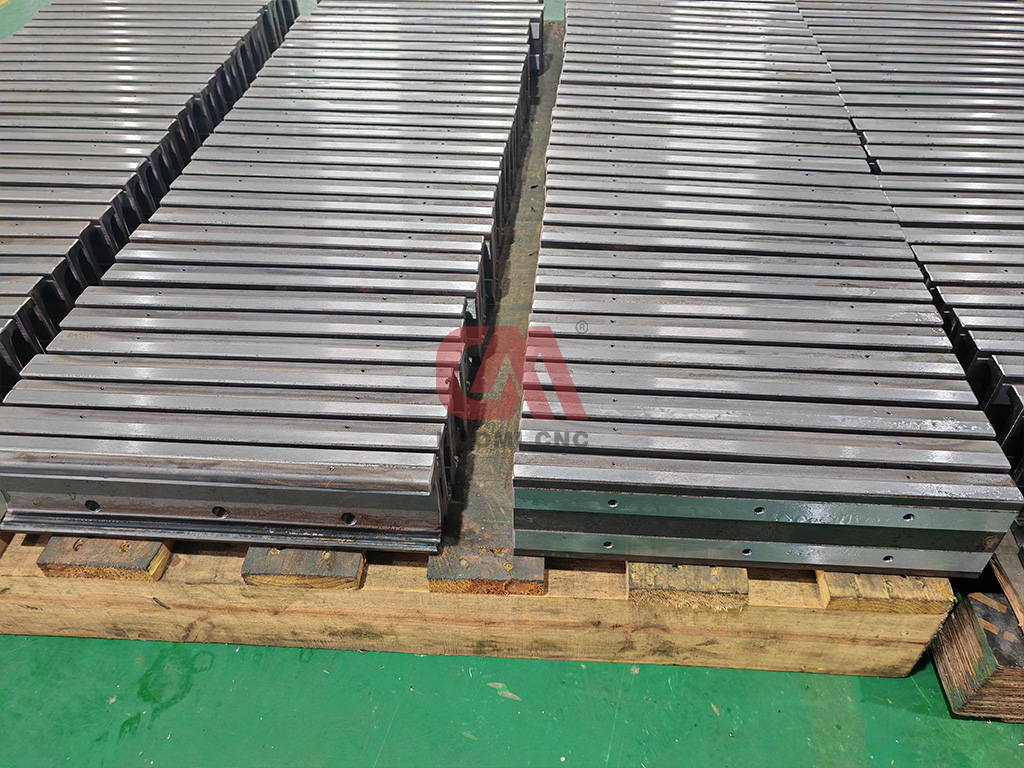

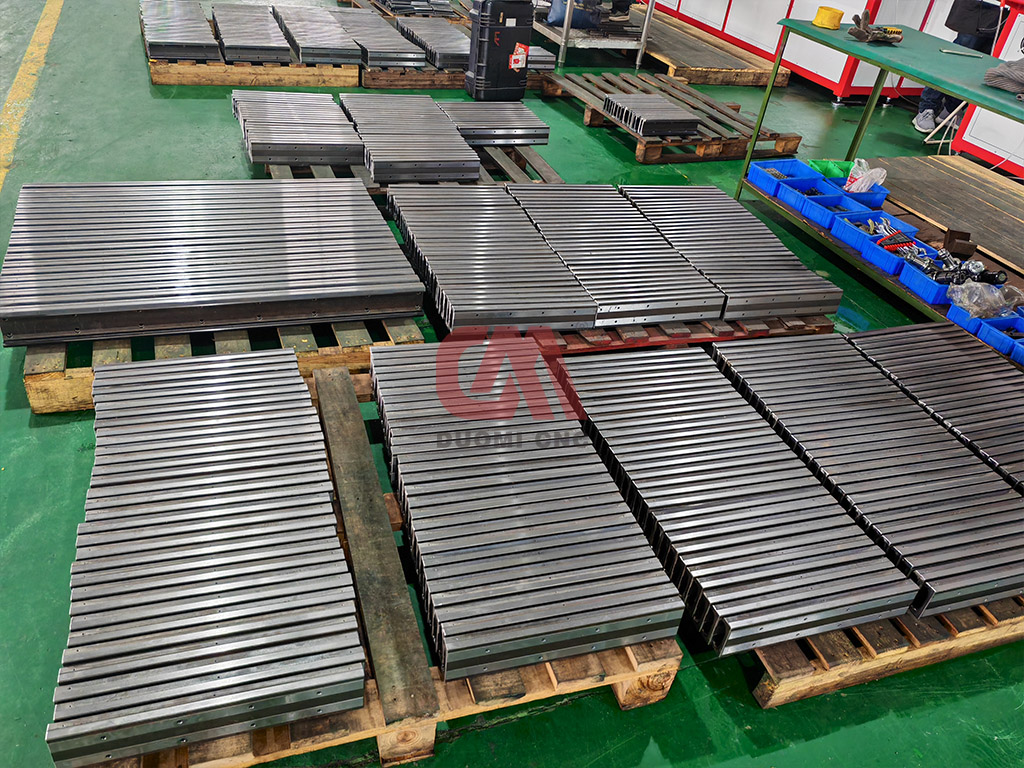

Machining Samples
Real parts processed by our machines
Frequently Asked Questions
We “only” do drilling & tapping. Why do customers still choose Duomi over general-purpose CNC machines?
What does “Your part defines the solution” mean in practice?
What is the positioning accuracy and machine tolerance of this horizontal CNC drilling machine?
What hole and thread dimensions can this machine process?
Do I need an experienced G-code programmer to operate the CNC control system?
What metals can be processed on this horizontal drilling unit?
How does the automatic tool changer (ATC) system operate?
Does DUOMI CNC offer non-standard customization and OEM options?
