Double Head Round Pipe CNC Drilling Machine (DNC-3003DD-R1)

Industrial Overview & Production Efficiency

The DUOMI DNC-3003DD(R1) Double Head Round Pipe CNC Drilling Machine is an advanced 4-axis automated solution engineered for high-volume, multi-angle drilling, tapping, and chamfering operations on round, square, and profile tubing. Featuring synchronized dual servo-driven spindles and an adjustable spindle spacing mechanism, this machine effectively doubles production throughput compared to standard single-spindle tube drilling systems.

Designed for demanding industrial environments, the DNC-3003DD(R1) combines heavy-duty stress-relieved gantry construction with precise rotary indexing (360° continuous rotation), allowing complex hole patterns and multi-sided machining in a single setup.

Key Engineering Features & Technical Advantages

Dual Servo-Driven Spindles with Adjustable Pitch

• Independent or Simultaneous Operation: Dual spindles can operate simultaneously on dual features or independently for single-hole operations.
• Adjustable Spindle Center Distance: Quick adjustment of spindle pitch enables rapid reconfiguration for varying hole spacing specs, doubling unit efficiency.
• High-Speed Spindle Options: Variable speed ranges from 1,500 to 24,000 RPM (0.55 kW to 3.0 kW per spindle) support small-diameter high-speed drilling as well as heavy-duty tapping up to M16.

4-Axis CNC Motion & 360° Precision Rotary Indexing

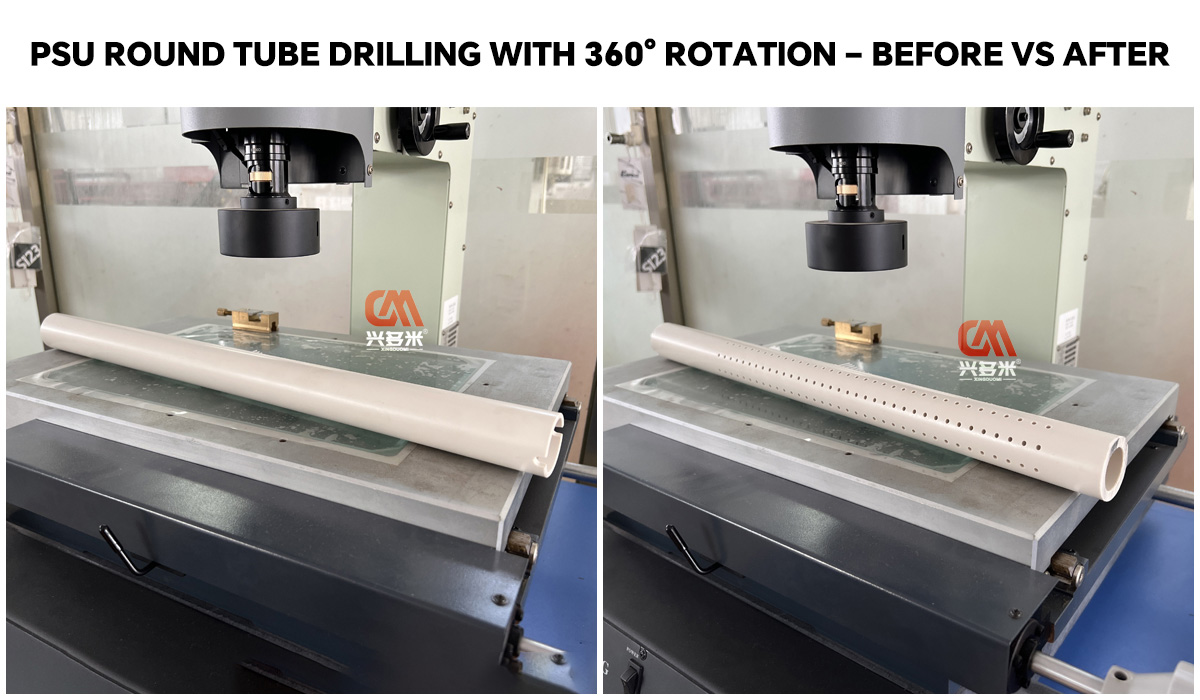

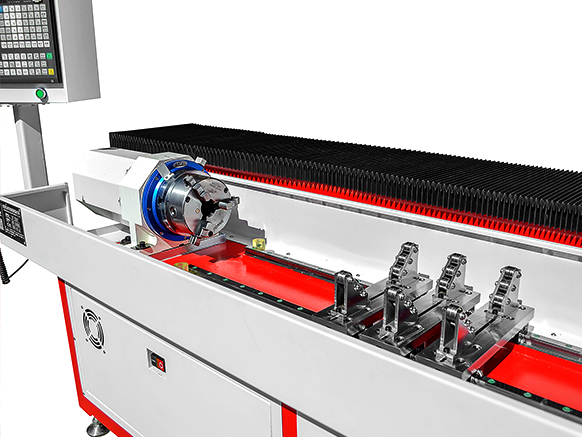

• A-Axis Rotary Positioning: Powered by an absolute servo motor combined with a high-precision harmonic reducer, delivering continuous 360° rotation and precise index positioning.
• XZA 3-Axis Stroke: Machining stroke of X 2800 mm, Z 200 mm, and A 360° permits long-length pipe processing without re-clamping.
• Rapid Feed Speeds: Axis moving speeds reach up to 60 m/min on X and 25 m/min on Z, significantly reducing non-cutting cycle times.

Heavy-Duty Frame & Premium Linear Components

• Stress-Relieved Machine Bed: Rigid, thermally treated cast/welded structure absorbs heavy cutting forces and dampens vibration during continuous operation.
• HIWIN Linear Guides & Ball Screws: Premium Taiwan-made HIWIN precision guideways and ball screws deliver long-term repeatability of ±0.02mm.
• Automated Lubrication & Oil Cooling: Integrated central lubrication and spindle cooling systems maintain thermal stability, reduce tool wear, and eliminate manual maintenance routine downtime.

Rigorous Quality Assurance & Laser Metrology

• API Laser Interferometer Calibration: Every unit is metrologically calibrated using an API (USA) laser interferometer prior to shipment, ensuring positioning accuracy within 0.02 mm across the full 2,800 mm travel range.

Applications & Compatible Materials

Material Compatibility

• Ferrous Metals: Structural steel, stainless steel, alloy steel, iron.
• Non-Ferrous Metals: Aluminum extrusions, brass, copper, zinc, platinum alloys.

Profile Versatility

• Profiles Processed: Round pipes, square tubes, rectangular tubes, and custom extruded aluminum/steel profiles via rapid interchangeable pneumatic fixtures.

Target Industries

• Automotive exhaust and chassis piping
• Architectural handrails, balustrades, and scaffolding
• Solar panel mounting frames and structural trusses
• Industrial heat exchangers and fluid transport manifolds
• Metal furniture, fitness equipment, and ladder manufacturing

For complementary solutions, explore our High-Precision Automatic Rotary CNC Drilling Machine range or consult our engineering team for custom multi-spindle configurations.
