High-Precision Five-Axis CNC Drilling Machine
Engineered for complex multi-angle drilling and tapping with 36,000 RPM spindle speed and ±0.02mm positioning accuracy.
💡 Our CNC drilling and tapping machines support custom non-standard designs, machine color customization, and OEM branding. Start now to purchase and customize your own equipment, please contact us.
Request a Free Machining Sample →
Features
5-Axis Multi-Angle Linkage: Simultaneous XYZ + AB rotary-tilt axes machine complex 3D curved surfaces and angled holes.
Single-Setup Compound Machining: Eliminates costly manual rechucking and multi-fixture setups for complex parts.
Zero-Backlash Harmonic Drives: High-precision harmonic reducers provide sub-arcminute angular positioning accuracy.
Compact Multi-Machine Cell: High-density footprint enables a single operator to manage multiple production units simultaneously.
In-Depth Engineering Description & Technical Overview
Click to expand complete machine capabilities, workflow analysis & application guide
Click to Expand
Collapse Details
Overview: Advanced Five-Axis CNC Drilling Technology
The DUOMI DNC-630DS-F five-axis CNC drilling machine delivers unmatched precision, high throughput, and multi-angle processing versatility for modern manufacturing. Designed to replace multi-step manual operations, this automated five-axis CNC drilling solution integrates drilling, tapping, chamfering, and milling into a single setup, drastically reducing machine setup times and operational bottlenecks.

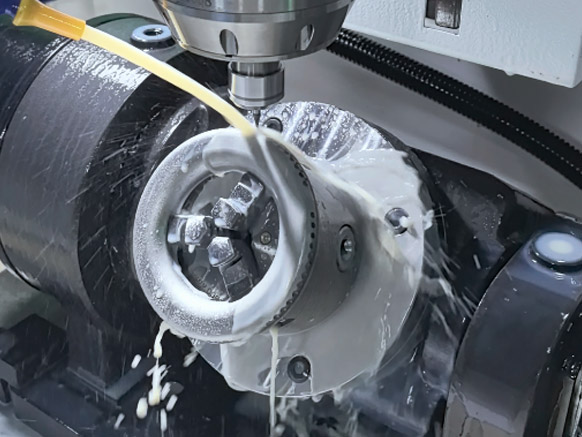

From gas stove burners and automotive cylinder heads to aerospace flanges and copper fire covers, our five-axis CNC drilling machine processes complex geometries across diverse alloys while maintaining strict mechanical tolerances.
Key Manufacturing Benefits & ROI
1. Significant Efficiency Gains via Multi-Process Integration
- Single-Setup Automation: Perform drilling, rigid tapping, chamfering, and milling without moving parts between multiple standalone machines.
- High-Speed Axis & Spindle: Spindle speeds reaching up to 36,000 RPM combined with fast rapid traverse rates (10–30 m/min) cut component machining cycle times by up to 60%.
- Continuous Unmanned Operation: Integrated Automatic Tool Changer (ATC) support and robotic loading/unloading allow continuous 24/7 production.
2. Multi-Axis Linkage for Complex Workpieces
- 360° A-Axis Rotation: Full 5-axis linkage enables multi-surface drilling and angled oil hole processing without custom compound fixtures.
- CAM Software Compatibility: Seamlessly imports G-code from major CAM platforms to execute intricate hole layouts instantly.
- Precision Fixturing: Compatible with high-rigidity pneumatic and hydraulic clamping systems to maintain part stability.
3. Ultra-High Precision: Reduced Scrap Rates to 0.2%
- Strict Tolerances: Guide rail parallelism ≤ 0.01mm/1000mm and positioning accuracy of 0.02mm/1000mm ensure exact hole alignment.
- Proven Industrial ROI: An automotive components manufacturer reduced engine cylinder head oil passage defect rates from 8.0% down to 0.2%, generating over $500,000 in annual raw material savings.
4. Labor Cost Reduction & Simple Operation
- Automated Loading/Unloading: Seamless integration with industrial articulated arms enables one technician to manage multiple five-axis CNC drilling cells.
- User-Friendly Interface: Intuitive CNC controller with support for up to 10,000 programs allows fast job changeovers for short-run custom batches.
Industrial Applications
Our five-axis CNC drilling machines are engineered for heavy-duty, high-precision operations across critical industries: * Automotive: Engine cylinder heads, oil passage manifolds, fuel delivery systems. * Aerospace & Defense: Multi-angle valve bodies, turbine housings, structural bracket hole arrays. * Consumer Appliances: Stainless steel gas stove burners, copper fire covers, heating plates. * Fluid Power & Hardware: Stainless steel flange seals, manifold blocks, custom valve bodies.
Purchase & Delivery Guarantees
Direct Factory Assurance — Built, Tested, and Supported from Dongguan to Your Shop Floor
Runs on Your System
Standard GSK control (100% Fanuc G-code compatible) or optional Mitsubishi/Siemens. Direct CAD file import for code-free toolpath generation.
Factory Video FAT
Live drilling/tapping tests on your actual workpiece recorded before dispatch. Final 50% balance payment is paid only after your video approval.
40-Day Build & Rugged Crate
Guaranteed maximum 40-day manufacturing cycle. Sealed in anti-rust vacuum aluminum foil and bolted in fumigation-free timber crates (EXW/FOB/CIF).
Direct Engineer Care
Direct 1-on-1 WhatsApp group with your machine's build engineers, 12-month full warranty, and critical replacement parts dispatched via DHL within 24–48h.
Every DUOMI machine is built under a transparent 13-step factory production & responsibility chain.
Parameters
Download Technical Brochure| Model | DNC-630DS-F Five-axis CNC drilling machine |
| Workbench size | X-axis 400 (mm) x Y-axis 300 (mm) |
| Effective processing stroke | X-axis 300 (mm) x Y-axis 300 (mm) x Z-axis 200 (mm) x A-axis 360 degrees ( including automatic detection stroke) |
| Product clamping height | ≤ 250 (mm) |
| Guide rail parallelism | ≤ 0.01mm/1000mm |
| Guide rail flatness | ≤ 0.02mm/1000mm |
| Positioning accuracy | 0.02 /1000 (mm) |
| Repeat positioning accuracy | 0.02/1000(mm) |
| Backlash (before radium body compensation) | 0.02 mm |
| Spindle power | 5.5 (KW) |
| Spindle speed | 1000- 36000 (rpm) (speed adjustable) |
| Drilling diameter | 1-8 (mm) |
| Chuck clamping diameter | 30-130 (mm) |
| Transmission servo motor power | X-axis, Y-axis, Z-axis, A-axis: 0.75 (kw) |
| Rapid movement | X-axis, Y-axis and Z-axis 10m/min - 30m/min |
| Spindle taper | ISO25 |
| Voltage | AC380V |
| Number of stored programs in the system | about 10,000 |
| Programming method | both computer and manual programming can be used |
| Machine weight | About 630 KG |

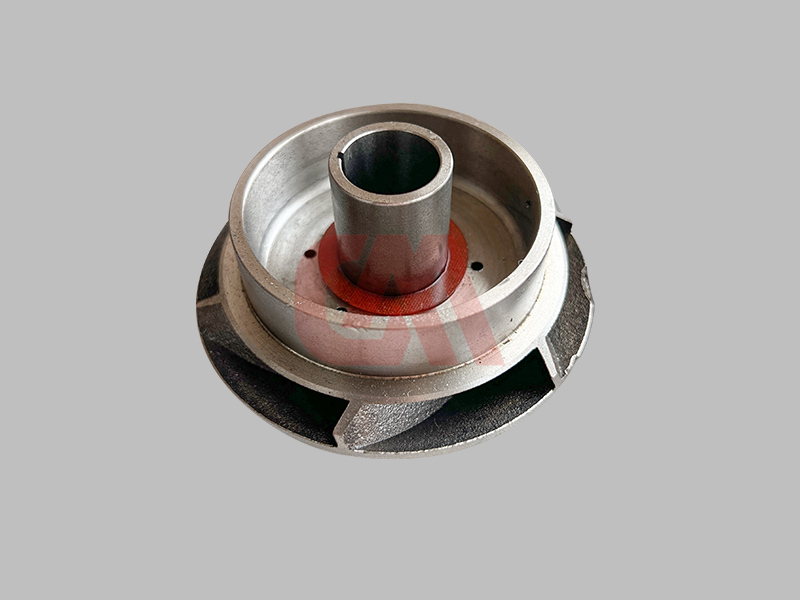

Machining Samples
Real parts processed by our machines
Frequently Asked Questions
We “only” do drilling & tapping. Why do customers still choose Duomi over general-purpose CNC machines?
What does “Your part defines the solution” mean in practice?
What accuracy and positioning tolerances can this five-axis CNC drilling machine achieve?
What metals and alloys can be processed using five-axis CNC drilling?
What is the spindle specification and speed range on this machine?
How does a five-axis CNC drilling machine reduce scrap rates and production cost?
Can DUOMI CNC drilling machines support automated robotic loading systems?
Is custom non-standard equipment design or OEM branding available?
