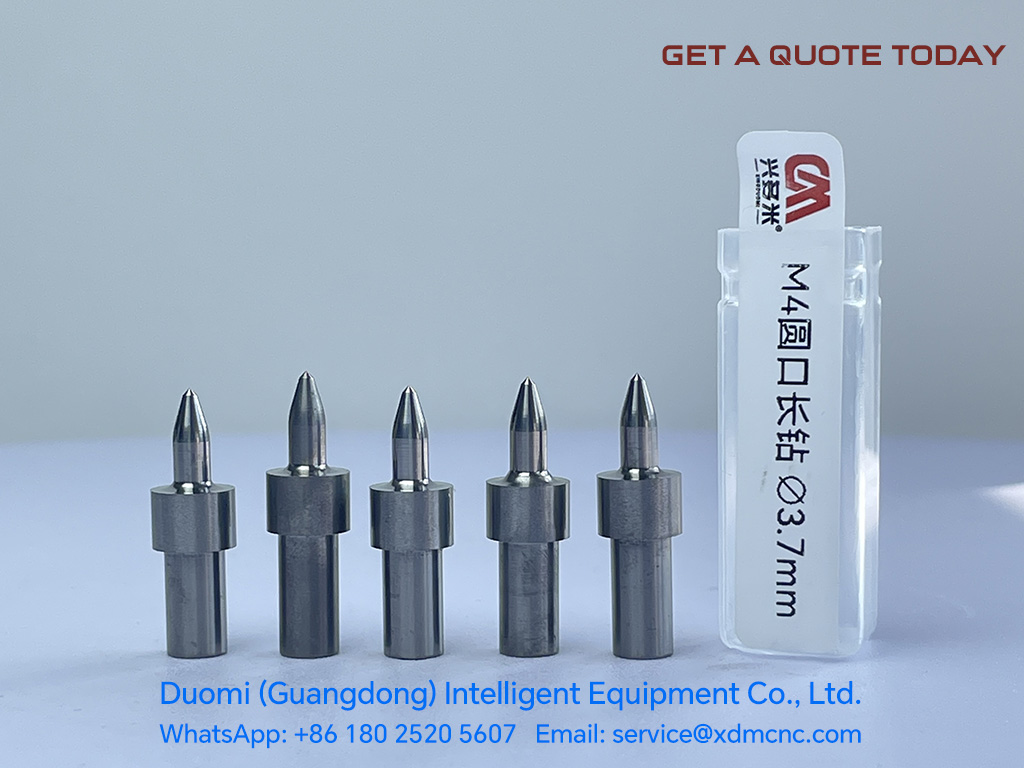

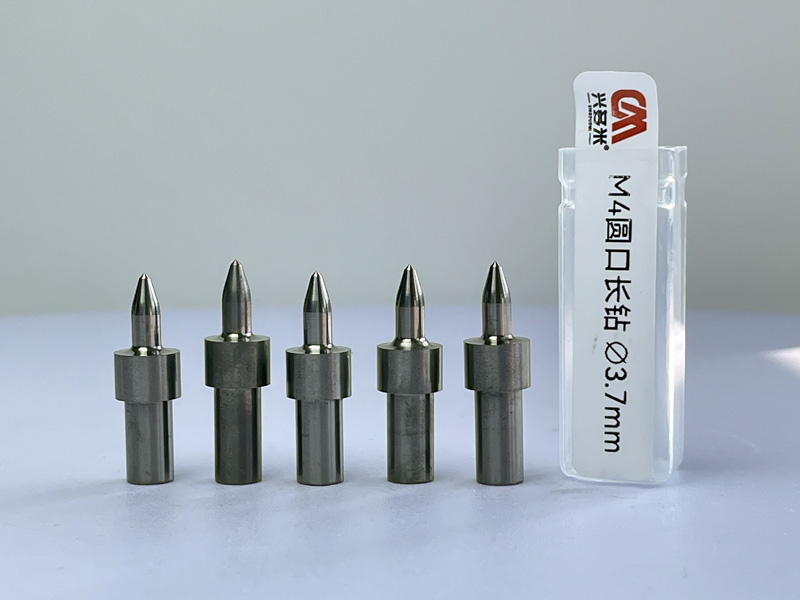

High-Accuracy Thermal Drill Bits DM M4 Ø3.7mm for CNC Drilling
Precision Tungsten Carbide Friction Drill Bits for High-Speed Chip-Free Thread Bushing Extrusion in Thin-Walled Metals
💡 Our CNC drilling and tapping machines support custom non-standard designs, machine color customization, and OEM branding. Start now to purchase and customize your own equipment, please contact us.
Request a Free Machining Sample →
Features
Thermal Friction Flow Forming: Operates at 600°C+ to plasticize metal and extrude a strong threaded bushing in seconds.
Replaces Rivet & Weld Nuts: Creates a monolithic extruded boss with 3x the original sheet metal wall thickness.
Ultra-Hard Tungsten Carbide: Micro-grain solid carbide substrate provides extreme heat resistance and 10,000+ hole tool life.
Universal Thin-Wall Metal Forming: Optimally suited for carbon steel, stainless steel, aluminum tubing, and copper.
In-Depth Engineering Description & Technical Overview
Click to expand complete machine capabilities, workflow analysis & application guide
Click to Expand
Collapse Details
Industrial Thermal Friction Drilling Performance
The DUOMI (DM) M4 Ø3.7mm Thermal Drill Bit utilizes high-speed friction and axial force to generate local thermal heat, softening metal workpieces to form clean, high-integrity bushings without chip removal. Engineered from premium micrograin tungsten carbide (HRC 92+), this tool extrudes parent metal into a collar and extended cylindrical sleeve, providing up to 3x the original wall thickness for robust M4 thread engagement.
Designed specifically for CNC machining centers, automated drilling lines, and high-production tapping systems, the DM M4 Ø3.7mm thermal flow drill bit replaces traditional rivet nuts and weld nuts while lowering cycle times and elimination material waste.
Key Features & Precision Engineering
- Chip-Free Thermal Extrusion: Softens target metal instantly through rotational friction (2,400–3,800 RPM), creating zero metal swarf or debris handling issues.
- Integrated Collar Extrusion: Built with a specialized collar section that seals, flattens, or rims the surface during thermal forming.
- Enhanced Thread Load Capacity: Formed bushings increase thread strength by up to 250% compared to direct tapping into thin sheet metal.
- High Thermal Stability: Formulated tungsten carbide withstands process temperatures exceeding 700°C with minimal thermal expansion.
- ISO Quality Standard Compliance: Manufactured under ISO 9001 strict quality management guidelines for consistent dimensional tolerance (±0.02mm).
Thermal Flow Drill Selection: Standard vs. Flat-Cut
When selecting your DM thermal flow drill bit, choose between two primary face geometry variants based on your surface flushness requirements:
- Standard (Round) Version: Creates a drawn-out bushing while leaving a slightly raised rim/ring on the top surface. Ideal for standard structural joints and high-strength threaded connections.
- Flat-Cut (Planed) Version: Forms the same high-strength bottom sleeve while integrated cutting nibs mill off the top raised collar in the same stroke, yielding a completely flush surface finish.
Material Compatibility & Technical Parameters
- Workpiece Materials: Stainless Steel (304, 316), Carbon Steel, Tool Steel, Aluminum, Brass, Copper, Inconel, Titanium, and Galvanized Sheet Metal.
- Recommended Spindle Speed: 2,600 – 3,600 RPM (application dependent).
- Feed Rate: 120 – 280 mm/min.
- Operational Tool Life: Up to 10,000 to 20,000 holes (depending on material hardness and cooling/lubrication paste used).
Target Applications & Industry Best Uses
- Automotive & Transportation: Lightweight chassis frames, seat rails, and exhaust mounting points.
- HVAC & Liquid Cooling: Radiators, heat exchangers, and thin-walled manifold cooling pipe systems.
- Structural & Architectural Metalwork: Metal furniture joints, stainless steel fixtures, and lighting enclosures.
- Aerospace & Industrial Machinery: Thin-walled bearing support parts and vibration-resistant structural assemblies.
To complement your setup, explore related tooling such as DM M3 Ø2.7mm Long Thermal Drill Bits and DM M5 Ø4.5mm Collar-Type Drill Bits.
Purchase & Delivery Guarantees
Direct Factory Assurance — Built, Tested, and Supported from Dongguan to Your Shop Floor
Runs on Your System
Standard GSK control (100% Fanuc G-code compatible) or optional Mitsubishi/Siemens. Direct CAD file import for code-free toolpath generation.
Factory Video FAT
Live drilling/tapping tests on your actual workpiece recorded before dispatch. Final 50% balance payment is paid only after your video approval.
40-Day Build & Rugged Crate
Guaranteed maximum 40-day manufacturing cycle. Sealed in anti-rust vacuum aluminum foil and bolted in fumigation-free timber crates (EXW/FOB/CIF).
Direct Engineer Care
Direct 1-on-1 WhatsApp group with your machine's build engineers, 12-month full warranty, and critical replacement parts dispatched via DHL within 24–48h.
Every DUOMI machine is built under a transparent 13-step factory production & responsibility chain.
Parameters
Download Technical Brochure| Thread Size | M4 |
| Diameter | Ø3.7 mm |
| Finishing | with Collar |
| Materials | Tungsten Carbide |
| Quality Grade | A |
| Brand | DUOMI ( DM ) |

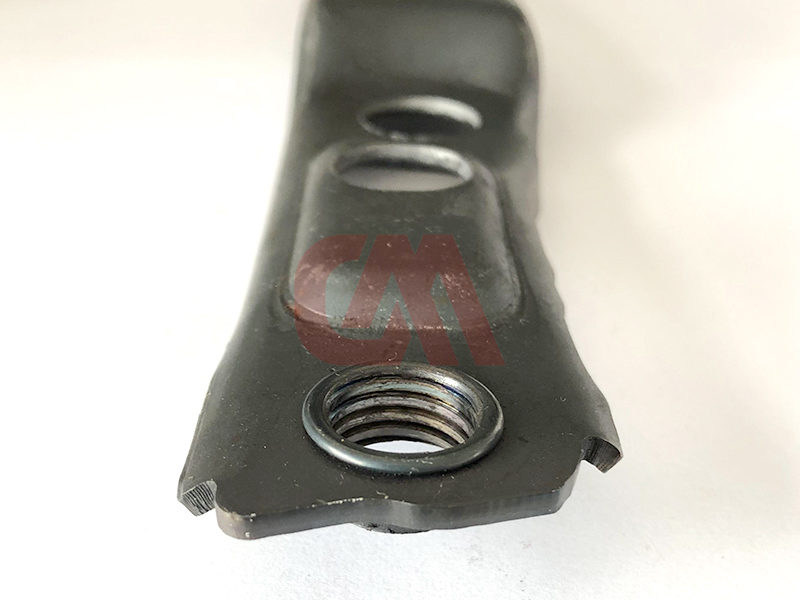

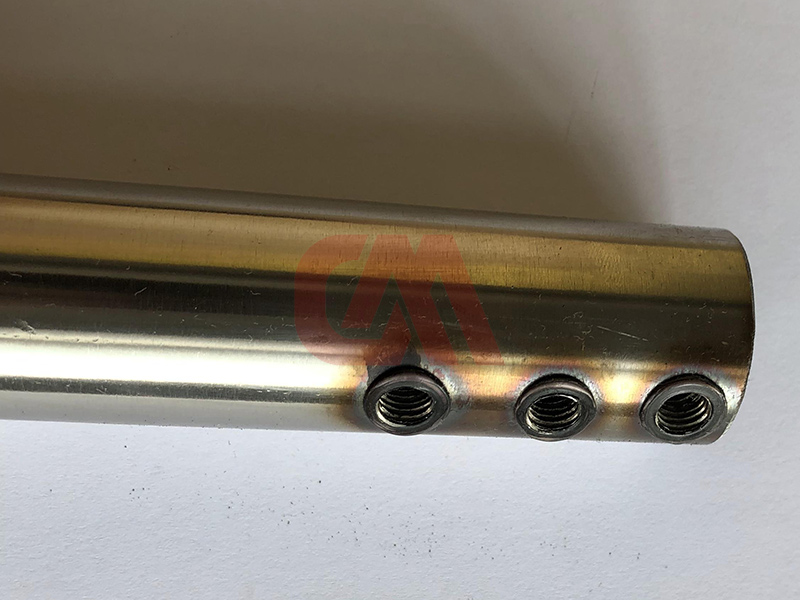

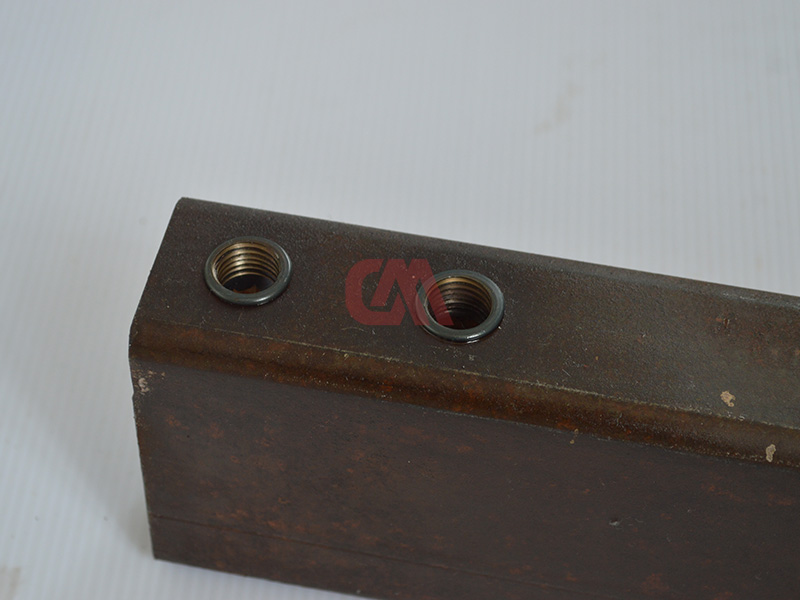

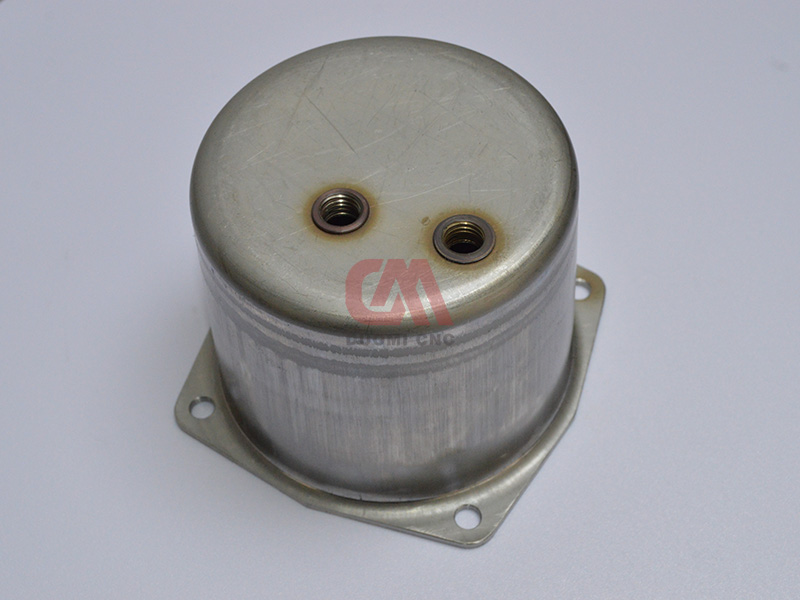

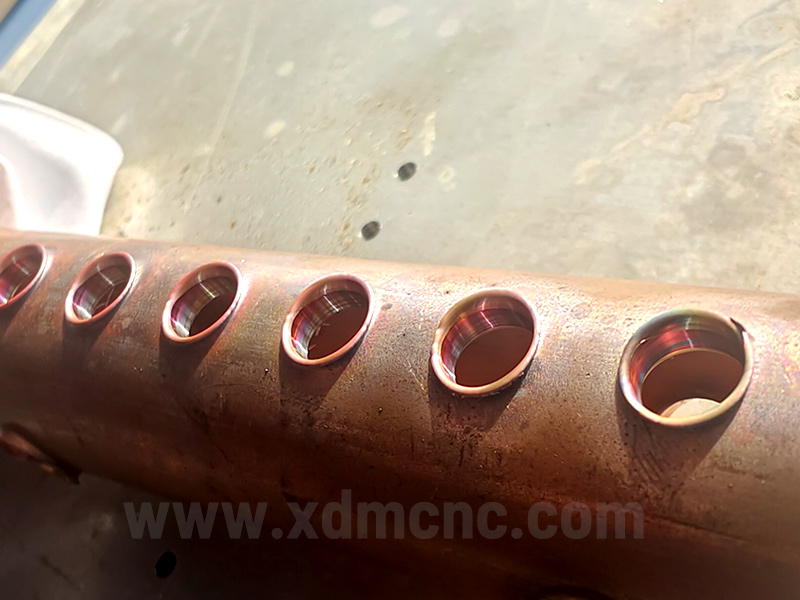

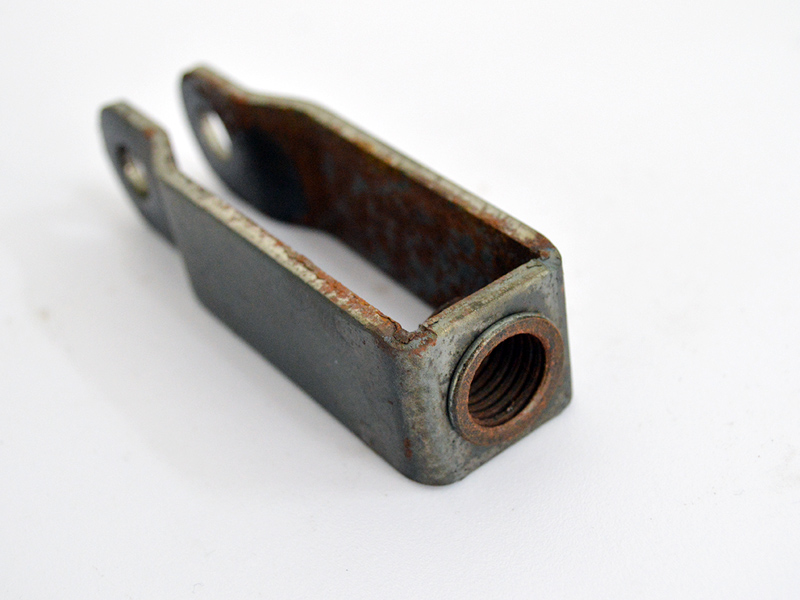

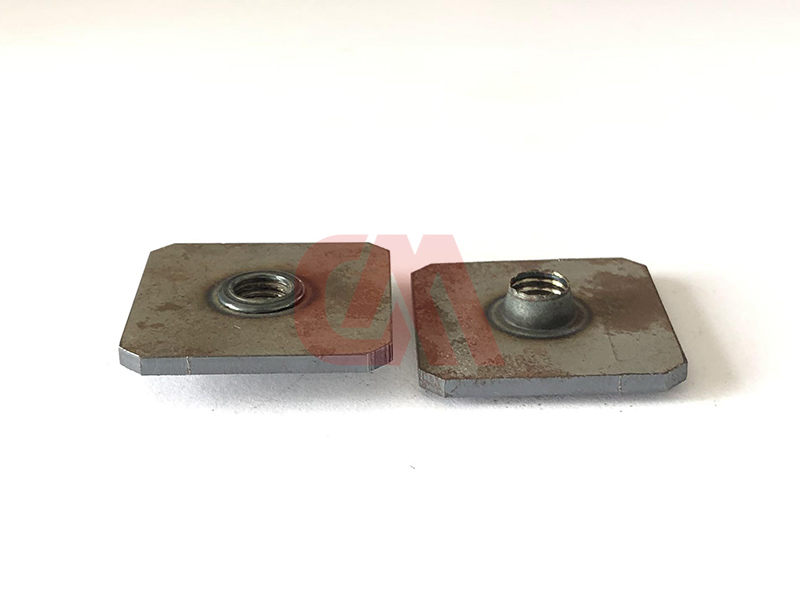

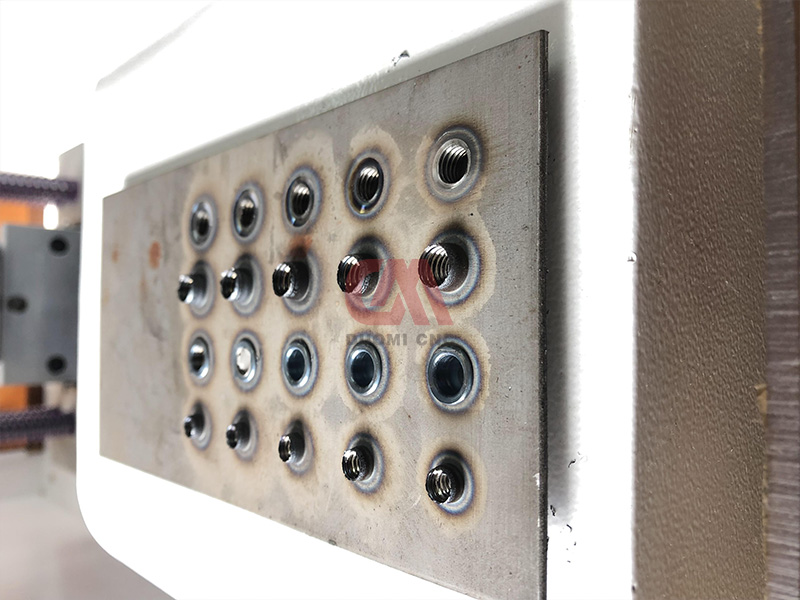

Machining Samples
Real parts processed by our machines
Frequently Asked Questions
We “only” do drilling & tapping. Why do customers still choose Duomi over general-purpose CNC machines?
What does “Your part defines the solution” mean in practice?
What spindle speed and feed rate are required for DM M4 Ø3.7mm thermal drill bits?
How does the DM thermal flow drill bit eliminate the need for weld nuts or rivet inserts?
What is the key difference between Standard (Round) and Flat-Cut thermal drill bits?
What metals can be processed with the DM M4 Ø3.7mm friction drill bit?
Do thermal drill bits require special lubrication?
Can DM M4 thermal drill bits be integrated into automated CNC production lines?
