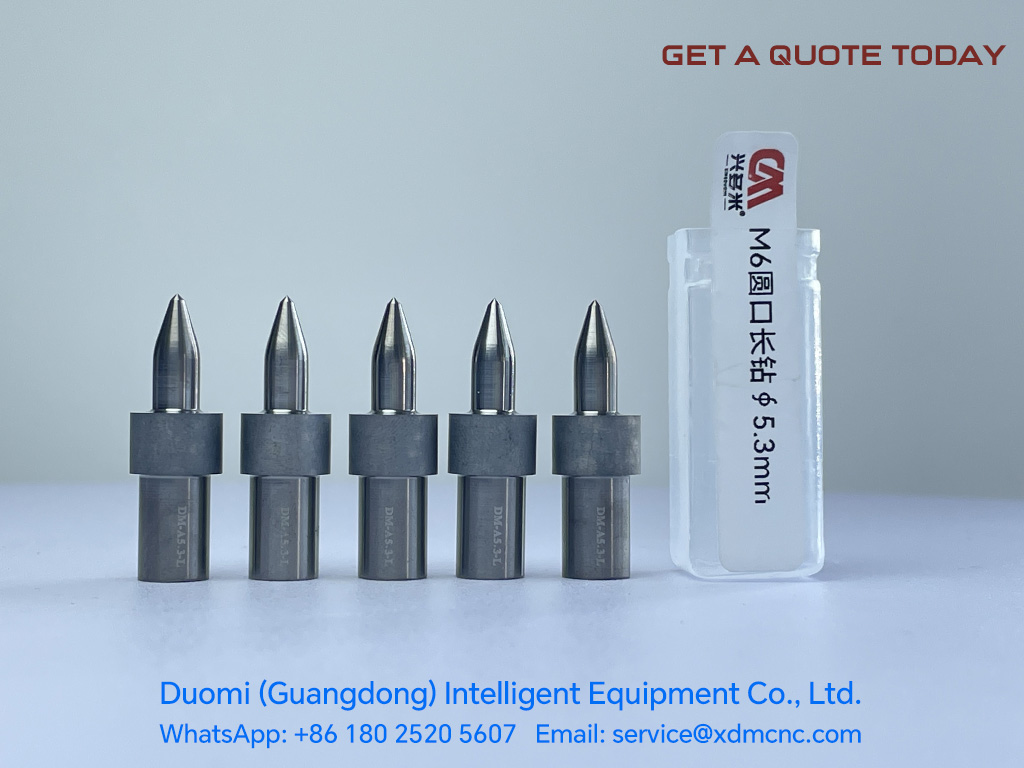

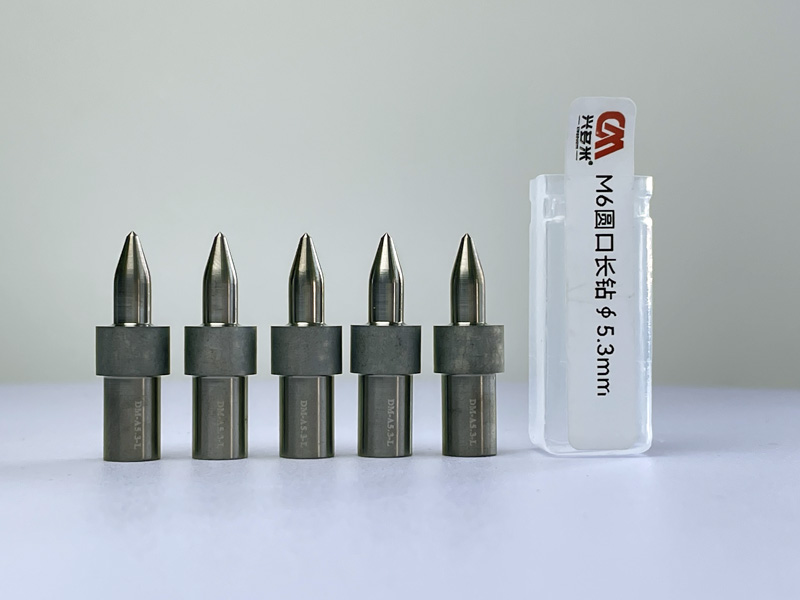

DM M6 Ø5.3mm High-Precision Thermal Drill Bits for Metal Tubes
Grade-A Tungsten Carbide Friction Drill Bits for Chip-Free Thread Bushing Formation in Thin-Walled Profiles
💡 Our CNC drilling and tapping machines support custom non-standard designs, machine color customization, and OEM branding. Start now to purchase and customize your own equipment, please contact us.
Request a Free Machining Sample →
Features
Thermal Friction Flow Forming: Operates at 600°C+ to plasticize metal and extrude a strong threaded bushing in seconds.
Replaces Rivet & Weld Nuts: Creates a monolithic extruded boss with 3x the original sheet metal wall thickness.
Ultra-Hard Tungsten Carbide: Micro-grain solid carbide substrate provides extreme heat resistance and 10,000+ hole tool life.
Integrated Collar Trimming: Single-step bit trims displaced flash and forms a neat collar ring in one pass.
In-Depth Engineering Description & Technical Overview
Click to expand complete machine capabilities, workflow analysis & application guide
Click to Expand
Collapse Details
Product Overview & Operating Principle
The DUOMI (DM) M6 Ø5.3mm Thermal Drill Bit utilizes high-speed friction and heat to thermo-form high-strength threaded bushings in thin-walled metal tubing and structural profiles. By converting kinetic energy into thermal energy at spindle speeds ranging from 2,000 to 3,200 RPM, the tool locally plasticizes metal to form a continuous bushing—extending the effective thread length up to 3 times the original wall thickness (e.g., from 1.5 mm to 4.5 mm thread depth) without cutting threads or generating chips.
Designed for automated CNC drilling centers and heavy-duty drilling units, this M6 Ø5.3mm friction drill bit eliminates the need for weld nuts, rivet nuts, and costly threaded inserts in sheet metal and tube assemblies.
Key Technical Advantages & Value Proposition
- Chip-Free Processing: Thermo-forming creates zero swarf or metal shavings, keeping internal fluid channels and closed tubing clean.
- Extended Tool Life: Crafted from Grade-A micro-grain tungsten carbide, achieving up to 10,000+ holes per tool depending on material and coolant application.
- Superior Thread Pull-Out Strength: Formed bushings increase thread engagement area, delivering up to 300% higher torque and pull-out resistance compared to direct tapping.
- Fast Cycle Times: Typical cycle time per hole is 2 to 4 seconds, significantly outperforming conventional drilling and riv-nut installations.
- High Precision Collar: Integrated collar forms a finished, flat seating ring or seal flange in a single pass.
Standard (Round) vs. Flat-Cut Thermal Drill Bit Selection
When selecting thermal flow drill bits for production lines, choose based on surface flushness requirements:
- Standard (With Collar): Leaves a clean, raised surface ring that acts as a reinforced seating washer for bolted connections.
- Flat-Cut (Planed): Equipped with cutting blades near the collar to mill off the raised rim during the same stroke, yielding a completely flush surface.
Industrial Applications & Material Compatibility
This M6 Ø5.3mm thermal drill bit is widely deployed across automated metal fabrication lines:
- Automotive & Aerospace: Chassis frames, seat structures, exhaust manifolds, and brackets.
- HVAC & Fluid Systems: Heat exchangers, solar collectors, liquid cooling pipe networks, and manifolds.
- Structural & Furniture Construction: Stainless steel handrails, modular furniture, industrial lighting, and rack systems.
Material Suitability Matrix:
- Carbon Steel & Structural Steel
- Stainless Steel (304, 316, 430)
- Aluminum Alloys & Copper/Brass
- High-Strength Low-Alloy (HSLA) Steels
- Special Alloys (Titanium, Inconel, Hastelloy)
Purchase & Delivery Guarantees
Direct Factory Assurance — Built, Tested, and Supported from Dongguan to Your Shop Floor
Runs on Your System
Standard GSK control (100% Fanuc G-code compatible) or optional Mitsubishi/Siemens. Direct CAD file import for code-free toolpath generation.
Factory Video FAT
Live drilling/tapping tests on your actual workpiece recorded before dispatch. Final 50% balance payment is paid only after your video approval.
40-Day Build & Rugged Crate
Guaranteed maximum 40-day manufacturing cycle. Sealed in anti-rust vacuum aluminum foil and bolted in fumigation-free timber crates (EXW/FOB/CIF).
Direct Engineer Care
Direct 1-on-1 WhatsApp group with your machine's build engineers, 12-month full warranty, and critical replacement parts dispatched via DHL within 24–48h.
Every DUOMI machine is built under a transparent 13-step factory production & responsibility chain.
Parameters
Download Technical Brochure| Thread Size | M6 |
| Diameter | Ø5.3 mm |
| Finishing | with Collar |
| Materials | Tungsten Carbide |
| Quality Grade | A |
| Brand | DUOMI ( DM ) |

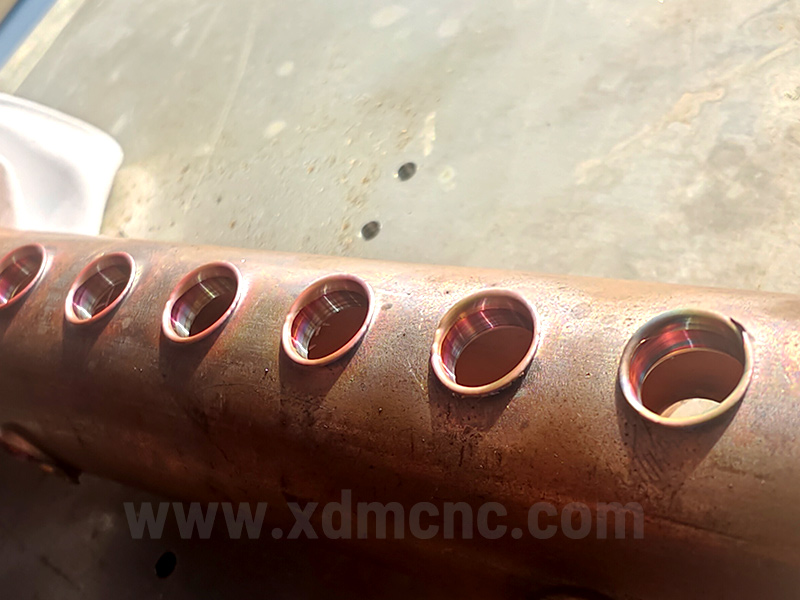

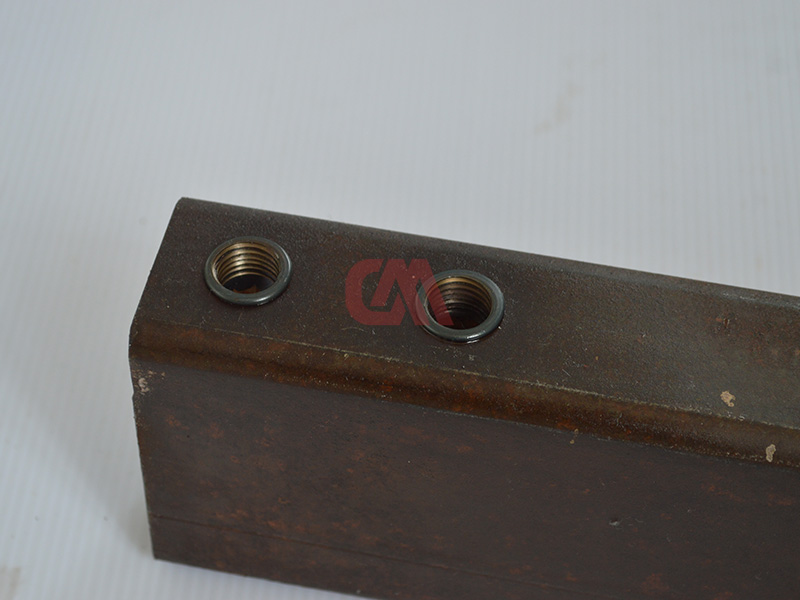

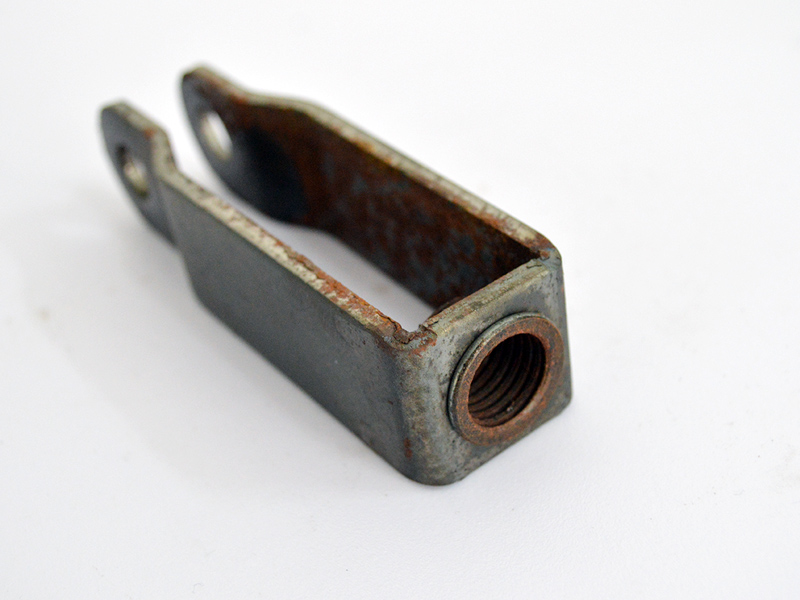

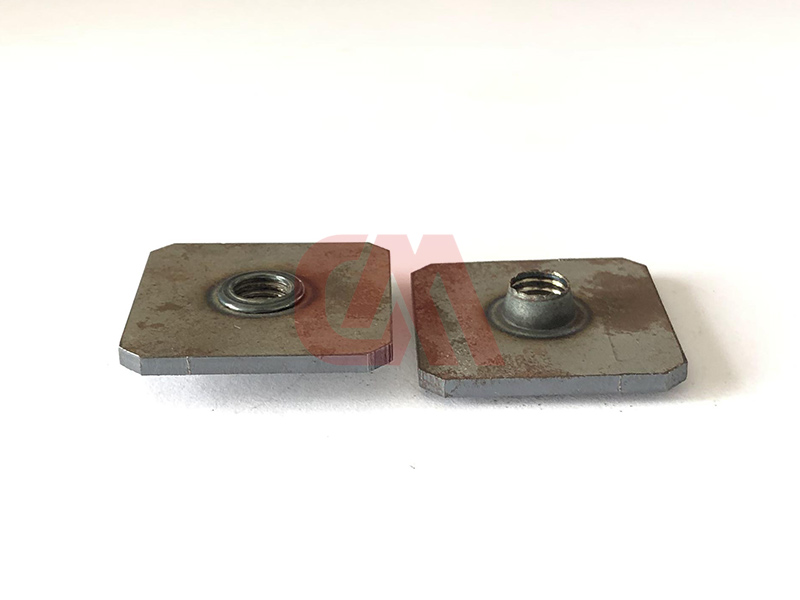

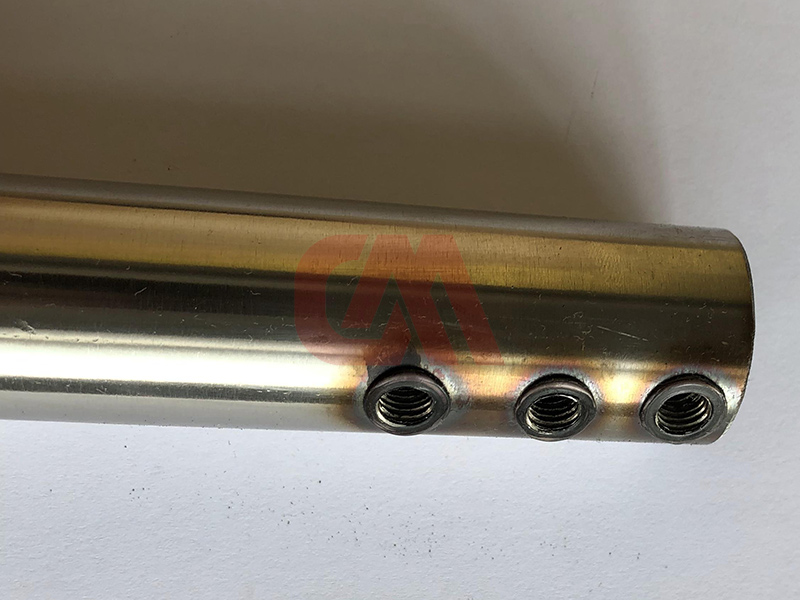

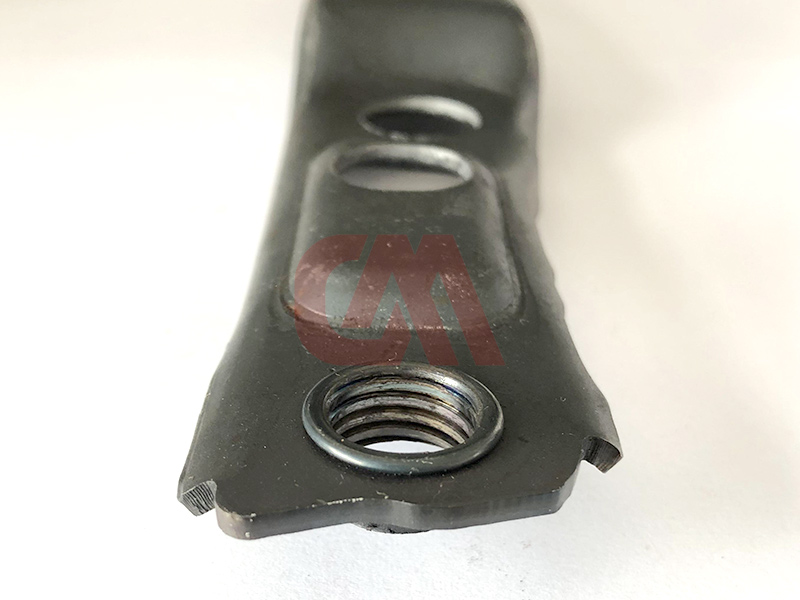

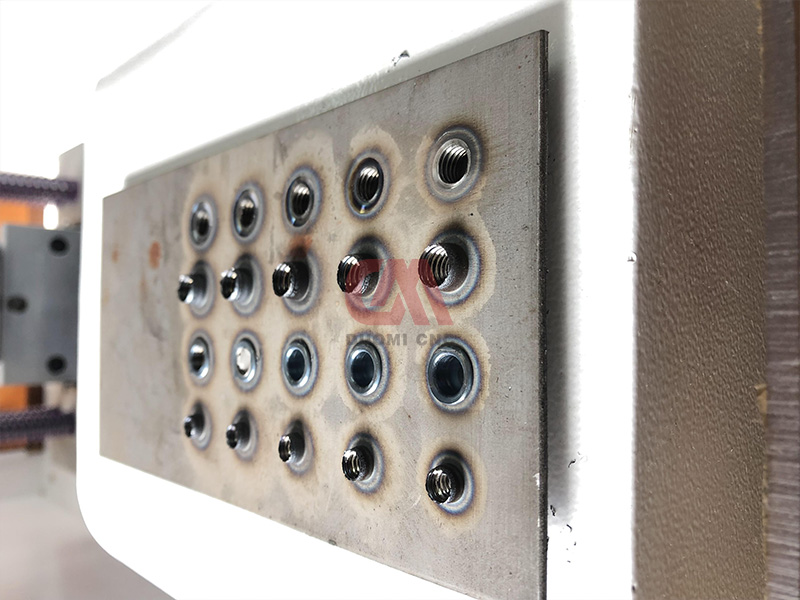

Machining Samples
Real parts processed by our machines
Frequently Asked Questions
We “only” do drilling & tapping. Why do customers still choose Duomi over general-purpose CNC machines?
What does “Your part defines the solution” mean in practice?
What spindle speed and power are required for the DM M6 Ø5.3mm thermal drill bit?
How does thermal drilling compare to press-fit rivet nuts (riv-nuts)?
What is the expected lifespan of a DUOMI Grade-A tungsten carbide thermal drill bit?
Which tap should be used after forming the hole with the Ø5.3mm bit?
Can this thermal drill bit be used on manual drill presses?
Are DUOMI thermal drill bits compliant with ISO quality standards?
