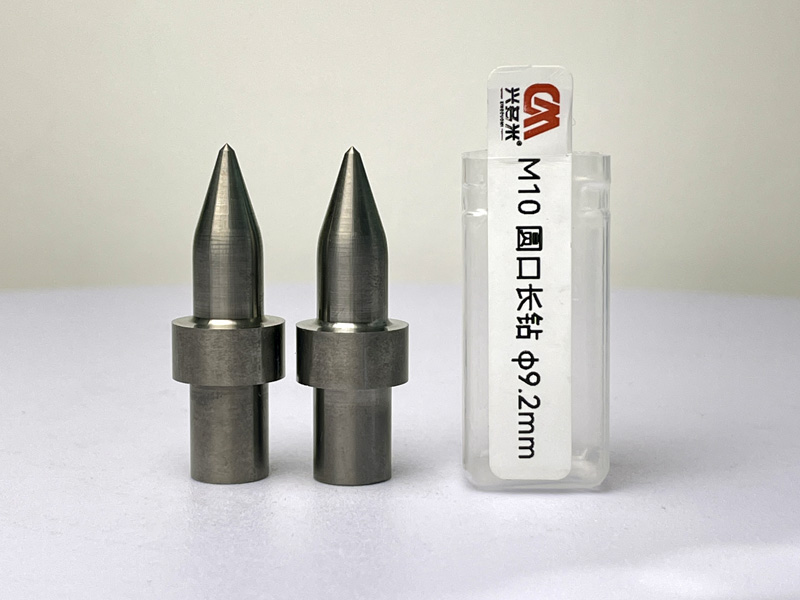

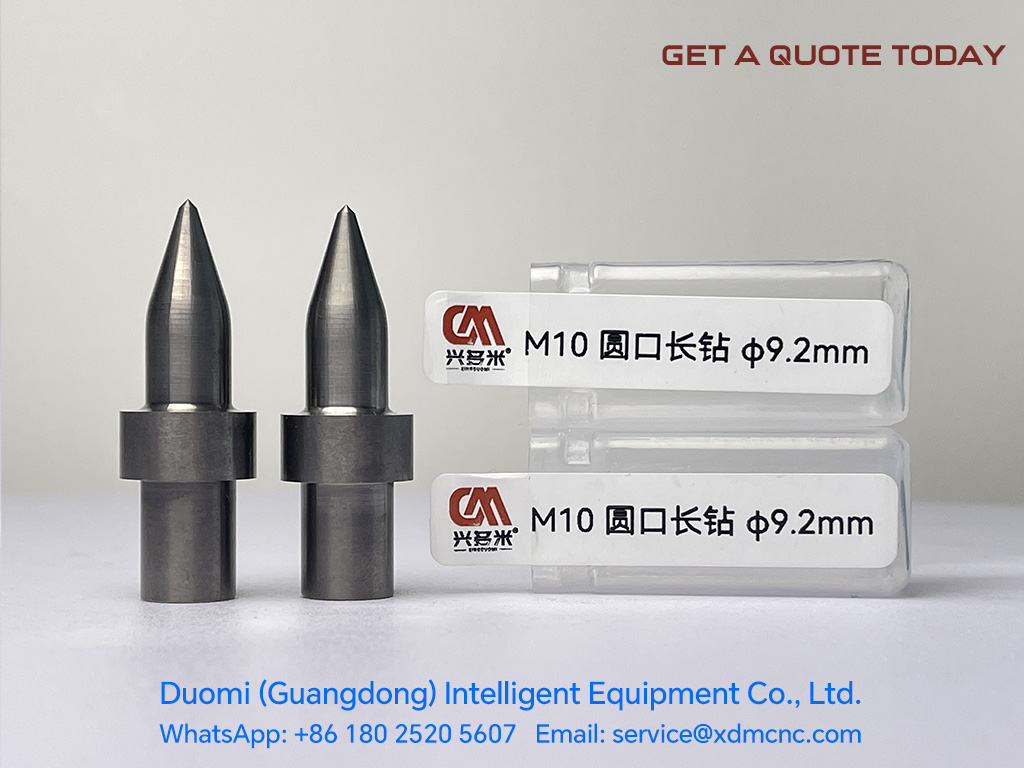

Professional DM M10 Ø9.2mm Thermal Drill Bits for Steel Profiles
Tungsten Carbide Friction Drill Bits for Chip-Free Extruded Collar Formation on Structural Metals
💡 Our CNC drilling and tapping machines support custom non-standard designs, machine color customization, and OEM branding. Start now to purchase and customize your own equipment, please contact us.
Request a Free Machining Sample →
Features
Thermal Friction Flow Forming: Operates at 600°C+ to plasticize metal and extrude a strong threaded bushing in seconds.
Replaces Rivet & Weld Nuts: Creates a monolithic extruded boss with 3x the original sheet metal wall thickness.
Ultra-Hard Tungsten Carbide: Micro-grain solid carbide substrate provides extreme heat resistance and 10,000+ hole tool life.
Universal Thin-Wall Metal Forming: Optimally suited for carbon steel, stainless steel, aluminum tubing, and copper.
In-Depth Engineering Description & Technical Overview
Click to expand complete machine capabilities, workflow analysis & application guide
Click to Expand
Collapse Details
Overview
The DUOMI Professional DM M10 Ø9.2mm Thermal Drill Bit utilizes high-speed rotational friction to generate localized thermal energy, soft-forming metal wall materials to produce robust, high-strength bushings without producing chips. Engineered specifically for M10 thread forming taps, this Grade-A Tungsten Carbide tool forms an extruded collar that increases thread engagement length by 2x to 3x compared to standard sheet metal drilling.
Designed for hollow profiles, structural steel tubing, and thin-walled metal components, the DM M10 Ø9.2mm bit eliminates the need for weld nuts, rivet nuts, or threaded inserts, significantly lowering assembly time and operational costs.
Technical Specifications & Operational Parameters
| Parameter | Specification / Value |
|---|---|
| Nominal Thread Size | M10 (1.5mm pitch) |
| Tool Diameter (Ø) | 9.2 mm (ISO Standard Tolerance) |
| Collar Configuration | With Integrated Flat-Cut / Round Collar |
| Material Composition | Grade-A Micro-Grain Tungsten Carbide |
| Operating Speed Range | 1,400 – 2,600 RPM (Depending on substrate) |
| Feed Rate | 200 – 400 mm/min |
| Wall Thickness Capability | 1.0 mm – 4.5 mm |
| Cycle Time | 2.5 – 5.0 seconds per hole |
| Quality & Compliance | ISO 9001, CE Compliant |
Key Advantages of DM Thermal Flow Drilling
- Zero-Chip Clean Forming: Eliminates chip extraction and cleaning downtime, reducing post-processing labor by up to 80%.
- Superior Thread Load Capacity: Cold-formed M10 threads support higher torque and pull-out strength than traditional tapped holes in thin profiles.
- Precision Collar Options:
- Standard (Round): Creates a raised ring reinforcement ideal for extra load distribution.
- Flat-Cut (Planed): Simultaneously mills off the raised ring to deliver a smooth, flush surface finish.
- Extended Tool Life: Premium Grade-A Tungsten Carbide delivers up to 10,000+ hole cycles when operated with specialized thermal drilling paste.
How to Select the Right Thermal Drill Bit Version
- Standard Round Collar: Select when maximum thread length and structural collar reinforcement are required above the profile surface.
- Flat-Cut Collar: Choose when flat mating surfaces are needed for flush mounting, gasket seals, or aerodynamic assemblies.
Target Applications & Key Industries
- Automotive & Transportation: Chassis frames, seating brackets, exhaust supports.
- Building & Structural Metal Fabrication: Steel profiles, railing mounts, HVAC ducting, and heating manifolds.
- Fluid & Thermal Systems: Liquid cooling pipe manifolds, heat exchangers, and hydraulic tubing.
- Industrial & Commercial: Metal furniture frames, industrial lighting enclosures, and aerospace fixtures.
Purchase & Delivery Guarantees
Direct Factory Assurance — Built, Tested, and Supported from Dongguan to Your Shop Floor
Runs on Your System
Standard GSK control (100% Fanuc G-code compatible) or optional Mitsubishi/Siemens. Direct CAD file import for code-free toolpath generation.
Factory Video FAT
Live drilling/tapping tests on your actual workpiece recorded before dispatch. Final 50% balance payment is paid only after your video approval.
40-Day Build & Rugged Crate
Guaranteed maximum 40-day manufacturing cycle. Sealed in anti-rust vacuum aluminum foil and bolted in fumigation-free timber crates (EXW/FOB/CIF).
Direct Engineer Care
Direct 1-on-1 WhatsApp group with your machine's build engineers, 12-month full warranty, and critical replacement parts dispatched via DHL within 24–48h.
Every DUOMI machine is built under a transparent 13-step factory production & responsibility chain.
Parameters
Download Technical Brochure| Thread Size | M10 |
| Diameter | Ø9.2 mm |
| Finishing | with Collar |
| Materials | Tungsten Carbide |
| Quality Grade | A |
| Brand | DUOMI ( DM ) |

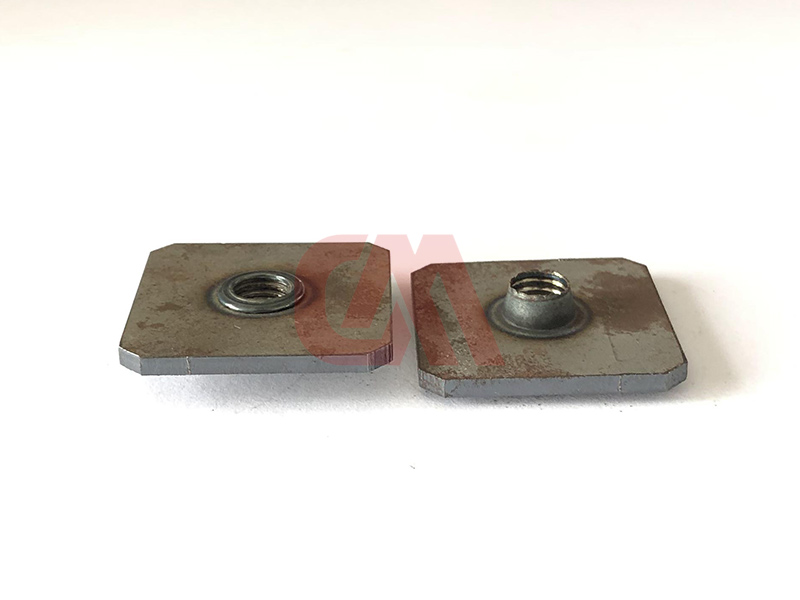

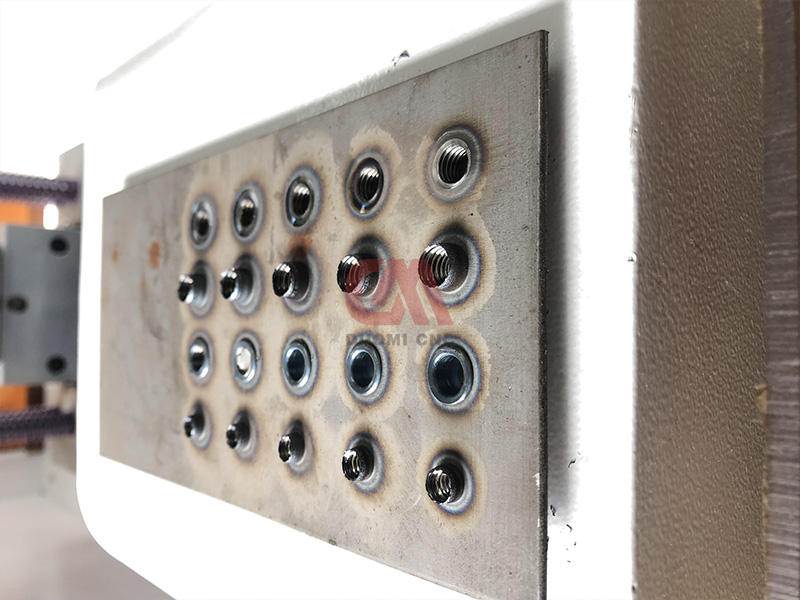

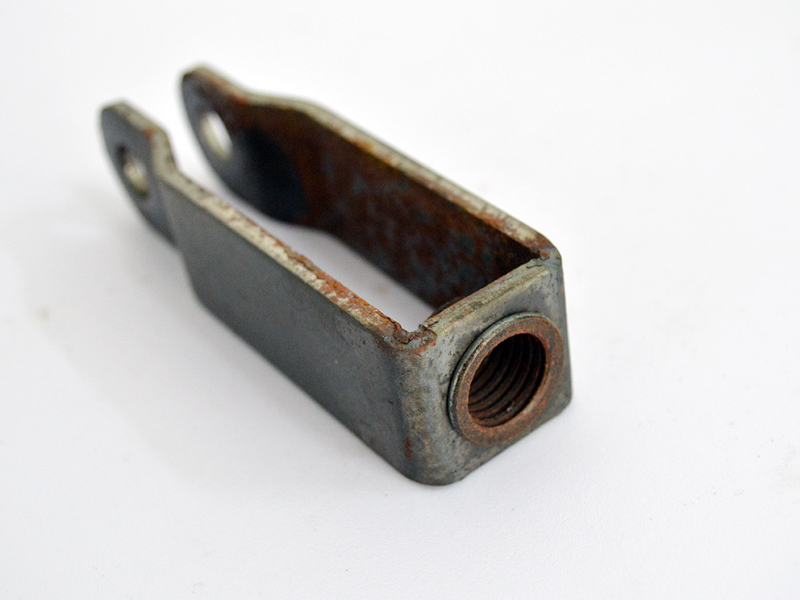

Machining Samples
Real parts processed by our machines
Frequently Asked Questions
We “only” do drilling & tapping. Why do customers still choose Duomi over general-purpose CNC machines?
What does “Your part defines the solution” mean in practice?
What exact hole size does the DM M10 thermal drill bit produce?
What metals can be processed with this thermal drill bit?
What spindle speed (RPM) is recommended for M10 thermal drilling?
What is the difference between Standard Round and Flat-Cut thermal drill bits?
Does thermal drilling require specialized lubrication?
Can these thermal drill bits be used on standard CNC machinery?
