DUOMI VMC T600 Machining Center: High-Precision Precision Milling & Drilling Solutions
Engineered for demanding industrial production with ±0.02mm positioning accuracy, 21T high-speed ATC, and industrial-grade SYNTEC 22MA control.
💡 Our CNC drilling and tapping machines support custom non-standard designs, machine color customization, and OEM branding. Start now to purchase and customize your own equipment, please contact us.
Request a Free Machining Sample →
Features
Triangular Box Column Rigidity: Heavy-duty cast iron box column structure provides maximum cutting rigidity and vibration dampening.
High-Dynamic VMC T600: High acceleration linear guides deliver rapid response for fast-cycle batch production.
High-Speed Umbrella/Arm ATC: 16–24 tool magazine completes tool changes in under 2 seconds to optimize multi-process jobs.
Pre-Tensioned C3 Ball Screws: High-grade ball screws on all axes ensure long-term thermal stability and ±0.02mm accuracy.
In-Depth Engineering Description & Technical Overview
Click to expand complete machine capabilities, workflow analysis & application guide
Click to Expand
Collapse Details
Industrial Overview: DUOMI VMC T600 Machining Center
The DUOMI VMC T600 Machining Center represents an advanced standard in high-speed, high-precision vertical milling and drilling solutions. Specially optimized for micro-machining, electronic component production, automotive parts manufacturing, and complex mold production, this CNC Machining Center delivers exceptional dimensional stability and fast cycle times.
Designed with a robust 3500 kg cast-iron frame and a compact 1900×2070×2300 mm footprint, the VMC T600 Machining Center combines rigid construction with high dynamic sensitivity to optimize batch throughput while extending tool life.
Key Technical Advantages & Precision Performance
- High Positioning Tolerances: Features a positioning accuracy of ±0.02mm and repeat positioning accuracy of ±0.003 mm, providing consistent precision across intensive production runs.
- Fast Automated Tool Changer (ATC): Outfitted with a 21-tool (21T) magazine supporting tool change times as low as 1.2 seconds for adjacent tools, minimizing idle machine time.
- High-Speed Axis Dynamics: Delivers 600 mm (X) x 400 mm (Y) x 350 mm (Z) axis travel paired with high-speed traverse rates up to 48 m/min for rapid movement and cutting.
- Industrial SYNTEC 22MA Controller: Equipped with the reliable SYNTEC 22MA CNC platform, enabling multi-axis synchronization, optimized acceleration/deceleration curves, and seamless operation.
- Heavy Load Capacity: A generous 700×420 mm worktable supports maximum workpiece loads up to 300 kg, making it versatile for multi-fixture applications.
Applications & Material Compatibility
The DUOMI VMC T600 Machining Center processes a comprehensive range of conductive and non-ferrous metals as well as engineering alloys:
- Compatible Materials: Iron, Copper, Aluminium, Brass, Steel, Zinc, Platinum, and alloy composites.
- Primary Industry Sectors:
- Consumer Electronics & Precision Instruments: Smartphone frames, camera housings, connector blocks.
- Automotive & Locomotives: Engine brackets, valve bodies, sensor casings.
- Aerospace & Medical Machinery: Lightweight bracketry, precision housing components.
- Tooling & Repair Workshops: Custom jigs, fixtures, and die-casting molds.
For complex 5-axis workpieces, explore our high-end 5 Axis Machining Center CNC Milling Machine VMC 650.
Quality Assurance & Industry Compliance
Every DUOMI VMC T600 Machining Center undergo rigid factory quality control in alignment with international safety standards:
- CE Certified Compliance: Manufactured under strict European directive guidelines for operational safety.
- Comprehensive Inspection: Factory-provided video outgoing inspections and complete machinery test reports included with every shipment.
- Global Support Network: Fully supported with local service capabilities and showroom access in key global regions.
Purchase & Delivery Guarantees
Direct Factory Assurance — Built, Tested, and Supported from Dongguan to Your Shop Floor
Runs on Your System
Standard GSK control (100% Fanuc G-code compatible) or optional Mitsubishi/Siemens. Direct CAD file import for code-free toolpath generation.
Factory Video FAT
Live drilling/tapping tests on your actual workpiece recorded before dispatch. Final 50% balance payment is paid only after your video approval.
40-Day Build & Rugged Crate
Guaranteed maximum 40-day manufacturing cycle. Sealed in anti-rust vacuum aluminum foil and bolted in fumigation-free timber crates (EXW/FOB/CIF).
Direct Engineer Care
Direct 1-on-1 WhatsApp group with your machine's build engineers, 12-month full warranty, and critical replacement parts dispatched via DHL within 24–48h.
Every DUOMI machine is built under a transparent 13-step factory production & responsibility chain.
Parameters
Download Technical Brochure| Model | VMC T600 Machining Center |
| X/Y/Z axis travel | 600/400/350(mm) |
| X/Y/Z axis fast moving speed | 48 mm/min |
| X/Y/Z axis Cutting feed speed | 48 mm/min |
| Worktable size (L×W) | 700x420(mm) |
| Maximum load | 300(kg) |
| Spindle Speed | 2000 rpm |
| Spindle motor power | 5.5 kw |
| Spindle taper hole&Installation diameter | BT30 (mm) |
| T-slot | 3x14x125 (mm) |
| Distance between spindle end face and worktable | 135-480 (mm) |
| Distance from spindle centert to the column | 420 (mm) |
| Controller | SYNTEC 22MA |
| Tool magazine | 21T(mm) |
| Maximum tool diameter(Adjacent vacancy) | 50（120）(mm) |
| Maximum tool length | 250 (mm) |
| Maximum tool weight | 3 KG |
| Tool change time (adjacent tool) | 1.2 Sec |
| Positioning accuracy | ±0.02mm |
| Repeat positioning accuracy | ±0.02mm |
| Machine dimension (L×W×H) | 1900x2070x2300 (mm) |
| Machine weight | 3500(kg) |
| Power requirement | 10 KVA |
| Required air pressure | 6 kgf/cm² |
| Required gas flow | 0.15 m²/min |
| Certification | CE |
| Voltage | 220V /380V |
| After Warranty Service | After Warranty Service |
| Showroom Location | Viet Nam |
| Local Service Location | Viet Nam |
| Machinery Test Report | Provided |
| Video outgoing-inspection | Provided |
| Warranty of core components | 1 Year |
| Applicable Industries | Machinery Repair Shops, Consumer electronics, automobiles and locomotives, instruments and meters, electronic and electrical appliances, aerospace and machinery manufacturing industries |

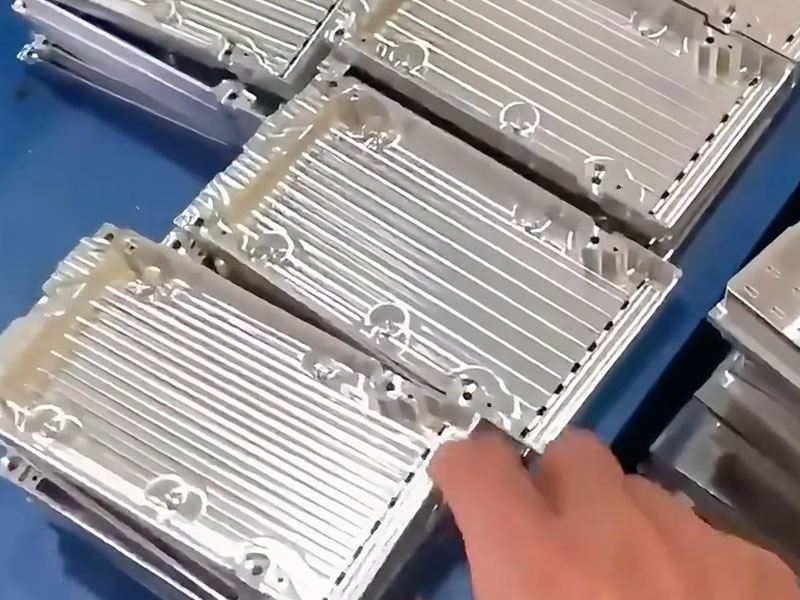

Machining Samples
Real parts processed by our machines
Frequently Asked Questions
We “only” do drilling & tapping. Why do customers still choose Duomi over general-purpose CNC machines?
What does “Your part defines the solution” mean in practice?
What is the positioning and repeatability accuracy of the DUOMI VMC T600 Machining Center?
What controller is equipped on the VMC T600 Machining Center?
What are the tool magazine specifications and tool change times?
What materials can be machined on the VMC T600 Machining Center?
Does the VMC T600 meet international CE standards?
Can DUOMI customize the VMC T600 Machining Center for OEM requirements?
