In modern precision metal fabrication, achieving tight tolerances, rapid throughput, and operational efficiency is paramount. Manual drilling methods are increasingly incapable of meeting modern industry standards such as ISO 2768-m or AS9100. As a result, investing in automated machining solutions is crucial for remaining competitive.
Among the fundamental machine tools in metalworking, the CNC Drill Press for Metal stands out as a high-efficiency solution, delivering superior accuracy, rapid cycle times, and repeatable consistency. DUOMI CNC, an established innovator in industrial-grade CNC machinery, manufactures advanced CNC Drill Press systems tailored specifically for high-volume, high-precision metal processing.
What is a CNC Drill Press for Metal?
A CNC Drill Press for Metal is a computer-numerical-controlled automated drilling tool designed to perform rapid, high-accuracy hole making, tapping, counterboring, and reaming operations across ferrous and non-ferrous alloys. Unlike standard bench or pillar drill presses that rely on manual lever operation and visual positioning, a CNC drill press utilizes pre-programmed G-code instruction sets, precision ball screws, and servomotors across multiple axes (X, Y, Z).
By automating spindle speed, feed rate, peck-drilling depth, and coolant delivery, a CNC Drill Press eliminates human error, reduces tool wear through optimized chip load calculations, and guarantees micron-level part-to-part repeatability.
Technical Performance Benchmarks
| Feature Parameter | Standard Specification | Industrial Advantage |
|---|---|---|
| Positioning Accuracy | ±0.01 mm (0.0004 in) | Ensures precise hole pitch alignment |
| Repeatability | ±0.005 mm (0.0002 in) | Ideal for continuous high-volume production |
| Spindle Speed Range | 100 – 6,000+ RPM | Handles tough alloys and soft metals |
| Rapid Feed Rate | Up to 12,000 mm/min | Drastically cuts non-cutting cycle time |
| Coolant Pressure | Integrated 20 – 70 bar | Extends drill bit lifecycle via deep chip flushing |
Key Features of DUOMI CNC Drill Press for Metal
DUOMI CNC drill presses are engineered with heavy-duty structural rigidity and advanced control technology to meet the demands of tough metalworking operations.
1. High-Rigidity Frame & Precision Linear Guidance
The structural foundation of a DUOMI CNC Drill Press for Metal features stress-relieved mehanite cast iron or welded steel box structures. Combined with precision linear guideways (HIWIN/THK) and C3-class preloaded ball screws, the frame absorbs cutting vibration during heavy-duty operations. This rigid build maintains tight positioning tolerances down to ±0.01 mm, maintaining hole straightness even under high axial thrust forces.
2. Programmable CNC Controllers & Automated Cycles
Equipped with user-friendly CNC control systems (compatible with Siemens, Fanuc, or Syntec interfaces), operators can quickly program complex drilling patterns. Built-in canned cycles support multi-axis hole arrays, peck drilling for deep-hole chip evacuation, automatic tapping, and pitch compensation. Automation reduces setup times by up to 60% compared to conventional manual drilling setups.
3. Material Adaptability & Dynamic Torque Control
Whether machining hardened alloy steel, 316 stainless steel, structural aluminum, copper, or titanium, a DUOMI CNC Drill Press adapts dynamically. The high-torque servo spindle delivers constant power across both low-RPM torque drilling and high-RPM micro-hole drilling. Adjustable feed rates prevent work hardening when drilling tough stainless steel grades.
4. Multi-Spindle & Automated Tool Changer (ATC) Options

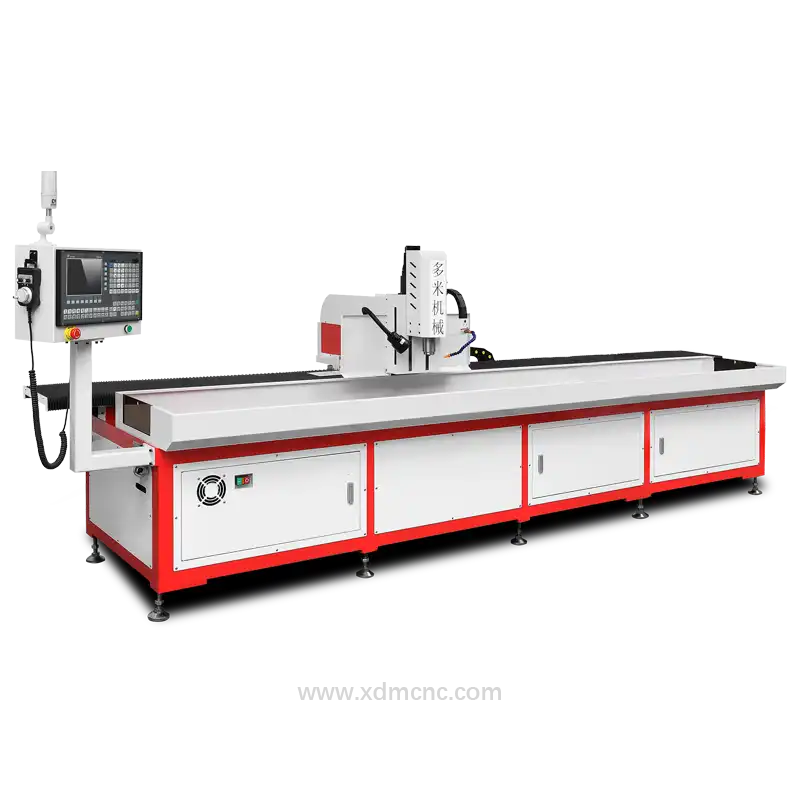

To maximize throughput, DUOMI CNC drill presses can be configured with multi-spindle heads or rapid Automatic Tool Changers (ATC). Multi-spindle configurations allow parallel drilling of multiple holes simultaneously, ideal for heat exchangers, long metal profiles, and structural plates.
5. High-Pressure Internal Coolant & Safety Systems
Deep metal drilling generates intense localized friction and thermal expansion. DUOMI CNC drill presses feature through-spindle coolant (TSC) systems delivering up to 70 bar pressure to cool cutting edges directly and flush chips out of deep cavities. Full safety enclosures, light curtains, emergency safety interlocks, and chip conveyors ensure safe operation in industrial facilities.
Industrial Applications of CNC Drill Presses for Metal
The high precision and speed of a CNC Drill Press for Metal make it a core component across major manufacturing sectors:
Automotive Manufacturing
Used for drilling mounting holes, fluid passages, and threaded fasteners in chassis components, engine mounts, brake rotors, and aluminum battery trays with precise axial alignment.
Aerospace & Defense Components
Aircraft structural brackets, wing ribs, and fuselage skins fabricated from 7075 aluminum or titanium require exact hole tolerances to prevent fatigue cracking around rivets and fasteners.
Structural Steel & Plate Fabrication
Processing heavy steel plates, gusset plates, flange connections, and architectural tube profiles requiring high-speed multi-hole patterns and clean burr-free edges.
Electronics & Heat Sink Production

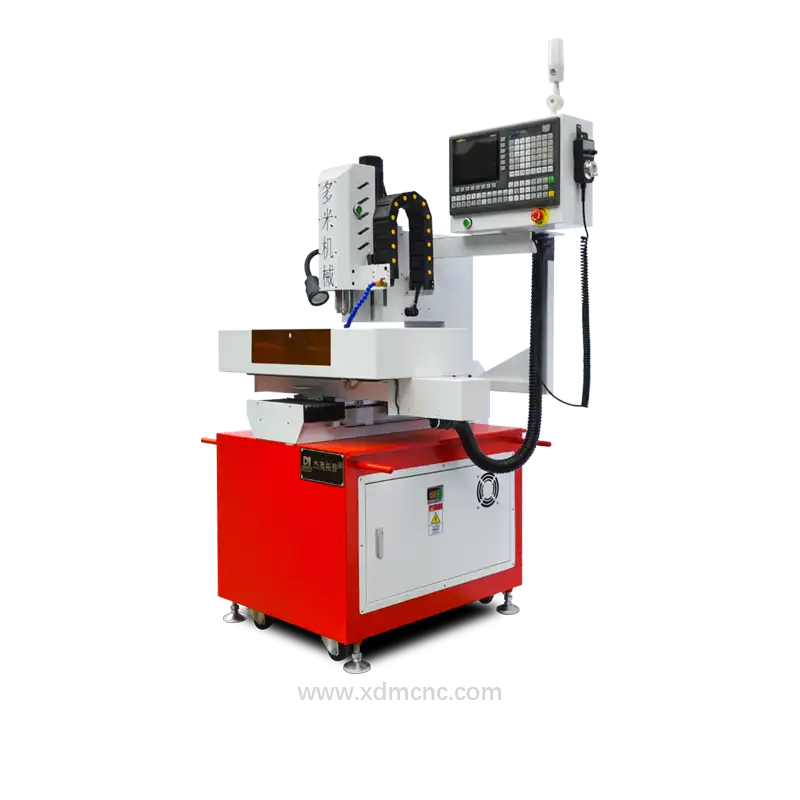

Performing micro-drilling and high-density hole patterns in copper and aluminum heat sinks, base plates, and enclosure panels with zero surface distortion.
Comparative Analysis: Manual vs. CNC Drill Press
| Operational Aspect | Conventional Manual Drill Press | DUOMI CNC Drill Press for Metal |
|---|---|---|
| Hole Alignment Tolerance | ±0.20 mm – ±0.50 mm | ±0.01 mm |
| Operator Involvement | Constant manual feed control | Programmed continuous automation |
| Tapping Capability | High tap breakage risk | Rigid automatic tapping cycle |
| Production Speed | Low throughput, high labor | High-speed multi-hole processing |
| Tool Life Management | Variable based on operator skill | Optimized chip loads extend tool life |
Need High-Efficiency CNC Drilling & Tapping Machinery?
Consult with our senior application engineers to get a custom cycle time simulation and tailored machine proposal within 24 hours.
