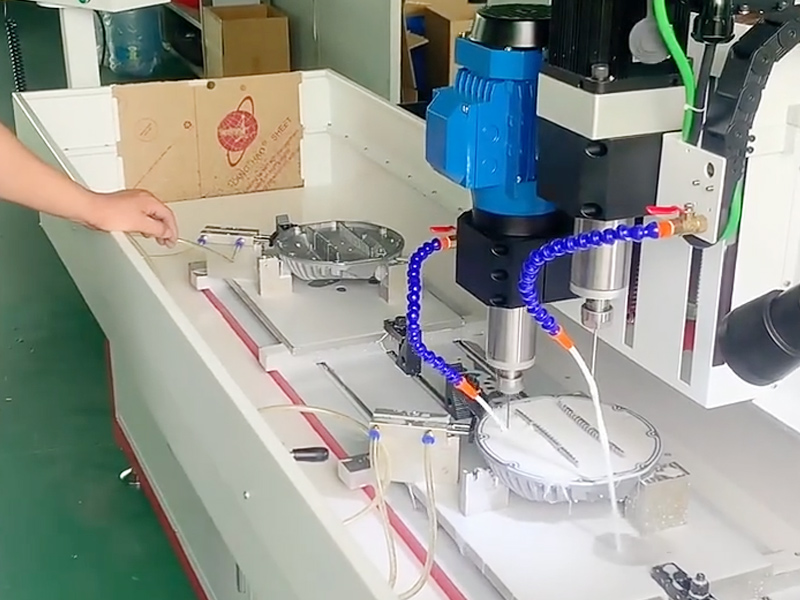

Die-Cast Aluminum CNC Drilling and Tapping Machine

Industrial Performance for Aluminum Die-Casting

The DNC-1530DT Die-Cast Aluminum CNC Drilling and Tapping Machine is an industrial-grade machining solution engineered specifically for high-speed, high-precision processing of die-cast aluminum components. Combining robust structural stability with advanced numerical control, this machine optimizes cycle times for demanding applications in automotive manufacturing, aerospace engineering, electronic enclosures, and industrial hardware.

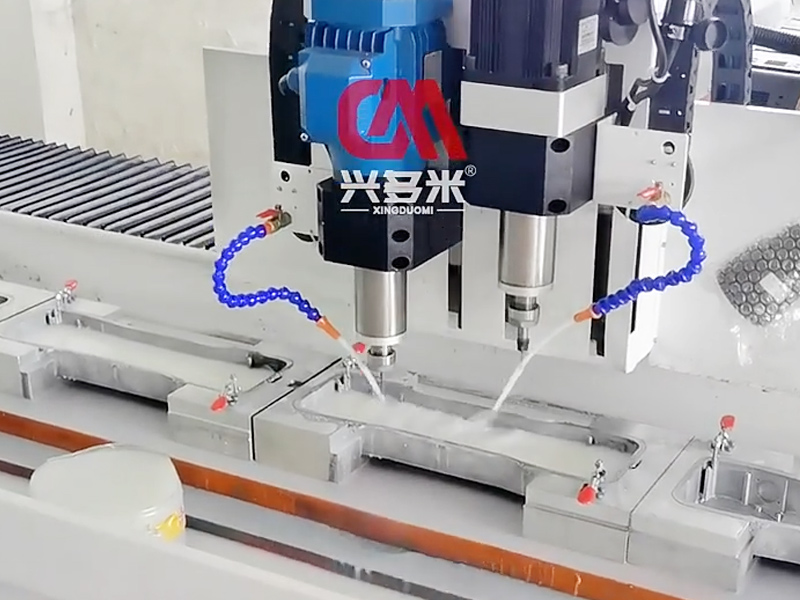

Featuring an extended 1500 x 300 x 200 mm (XYZ) working envelope and an open-table gantry beam design, the system effortlessly handles multi-station clamping setups or long structural profiles in a single setup.

Core Technical Advantages

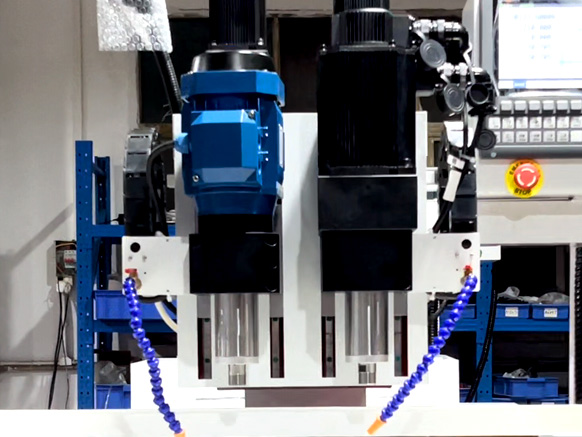

Dual Servo-Driven Spindle Efficiency

Equipped with twin independent servo-driven spindles (0.55–3.0 kW with ER20 taper), the machine enables simultaneous or multi-stage drilling, tapping, and chamfering operations. Dual spindle control cuts unit cycle times by up to 50% compared to single-spindle alternatives while maintaining consistent axial balance.

Structural Rigidity & Motion Dynamics

• Stress-Relieved Machine Bed: Heavy-duty cast frame undergoes full thermal stress relief to eliminate internal residual stresses, ensuring zero deformation over prolonged multi-shift operations.
• Precision Motion Guidance: Incorporates premium HIWIN (Taiwan) linear guideways and ground ball screws, driving rapid traverse rates up to 60 m/min on the X-axis and 25 m/min on Y/Z axes.
• Absolute Servo Drives: Direct-drive absolute encoders eliminate homing routines and guarantee a repeated positioning accuracy of ±0.02mm and overall positioning accuracy within 0.02 mm.

Advanced 3-Axis CNC Control System

The integrated 3-axis CNC controller offers maximum flexibility for production teams: * Direct CAD File Import: Seamlessly import standard CAD drawings for rapid program generation. * Versatile Programming Modes: Supports both automated G-code generation and intuitive manual interface entry. * Manual Pulse Generator (MPG): Control hand pulse encoder simplifies tool setting, fixture alignment, and micro-adjustments during setup. * High Storage Capacity: Holds up to 10,000 program routines in internal memory with full external I/O signal support for robotic loading automation.

Automated Thermal & Lubrication Management

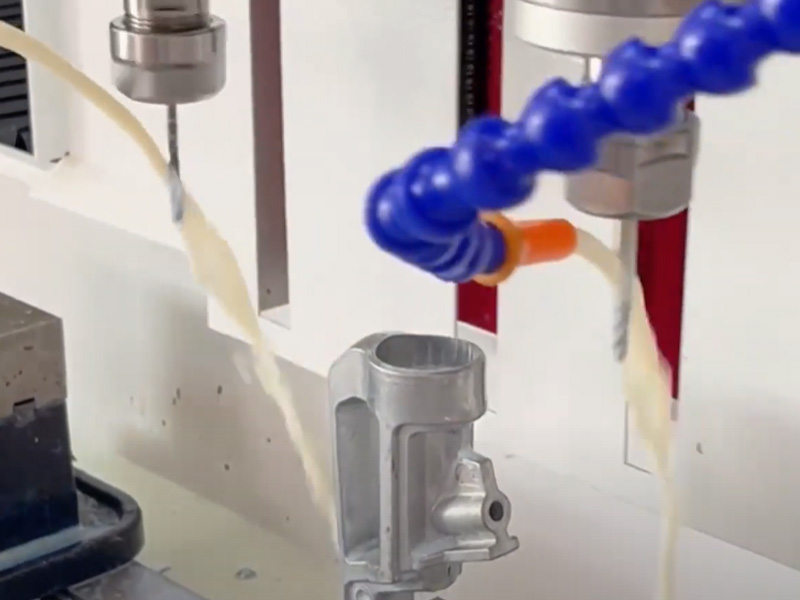

To prevent thermal expansion and maintain strict tolerances during high-throughput aluminum CNC drilling, an automatic oil cooling and centralized lubrication system continuously services the spindles and linear guides. This minimizes wear, reduces heat build-up, and eliminates manual maintenance downtime.

Metrology & Quality Assurance

Every machine undergoes rigorous calibration prior to factory dispatch: * API Laser Interferometer Calibration: Using US-imported API laser measurement systems, kinematic errors across all axes are measured and compensated to ensure absolute positioning accuracy under 0.02 mm. * Quality Compliance: Manufactured in strict accordance with ISO 9001 quality management procedures and international CE safety standards.

Ideal Applications

• Automotive Industry: Engine housings, transmission covers, structural brackets, and motor casings.

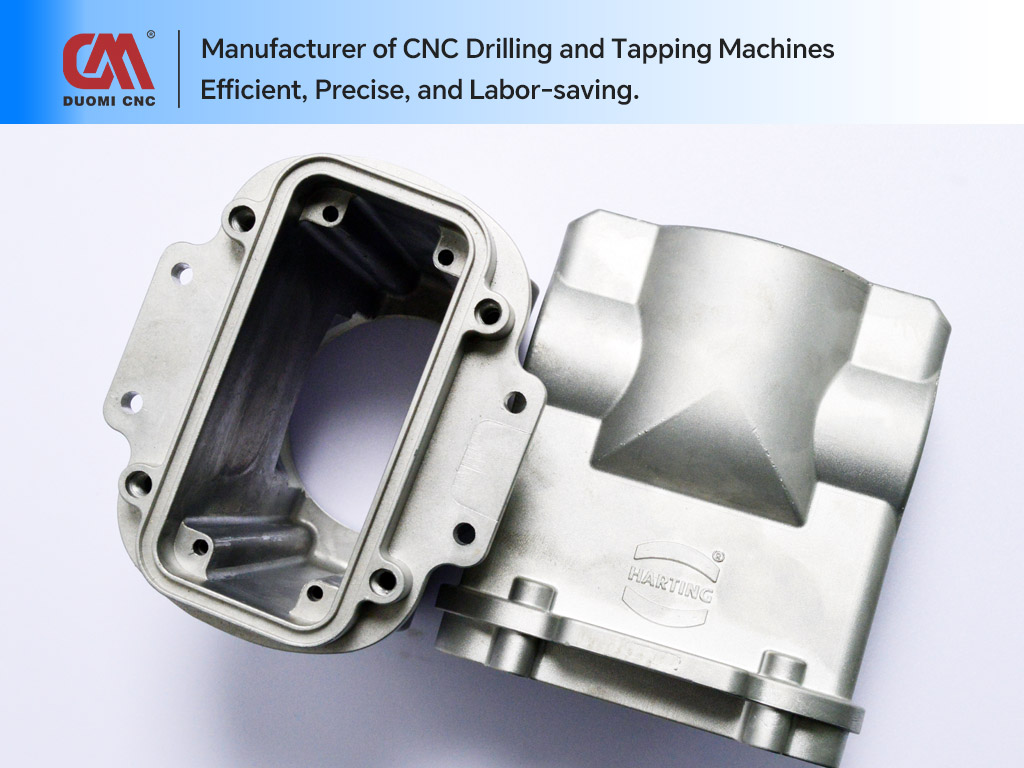

• Electronics & Telecom: Heat sinks, aluminum die-cast chassis, RF shielding boxes, and LED frames.
• General Hardware: Architectural fittings, aluminum extrusion profiles, valve bodies, and pump housings.
