Large Sheet Gantry CNC Drill Tap Machine (DNC-3016N10)

Executive Overview

The DUOMI DNC-3016N10 is an industrial-grade Gantry CNC Drill Tap Machine engineered specifically for high-efficiency processing of large-format metal sheet plates, including stainless steel, aluminum, copper, brass, and structural alloys. Featuring a generous 3000mm x 1600mm x 200mm work envelope, 10-station Automatic Tool Changer (ATC), and dual-drive Y-axis beam architecture, this high-precision multi-process machine combines heavy-duty rigid milling, precision drilling (1–20mm), and high-speed automatic tapping (M2–M20) into a single setup.

Built to ISO 9001 and CE quality standards, the DNC-3016N10 reduces setup times by up to 70% and lowers production defect rates to under 0.2%, providing an immediate ROI for B2B component manufacturers, automotive parts vendors, structural steel fabricators, and mold toolmakers.

Key Industry Solutions & Operational ROI

1. Multi-Process Integration & Production Throughput

• Industry Challenge: Conventional metal fabrication requires moving large workpieces between manual radial drill presses, tapping stations, and chamfering setups, creating high scrap rates, labor bottlenecks, and long lead times.
• DUOMI Solution: The DNC-3016N10 CNC Drill Tap Machine unifies drilling, tapping, chamfering, and face milling in one rigid clamping cycle. With spindle speeds up to 6,000 RPM and rapid traverse speeds up to 60 m/min, cycle times are reduced by up to 65%.
• Automated Dual-Station Workflow: An open worktable design allows continuous pendulum processing—loading/unloading workpieces on the left zone while machining continues on the right zone.

2. High Precision & Drastic Scrap Reduction

• Industry Challenge: Human operator fatigue and manual alignment errors often cause scrap rates exceeding 5%–8% on multi-hole heat exchangers, engine blocks, and electrical enclosure plates.
• DUOMI Solution: Utilizing high-rigidity linear guide rails, precision ball screws, and absolute servo feedback, the system achieves repeat positioning accuracy within ±0.02mm. Automotive supplier case studies demonstrate a reduction in defect rates from 8.0% down to 0.2%, generating over $500,000 in annual raw material savings.

3. Complex Surface & Irregular Hole Drilling

• Industry Challenge: Machining angled holes or multi-pattern grids on thick sheet metal gantry plates requires complex manual fixture redesigns.
• DUOMI Solution: Supports standard 3-axis linkage (expandable to 4-axis/5-axis) with native CAD/CAM programming integration. Flexible modular clamping allows fast setup for custom short-run orders or high-volume continuous manufacturing.

Engineering & Structural Superiority

• Heavy-Duty Gantry Architecture: Cast iron base frame weighing approximately 5,000 kg absorbs harmonic vibration during heavy-duty cutting, preserving tool life and surface finish.
• Dual-Drive Y-Axis Mechanism: Y-axis utilizes twin synchronized servo motors with precision heavy-duty linear slides, guaranteeing distortion-free gantry motion across the entire 1600mm span.

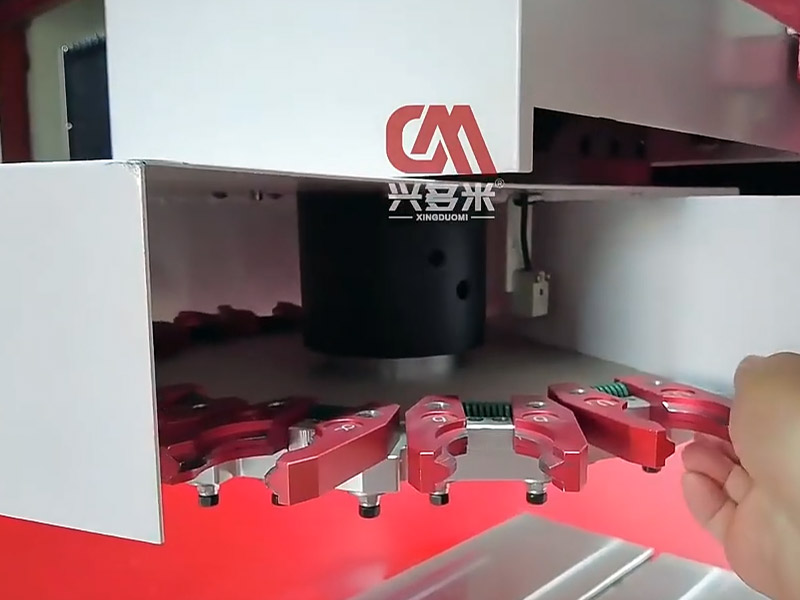

• Direct-Drive Servo Tool Magazine: Integrated 10-tool BT30 servo ATC executes tool changes in seconds without operator intervention.
• Versatile CAD/CAM Interface: Direct DXF/NC code import and intuitive graphical CNC controller lower operator learning curves, allowing one technician to oversee multiple machines simultaneously.
