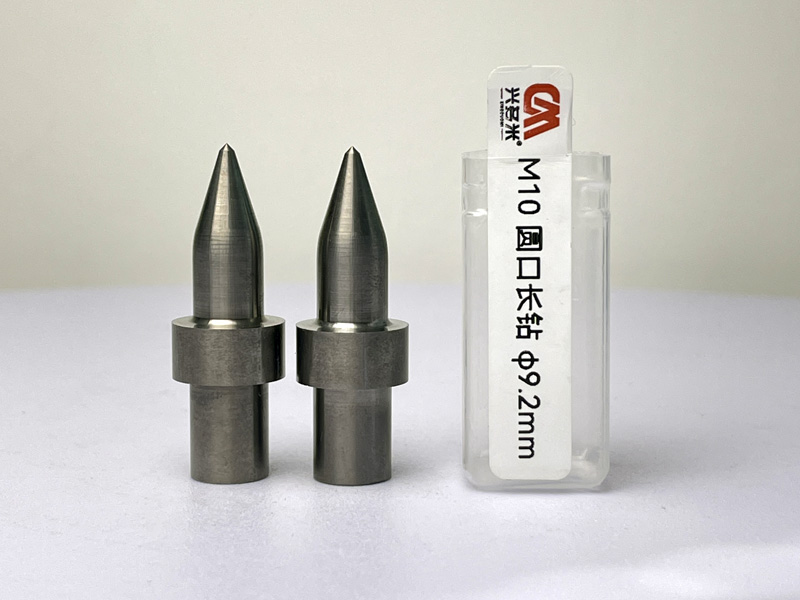

DM M12 Ø10.9mm Thermal Drill Bits for High-Strength Metal Forming

Overview & Thermal Flow Drilling Principle

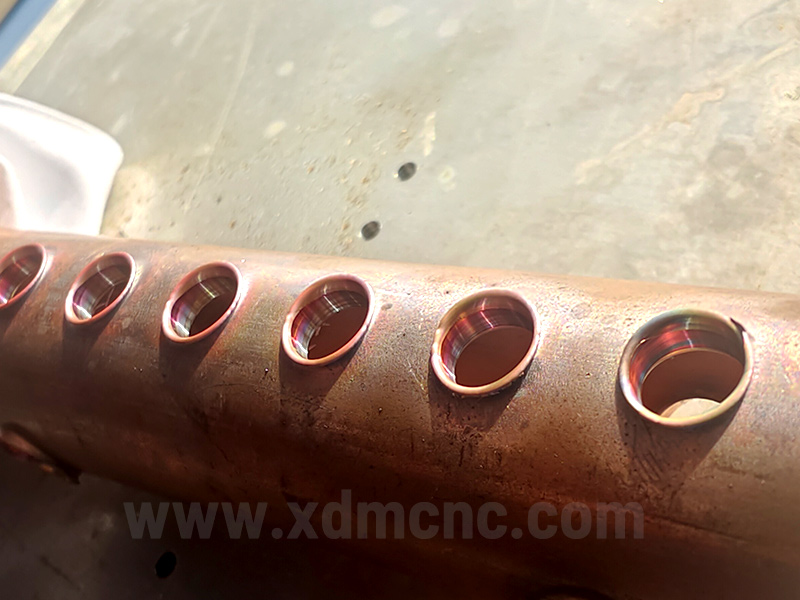

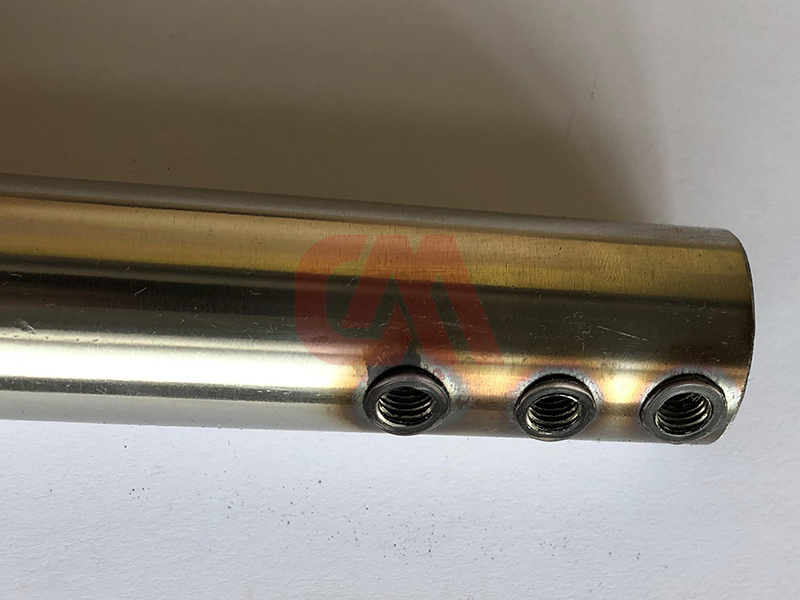

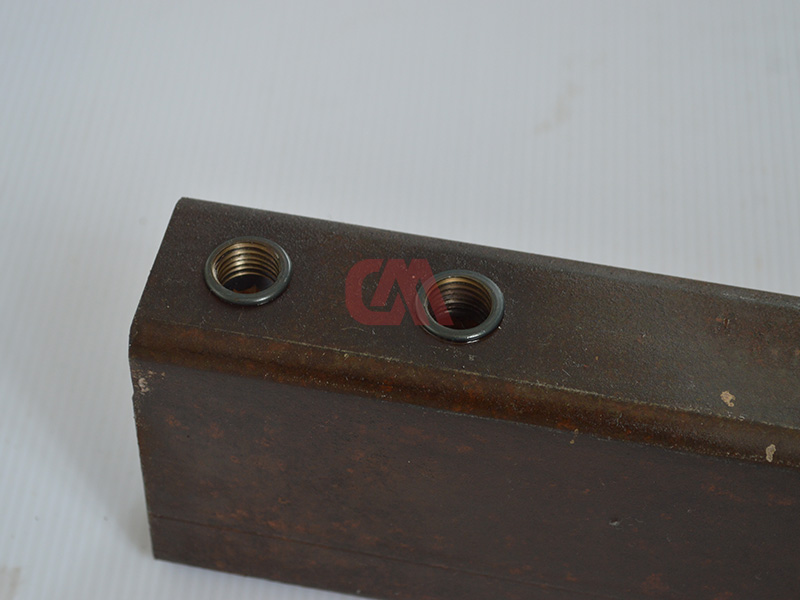

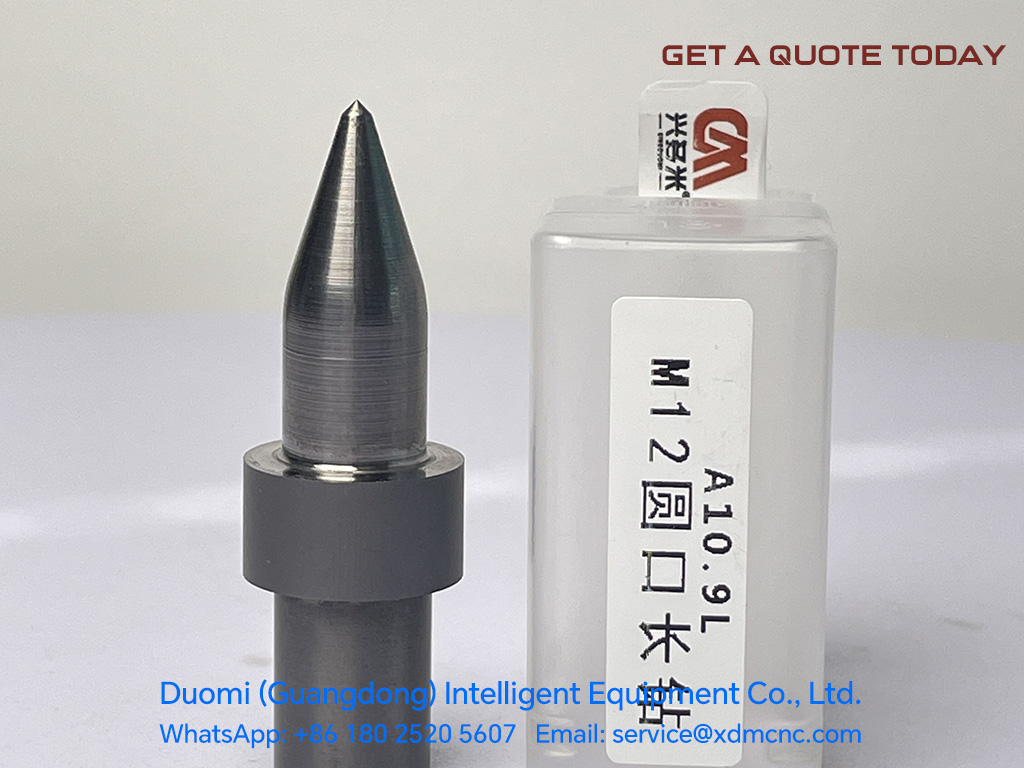

The DM M12 Ø10.9mm Thermal Drill Bit (Friction Drill Bit) utilizes high rotational speed and controlled axial pressure to generate intense localized frictional heat (600°C–900°C). This process super-plasticizes metallic workpieces, forming a dense, extended cylindrical bushing without cutting chips. Designed for M12 cold-forming taps, the Ø10.9mm tool diameter provides the exact pre-hole diameter required for 100% thread engagement depth.

Equipped with an integrated milling collar (Flat-Cut configuration), this tool simultaneously forms the lower bushing and mills off the raised displaced material on the top surface, delivering a smooth, flush surface in a single operational stroke.

Key Performance Advantages

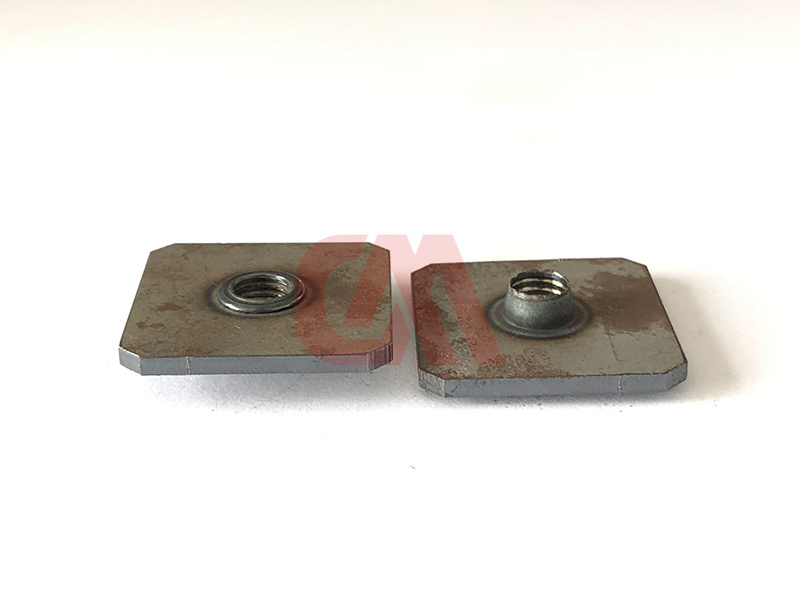

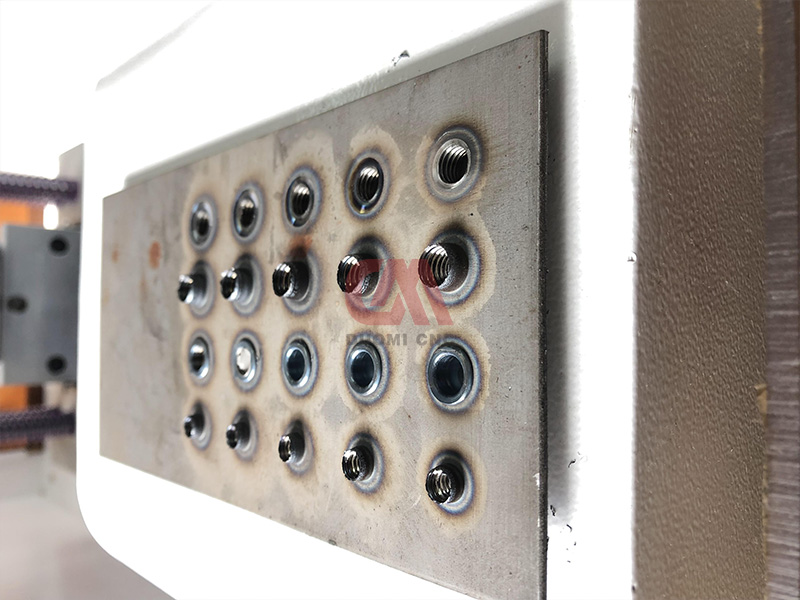

• 3x Thread Depth Multiplication: Transforms thin-walled sheet metal or tubing (1.5mm–3.5mm wall thickness) into heavy-duty threaded joints capable of replacing riveted nuts, weld nuts, and press inserts.
• 100% Chip-Free Processing: Eliminates swarf, metal shavings, and internal debris—ideal for closed fluid lines, heat exchangers, and sealed structural tubing.
• Premium Grade A Tungsten Carbide: Manufactured from micro-grain solid carbide exhibiting extreme red hardness up to 1,000°C, extending tool life to over 8,000–12,000 operations under standard operating conditions.
• High-Precision Collar Formation: Delivers precise collar height and surface planarity, meeting ISO 2768-m tolerances for high-reliability assembly.
• Rapid Cycle Times: Complete hole piercing and bushing formation in just 2 to 4 seconds per cycle on standard CNC machining centers or heavy-duty drill presses.

Tool Selection: Standard (Round) vs. Flat-Cut (With Collar)

Selecting the correct thermal drill configuration depends on your joint design requirements:

1. Standard (Round): Creates a drawn-out lower bushing while leaving a smooth, raised annular collar on the top workpiece surface. Ideal for standard structural joints where flush contact is not mandatory.
2. Flat-Cut (With Collar / Planed): Features an integrated carbide cutting blade behind the forming cone. As the bit penetrates, the flat-cut collar mills off the top upset ridge, creating a flat, countersunk face suited for flush gasket sealing or tight parallel mounting.

Industrial Applications & Material Compatibility

This M12 Ø10.9mm friction drill bit is engineered for demanding metal-forming operations across multiple sectors:

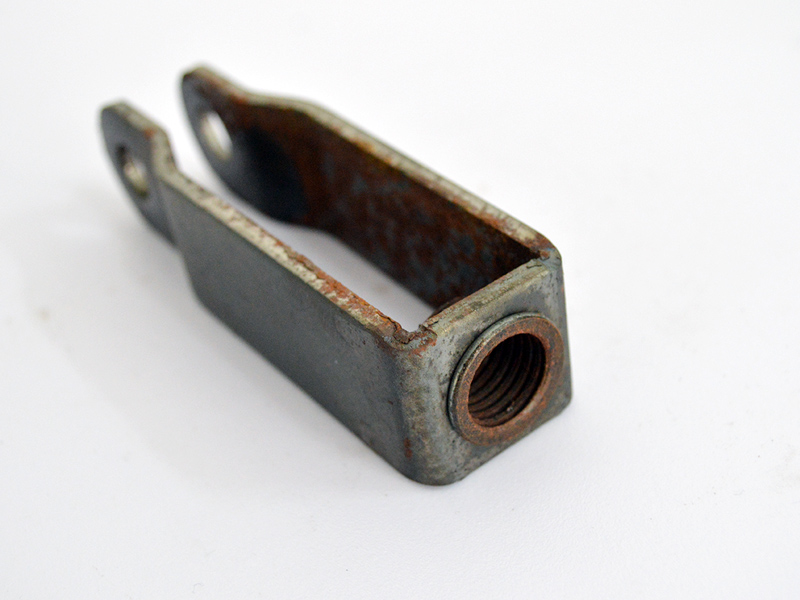

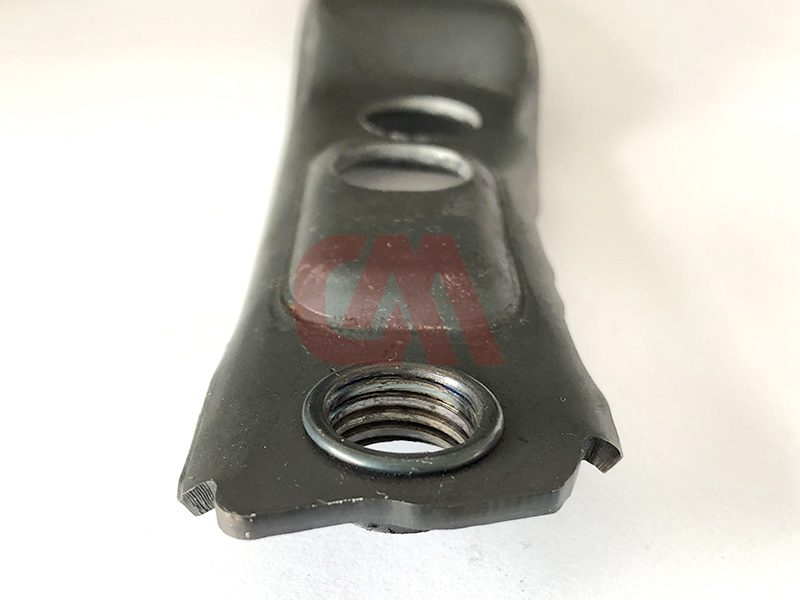

• Automotive & Chassis Components: Subframe mounts, seat structure fasteners, exhaust brackets, and bumper supports.

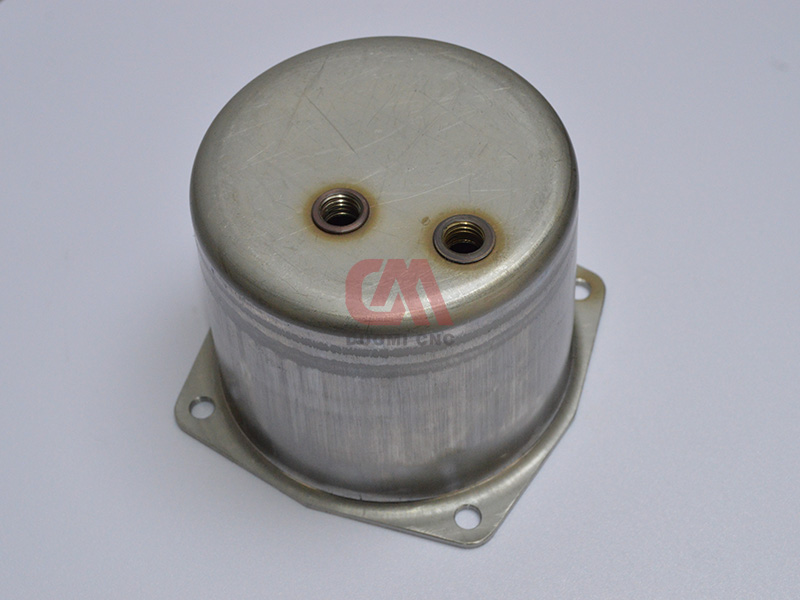

• HVAC & Liquid Cooling Systems: Manifolds, heat exchangers, and fluid pipe connections in stainless steel and copper.
• Structural & Architectural Metalworking: Tubular steel frames, scaffolding, stainless steel fixtures, and modular furniture joints.
• Aerospace & Transit Engineering: Thin-wall profile joining requiring high vibration and pull-out resistance.

Compatible Material Matrix

• Carbon Steel & Structural Steel: Mild steel, S235, S355, cold-rolled sheet steel.
• Stainless Steel: AISI 304, 316, 316L, 430 (requires high-torque spindles and specialized friction paste).
• Non-Ferrous Alloys: Aluminum alloys, Brass, Copper, Bronze, Zinc.
• High-Nickel Alloys: Inconel, Hastelloy, Titanium alloys (under optimized feed/speed parameters).

Recommended Operating Parameters

• Spindle Speed (RPM): 1,800 – 2,600 RPM (depending on workpiece thickness and hardness).
• Axial Feed Rate: 150 – 350 mm/min.
• Axial Force Required: 2.0 kN – 3.8 kN.
• Tool Lubrication: Apply high-temperature thermal drilling paste to the tool cone every 5–10 cycles to prevent material adhesion and extend service life.

For complementary thread forming tools, explore our full range of M10 Ø9.2mm Thermal Drill Bits and M28 Long Thermal Drill Bits.
