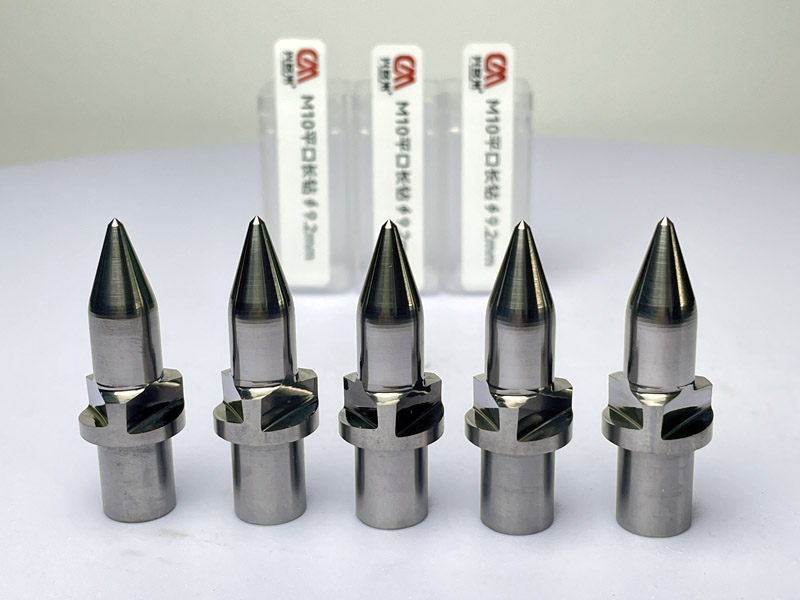

Precision DM M10 Ø9.2mm Long Flat Thermal Friction Drill Bit
High-Speed Tungsten Carbide Flow Drill for Chipless Bushing Formation and Flush Surface Finishing
💡 Our CNC drilling and tapping machines support custom non-standard designs, machine color customization, and OEM branding. Start now to purchase and customize your own equipment, please contact us.
Request a Free Machining Sample →
Features
Thermal Friction Flow Forming: Operates at 600°C+ to plasticize metal and extrude a strong threaded bushing in seconds.
Replaces Rivet & Weld Nuts: Creates a monolithic extruded boss with 3x the original sheet metal wall thickness.
Ultra-Hard Tungsten Carbide: Micro-grain solid carbide substrate provides extreme heat resistance and 10,000+ hole tool life.
Flat-Mouth Flush Seating: Produces a clean, flat counterbored rim ideal for flush fastener seating without raised collars.
In-Depth Engineering Description & Technical Overview
Click to expand complete machine capabilities, workflow analysis & application guide
Click to Expand
Collapse Details
Executive Overview
The Precision DM M10 Ø9.2mm Long Flat Thermal Friction Drill Bit by DUOMI CNC offers advanced thermal friction drilling (flow drilling) technology designed for high-volume B2B manufacturing. Constructed from ultra-durable solid tungsten carbide, this tooling system generates frictional heat up to 600°C–800°C to locally plasticize thin-walled metals.
Unlike traditional chip-cutting drills, the M10 long flat profile displaces material downwards to form a continuous, high-strength bushing—extending thread length up to 3x the original sheet thickness. The flat (planed-mouth) cutting geometry simultaneously trims the surface collar, producing a perfectly flush finish in a single high-speed pass.
Key Technical Specifications & Advantages
- Chipless Bushing Generation: Eliminates metal swarf, scrap waste, and post-drilling cleaning operations.
- Planed Flat Surface Finishing: Integrated face cutters remove the top collar during the penetration cycle for a smooth surface ideal for flush gasket seating or aesthetic joints.
- High Tensile & Torsional Strength: Bushings support full thread engagement (M10 x 1.5 pitch) with pull-out forces exceeding conventional rivet nuts by up to 300%.
- Tungsten Carbide Construction: Engineered for extreme heat dissipation and thermal shock resistance, delivering 3,000–5,000 hole production life spans under optimal cooling conditions.
- Universal CNC & Drill Press Compatibility: Fits standard CNC machining centers, high-speed drill presses, and dedicated tapping units.
Operational & Economic ROI
By replacing traditional weld nuts, press inserts, and blind rivet fasteners, the DUOMI M10 flat thermal friction drill bit reduces cycle times by up to 75% and lowers hardware assembly costs significantly:
- Cycle Time Reduction: Complete hole formation and collar facing in 2 to 4 seconds.
- Material Savings: Eliminates secondary fast-locking hardware purchases and manual insert labor.
- Process Reliability: 0% risk of loose thread inserts during structural vibration or high thermal shock.
Primary Industrial Applications
- Automotive & Transportation: Lightweight chassis framing, seat structures, and exhaust manifolds.

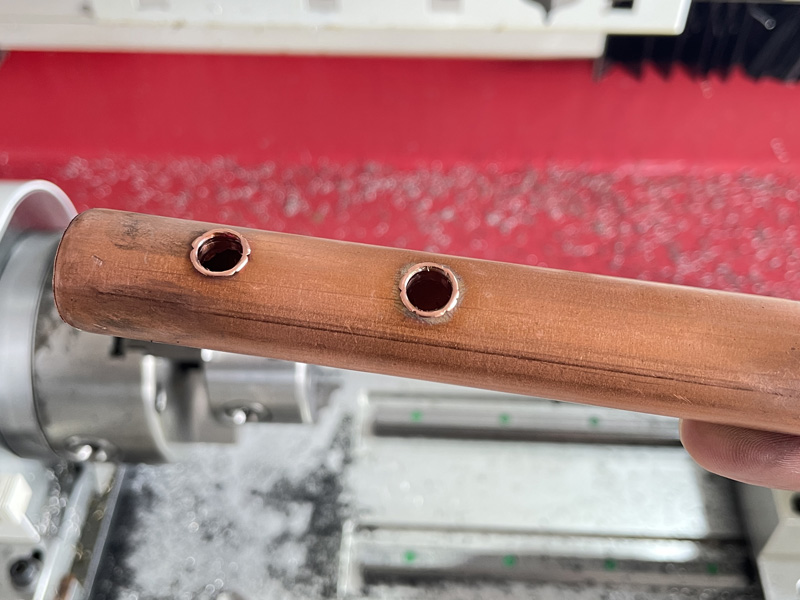

- HVAC & Fluid Heat Exchangers: Thin-walled manifolds, liquid-cooling tubes, and solar thermal collectors.
- Metal Fabrication & Furniture: Stainless steel architectural handrails, modular office furniture, and frame joinery.
- Structural Engineering: Hollow structural section (HSS) connections and bearing housings.
Operating Guidelines & Parameters
- Recommended Spindle Speed: 1,800 – 2,600 RPM (depending on base material hardness).
- Target Material Thickness: 2.0 mm – 4.5 mm sheet metal or tubing.
- Compatible Base Metals: Mild steel, stainless steel (304/316), aluminum alloys, brass, copper, and high-strength alloys (Inconel, Hastelloy).
Purchase & Delivery Guarantees
Direct Factory Assurance — Built, Tested, and Supported from Dongguan to Your Shop Floor
Runs on Your System
Standard GSK control (100% Fanuc G-code compatible) or optional Mitsubishi/Siemens. Direct CAD file import for code-free toolpath generation.
Factory Video FAT
Live drilling/tapping tests on your actual workpiece recorded before dispatch. Final 50% balance payment is paid only after your video approval.
40-Day Build & Rugged Crate
Guaranteed maximum 40-day manufacturing cycle. Sealed in anti-rust vacuum aluminum foil and bolted in fumigation-free timber crates (EXW/FOB/CIF).
Direct Engineer Care
Direct 1-on-1 WhatsApp group with your machine's build engineers, 12-month full warranty, and critical replacement parts dispatched via DHL within 24–48h.
Every DUOMI machine is built under a transparent 13-step factory production & responsibility chain.
Parameters
Download Technical Brochure| Thread Size | M10 |
| Diameter | Ø9.2 mm |
| Finishing | Plane Surface |
| Materials | Tungsten Carbide |
| Brand | DUOMI ( DM ) |

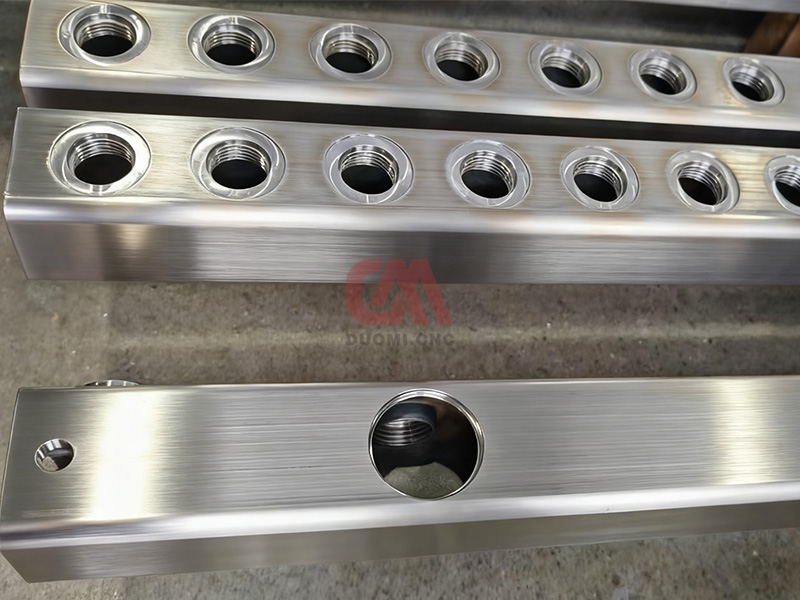

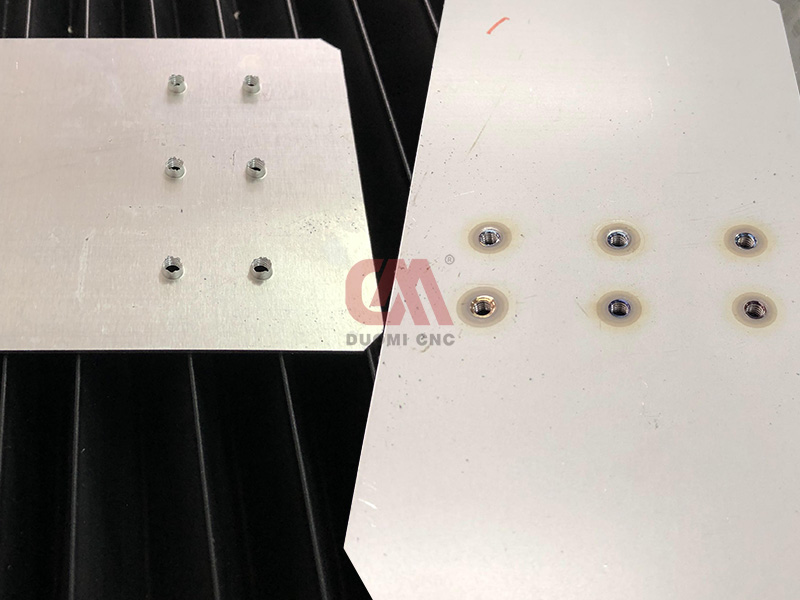

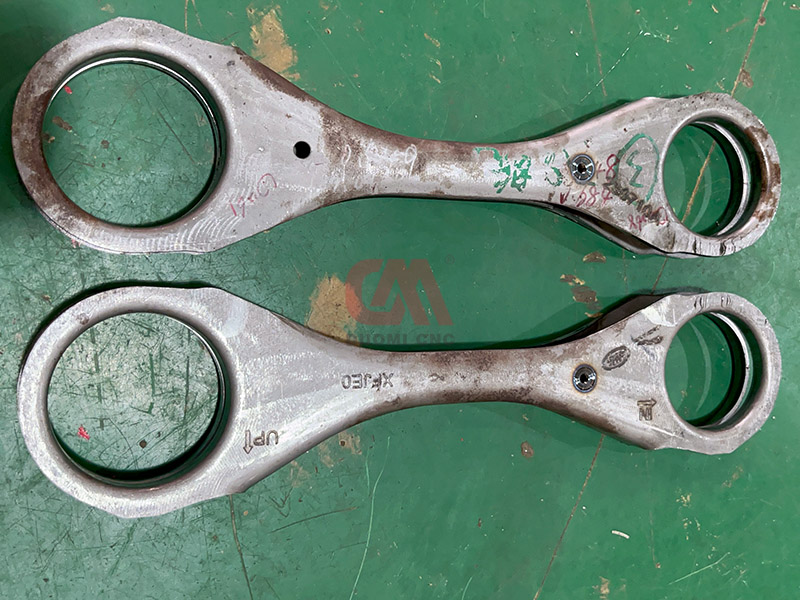

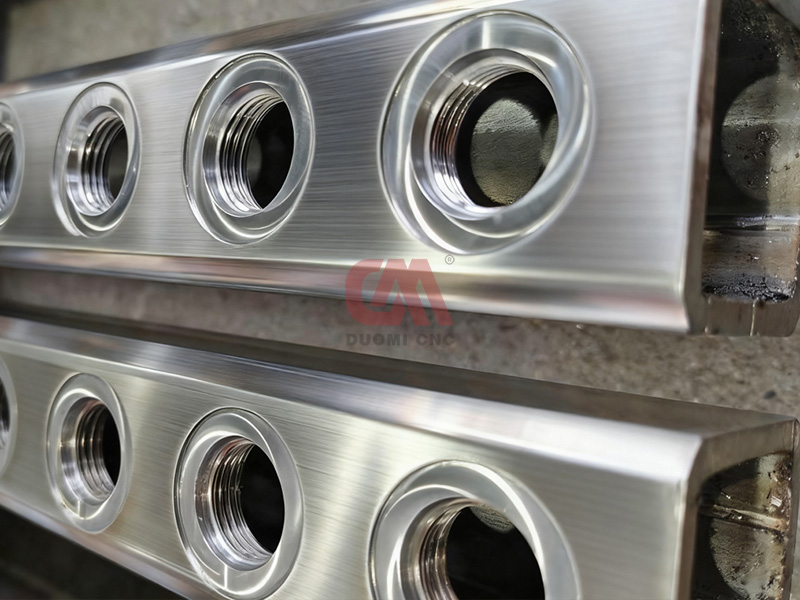

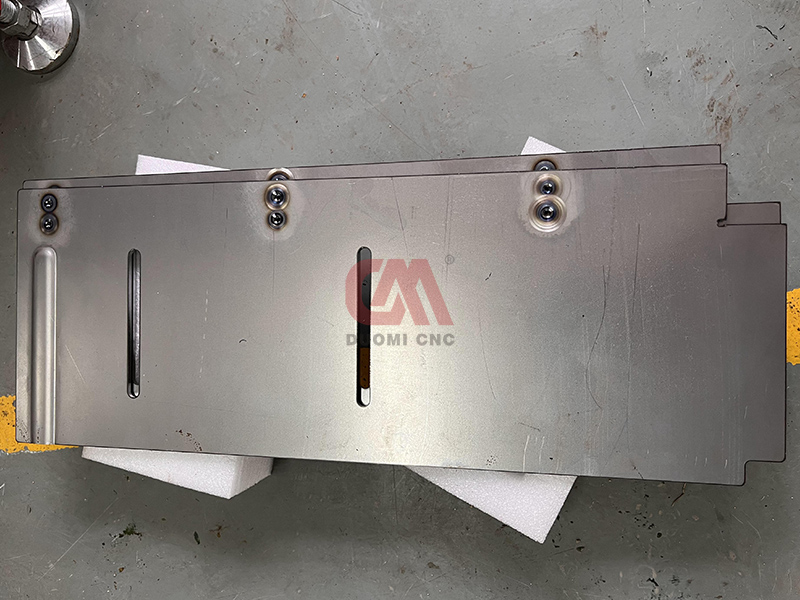

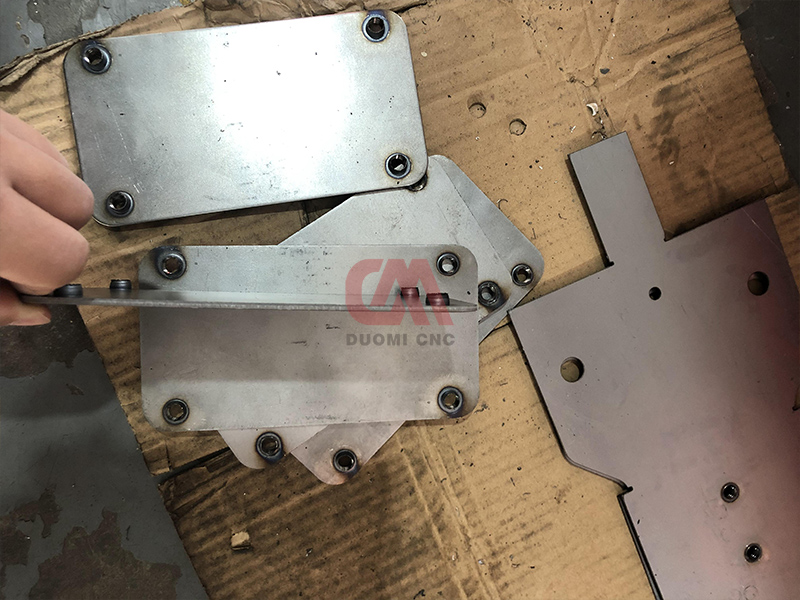

Machining Samples
Real parts processed by our machines
Frequently Asked Questions
We “only” do drilling & tapping. Why do customers still choose Duomi over general-purpose CNC machines?
What does “Your part defines the solution” mean in practice?
What is the difference between standard and flat (planed) thermal friction drill bits?
Why is the diameter specified as Ø9.2 mm for an M10 thread size?
What spindle speed and axial force are required for M10 thermal friction drilling?
Can DUOMI thermal friction drill bits process stainless steel and high-temp alloys?
How many holes can a single DUOMI M10 thermal friction drill bit produce?
Does thermal friction drilling require special CNC machinery?
