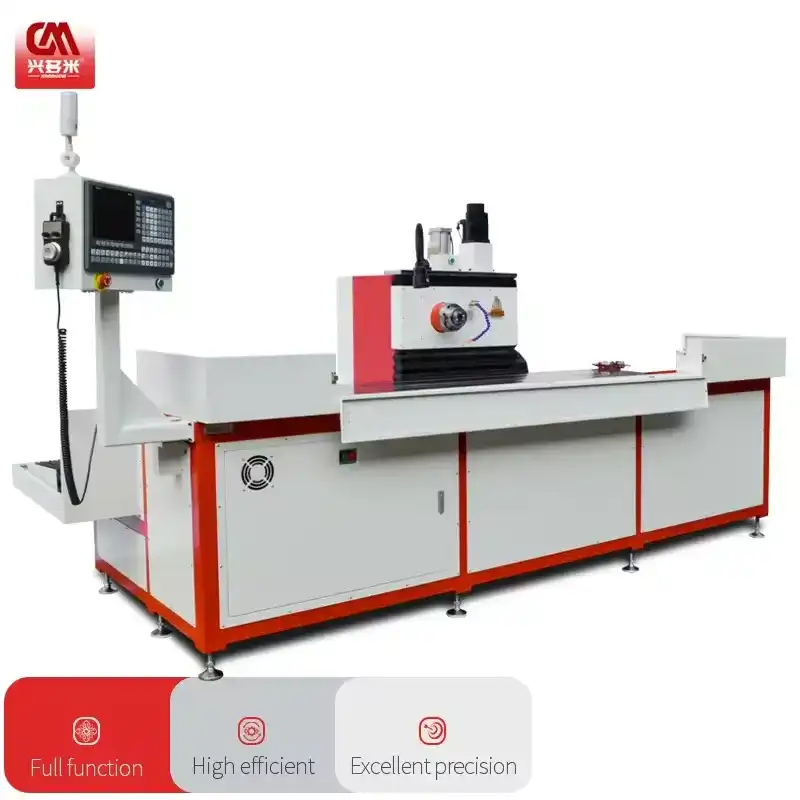

4-Axis Horizontal CNC Drilling & Tapping Machine with 360° Rotary Table - DNC-1630N10(R1)
High-Efficiency Multi-Surface Machining for Large Plates & Complex Structural Parts with 10-Tool Disc ATC & Guaranteed ±0.02mm Precision
💡 Non-standard customization is fully supported (Min. Order: 1 Set). Travel dimensions (X/Y/Z), rotary table specs, machine styling, and spindle options can be tailored to your production workflow.
Request a Free Machining Sample →
Features

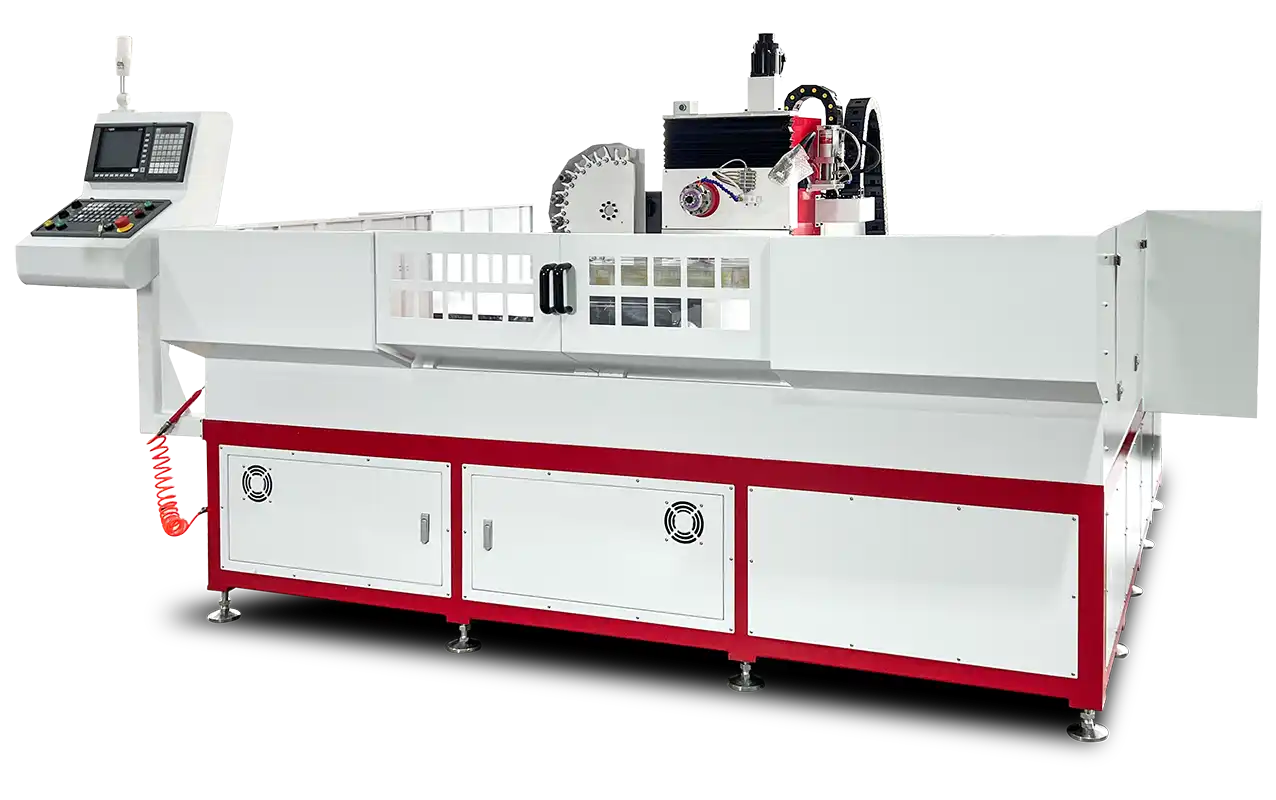

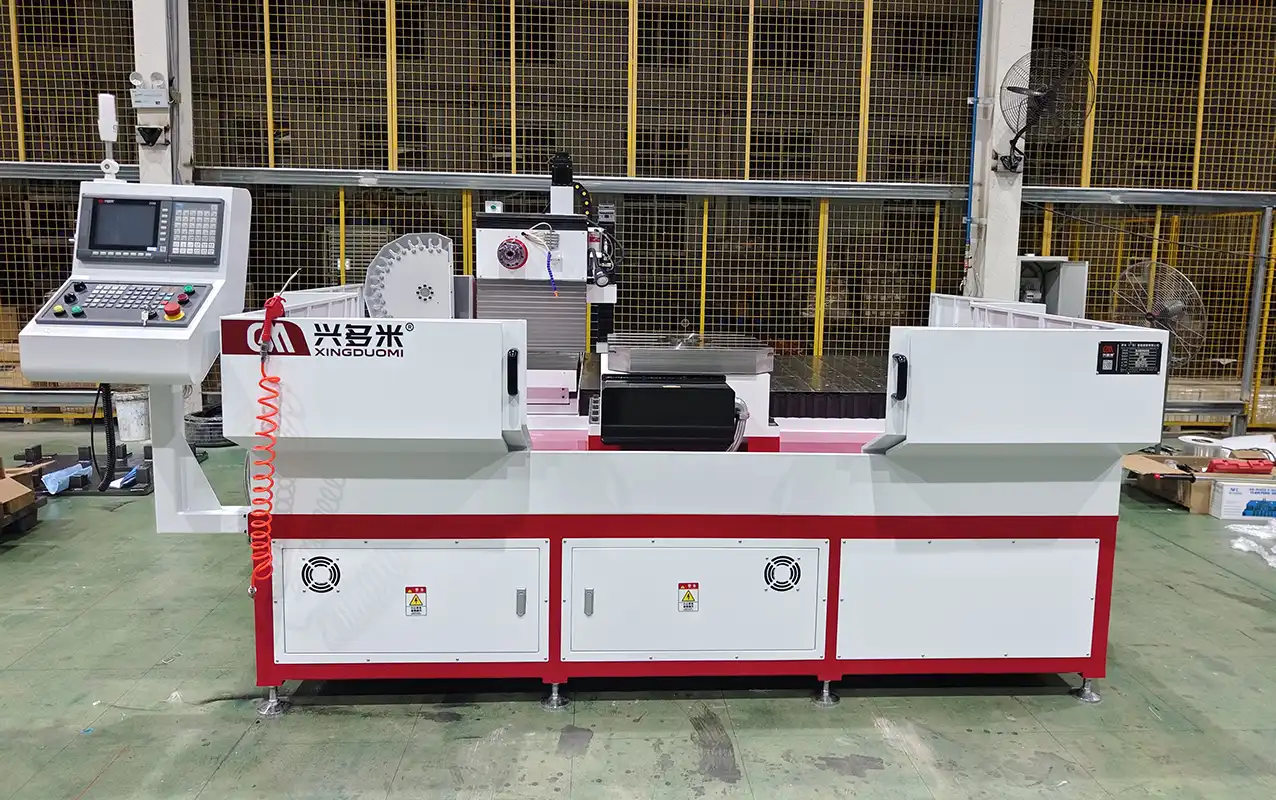

4-Axis Multi-Surface Machining Efficiency: Integrated 360° automatic indexing/turnover rotary platform enables continuous, multi-face side hole drilling and tapping in a single clamping setup.
High-Rigidity Taiwan Mechanical Spindle: Engineered with heavy-duty imported Taiwan mechanical spindle technology, delivering high torque and sustained cutting stability for demanding metalworking.
10-Tool Disc Automatic Tool Changer (ATC): High-speed 10-slot disc magazine automates tool transitions across multi-size drilling and tapping operations, minimizing non-cutting cycle times.
Versatile T-Slot Table & Sub-Table Expansion: Heavy-duty T-slot working table accommodates standard and irregular workpieces, with modular auxiliary sub-table support for extra-large industrial components.
API Laser Interferometer Precision Guarantee: 100% factory inspected and error-compensated using US-imported API laser interferometers to strictly guarantee repeated positioning accuracy within ±0.02mm.
In-Depth Engineering Description & Technical Overview
Click to expand complete machine capabilities, workflow analysis & application guide
Click to Expand
Collapse Details
Executive Overview: Unlocking Unrivaled Multi-Surface Efficiency in Horizontal CNC Machining
In modern industrial metalworking, processing complex structural parts and large metal plates across multiple faces has traditionally been a bottleneck. Repetitive manual repositioning, realignment errors, and slow tool setups kill shop-floor profitability.

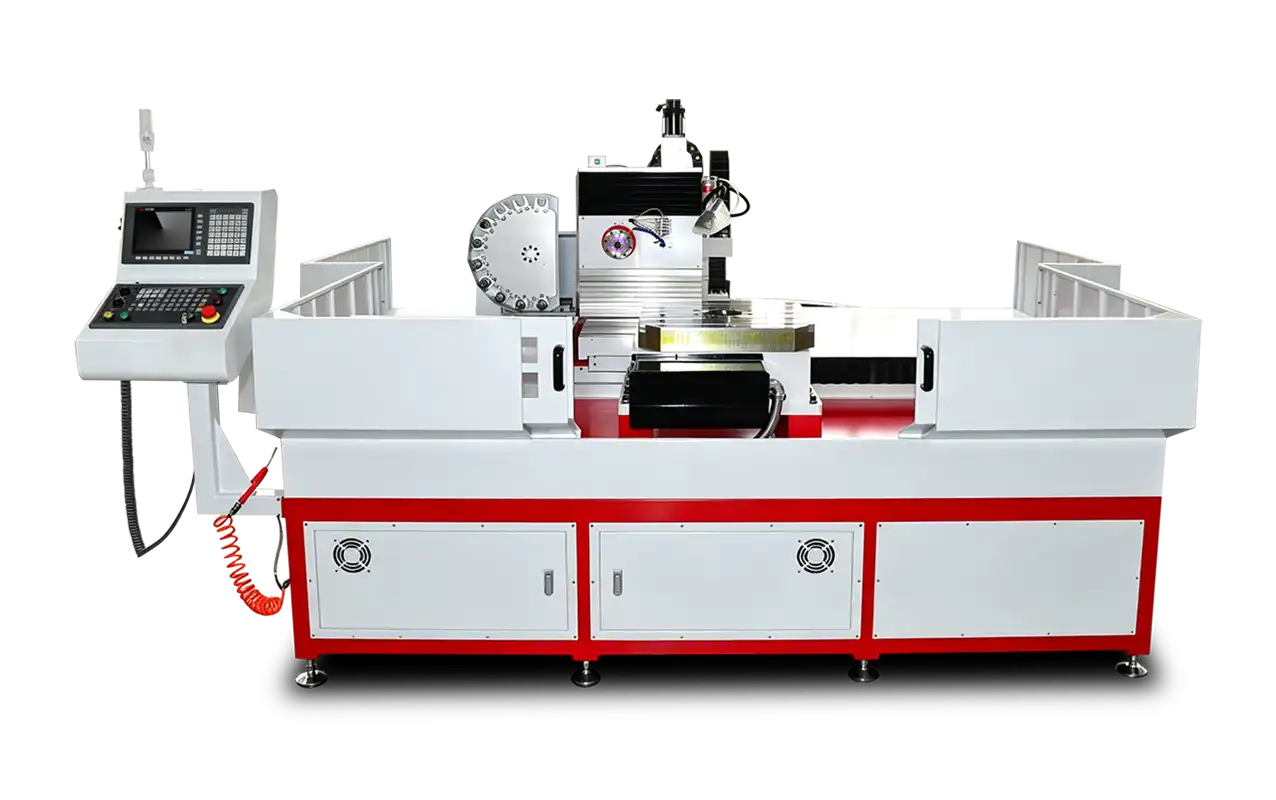

The DUOMI CNC 4-Axis Horizontal Drilling & Tapping Machine (Model DNC-1630N10(R1)) is purpose-built to break through these efficiency barriers. Featuring an expansive 1.6-meter X-axis stroke (1600mm x 300mm x 600mm) and an automated A-axis 360° indexing rotary platform, this machine completes multi-sided side drilling, tapping, chamfering, and milling in one seamless clamping cycle.
Powered by a high-rigidity Taiwan imported mechanical spindle and equipped with a 10-tool disc automatic tool changer (ATC), the DNC-1630N10(R1) empowers manufacturers to slash labor dependency, eliminate setup-induced cumulative errors, and dramatically boost throughput. Every unit undergoes rigorous 100% factory calibration using US-imported API laser interferometers, guaranteeing a tight repeated positioning accuracy of ±0.02mm.
Key Technical Advantages & Business ROI
- Single-Setup Multi-Face Machining: The automated 360° A-axis rotary platform automatically turns the workpiece to process all side faces, cutting setup time by up to 75%.
- Heavy-Duty Cutting Power & Stability: Equipped with a high-rigidity Taiwan mechanical spindle designed to deliver strong torque for smooth, chatter-free drilling and tapping in steel, iron, and alloys.
- 10-Tool Disc Automatic Tool Changer (ATC): High-speed tool switches allow complex parts requiring multiple drill and tap sizes to run unattended without operator intervention.
- Generous 1.6m Working Envelope: X: 1600mm, Y: 300mm, Z: 600mm travel accommodates long extrusions, structural frames, and heavy plate workpieces.
- Zero-Defect Precision Assurance: Every machine is laser-inspected and pitch-compensated using imported API laser devices, assuring precise tolerances (±0.02mm) across thousands of production cycles.
- Versatile Workpiece Clamping: Flexible T-slot bed handles standard and irregular/exotic geometries, with optional sub-table mounts for oversized structural parts.
Solved Industry Pain Points: Turning Operational Bottlenecks into Profit
1. Cumulative Errors & Excessive Down Time from Re-Clamping
- Challenge: Manually un-clamping and re-orienting complex parts for side-hole drilling leads to stack-up tolerances, misaligned holes, high scrap rates, and operator fatigue.
- Solution: The 4-axis synchronized control system rotates the workpiece 360° automatically. Side drilling and tapping on all orientations are completed in a single setup, guaranteeing absolute alignment across faces.
2. Bottlenecks in Multi-Aperture Side Drilling & Tapping
- Challenge: Changing tools manually for different hole diameters and tap sizes slows down cycle times and increases labor dependency.
- Solution: The integrated 10-tool disc ATC automatically selects the precise drill or tap bit on-the-fly, creating continuous automated operations for complex hole patterns.
3. Machining Irregular & Oversized Components
- Challenge: Standard clamping tables cannot securely hold long profiles, custom weldments, or irregular structural parts.
- Solution: Designed with a heavy-duty T-slot working table, the DNC-1630N10(R1) seamlessly integrates custom fixtures or auxiliary sub-tables, allowing oversized structural pieces to be machined with rigid stability.
Industrial Applications & Workpiece Compatibility
The DUOMI DNC-1630N10(R1) horizontal CNC drilling and tapping center is engineered for high-demand industrial sectors worldwide:
- Heavy Machinery & Structural Metal Framing: Long structural beams, equipment frames, base plates, and multi-side mounting brackets.
- Automotive & Commercial Vehicles: Battery pack housing frames, chassis profiles, structural cross-members, and cast aluminum housings.
- Industrial Valves & Fluid Systems: Multi-faced valve bodies, manifold blocks, pump casings, and hydraulic manifolds requiring multi-angle porting.
- Aluminum Extrusions & Commercial Enclosures: Architectural aluminum structures, display frames, heat sinks, and server rack chassis.
Purchase & Delivery Guarantees
Direct Factory Assurance — Built, Tested, and Supported from Dongguan to Your Shop Floor

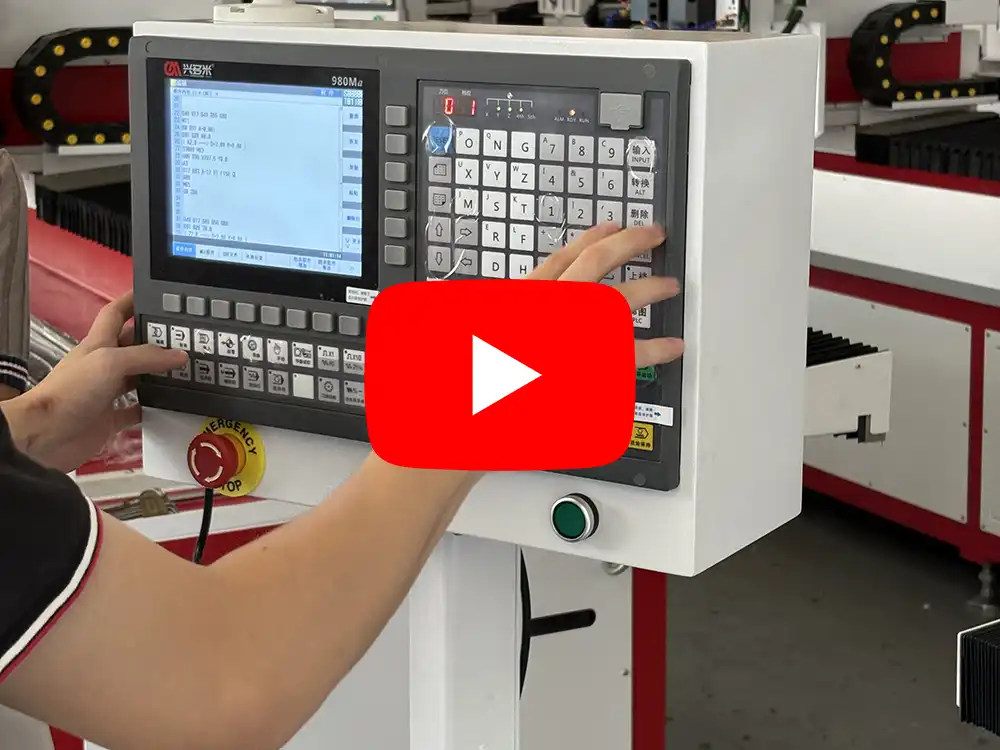

Runs on Your System

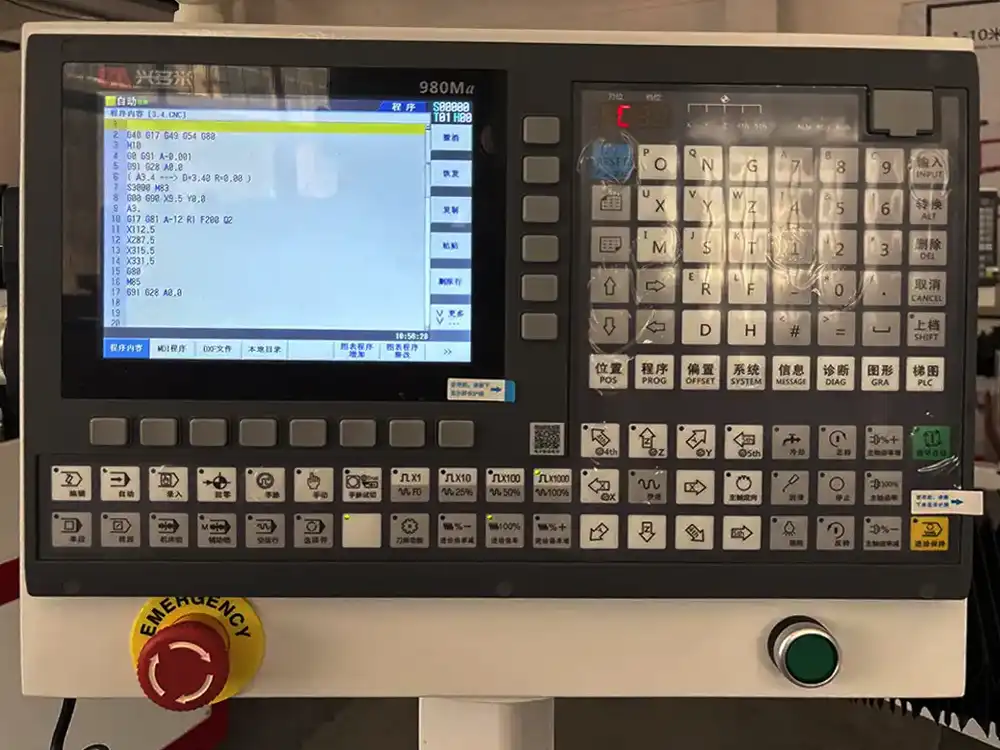

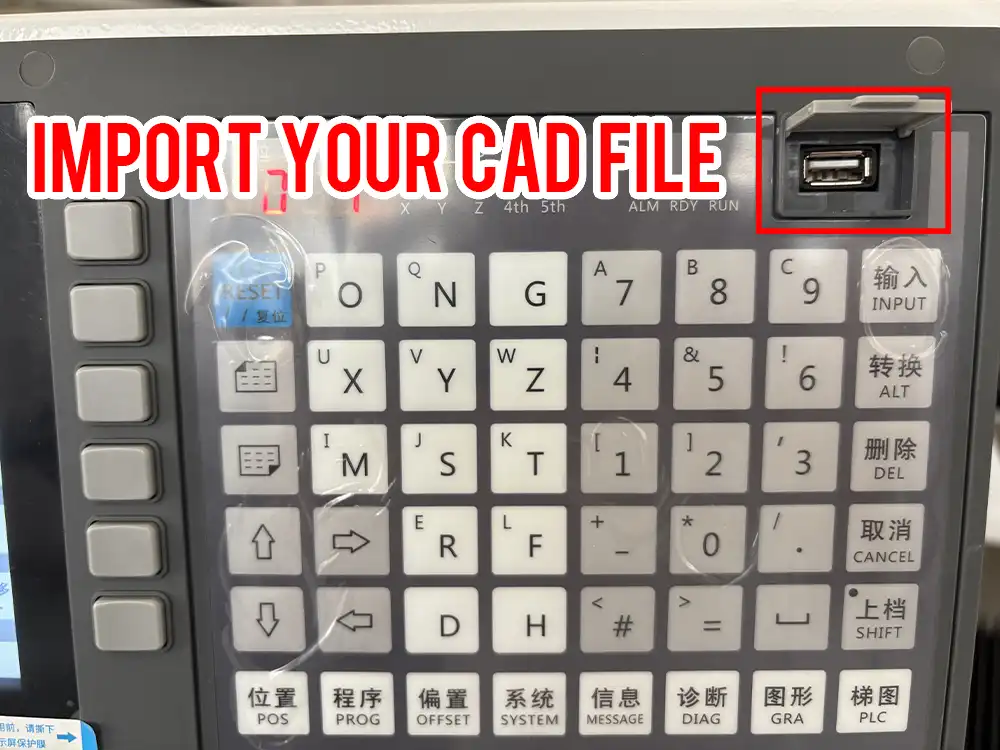

Standard GSK control (100% Fanuc G-code compatible) or optional Mitsubishi/Siemens. Direct CAD file import for code-free toolpath generation.
Factory Video FAT
Live drilling/tapping tests on your actual workpiece recorded before dispatch. Final 50% balance payment is paid only after your video approval.
40-Day Build & Rugged Crate

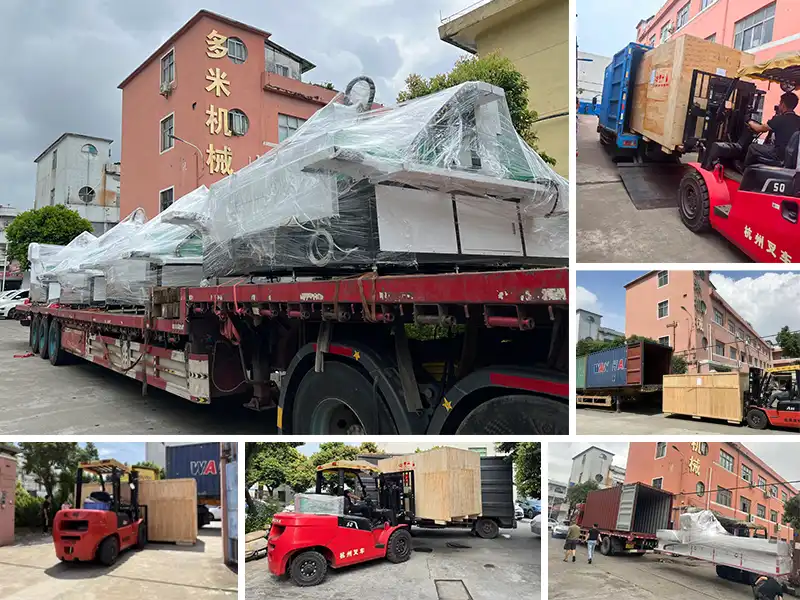

Guaranteed maximum 40-day manufacturing cycle. Sealed in anti-rust vacuum aluminum foil and bolted in fumigation-free timber crates (EXW/FOB/CIF).
Direct Engineer Care
Direct 1-on-1 WhatsApp group with your machine's build engineers, 12-month full warranty, and critical replacement parts dispatched via DHL within 24–48h.
Every DUOMI machine is built under a transparent 13-step factory production & responsibility chain.
Parameters
Download Technical Brochure| Model | DNC-1630N10(R1) |
| Machine Type | Horizontal 4-Axis CNC Drilling & Tapping Machine |
| X-axis Machining Stroke | 1600 mm |
| Y-axis Machining Stroke | 300 mm |
| Z-axis Machining Stroke | 600 mm |
| A-axis Rotary Platform | 360° Automatic Indexing / Turnover |
| Spindle Type | High-Rigidity Taiwan Mechanical Spindle |
| Spindle speed | 1000~6000rpm Stepless speed regulation |
| Spindle taper hole | BT30 |
| Spindle power | 5.5 KW |
| X axis moving speed | 30m/min~60m/min |
| Y axis moving speed | 25m/min |
| Z axis moving speed | 25m/min |
| Tool Magazine Capacity | 10-Tool Disc Automatic Tool Changer (ATC) |
| Repeated Positioning Accuracy | ±0.02mm (API Laser Calibrated & Compensated) |
| Table Clamping Surface | T-Slot Table (Auxiliary Sub-table Compatible) |
| Primary Machining Functions | Multi-Face Drilling, Precision Tapping, Chamfering, Milling |
| Drilling Capacity Range | 1~20mm |
| Tapping Capacity Range | M2~M18 |
| Programming / Control Mode | CAD file import / computer programming / manual programming |
| Operating Voltage | AC 380V / 50Hz (Customizable) |

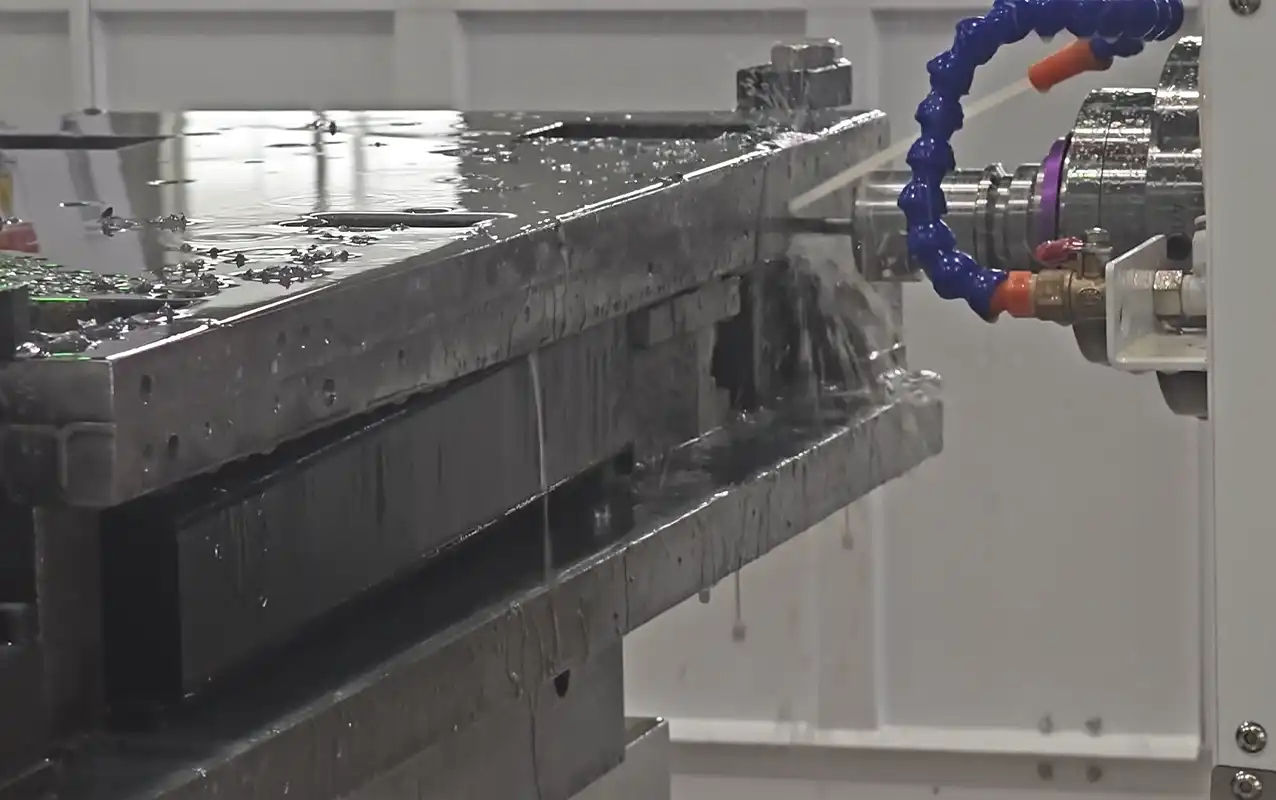

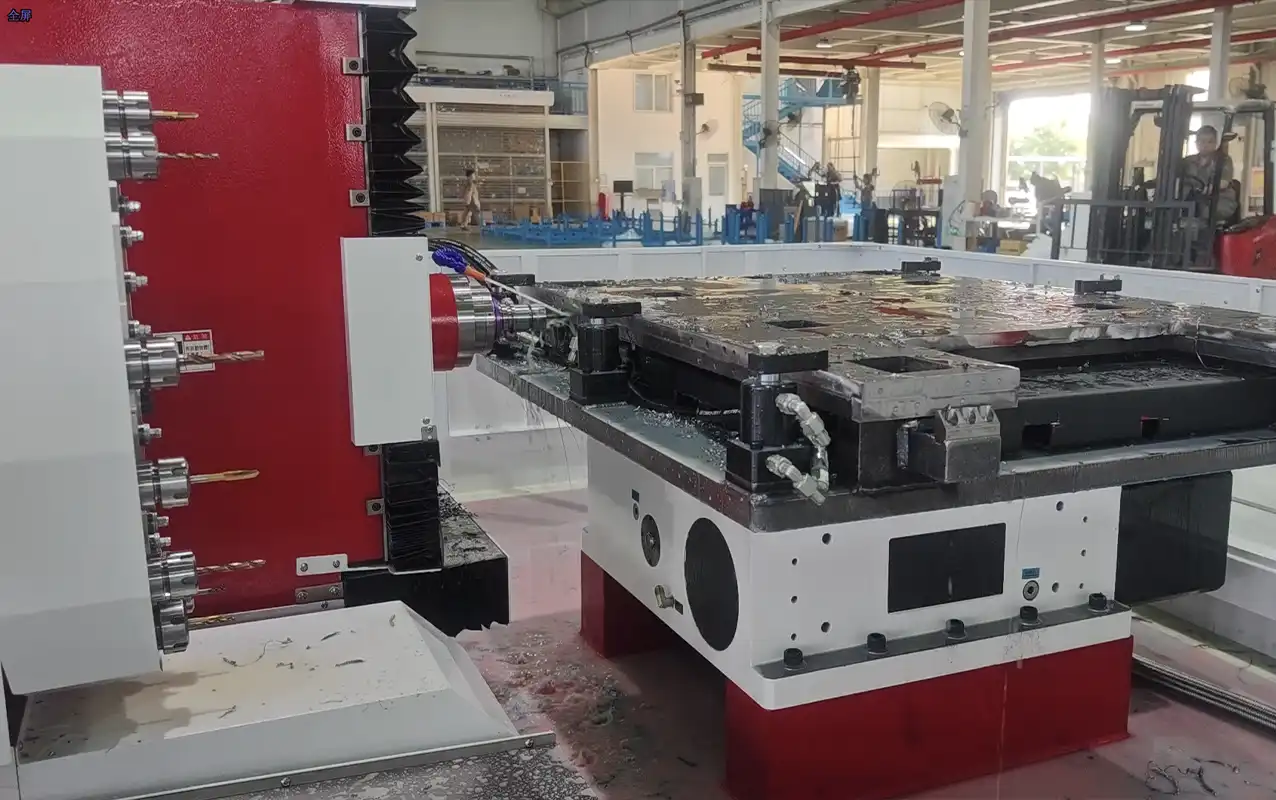

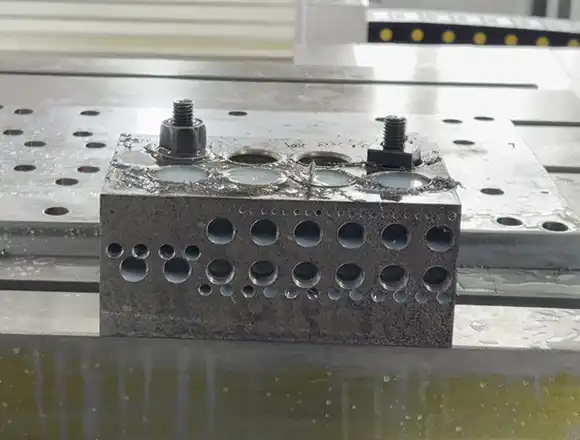

Machining Samples
Real parts processed by our machines
Frequently Asked Questions
We “only” do drilling & tapping. Why do customers still choose Duomi over general-purpose CNC machines?
What does “Your part defines the solution” mean in practice?
What are the main advantages of the DNC-1630N10(R1) over standard 3-axis horizontal machines?
What is the machining stroke and capacity of this model?
How does DUOMI ensure the precision of the DNC-1630N10(R1)?
Can the machine accommodate irregular or oversized workpieces?
Is non-standard customization supported for this machine?
